Datasheet> All Categories > Analog mixed-signal IC> converter> CXA1396D

Preview

CXA1396D: Description1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP42; CategoryAnalog mixed-signal IC converter; File Size256KB，12 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CXA1396D Overview

1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP42

CXA1396D Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage
Minimum analog input voltage	-2 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T42
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	42
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	125 MHz
Maximum slew rate	230 mA
surface mount	NO
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal location	DUAL

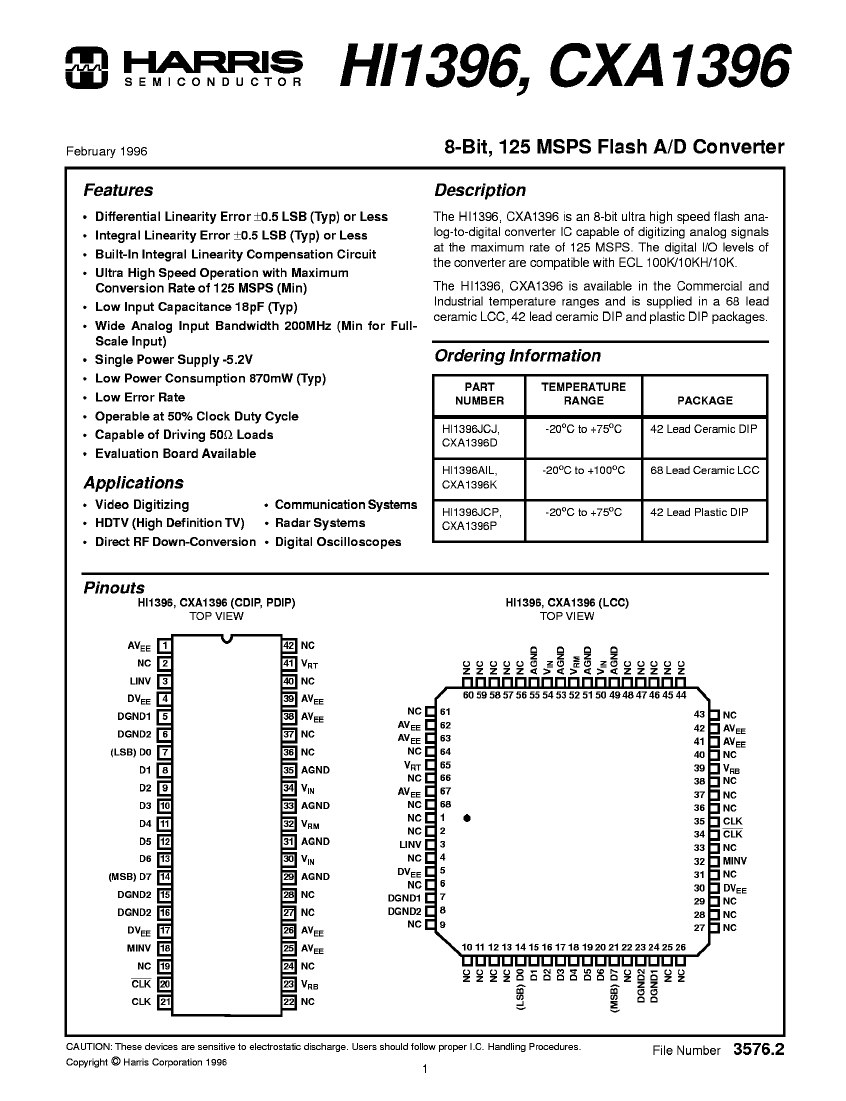

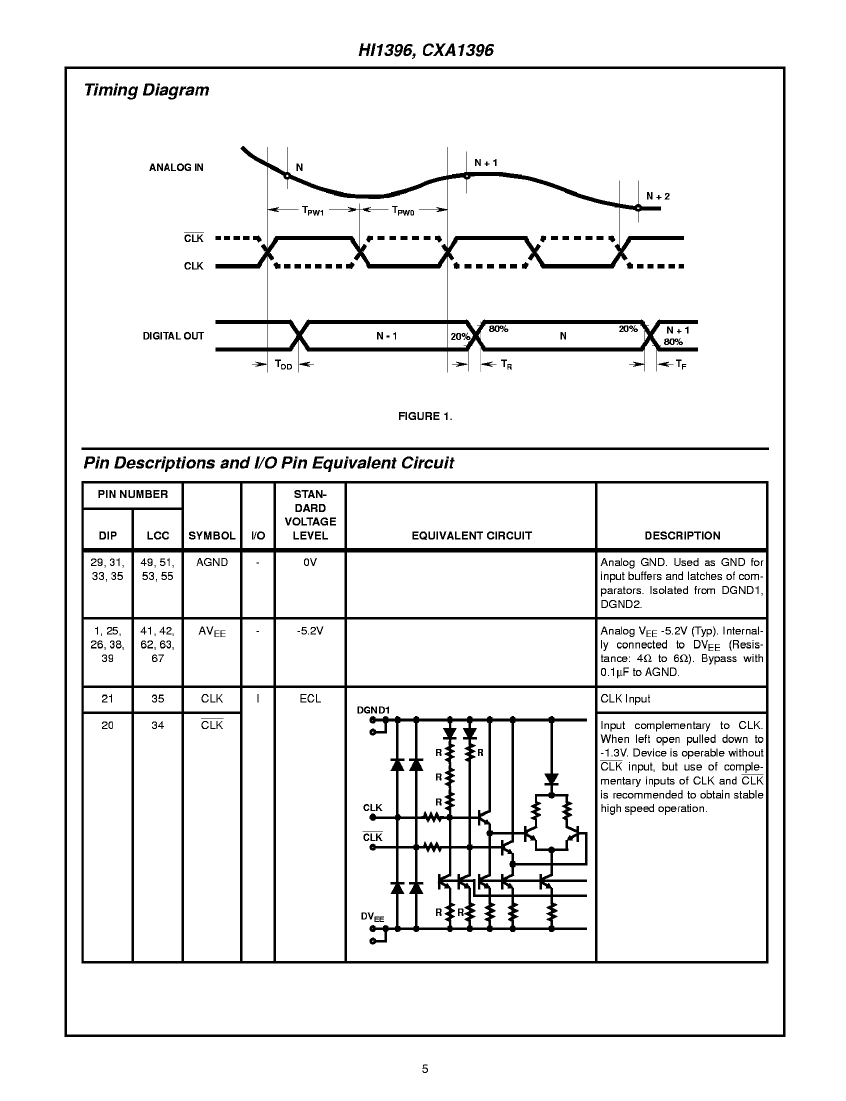

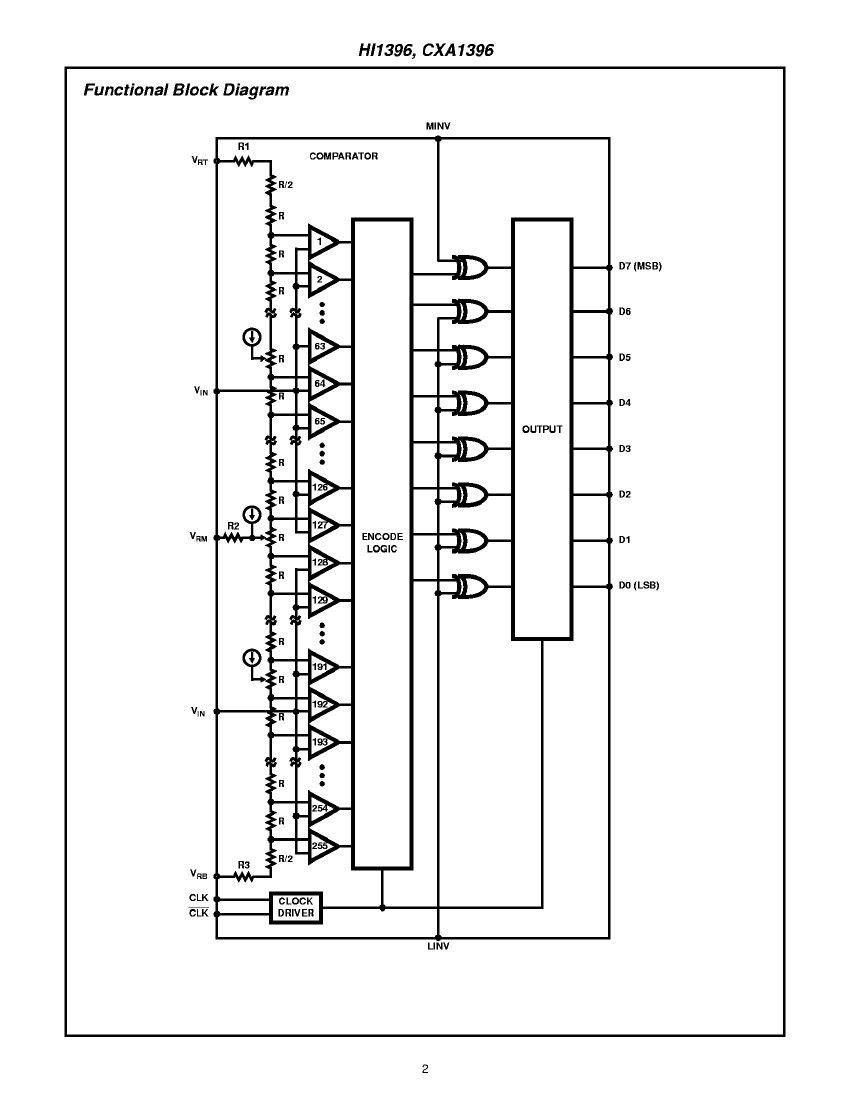

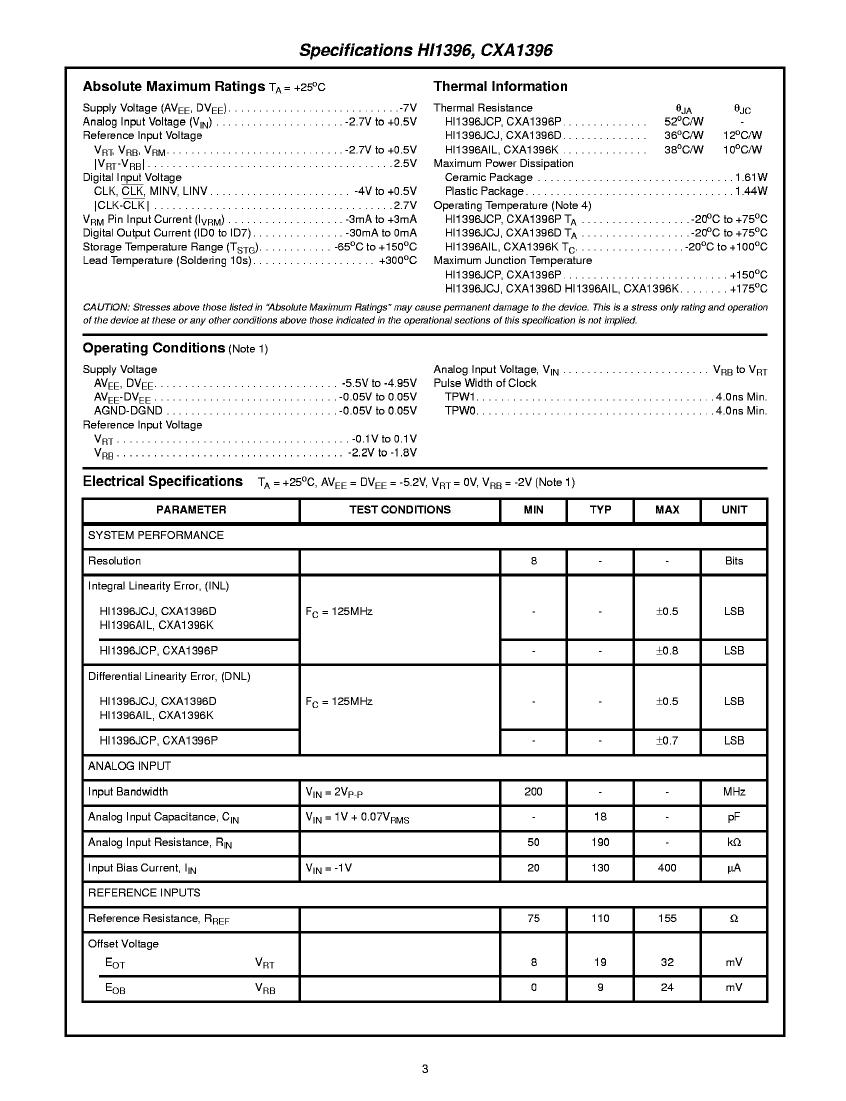

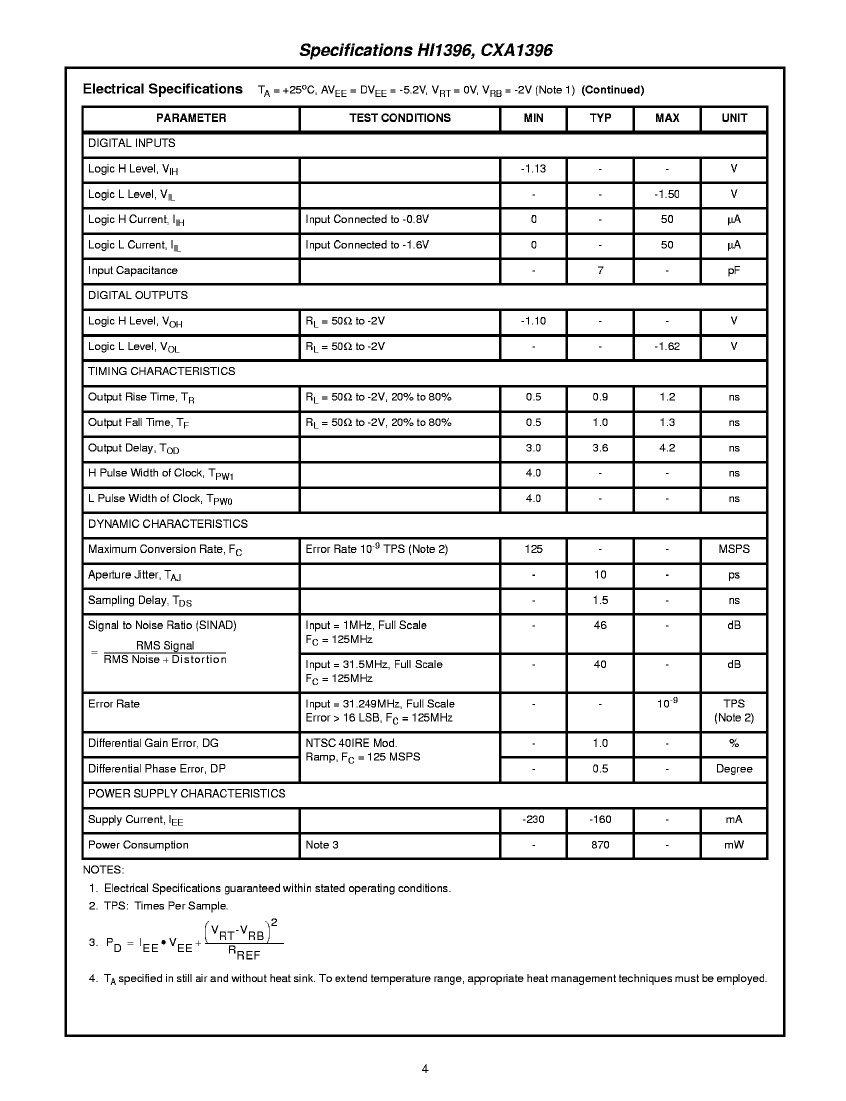

CXA1396D Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

CXA1396D Related Products

	CXA1396D	CXA1396K	HI1396JCP	CXA1396P
Description	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CDIP42	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, CQCC68	IC,A/D CONVERTER,SINGLE,8-BIT,ECL,DIP,42PIN	1-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP42
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	unknown	unknown	not_compliant	unknown
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	A/D CONVERTER	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T42	S-CQCC-N68	R-PDIP-T42	R-PDIP-T42
Maximum linear error (EL)	0.1953%	0.1953%	0.32%	0.3125%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	42	68	42	42
Maximum operating temperature	75 °C	100 °C	70 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Output bit code	BINARY	BINARY	BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT, COMPLEMENTARY OFFSET 2\'S COMPLEMENT	BINARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO
Temperature level	COMMERCIAL EXTENDED	OTHER	COMMERCIAL	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL
ECCN code	EAR99	EAR99	-	EAR99
Minimum analog input voltage	-2 V	-2 V	-	-2 V
Number of analog input channels	1	1	-	1
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	-	PARALLEL, 8 BITS
Sampling rate	125 MHz	125 MHz	-	125 MHz
Maximum slew rate	230 mA	230 mA	-	230 mA
