Power line chokes
Current-compensated D core double chokes
250 V AC, 0.7 … 4.6 A, 3.3 … 68 mH
Series/Type:
B82734R/W
October 2008, January 2009
7f
fÁRspp
Date:
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Power line chokes
Current-compensated D core double chokes
Rated voltage 250 V AC
Rated current 0.7 A to 4.6 A
Rated inductance 3.3 mH to 68 mH

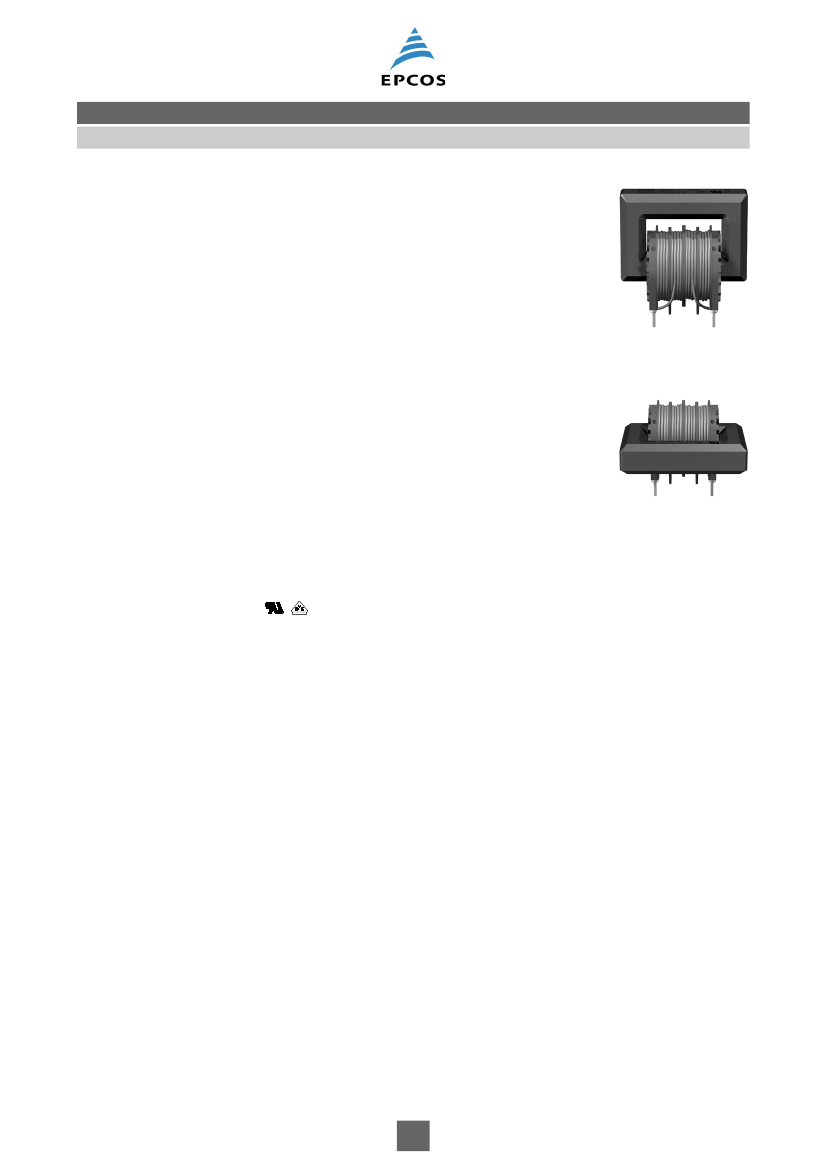

Construction
■
■
■
■
■
■
B82734R/W
Current-compensated double choke
Closed rectangular ferrite core
Closed polycarbonate coil former (UL 94 V-0)
Without encapsulation
2-section winding
Clearance and creepage distances > 3 mm
B82734R
Features
■
High resonance frequency due to 2-section winding
■
Approx. 1% stray inductance for symmetrical
■
■
■
■
■
■
■
■
interference suppression
Low leakage due to closed core shape
High pulse strength
Low whirring noise
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2)
UL and VDE approvals
Recyclable owing to omission of encapsulation and glue
RoHS-compatible
B82734W
Applications
■
Suppression of common-mode interferences
■
Switch-mode power applications
■
Electronic ballasts for lamps
Terminals
■
■
■
■
■
Base material CuNi18Zn20
Layer composition Ni, Sn
Hot-dipped
Pins 0.7
×
0.7 (mm)
Lead spacing 15
×
12.5 (mm)
Marking
Manufacturer, rated inductance, rated current,
ordering code, approval symbols, date of manufacture (WWYY)
Delivery mode
Blister tray in cardboard box
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/08
Power line chokes
Current-compensated D core double chokes

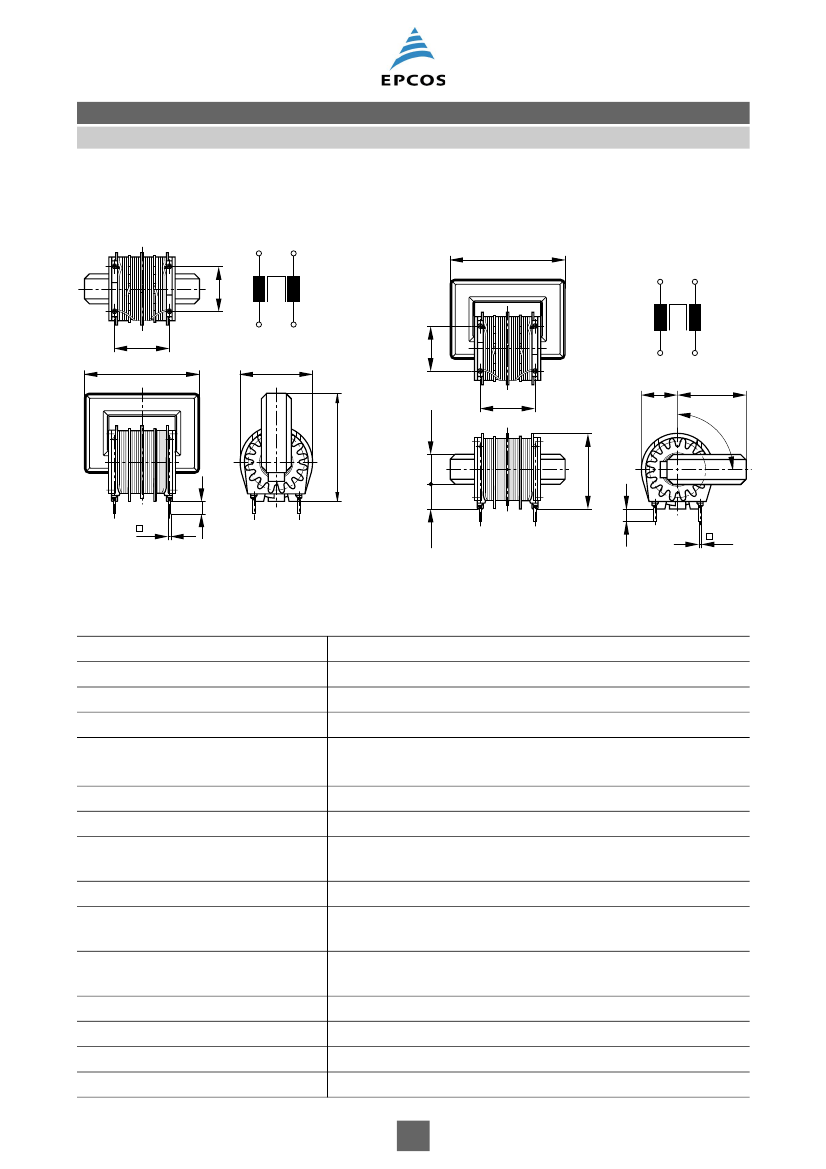

Dimensional drawings and pin configurations
Vertical version (B82734R)
12.5±0.2
B82734R/W
Horizontal version (B82734W)
2
32.5 max.
1
12.5±0.2
1
2
1
2
4
15±0.2
32.5 max.
3
4
3
21 max.
1
2
4
3
4
15±0.2
3
10.5 max. 20.5 max.
90
8 max.
31 max.
3+0.5
21.7 max.
˚
±5
˚
0.7
5 min.
3+0.5
IND0288-3
0.7
IND0289-B
Tolerances to ISO 2768-C unless otherwise noted.
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
Inductance tolerance
Inductance decrease
ΔL/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
(wave soldering)
Climatic category
Storage conditions (packaged)
Weight
Approvals
250 V AC (50/60 Hz)
1500 V AC, 2 s (line/line)
40
°C
/ 60 °C
Referred to 50 Hz and rated temperature
Dimensions in mm
Measured with Agilent 4284A at 10 kHz, 0.1 mA, 20 °C Induc-
tance is specified per winding.
–30%/+50% at 20°C
< 10% at DC magnetic bias with I
R
, 20 °C
Measured with Agilent 4284A at 10 kHz, 5 mA, 20 °C, typical
values
Measured at 20 °C, typical values, specified per winding
Sn96.5Ag3.0Cu0.5: (245
±5)
°C, (3
±0.3)
s
Wetting of soldering area
≥
95% (to IEC 60068-2-20, test Ta)
(260
±5)
°C, (10
±1)
s
(to IEC 60068-2-20, test Tb)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
≤
75% RH
Approx. 30 g
EN 60938-2, UL 1283
3
10/08
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Power line chokes
Current-compensated D core double chokes
Characteristics and ordering codes
I
R
A
0.7
1.3
1.4
1.7
2.0
2.3
2.6
3.2
4.6
L
R
mH
68
47
39
27
20
15
10
6.8
3.3
L
stray,typ
R
typ
μH
410
250
210
140
105
80
53
35
17
mΩ
1450
560
460
320
240
185
130
85
46
T
R
°C
60
40
40
40
40
40
40
40
40
Ordering code
Vertical version
B82734R2701B030
B82734R2132B030
B82734R2142B030
B82734R2172B030
B82734R2202B030
B82734R2232B030
B82734R2262B030
B82734R2322B030
B82734R2462B030
B82734R/W
Approvals
Horizontal version
B82734W2701B030 –
B82734W2132B030
×
B82734W2142B030
×
B82734W2172B030
×
B82734W2202B030 –
B82734W2232B030
×
B82734W2262B030
×
B82734W2322B030
×
B82734W2462B030
×
–
×
×
×
–
×
×
×
×
×
= approval granted

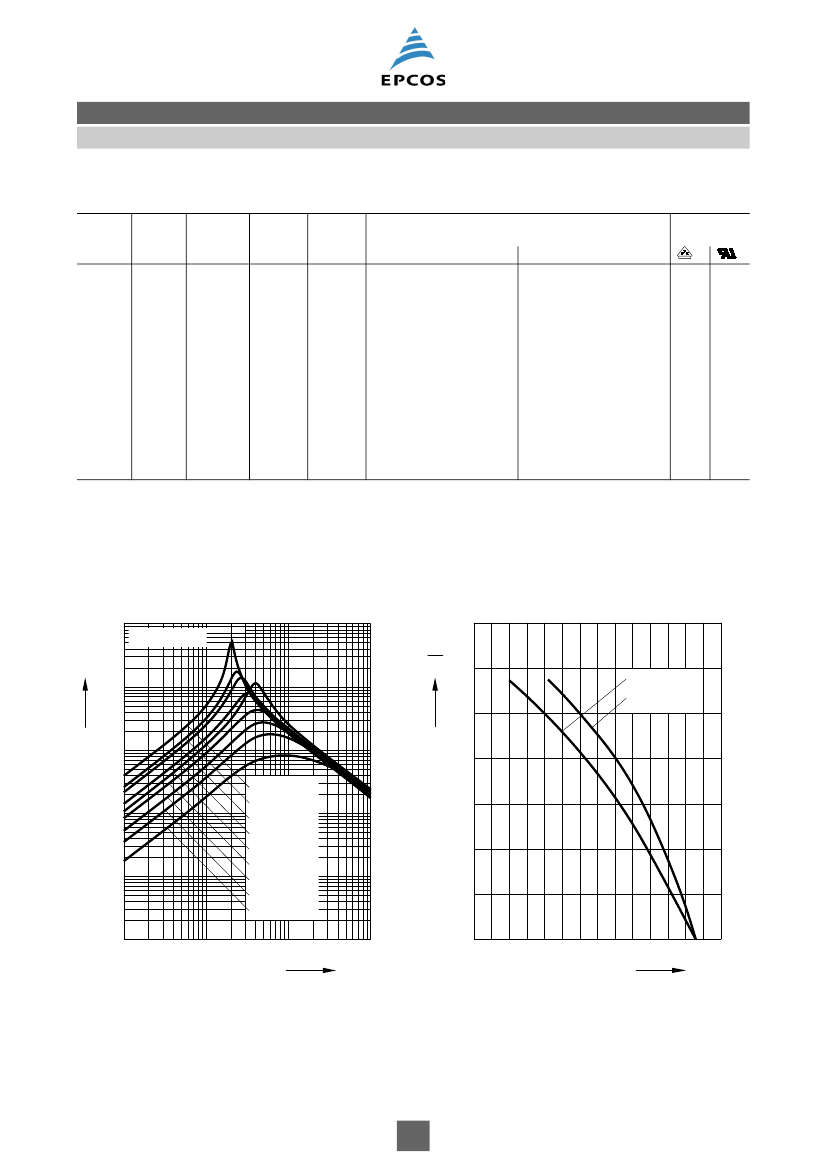

Impedance |Z| versus frequency f
measured with windings in parallel at 20 °C
typical values
10
6
IND0292-V-E
Current derating I
op
/I
R
versus ambient temperature T
A
1.4
I
op
I
R
1.2
1.0
IND0242-K-E
Ω
|Z |
10
5
B82734R/W
T
R
= 40
˚
C
T
R
= 60
˚
C
10
4
2701B030
2132B030
2142B030
2172B030
2202B030
2232B030
2262B030
2322B030
2462B030
10
5
10
6
Hz 10
7
f
0.8
0.6
0.4
0.2
0
10
3
10
2
10
1 4
10
0
20
40
60
80
100
˚
C 140
T
A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/09
Cautions and warnings
■
Please note the recommendations in our Inductors data book (latest edition) and in the data
sheets.
– Particular attention should be paid to the derating curves given there.
– The soldering conditions should also be observed. Temperatures quoted in relation to wave
soldering refer to the pin, not the housing.
■
If the components are to be washed varnished it is necessary to check whether the washing
varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,
or on glued joints. In particular, it is possible for washing varnish agent residues to have a
negative effect in the long-term on wire insulation.
■
The following points must be observed if the components are potted in customer applications:
– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic
housing or core. This pressure can have a deleterious effect on electrical properties, and in
extreme cases can damage the core or plastic housing mechanically.
– It is necessary to check whether the potting material used attacks or destroys the wire
insulation, plastics or glue.
– The effect of the potting material can change the high-frequency behaviour of the components.
■
Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to
breakage of the core.
■
Even for customer-specific products, conclusive validation of the component in the circuit can
only be carried out by the customer.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
10/08
