Part Number

Search

B82476B1102M000

Description
General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 5137, ROHS COMPLIANT
CategoryPassive components    inductor
File Size158KB,7 Pages
ManufacturerTDK Corporation
Websitehttp://www.tdk.com
Environmental Compliance
Download Datasheet Parametric View All

B82476B1102M000 Overview

General Purpose Inductor, 1uH, 20%, 1 Element, Ferrite-Core, SMD, 5137, ROHS COMPLIANT

B82476B1102M000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTDK Corporation
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes5137
structureWirewound
core materialFERRITE
DC Resistance0.008 Ω
Nominal inductance(L)1 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberB82476B1
Number of functions1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package height5.08 mm
Package length12.95 mm
Package formSMT
Package width9.4 mm
method of packingTR
Maximum rated current6.8 A
GuidelineAEC-Q200
seriesB82476B1
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%

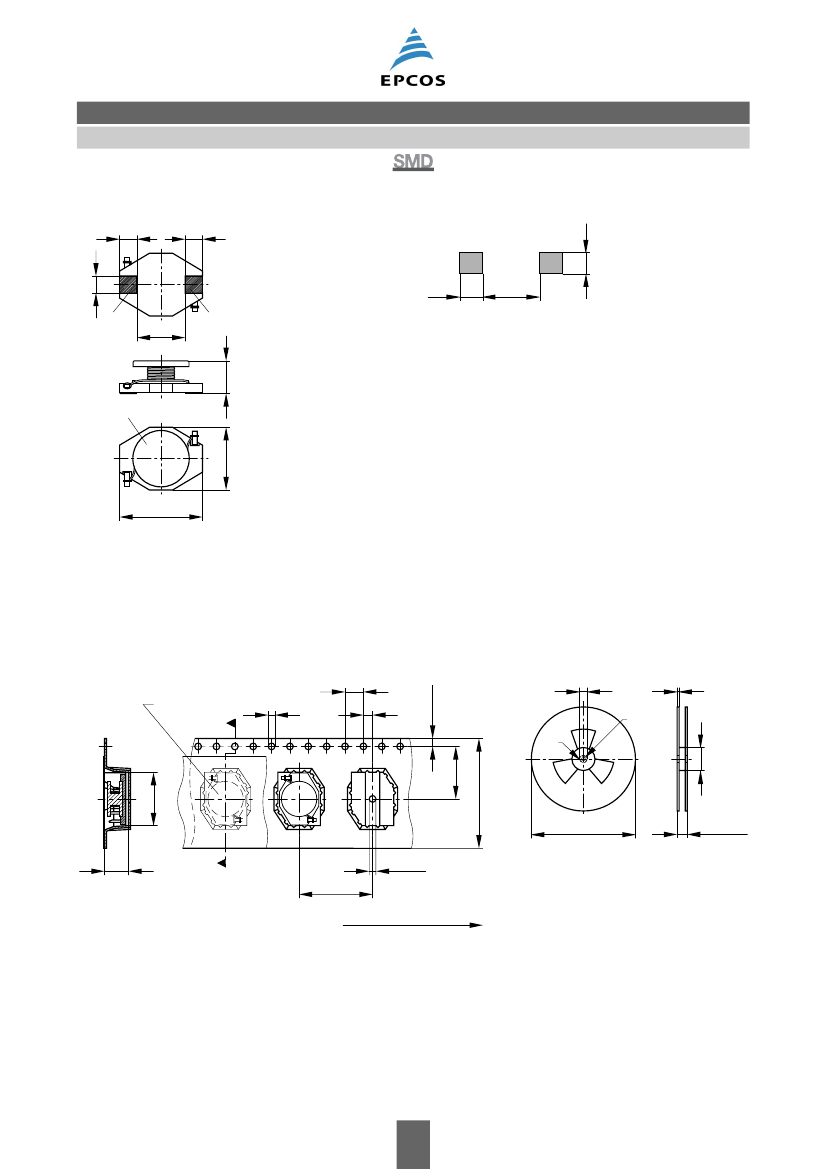

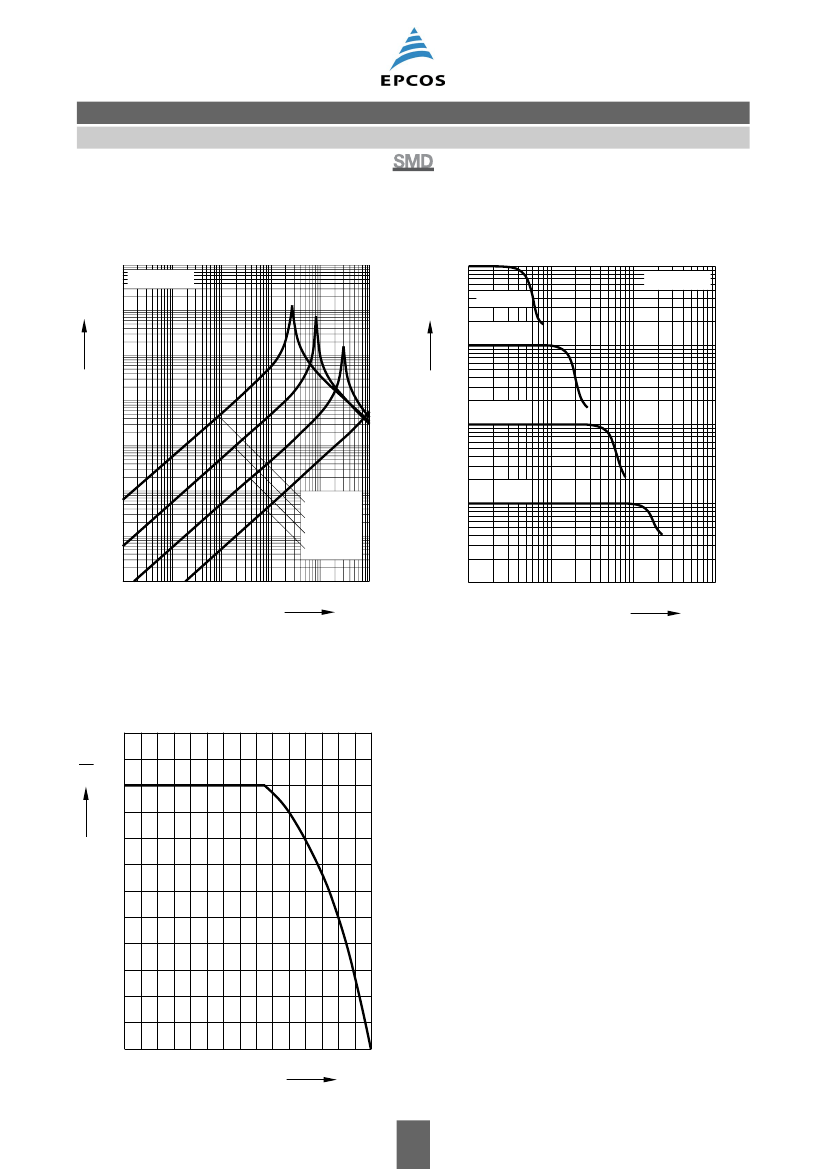

SMT power inductors
Size 12.95
×
9.4
×
5.08 (mm)
Series/Type:
Date:
B82476B1
March 2008
Data Sheet
EPCOS AG 2008. Reproduction, publication and dissemination of this publication,
enclosures
hereto
and the information contained therein without EPCOS’ prior express consent is prohibited.
