FE3X050-13-7NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FE3X050-13-7NL

FE3X050-13-7NL: DescriptionThree Phase EMI Filter, 500V, ROHS COMPLIANT PACKAGE-6; CategoryAnalog mixed-signal IC filter; File Size65KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FE3X050-13-7NL Overview

Three Phase EMI Filter, 500V, ROHS COMPLIANT PACKAGE-6

FE3X050-13-7NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL; VDE
diameter	82 mm
filter type	THREE PHASE EMI FILTER
maximum frequency	0.2 MHz
high	8 mm
Insertion loss@maximum frequency	36.5 dB
Manufacturer's serial number	FE3X
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature
physical size	D82.0XH8.0 (mm)/D3.228XH0.315 (inch)
Rated current	12 A
Rated voltage	500 V

Preview

Download Datasheet

View All

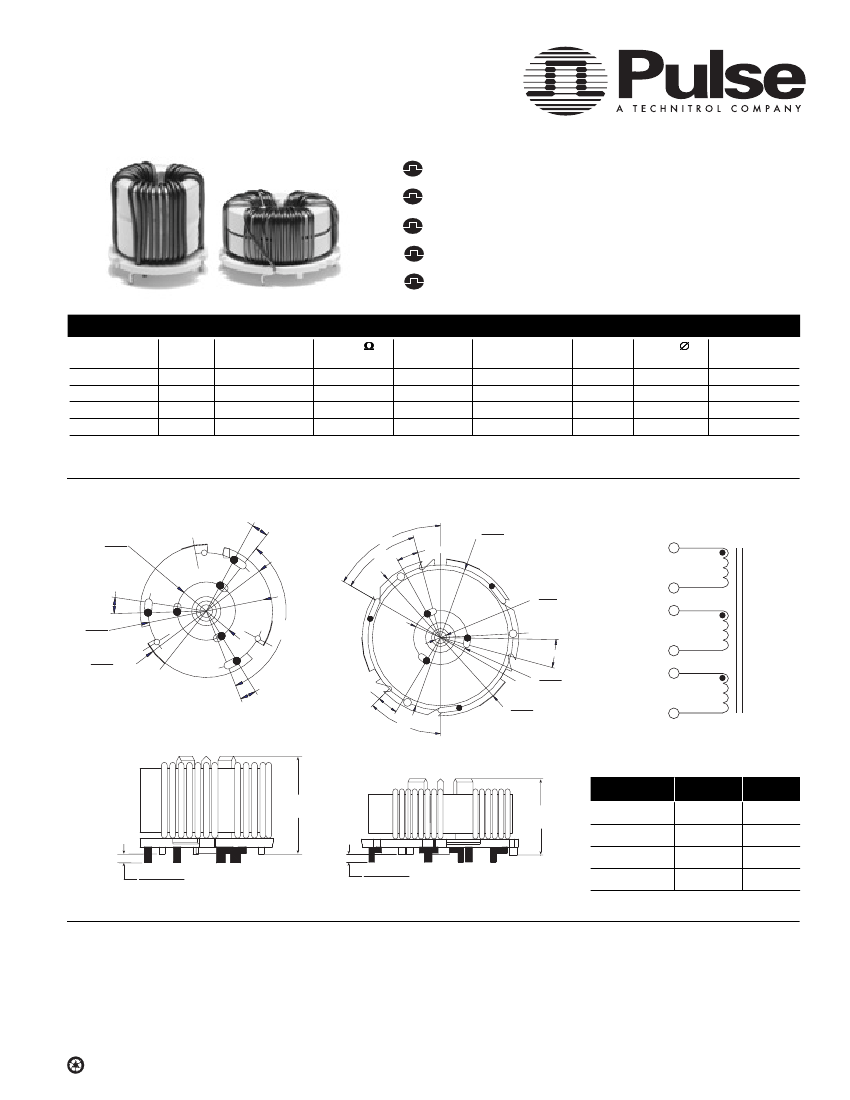

CURRENT COMPENSATED NOISE

SUPPRESSION CHOKES

FE 3X Series - 3 Phase Common Mode Choke

Complies with VDE 565-2

UL recognized (94V0)

Rated voltage: 500 Vac

Rated current: 6 to 12A

Withstanding voltage: 2500 Vac @ 2 sec

Electrical Specifications @ 25°C — Operating Temperature 0°C to 60°C

Part Number

FE3X050-10-7

FE3X033-10-7

FE3X025-10-7

FE3X050-13-7

Style

3.1

2.2

6.3

17.5

200

400

200

36.5

1.10

1.30

1.8

1.70

Mechanicals

STYLE 1

around 10°

Schematic

STYLE 3

around 14°

.787

20,00

around 10°

2.854

72,50

120°

1.575

40,00

1.890MAX

48,00

.244

6,20

around 14°

around 10°

PINS VIEW

around 14°

1.063

27,00

45°

3.228

82,00 MAX

PINS VIEW

Height

MAX

Part

Number

Height

MAX

FE3X050-10-7

FE3X033-10-7

FE3X025-10-7

.157 ±.039

4,00 ±1.00

.157 ±.039

4,00 ±1.00

FE3X050-13-7

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

SINGAPORE

(Southern Europe) (Southern Asia)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX: 65 280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

19/F, China United Plaza

1008 Tai Nan West Street

Cheung Sha Wan, Kowloon

Hong Kong, China

TEL: 852 2788 6588

FAX: 852 2776 1055

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

PRELIMINARY P539.P (3/02)

I (A)

(40°C)

L (mH)

(+40%, -30%)

Rdc (m )

(+/- 10%)

Fo (kHz)

(MIN)

Attenuation

(dB at F0)

Pins

(mm)

Height MAX

(mm)

Weight

102 grams

200 grams

158 grams

385 grams

Pan Size

DISTRIBUTOR

FE3X050-13-7NL Related Products

	FE3X050-13-7NL	FE3X025-10-7	FE3X033-10-7	FE3X050-10-7	FE3X050-13-7
Description	Three Phase EMI Filter, 500V, ROHS COMPLIANT PACKAGE-6	Three Phase EMI Filter, 500V	Three Phase EMI Filter, 500V	Three Phase EMI Filter, 500V	Data Line Filter, 3 Function(s), 500V, 12A,
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Certification	UL; VDE	VDE	VDE	VDE	VDE
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	DATA LINE FILTER
Manufacturer's serial number	FE3X	FE 3X	FE 3X	FE 3X	FE 3X
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C
Rated current	12 A	16 A	8 A	6 A	12 A
Rated voltage	500 V	500 V	500 V	500 V	500 V
