PE-5158X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PE-5158X

PE-5158X: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT; CategoryPower management transformer; File Size292KB，8 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-5158X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-5158X	-	-	View	Buy Now

PE-5158X Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT

PE-5158X Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
ET product minimum value	77 V-us
high	10.16 mm
Insulation voltage	700 V
length	16.51 mm
Manufacturer's serial number	PE-5158X
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	L16.51XB11.25XH10.16 (mm)
Primary inductance	1000 µH
Maximum pulse rise time	21 ns
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT
width	11.25 mm

Preview

Download Datasheet

View All

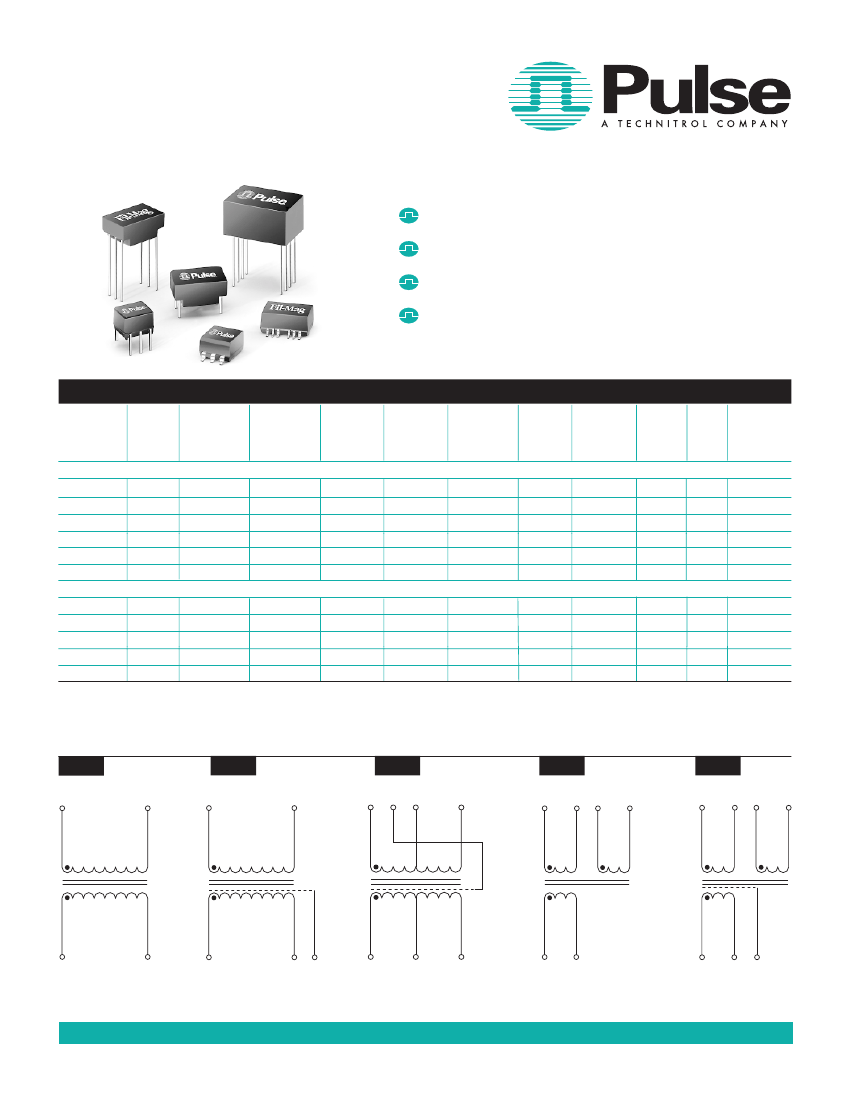

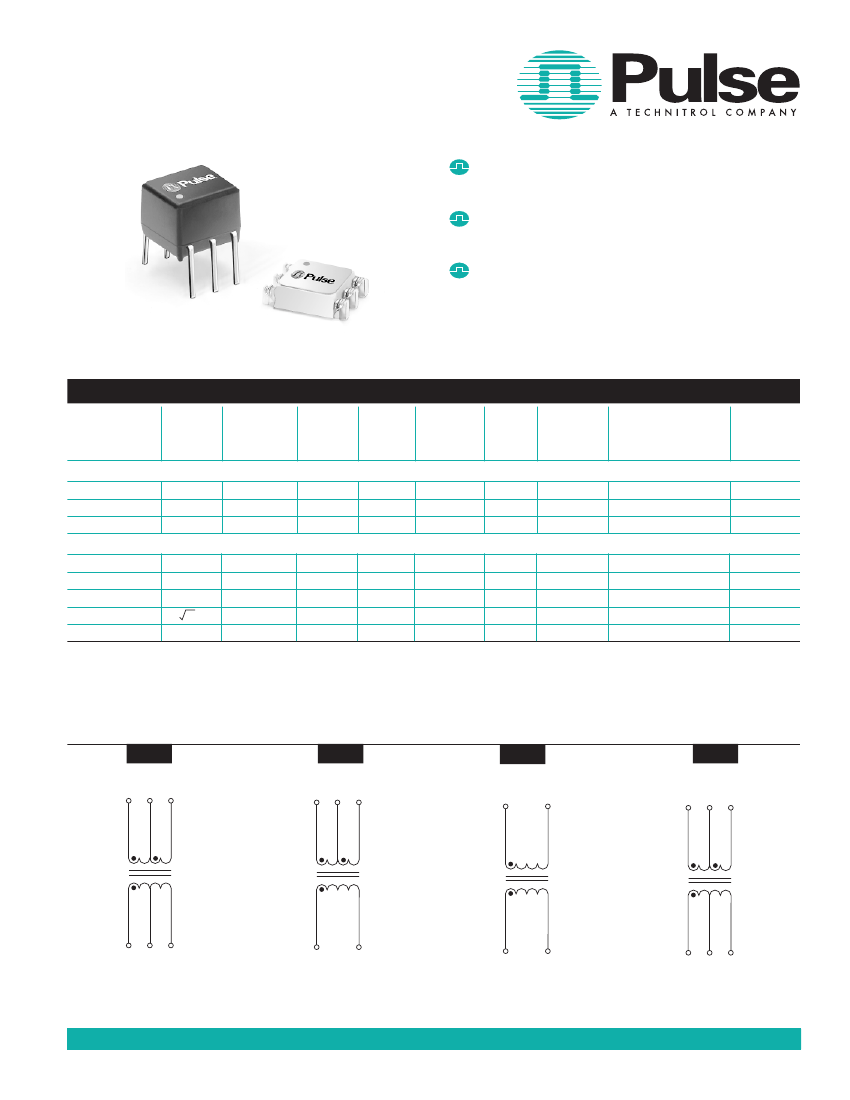

GENERAL PURPOSE

TRANSFORMERS

2 Watt Pulse, Electrostatically Shielded,

500 mW Pulse, RF Pulse, and Control Transformers

Wide range of inductors and turns ratios

Suitable for a variety of applications

High flux density capability

Available in through hole and surface

mount packages

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part

Number

Turns

Ratio

(±5%)

Primary

Sine Wave

OCL

(mH MIN)

0.5

1.3

20.0

1.3

5.0

0.2

1.2

10.0

Primary

ET-

Constant

(V-µs MIN)

250

196

224

Rise

Time

(ns MAX)

PRI/SEC

Cww

(pF MAX)

Leakage

Inductance

PRI/SEC

(µH MAX)

1.7

3.0

10.5

3.2

13.0

5.7

3.1

2.8

22.0

DCR

Primary

(Ω

MAX)

DCR

Schematic/

Hi-Pot

Secondary Tertiary

Package

(Vrms)

(Ω

MAX) (Ω MAX)

Style

2 W

ATT

ULSE

RANSFORMERS

PE-2227X

PE-2228X

PE-2243X

PE-2229X

PE-2231X

PE-2671X

PE-5154X

PE-5156X

PE-5160X

1:1

1:1:1

4:1:4

1:1

200

is measured

2.7

4.1

4.5

1.3

3.6

27.0

3.6

8.8

1.2

1.6

1.1

11.0

1.4

3.8

28.0

3.8

9.6

0.2

1.6

1.1

11.0

—

3.9

11.0

1.3

—

700

TH1

TH4

TH2

TH3

LECTROSTATICALLY

HIELDED

RANSFORMERS

PE-5158X

1CT:1CT

1.0

PE-5158X

1CT:1CT

1.0

PE-5163X

10.0

252

PE-5163X

1CT:1CT

10.0

252

*NOTE:

for Electrostatically Shielded Transformers, C ww

*NOTE:

for Electrostatically Shielded Transformers, C ww

3.2

2.5

3.2

2.5

16.7

2.5

16.7

with shield corrected to

is measured with shield corrected to

1.8

14.0

guard voltage.

Schematics

TH1

TH2

TH3

TH4

TH5

4 6

2 WINDING

WITH SHIELD

3 WINDING

2 WINDING WITH

CT AND SHIELD

3 WINDING

WITH SHIELD

U.S: 858 674 8100

•

U.K: 44 1483 401 700

•

France: 33 3 84 35 04 04

•

Singapore: 65 287 8998

•

Taiwan: 886 2 2698 0228

•

http://www.pulseeng.com

G008.B (2/01)

PE-5158X Related Products

	PE-5158X	PE-5160X	PE-61015	PE-61017	PE-61018	PE-5760	PE-5762	PE-8270	PE-5163X
Description	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1	Pulse Transformer, GENERAL PURPOSE Application(s), 2:1	Pulse Transformer, GENERAL PURPOSE Application(s), 2:1	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1:1,	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1:1	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
ET product minimum value	77 V-us	224 V-us	1500 V-us	700 V-us	1500 V-us	25 V-us	8.5 V-us	16 V-us	252 V-us
high	10.16 mm	10.16 mm	20.58 mm	20.58 mm	20.58 mm	6.35 mm	6.35 mm	6.35 mm	10.16 mm
Insulation voltage	700 V	700 V	2400 V	2400 V	2400 V	500 V	500 V	700 V	700 V
length	16.51 mm	16.51 mm	23.87 mm	23.87 mm	23.87 mm	12.7 mm	12.7 mm	12.7 mm	16.51 mm
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
method of packing	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE	TUBE
physical size	L16.51XB11.25XH10.16 (mm)	L16.51XB11.25XH10.16 (mm)	L23.87XB19.68XH20.58 (mm)	L23.87XB19.68XH20.58 (mm)	L23.87XB19.68XH20.58 (mm)	L12.7XB8.89XH6.35 (mm)	L12.7XB8.89XH6.35 (mm)	L12.7XB8.89XH6.35 (mm)	L16.51XB11.25XH10.16 (mm)
Primary inductance	1000 µH	10000 µH	5000 µH	1000 µH	5000 µH	5000 µH	500 µH	2000 µH	10000 µH
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT	1:1	1:1	2:1	2:1	1:1:1	1:1:1	1CT:1CT	1CT:1CT
width	11.25 mm	11.25 mm	19.68 mm	19.68 mm	19.68 mm	8.89 mm	8.89 mm	8.89 mm	11.25 mm
Maker	Pulse Electronics	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Manufacturer's serial number	PE-5158X	PE-5160X	PE-61015	PE-61017	PE-61018	-	PE-5762	-	PE-5163X
Maximum pulse rise time	21 ns	200 ns	-	-	-	10.5 ns	5.3 ns	-	60 ns
Base Number Matches	-	1	1	1	1	1	-	-	-

Recommended Resources

Rectifier spike absorption circuit

Photoelectric position detection device circuit

Infrared photoelectric pulse input circuit

high speed trigger

Dawn voice controlled dog circuit

Three integrated voltage regulators CW117 are connected in parallel to extend the output current

Are you interested in woodworking? Are you interested in this DIY wooden bed?: [color=#000]想给家里的小朋友买张木床，合适的都需要订做，最快一个月，是从其他城市做好运过来的。。。。在网上看了台湾网友的DIY自己手也有些痒痒，转过来给大家看下，顺便问问有没有喜欢做木工的 ----------------------------------分割线------------------------------------------ 時間退回到今年過年 [/color]...; 赵玉田 DIY/Open Source Hardware

Components Science Popularization: Component Selection Specifications: [size=4] Electronic components are the basic parts of electronic systems. They are the basic circuit units that can complete the predetermined functions and cannot be divided. Due to the large number ...; fish001 Analogue and Mixed Signal

DSP image storage problem: 1. Is the image storage in DSP based on components? For example, YUV stores one space for Y, one space for U, and one space for V; RGB stores one space for R, one space for G, and one space for B? 2. ...; 821165254 DSP and ARM Processors

H-bridge controls the motor and I want to add an electric brake: I want to connect a FET to the positive and negative poles of the motor. What driver chip is better? In addition, if I want to add a capacitor to absorb the discharge after braking to prevent the moto...; jimgreat Embedded System

I really can't finish my graduation project, need help from an expert!: The title is simple, portable smart pen. To put it simply, it is to make a wireless optical mouse pen that uses a mouse chip for wireless transmission! If there is any master who can help me make it, ...; 注册竟然要ID 51mcu

Operational amplifier gain calculation problem: Can anyone help me see what the voltage is at the negative input of this circuit, and how to calculate the voltage amplification factor? ? ? [url=home.php?mod=space&uid=735144]@gmchen[/url]...; 黏三皮黏三皮 Analog electronics
