TC74HC75AF-TP2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74HC75AF-TP2

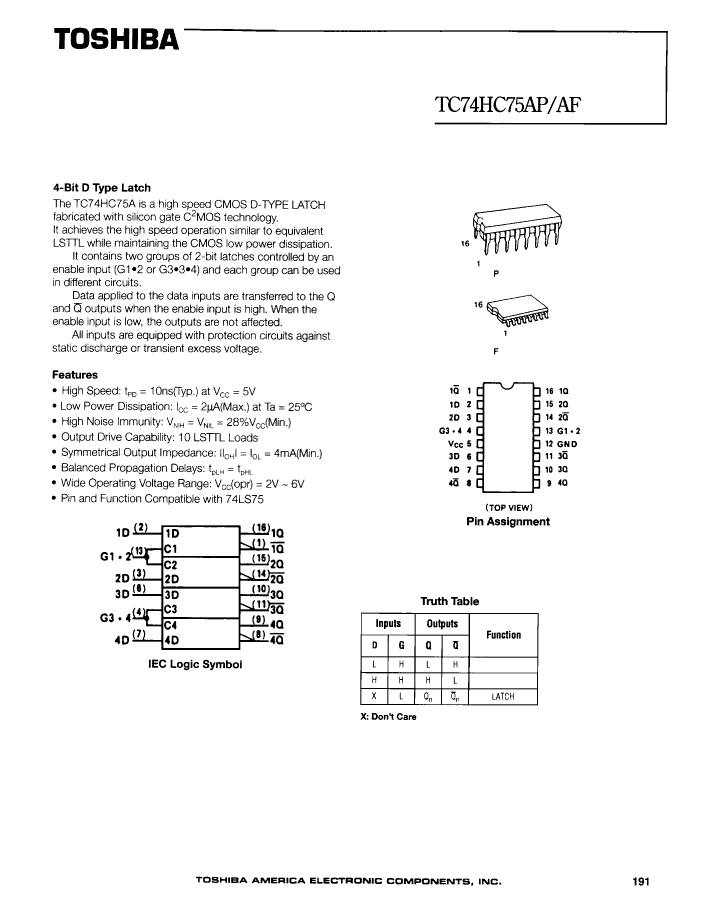

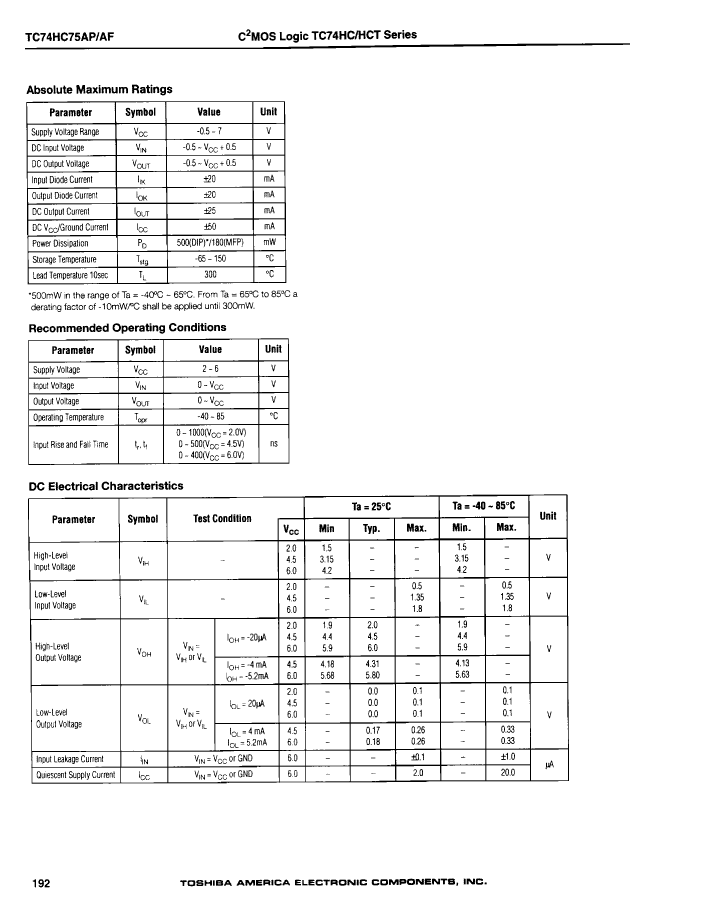

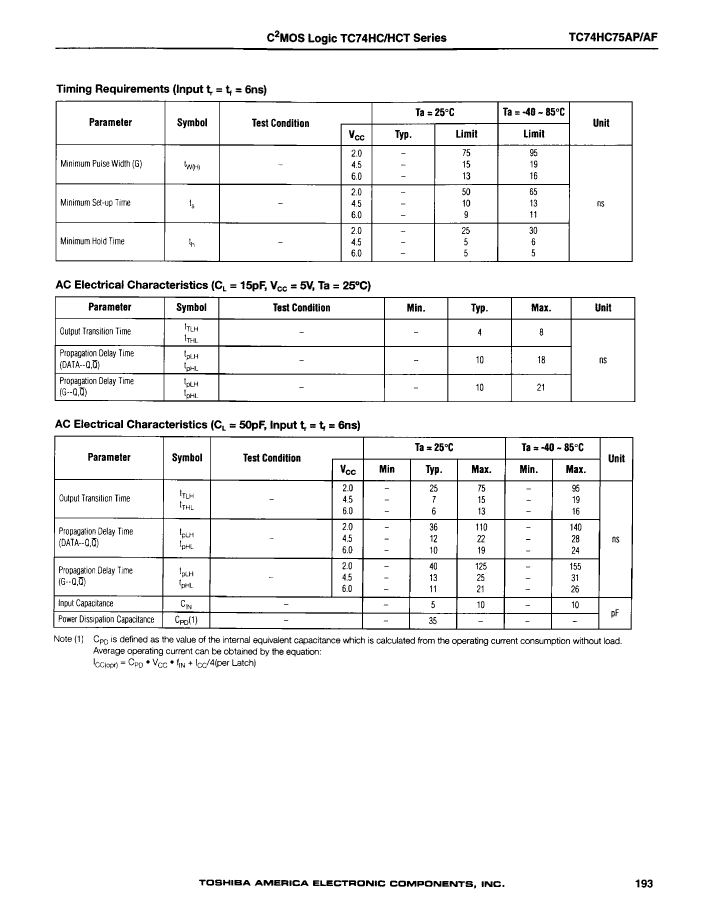

TC74HC75AF-TP2: DescriptionIC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch; Categorylogic logic; File Size88KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC75AF-TP2 Overview

IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch

TC74HC75AF-TP2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G16
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	HIGH LEVEL
width	5.3 mm

Preview

Download Datasheet

View All

TC74HC75AF-TP2 Related Products

	TC74HC75AF-TP2	TC74HC75AF-EL	TC74HC75AF-TP1	TC74HC75AF-TP1EL	TC74HC75AP	TC74HC75AF-TP2EL	TC74HC75AF
Description	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, DIP-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch	IC HC/UH SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, FF/Latch
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	DIP	SOIC	SOIC
package instruction	SOP,	SOP,	0.300 INCH, PLASTIC, SOIC-16	0.300 INCH, PLASTIC, SOIC-16	0.300 INCH, PLASTIC, DIP-16	SOP,	SOP, SOP16,.3
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	10.3 mm	10.3 mm	10.3 mm	10.3 mm	19.25 mm	10.3 mm	10.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	31 ns	31 ns	31 ns	31 ns	31 ns	31 ns	31 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm	1.9 mm	4.45 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL
width	5.3 mm	5.3 mm	5.3 mm	5.3 mm	7.62 mm	5.3 mm	5.3 mm
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	incompatible
JESD-609 code	-	-	-	e2	e0	e2	e0
Terminal surface	-	-	-	TIN COPPER/TIN SILVER	Tin/Lead (Sn/Pb)	TIN COPPER/TIN SILVER	Tin/Lead (Sn/Pb)
