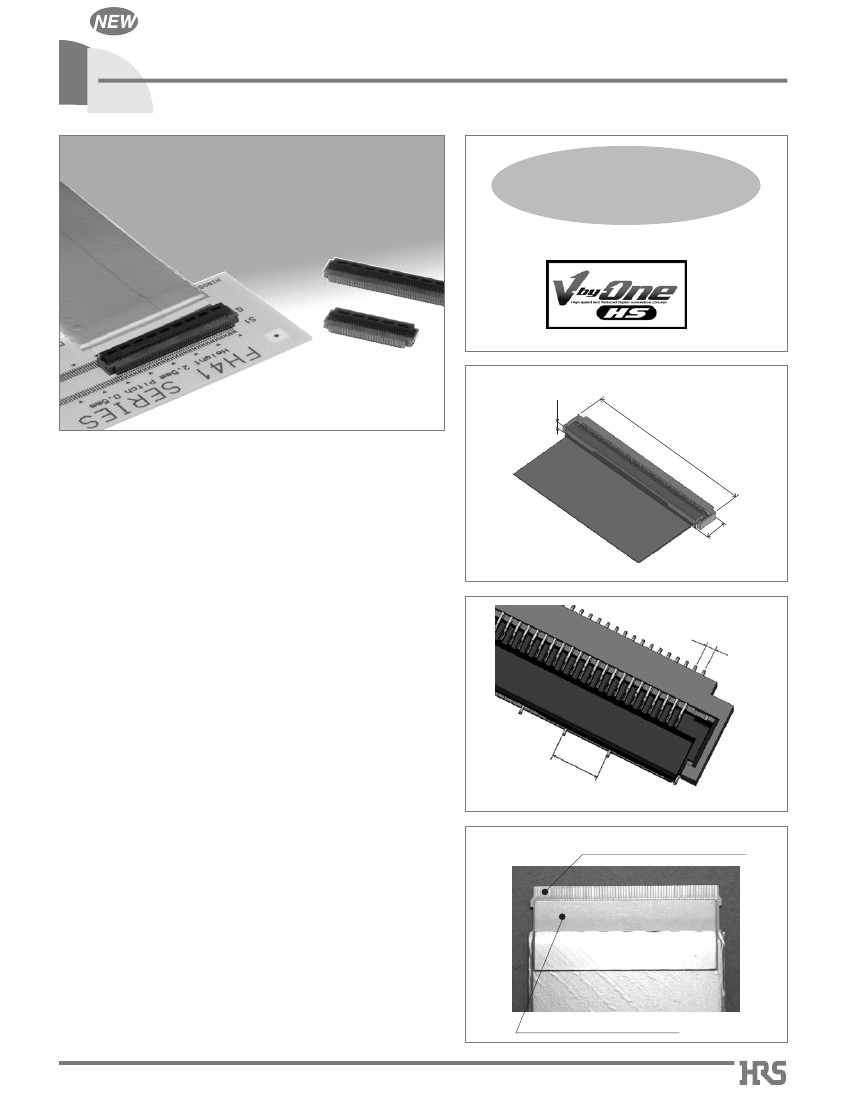

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
0.5mm pitch, 2.5mm above the board,high speed transmission connector for shielded FFC
FH41 Series
THine Electronics, Inc.
Next-generation chipset (V-by-One
®
HS*)
Compatible connector
＊High-speed
serial interface technology
for
image transmission
Space saving (68 pos. shown)
2.5mm
38mm
■Features
1.Compatibility with impedance control, shield
FFC
The FH41 series is equipped with a GND exclusive terminal
and available for connection with impedance control, shield
FFC.
6.2mm
2.Differential impedance 100
Ω
±10%
The FH41 series features a terminal design considering
impedance control, and making high speed transmission
possible.
figure.1
3.Highly reliable connection, tough structure
The FH41 series follows the structure of the proven FH28
series, and achieves:
- High reliability thanks to the FFC positioning mechanism
- Reliable connection operation and no unlocking thanks to the
durable structure.
Sig
0.5 nal co
mm nta
pitc ct
h
4.One-finger operation of the actuator
Proven (in several other Hirose's connectors!) Flip-Lock
rotating actuator assures reliable mechanical and electrical
connection with FPC, confirming it with a definite tactile feel.
figure.2
Gro
2.5 und
mm con
pitc tact
h
5.Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement.
Standard reel packaging contains 2,500 connectors.
Signal contact connection area
6.Halogen-free
*
*As
defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
FFC
figure.3
GND contact connection area
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH41 Series●0.5mm pitch, 2.5mm above the board,high speed transmission connector for shielded FFC
■Specifications
Ratings
Current rating 0.5 A(Note1)
Voltage rating 50 Vrms AC
Operating temperature range:
-40 to +85°C (Note 2)
Operating humidity range:
Relative humidity 90% max. (No condensation)
Storage temperature range:
-10 to +50°C (Note 3)
Storage humidity range:
Relative humidity 90% max. (No condensation)
Recommended FPC Thickness
Item
1.Insulation
resistance
2.Withstanding voltage
3.Contact resistance
4.Durability
5.Vibration
0.3 ±0.05 mm, Gold plated contact pads (GND plate:t=0.5±0.05mm,tin plateing)
Specification
Conditions
500 Mø min.
No flashover or insulation breakdown
100 mø max.
* Including FFC conductor resistance
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1μs or longer
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
100 V DC
150 Vrms AC / one minute
1 mA, AC max (AC: 1kHz)
20 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75mm,
10 cycles in each of the 3 directions
Acceleration of 981m/s 6 ms duration, sine halfwave,
3 cycles in each of the 3 axis
2
6.Shock
No electrical discontinuity of 1μs or longer
Contact resistance: 100 m
ø
max.
No damage, cracks, or parts dislocation
Contact resistance: 100 m
ø
max.
Insulation resistance: 50 M
ø
min.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
7.Humidity
(Steady state)
96 hours at 40°C and humidity of 90 to 95%
Temperature : -40°C
→
+15°C to +35°C
→
+85°C
→
+15°C to +35°C
Time: 30
→
2 to 3
→
30
→
2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350°C ±5°C for 5 seconds
8.Temperature cycle
9.Resistance to
soldering heat
No deformation of components affecting performance
Note 1. When passing the current through all of the contacts, use 70% of the rated current.
Note 2. Includes temperature rise caused by current flow.
Note 3. The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage, shipment or
during transportation after board mounting.
Note 4. Information contained in this catalog represents general requirements for this Series.
Contact us for the drawings and specifications for a specific part number shown.
■Materials
Part
Insulator
Contacts
Metal fittings
Material
LCP
Phosphor bronze
Brass
Finish
Color:Gray
Color:Black
Gold plated
Pure tin reflow plated
---------
Remarks
UL94V-0
■Ordering
information
FH 41 − 50S − 0.5 SH (05)
❶
❷
❸
❹
❺
❻
❶
Series name : FH
❷
Series No.: 41
❸
Number of positions : 28 to 68
❹
Contact pitch : 0.5mm
❺
SH : SMT horizontal mounting type
❻
Plating specifications :(05)…Gold plated
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH41 Series●0.5mm pitch, 2.5mm above the board,high speed transmission connector for shielded FFC
■Connector
Dimensions
C
D
(0.12)
(5.05)
1
2.5
(0.12)
E
No. of contacts
Cavity No.
(5.45)
2.5
(0.15)
(Dimension
for FFC opening)
G
0.8
6.2
Note 1. The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
2. Packaged on tape and reel only. Check packaging specification.
3. Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
4. After reflow, the terminal plating may change color, however this does not represent a quality issue.
Part Number
FH41-28S-0.5SH(05)
FH41-40S-0.5SH(05)
FH41-50S-0.5SH(05)
FH41-68S-0.5SH(05)
2
0.25
(4.7)
Unit : mm
CL No.
580-2208-1-05
580-2205-3-05
580-2204-0-05
580-2202-5-05
Number of contacts No. of Contacts(GND contacts)
28
40
50
68
5
8
10
13
C
18
24
29
38
D
13.5
19.5
24.5
33.5
E
10
17.5
22.5
30
F
14.57
20.57
25.57
34.57
G
15.95
21.95
26.95
35.95
Note1.Tape and reel packaging (2,500 pieces/reel).
Order by number of reels.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH41 Series●0.5mm pitch, 2.5mm above the board,high speed transmission connector for shielded FFC
■Recommended
PCB mounting pattern and metal mask dimensions
D±0.05
1.55±0.05
6.6±0.1
6.35±0.05
0.65±0.05
0.5±0.05
1±0.05
0.3±0.03 (Land pattern)
0.25±0.03(Metal
mask)
1.2±0.05(Land pattern)
1±0.05(Metal
mask)
2.5±0.05
0.3±0.03(Land pattern)
0.2±0.0(Metal
mask)
0.4±0.03
E±0.05
H±0.05
Recommended metal mask thickness t=0.1

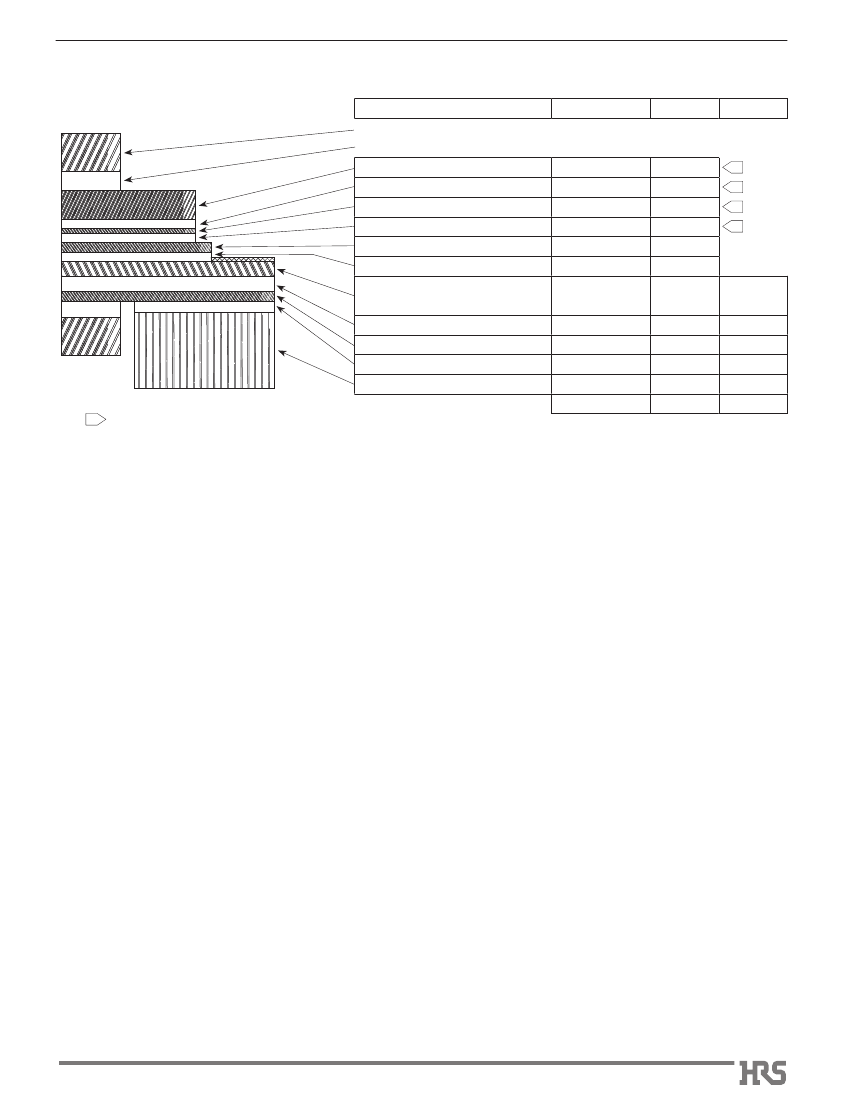

■Recommended
FFC Dimensions
J±0.1
K±0.07
D±0.05
0.5±0.1
0.5±0.05
0.3±0.03
2-R
2-
R0
.2
5.5MIN
2.7±0.5
2.2±0.5
1.9±0.1
2.6±0.1
3.8±0.1
0.5±0.05
0.3±0.05
17.7MAX
0.1MIN
Ground plate
ma
2-R
0.2m
ax
1
Shield area
2-R
0.2
x
Note
1
Please overlap shield plate on ground plate.
Part Number
FH41-28S-0.5SH(05)
FH41-40S-0.5SH(05)
FH41-50S-0.5SH(05)
FH41-68S-0.5SH(05)
5.5MIN
Note1.Tape and reel packaging (2,500 pieces/reel).
Order by number of reels.
0.2
Unit : mm
CL No.
580-2208-1-05
580-2205-3-05
580-2204-0-05
580-2202-5-05
Number of contacts No. of Contacts(GND contacts)
28
40
50
68
5
8
10
13
H
16
22
27
36
J
15.7
21.7
26.7
35.7
K
14.5
20.5
25.5
34.5
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH41 Series●0.5mm pitch, 2.5mm above the board,high speed transmission connector for shielded FFC
