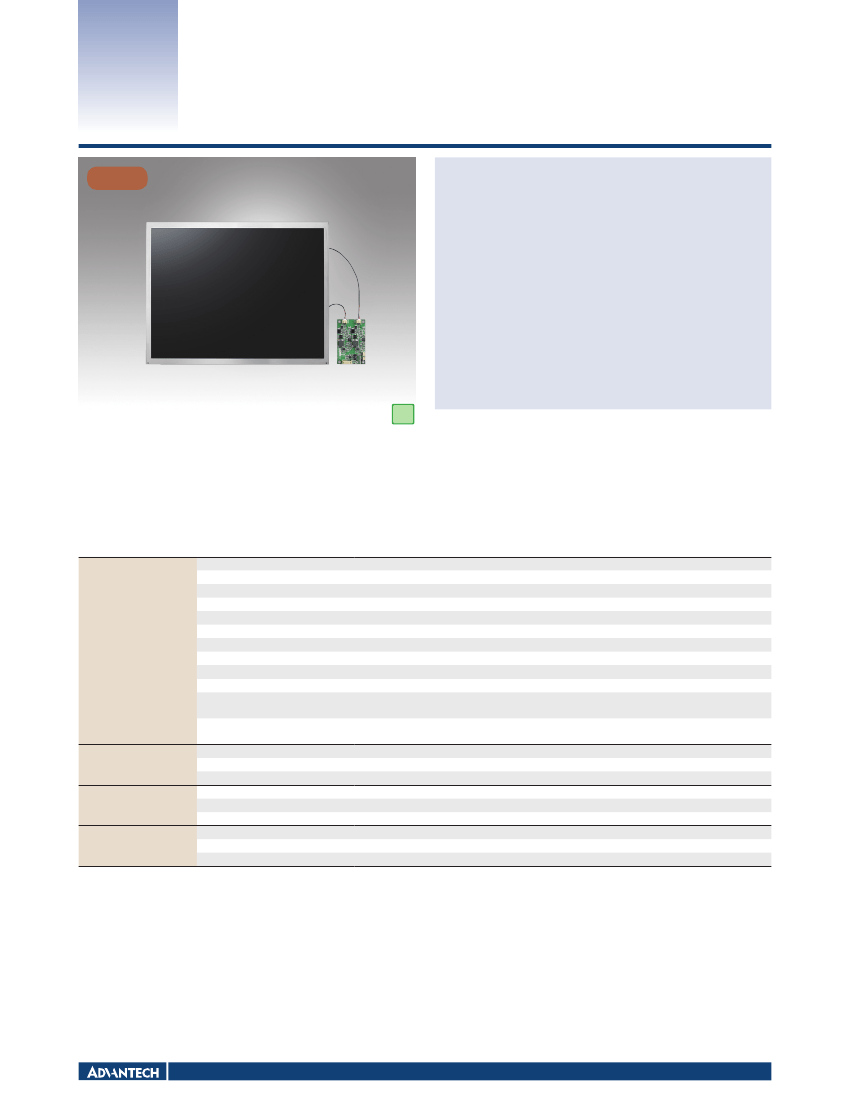

IDK-2117
NEW
17" 1,200 cd/m
2
Ultra High Brightness
Industrial Display Kit with LED B/L
Features
17” LCD supports 1280 x 1024 pixels and wide operating temperature
(0 ~ 50° C)
Ultra-high brightness of 1200cd/m
2
with LED backlight
High contrast ratio of 1000:1
High uniformity of 80%
Superior sunlight readability
LVDS signal interface
Low power consumption 17W
Anti-Reflection surface treatment(optional)
Manually VR brightness control (optional)
Auto-dimming solution with light sensor (optional)
Optical bonding (optional)
RoHS
COMPLIANT
2002/95/EC
Introduction
The Advantech IDK-2117 series comes with a 17" 1200 cd/m
2
industrial grade LCD display, and an LED driving board. The series is also available with flexible options for touch
screens and enhanced treatment such as AR surface treatment and optical bonding solution. IDK-2117 series supports 1200 cd/m2 high brightness with low power consumption
at the maximum consumption of 17W. Equipped with high level of brightness and wide operating temperature, IDK-2117 provides superior sunlight readability and is perfect for
applications whether in semi-outdoor or outdoor environments.
Specifications
Display Size
Resolution
Viewing Angle (Horizontal/Vertical)
Brightness
Contrast Ratio
Response Time (ms)
Colors
Voltage
Power Consumption
Signal Interface
Weight
Dimensions (W x H x D)
LED Driver Board
Efficiency
Input Current & Voltage
Dimensions (W x H x D)
Touch Screen
Light Transmission
Durability
Operating Temperature
Storage Temperature
Humidity
17" LED backlight panel
1280 x 1024
170°/160°
1200 cd/m
2
1000 : 1
5 ms
16.2 M
5V
17W
2 channel LVDS
1300 g (N series)
1760 g (R series)
N series: 358.5 x 296.5 x 18 mm
R series: 358.5 x 296.5 x 20.9 mm
90%
1.3A/12V
80 x 54.2 x 10 mm
5-Wire Resistive
80 ± 2%
10 million times
0 ~ 50° C
-20 ~ 60° C
5 ~ 90% @ 40° C, non-condensing
LCD Panel
Touch Screen (R series)
Environment
Industrial Display Solutions
All product specifications are subject to change without notice.
Last updated: 14-Jul-2017
IDK-2117
Dimensions
IDK-2117N Series
358.5±0.5
(LCM Outline)
341.6±0.5
(Bezel Opening)
337.92±0.3
(LCM Active Area)
270.34±0.3
(LCM Active Area)
274.00±0.5
(Bezel Opening)
296.50±0.5
(LCM Outline)
130.50±0.3
261.00±0.5
Unit: mm
9.1
18.0
Max
120.00±0.3
240.00±0.5
PIN1
PIN1
8.3
80
AA Center
AA Center
AA Center
AA Center
IDK-2117R Series
358.5±0.5
(LCM Outline)
356±0.3
(TS Opening)
337±0.2
(TS Active Area)
3.25±0.5
LT
RT
5.75±0.5
9.1
130.50±0.3
261.00±0.5
PIN1
11.5±0.5
15.24±0.2
20.9
Max
18.0
Max
120.00±0.3
240.00±0.5
PIN1
PIN1
8.50±0.5 269.50±0.2
(TS Active Area)
286.50±0.3
(TS Outline)
296.50±0.5
(LCD Outline)
143.25±1 12.70±0.2
8.3
80
AA Center
AA Center
AA Center
AA Center
205±6
LL
RL
Ordering Information
Part No.
IDK-2117N-K2SXA2E
IDK-2117R-K2SXA2E
Size
17”
17”
LCD Panel Brightness (cd/m
2
)
1200
1200
Interface
LVDS
LVDS
Touch screen
N/A
5-Wire Resistive
Touch Interface
N/A
RS-232/USB
Packing List
Part Number
Description
ETM-RES04C-EEH4EE
1 x 5-wire USB touch controller
1700020324-01
1 x USB cable for Touch controller
968AD00014
1 x LED driver board
Note: Package contents are subject to change without prior notice
Optional Order
SBC
Part No.
LVDS cable P/N
Display
interface
B/L cable
P/N
Touch
Touch
power
interface
input
USB
5V
N/A
Dual channel
(external
24bit LVDS
power was
(FHD)
required)
N/A
Dual channel
(external
24bit LVDS
power was
(FHD)
required)
MIO-5270 96CB-L3040PAF5
AIMB-270 96CB-L3040PAF5
USB
5V
Note: Package contents are subject to change without prior notice
Online Download
www.advantech.com/products
