UNO-4673A
UNO-4683
NEW
Intel
®
Atom
™
D510 / Core
™
i7 Substation
Computers with 6 x LAN, 2 x COM
and 3 x Expansion Slots
Features
IEC 61850-3 and IEEE 1613 compliant for substation automation applications
Onboard Intel Atom 1.66 GHz / Core i7 2.0 GHz processor
2 x RS-232/422/485 isolated serial ports with automatic flow control and
128KB FIFO
2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T
Supports 1 x internal CF card and 1 x 2.5" SATA HDD
6 x USB 2.0 (1 x internal) and 3 x Domain I/O expansions
Rear wiring, rich system & I/O LED status indicators
Windows CE6.0(UNO-4673 only), Windows XP Embedded SP2, Win7, WES7,
and Linux
Fanless design with no internal cabling
Isolation power design with wide AC / DC input range
Isolation between chassis and power ground
One internal USB for dongle and flash drive
RoHS
2002/95/EC
COMPLIANT
Introduction
UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in
power substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, UNO-4673A and UNO-4683 are suitable for harsh environment
applications. The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.
Specifications
General
Certifications
IEC 61850-3, IEEE 1613, CE, FCC Class A, UL, CCC

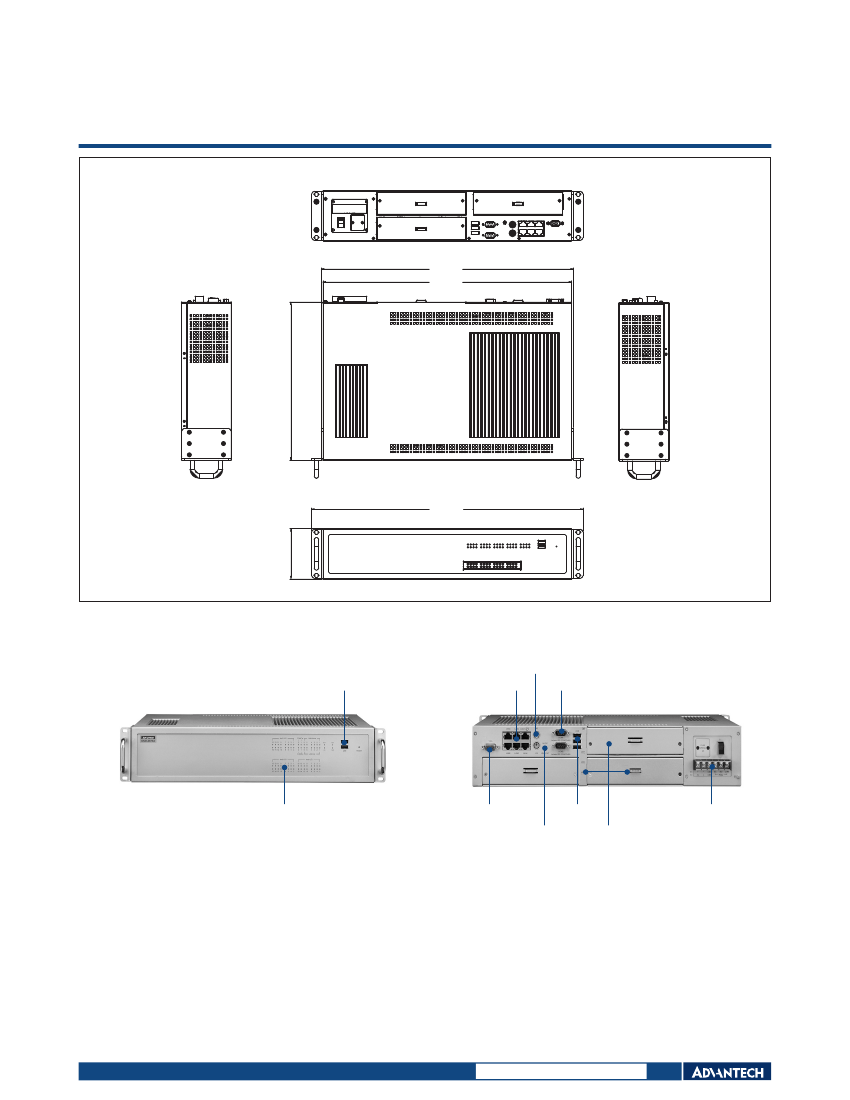

Dimensions (W x D x H)
2U (440 x 280 x 88) mm (17.3" x 11" x 3.4")
fits into standard 19 inch rack
Enclosure
SECC+Aluminum
Mounting
2U Rackmount
Power Consumption
24W/45W (Typical)
Power Requirements
AC : 100 ~ 240 V
AC
(47 ~ 63 Hz)
DC : 106 ~ 250 V
DC
With isolation protection, AT
Weight
6.0 kg
OS Support
Windows CE6.0(UNO-4673 only), Windows XP
Embedded SP2, Win7, WES7, and Linux
System Design
Fanless with no internal cabling
Remote Management
Built-in Advantech DiagAnywhere agent on Windows
CE/XPe
I/O Interface
Serial Ports
Serial Port Speed
LAN
Audio
USB Ports
Expansion
2 x DB-9
Automatic RS-485 data flow control
4000 V
DC
EFT protection & 2000 V
DC
isolation
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps (Max.)
2 x 10/100/1000 Base-T RJ-45 ports,teaming function
supported
4 x 10/100Base-T RJ-45 ports
Line-out
6 x USB, UHCI, Rev. 2.0 compliant
2 x Front, 3 x Rear and 1 x Internal ports
3 x Domain I/O expansions (Only slot 1 supports PCIe
resource)
Environment
Humidity
95% @ 40°C (non-condensing)
Operating Temperature
IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs
-20 ~ 70°C (optional for -40°C)
Operating Humidity
20 ~ 95% (non-condensing)
Shock Protection
HDD: 1.0G half sine, 11ms
Vibration Protection
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
HDD 1Grms @ 5!500Hz
System Hardware
CPU
Memory
Indicators
Intel Dual Core Atom D510 1.66 GHz / Core i7 2.0 GHz
2G DDR2 SDRAM/4G DDR3 SDRAM built-in
LEDs for Power, IDE, Alarm for battery backup SRAM,
Diagnosis (programmable), LAN (Active, Status) and
Serial (Tx, Rx)
2 x PS/2 connector for Keyboard & Mouse
Keyboard/Mouse
Storage
CF
1 x internal type I/II CompactFlash
®
slot
HDD
Built-in one 2.5" SATA HDD bracket*
*RAID capable with 2nd HDD kit
Display
4683A DB15 VGA connector, 1600x1200 @ 85 Hz
4683 series 1x DVI-I, 1920x1080@60HZ
Watchdog Timer
Programmable 7-tier event handler, from 1 to 255
seconds for each tier
Battery Backup SRAM
1 MB
Relay:
Relay output:
Form C
Contact:
5A@250V
AC
\5A@30V
DC
Ordering Information
UNO-4673A-A33E
UNO-4683-D34E
Intel Atom 1.66 GHz, 2 GB RAM Automation Computer
Core i7 2.0 GHz, 4 GB RAM Automation Computer
Expansion card for standard PCI and Mini PCI
Expansion card for standard PCI-104 and Mini PCIe
4-port Fiber Optic LAN card
8-port RS-232/422/485 w/EFT protection
8-port RS-232/422/485 w/Iso and EFT
4-port RS-232/422/485 w/Iso and EFT, 1-port IRIG-B
Advantech Remote Monitoring & Diagnosis Utility
HDD Expansion kit for UNO-4673A,4683
Accessories
UNOP-1000I-AE
UNOP-1000J-AE
UNOP-1514C-AE
UNOP-1618D-AE
UNOP-1628D-AE
UNOP-1624D-AE
PCLS-DIAGAW10
UNOP-1901-AE
Embedded Automation Computers
