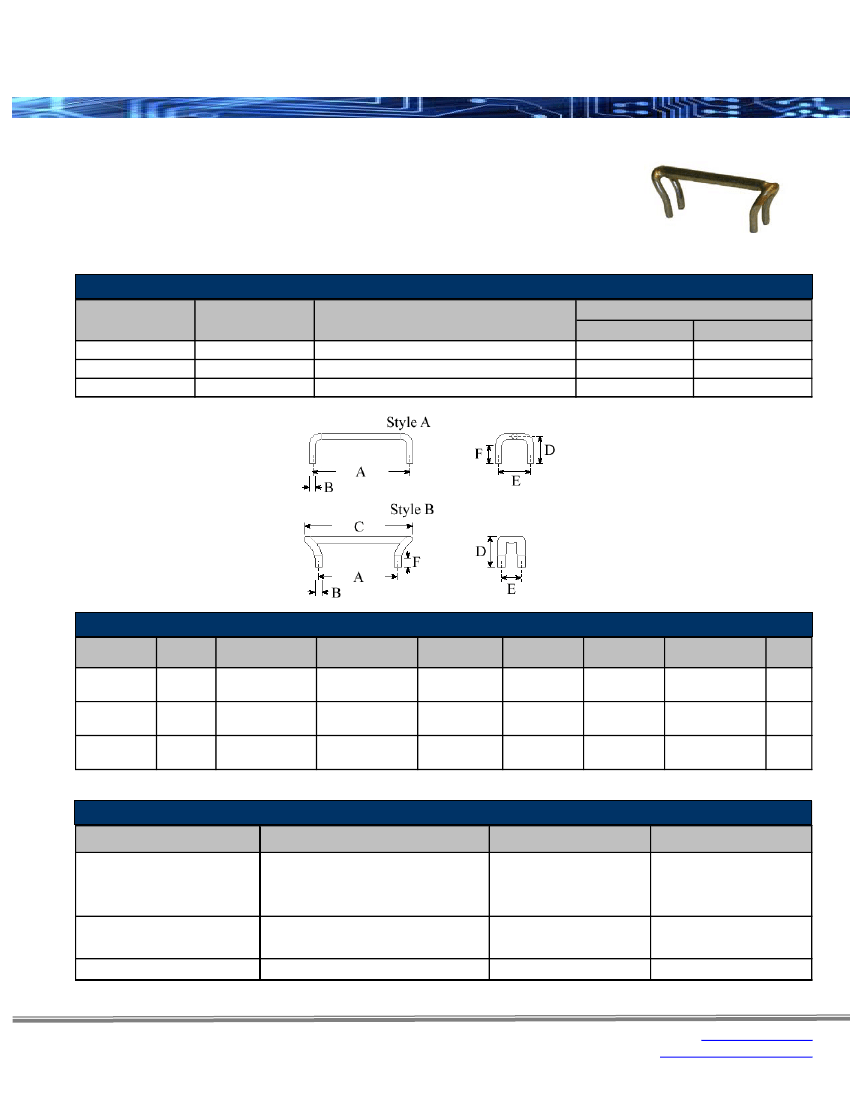

HLD Series
High Current Shunt / Sensing Resistor
Features:
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Values from 0.003 to 0.1
Suitable for high current applications where standard
current sense resistor will not survive
Current handling up to 100 amps
Handles 1W to 5W of power
Various wire alloys and sizes allow for value, tolerance, and
TC flexibility; contact factory for specific combination of
alloy and Temperature Coefficient of Resistance.
Electrical Specifications
Type / Code
HLD1
HLD3
HLD5
Power Rating
(Watts) @ 25ºC
1W
3W
5W
Resistance Temperature Coefficient
±100 ppm/ºC - ±50 ppm/ºC
±100 ppm/ºC - ±50 ppm/ºC
±100 ppm/ºC - ±50 ppm/ºC
Ohmic Range (Ω) and Tolerance
2%
0.03 - 0.1
0.03 - 0.1
0.03 - 0.1
5%, 10%
0.003 - 0.1
0.003 - 0.1
0.003 - 0.1
Mechanical Specifications
Type / Code
HLD1
HLD3
HLD5
Style
A
B
B
A
Lead Spacing
1.10 ± 0.10
27.94 ± 2.54
1.00 ± 0.10
25.40 ± 2.54
1.00 ± 0.10
25.40 ± 2.54
B
Lead Diameter
0.04
1.02
0.081
2.06
0.081
2.06
C
Total Length
-
-
1.40 max
25.56 max
1.40 max
25.56 max
D
Height
0.20 ± 0.15
5.08 ± 3.81
0.45 ± 0.10
11.43 ± 2.54
0.45 ± 0.10
11.43 ± 2.54
E
Lead Width
0.20 ± 0.01
5.08 ± 0.254
0.25 ± 0.01
6.35 ± 0.254
0.25 ± 0.01
6.35 ± 0.254
F
Type to Bend
0.1
2.54
0.1
2.54
0.1
2.54
Unit
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Test Method
MIL-STD-502F-Method 108A
Load Life
RCWW at 70°C; 1.5hr ON, 0.5hr OFF
Total 1024 ± 24hrs
JIS-C-5202-5.5
5x rated power for 5 sec
± 5%
≤
5%
Test Specification
Typical
Short Time Overload
± 2%
± 40 µV/°C
≤
2%
-
Thermal EMF(1)
-
Operating Temperature Range: -55°C to +275°C
(1) Thermal EMF dependant on Alloy selection; Contact Factory
Rev Date: 03/24/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
HLD Series
High Current Shunt / Sensing Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
How to Order
1
2
3
4
5
6
7
8
9
10
H
L
D
1
G
B
R
1
0
0
Product Series
Current Shunt
HLD
Size
1
3
5
Power
1W
3W
5W
Tolerance
Code Tol
G
2%
J
5%
K 10%
Code
B
Packaging
Description
Size
Bulk
All Sizes
Quantity
100
Resistance Value
Four characters with the
multiplier used as the
decimal holder.
"L" used as multiplier of
-3
10 for any value
under 0.1 ohm.
0.03 ohm = 30L0
0.1 ohm = R100
Legacy Part Number (before January 3, 2011):
SEI Type
Code
Nominal
Resistance
Tolerance
Packaging
HLD
Type
HLD
Description
Current Shunt
Code
1
3
5
1
Wattage
1W
3W
5W
0.1
2%
Tolerance
2%
5%
10%
SEI Types
all
A
Pkg Qty
100
Description
bulk
Code
A
Rev Date: 03/24/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
