THCV233
V-by-One® HS High-speed video data transmitter with bi-directional transceiver
General Description
THCV233 is V-by-One® HS High-speed video data
transmitter with bi-directional transceiver. It convey
not only video data (Main-Link), but also
bi-directional system control data (Sub-Link) that is
driven by 2-wire serial interface. HOST CPU-side
of Sub-Link is selectable on each device and the
other side of Sub-Link integrates I/O expander.
THCV233-234 system is able to watch and control
peripheral devices via 2-wire serial interface or
GPIOs. They also can report interrupt events caused
by change of GPIO inputs and internal statuses.
Link
LVDS Clock Freq.
Si/So, Si/DDo
20MHz to 100MHz
Si/Do
40MHz to 100MHz
32bit
Si/So, Si/DDo
20MHz to 85MHz
Si/Do
40MHz to 85MHz
Si/So:Single-in/Single-out, Si/Do:Single-in/Dual-out
Si/DDo:Single-in/Distributed Dual-out
Di/So:Dual-in/Single-out, Di/SSo:Dual-in/Selected Single-out
Width
24bit
Features
•
•
•
•
LVDS Input internal termination
CORE 1.8v, LVDS 3.3v
Package: 48 pin QFN
Main-Link
Data width selectable: 24/32 bit
Single/Dual Link selectable
AC coupling
Wide frequency range
CDR requires no external freq. reference
Supports Spread Spectrum Clocking:
Up to 30kHz/±0.5%(center spread)
Sub-Link
Driven by 2-wire serial I/F
(Max. 400kbps)
GPIO expander : 4pins
•

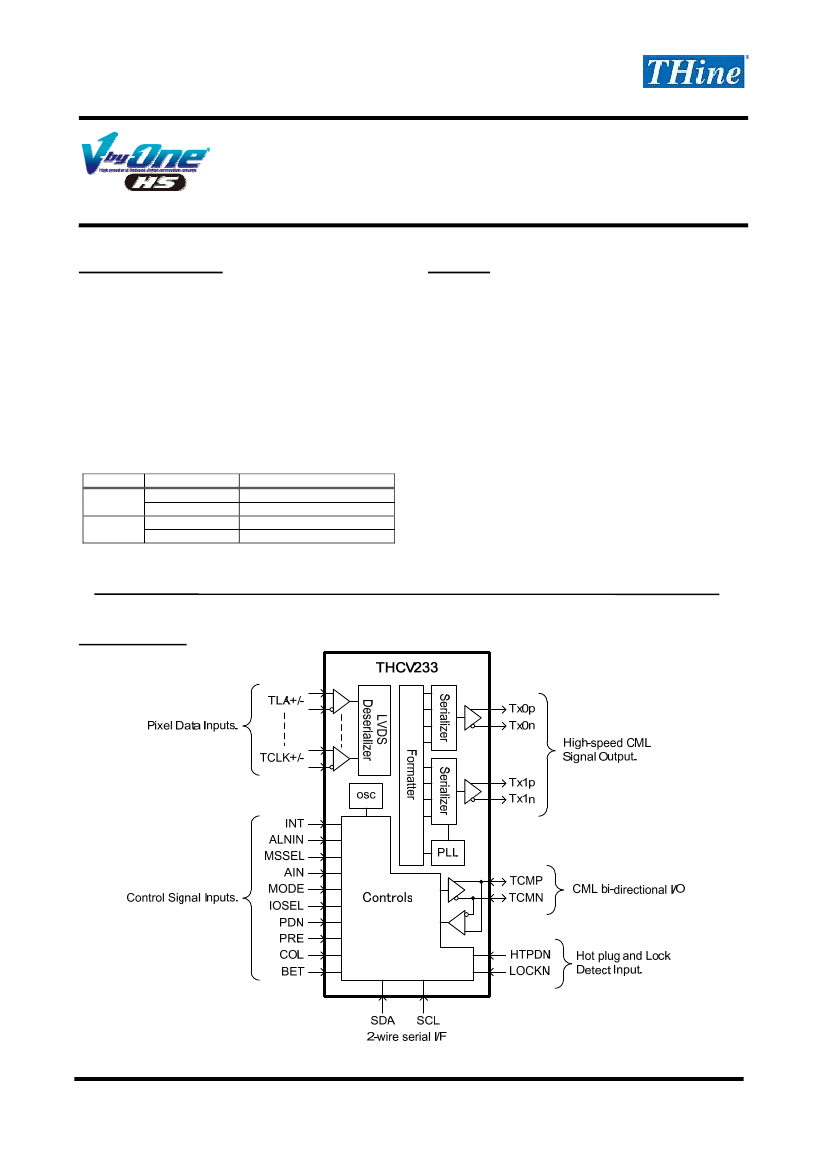

Block Diagram
Copyright©2012 THine Electronics, Inc.
1/2
THine Electronics, Inc.
THCV233_Rev.1.00_E_Brief

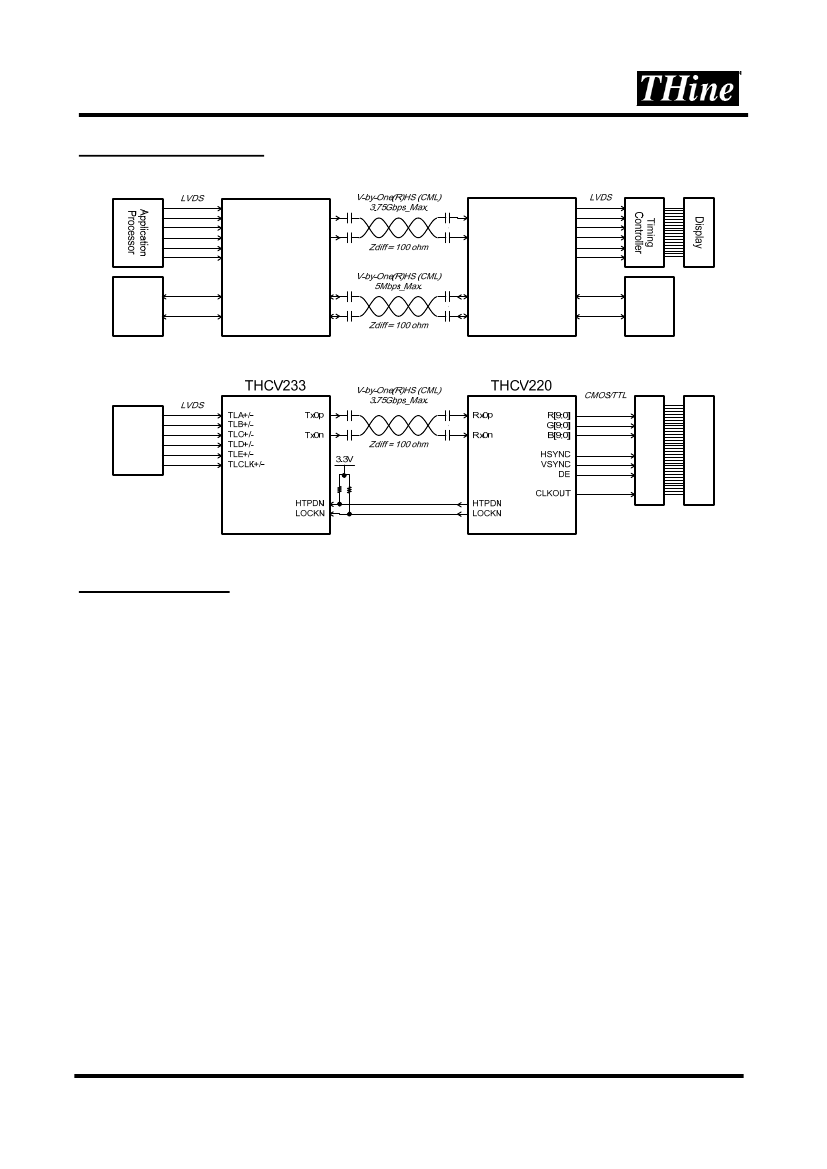

Example System Diagram
THCV233
TLA+/-
TLB+/-
TLC+/-
TLD+/-
TLE+/-
TLCLK+/-
TX0P
TX0N
THCV234
RX0P
RX0N
RLA+/-
RLB+/-
RLC+/-
RLD+/-
RLE+/-
RLCLK+/-
MCU
SDA
SCL
TCMP
TCMN
RCMP
RCMN
SDA
SCL
MCU
Example for LVDS to LVDS with
bi-directional transceiver
Timing Controller
