Introducing
TE Solderless LED Socket, Type LS

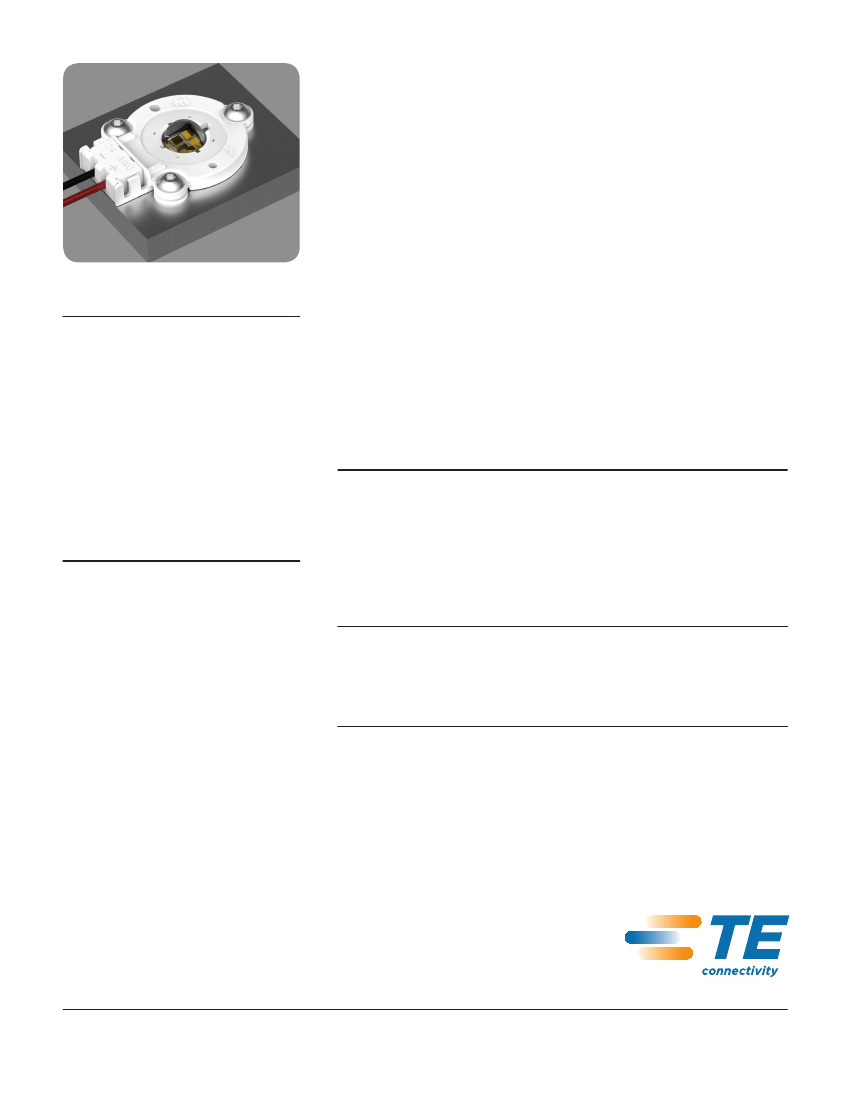

The TE Solderless LED Socket, type LS is a quick termination connector system for
use with the Philips Lumileds LUXEON S. The connector features easy, snap-together
tool-less insulation displacement termination to the customer’s commonly available
24awg wire. Termination to the LUXEON S LED is simplified by the use of an easily
applied locator frame that pre-positions the LED on a customer’s heatsink prior to
final connectorization using the socket. To further enhance integration capabilities, the
socket is offered in a version that includes snap-attach features allowing the use of
custom or off-the-shelf optical solutions.
KEY FEATURES
•
Solderless termination to
The TE solderless LED socket, type LS eliminates the need to design, manufacture
and integrate a complex metal clad circuit board (MCPCB) assembly into the lighting
fixture. This frees the lighting fixture designer to move beyond the limitations inherent
in a planar MCPCB LED assemblies. The ability to easily place an LED anywhere in a
fixture using simple hand tools provides the fixture designer with a broad range of
novel integration possibilities.
LUXEON S LED
•
Integral optics attachment features
•
LED locator to aid assembly
•
Three screw attachment using M3 or
#4 screws
•
No-strip IDC termination of 24 AWG solid &
stranded wires
•
Integral thermal spring frame helps provide
MECHANICAL
•
-40°C to 105°C continuous operating temperature
•
35.9mm x 29.6mm socket size
•
Fits within 42.2mm diameter circumscribed circle centered on LED
•
3mm height within optical emission area
•
5.20mm height at the connector interface
•
For use with 24 AWG UL1007 solid or stranded wire or equivalent
adequate normal force for LED to heat sink
•
Low profile – housing optical interference
<2% of total LED light output
APPLICATIONS
•
Custom single source spot lighting fixtures
•
Lighting fixtures requiring multiple
distributed, high intensity sources
•
Integrated retrofit spot lights (PAR30,
ELECTRICAL
•
Current rating: 1.5A
•
Voltage rating: 40 VDC
•
Dielectric Withstand Voltage: 1500 VAC
PAR38, MR-16 etc)
MATERIALS
•
Select gold plated contact interface to LED
•
Select tin plated Insulation Displacement Crimp (IDC) interface to wire
•
High performance copper alloy contact
•
Stainless steel LED pressure spring
•
UL 94V0 rated high temperature thermoplastic housing and locator
te.com/lighting
4-1773459-8 CIS JG 05/2012
LUXEON is a registered trademark of Philips Lumileds Lighting Company US, LLC
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved.
TE Connectivity and TE connectivity (logo) are trademarks. Other logos, product and/or
company names might be trademarks of their respective owners.
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
TE Solderless LED Socket, Type LS
AGENCY STANDARDS
•
Designed to comply with UL 1977
PRODUCT OFFERING
2154235-1: Solderless LED socket, type LS without optics latches
2154235-2: Solderless LED socket, type LS w/ optics latches
1-2154430-1: Solderless LED socket, type LS snap-on reflector, 10 degree beam angle
Note: nap-in “VENLA” series reflectors available from LEDIL OY in a variety of
S
beam angles.
APPLICATIONS AND
SPECIFICATIONS
•
Application Specification # - 114-13294
•
Product Specification # - 108-2455
•
Customer Drawing # - 2154235

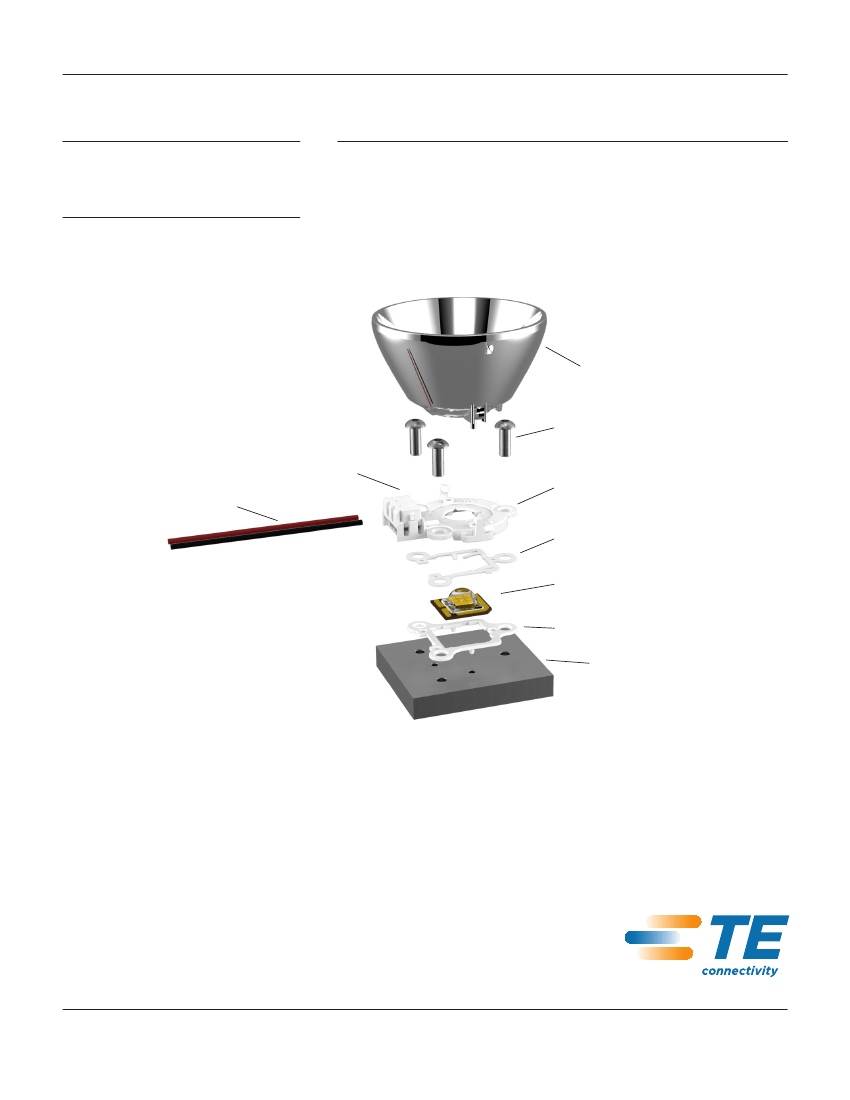

Snap-fit optic
(not supplied)
Mounting screws
(not supplied)
Insulation Displacement
Wire termination
UL 1007 wire
(not supplied)
Type LS socket
Pressure spring
(pre-applied to socket)
LUXEON S LED
(not supplied)
LED locator
Heatsink/mounting surface
(not supplied)
