WR24D15/500MP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> WR24D15/500MP

WR24D15/500MP: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size45KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

WR24D15/500MP Overview

Analog Circuit

WR24D15/500MP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Artysen Embedded Technologies
package instruction	, MODULE,7LEAD,3.2
Reach Compliance Code	unknown
Maximum input voltage	36 V
Minimum input voltage	18 V
Number of terminals	7
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output current	0.5 A
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,7LEAD,3.2
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	COMMERCIAL EXTENDED

Preview

Download Datasheet

View All

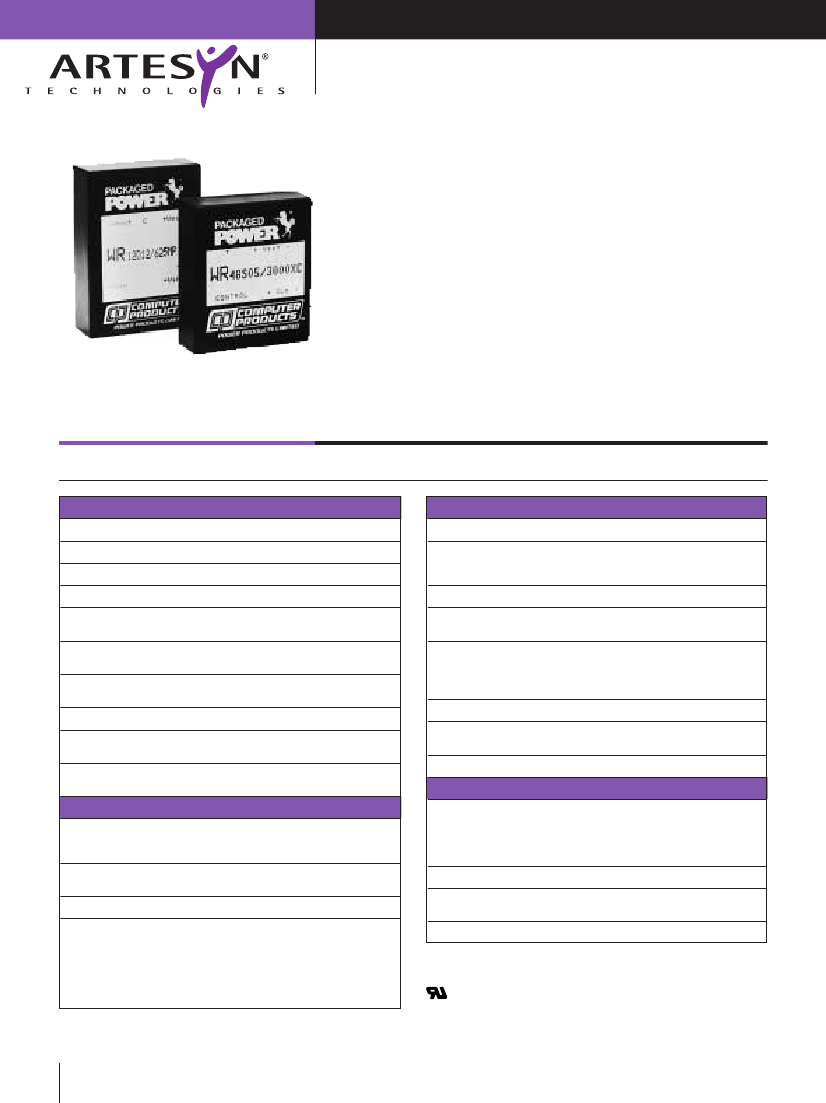

WR-XC and WR-MP SERIES

Single and dual output

•

2:1 input range

WR-XC UL approved

Efficiency to 86%

Isolated outputs

Six sided shield

Remote on/off control on XC models

100kHz switching frequency

Two package sizes available

[ 2 YEAR WARRANTY ]

The WR series DC/DC converters accept a wide input voltage range of 9-

18VDC, 18-36VDC or 36-72VDC. A 100kHz switching regulator produces

operating efficiencies up to 86% at full load and as high as 80% at light load. In

the case of duals, full power may be taken from either output. All models will

tolerate a short circuit between positive and negative outputs or between either

output and common indefinitely. Load regulation of ±1%, line regulation of

±0.2%, Pi input filtering and remote on/off control (XC package only) which can

be improvised as an undervoltage shutdown signal, are featured on all models.

Six-sided continuous EMI/RFI shielding is provided in both XC and MP

packages. The operating temperature range is –25°C to +71°C convection

cooled, with no derating required.

SPECIFICATION

OUTPUT SPECIFICATIONS

Voltage accuracy

Voltage balance

Voltage adjustability

Line regulation

Load regulation

Ripple and noise

Transient response

Temperature coefficient

Overvoltage protection

(Zener clamp)

Short circuit protection

INPUT SPECIFICATIONS

Input voltage range

12VDC

24VDC

48VDC

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

GENERAL SPECIFICATIONS

±1.0%

Efficiency

Isolation voltage

See Note 4

Switching frequency

Approvals and

standards

Case material

Full load. See table

WR/MP, Input/output

WR/XC, Input/output

WR/XC, output/case

Fixed

Safety (WR-XC)

XC case

MP case

Material flammability

Weight

MTBF

XC case

MP case

See Note 6

75%, min.

500VDC

250VDC

100kHz

UL478

Dual outputs

WR/XC, single output

HL-LL

FL-NL

FL-0.25% FL

5Hz to 20MHz

25% step load

change

±2.0%

±10% max.

±0.2%

±5.0%, max.

±1.0%, max.

75mV pk-pk,

10mV rms max.

±1.0% error band

500µs recovery

±0.02%/°C, max.

Black coated metal

with non-conductive base

Non-conductive

black plastic

UL94V-0

170g (6.0oz.)

200g (7.06oz.)

840,000 Hours

5V single output

12 and 15V singles

6.8V ±10%

18.0V ±10%

Continuous

automatic recovery

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating ambient

-25°C to +71°C

Non-operating amb. -55°C to +105°C

Case temp. rise

+30°C at FL max.

Derating

None required

Cooling

Free air convection cooled

Non-condensing

Operating

Non operating

5Hz to 500Hz

5% to 95% RH

10,000 feet max.

40,000 feet max.

2.5G rms (approx.)

9-18VDC

18-36VDC

36-72VDC

30mA

20mA

Pi type

Refers to XC package only

CMOS or open collector TTL

+5.5VDC or open-circuit

1.8VDC

5mA

0VDC <Ein< 9VDC; 100kΩ

Referenced to input minus

Relative humidity

Altitude

Vibration

No load input current

Input filter

Remote ON/OFF

Logic compatibility

Ec-ON

Ec-OFF

Shutdown idle current

Input resistance

Control common

12VDC

24VDC and 48VDC

International Safety Standard Approvals

UL478 File No. E131987 (WR-XC)

The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising

from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.

PAGE 1

WR24D15/500MP Related Products

	WR24D15/500MP	WR12S12/1250XC	WR48S12/1250XC	WR24S12/1250XC	WR12S05/3000XC	WR48S05/3000XC	WR48D15/500MP	WR24D12/625XC	WR24D15/500XC
Description	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit	Analog Circuit
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, MODULE,7LEAD,3.2	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5	, MODULE,7LEAD,3.2	, MODULE,8LEAD,2.5	, MODULE,8LEAD,2.5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input voltage	36 V	18 V	72 V	36 V	18 V	72 V	72 V	36 V	36 V
Minimum input voltage	18 V	9 V	36 V	18 V	9 V	36 V	36 V	18 V	18 V
Number of terminals	7	8	8	8	8	8	7	8	8
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output current	0.5 A	1.25 A	1.25 A	1.25 A	3 A	3 A	0.5 A	0.625 A	0.5 A
Nominal output voltage	15 V	12 V	12 V	12 V	5 V	5 V	15 V	12 V	15 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,7LEAD,3.2	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5	MODULE,7LEAD,3.2	MODULE,8LEAD,2.5	MODULE,8LEAD,2.5
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Maker	Artysen Embedded Technologies	-	Artysen Embedded Technologies	Artysen Embedded Technologies	-	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies
