AD7579JNZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD7579JNZ

AD7579JNZ: DescriptionLC2MOS 10-Bit Sampling A/D Converter with (8+2) Read Data Format; CategoryAnalog mixed-signal IC converter; File Size845KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric Compare View All

AD7579JNZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD7579JNZ	-	-	View	Buy Now

AD7579JNZ Overview

LC2MOS 10-Bit Sampling A/D Converter with (8+2) Read Data Format

AD7579JNZ Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Manufacturer packaging code	N-24-1
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	7.3 V
Minimum analog input voltage	-0.3 V
Maximum conversion time	18.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
JESD-609 code	e3
length	30.45 mm
Maximum linear error (EL)	0.39%
Number of analog input channels	2
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.05 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.33 mm
Maximum slew rate	10 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
width	7.62 mm

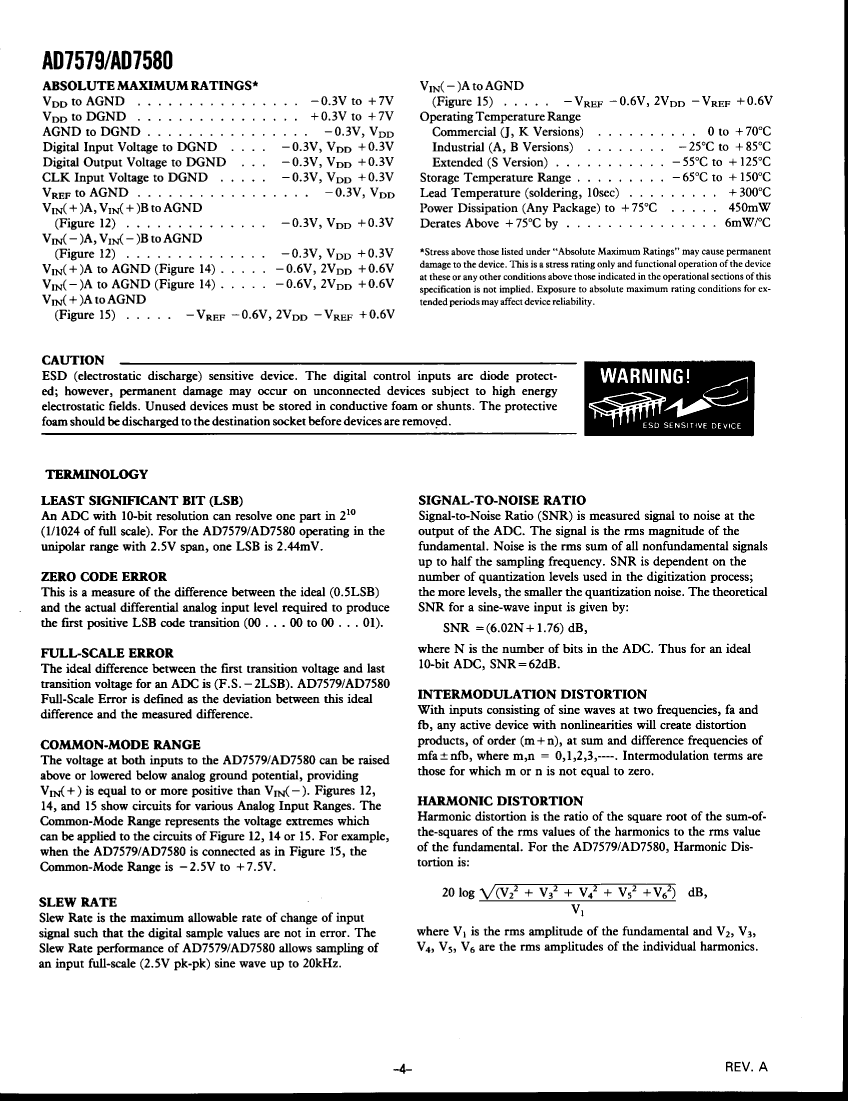

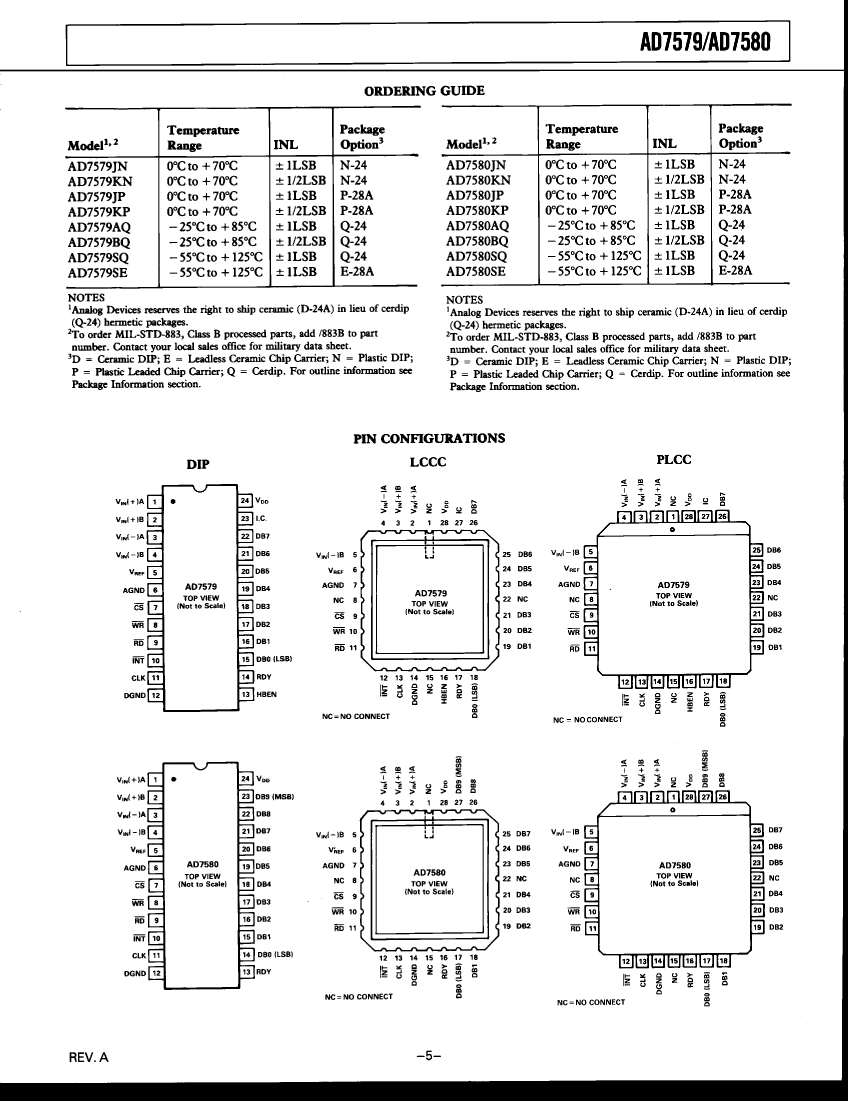

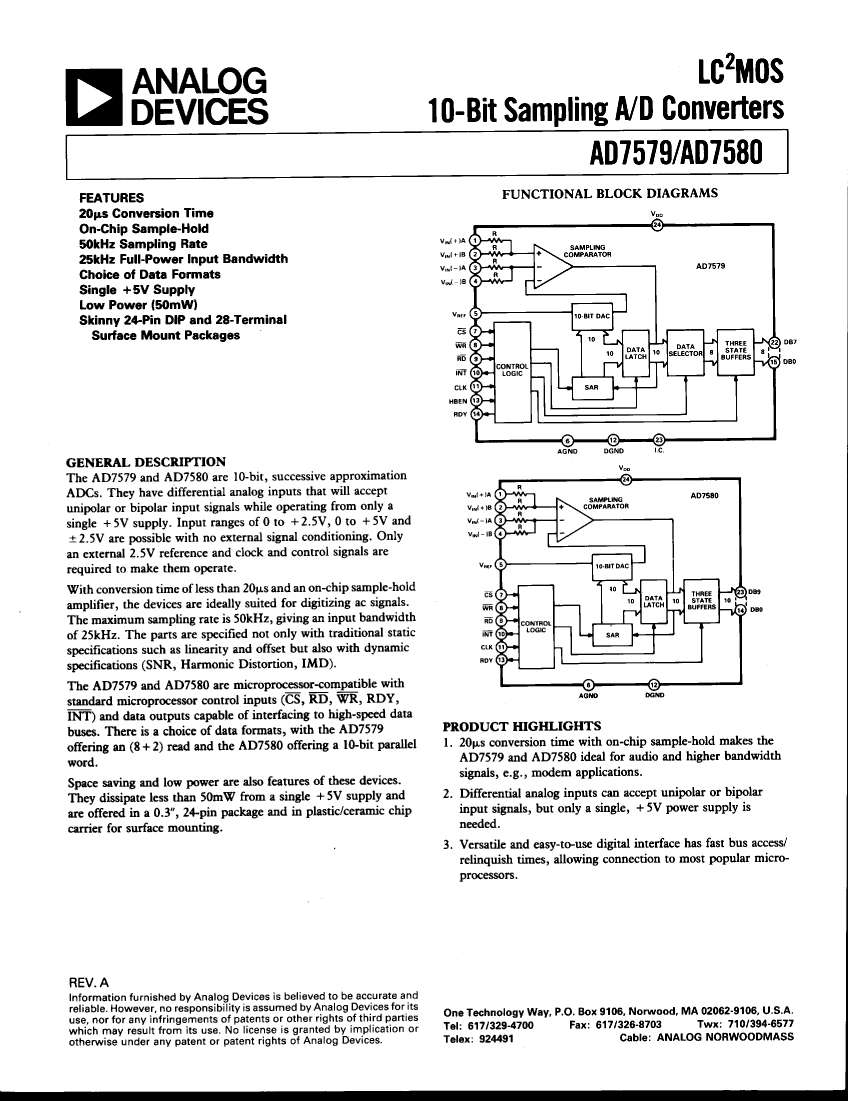

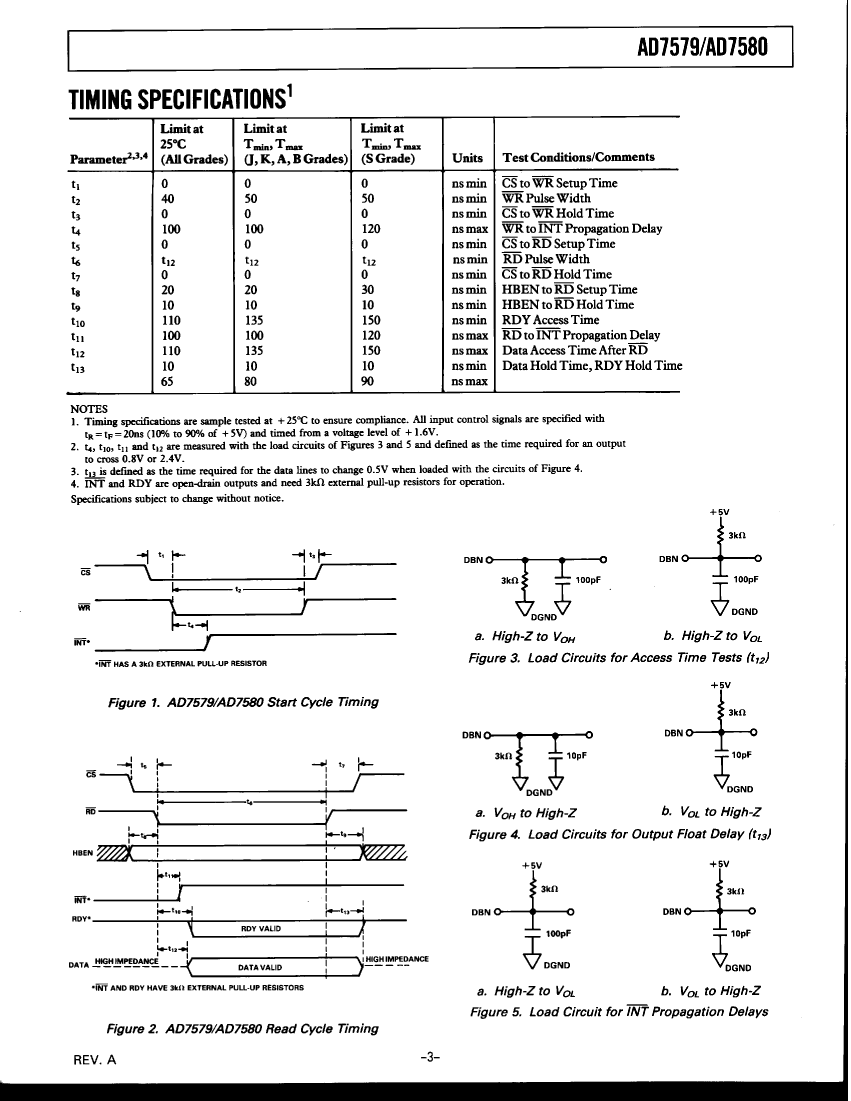

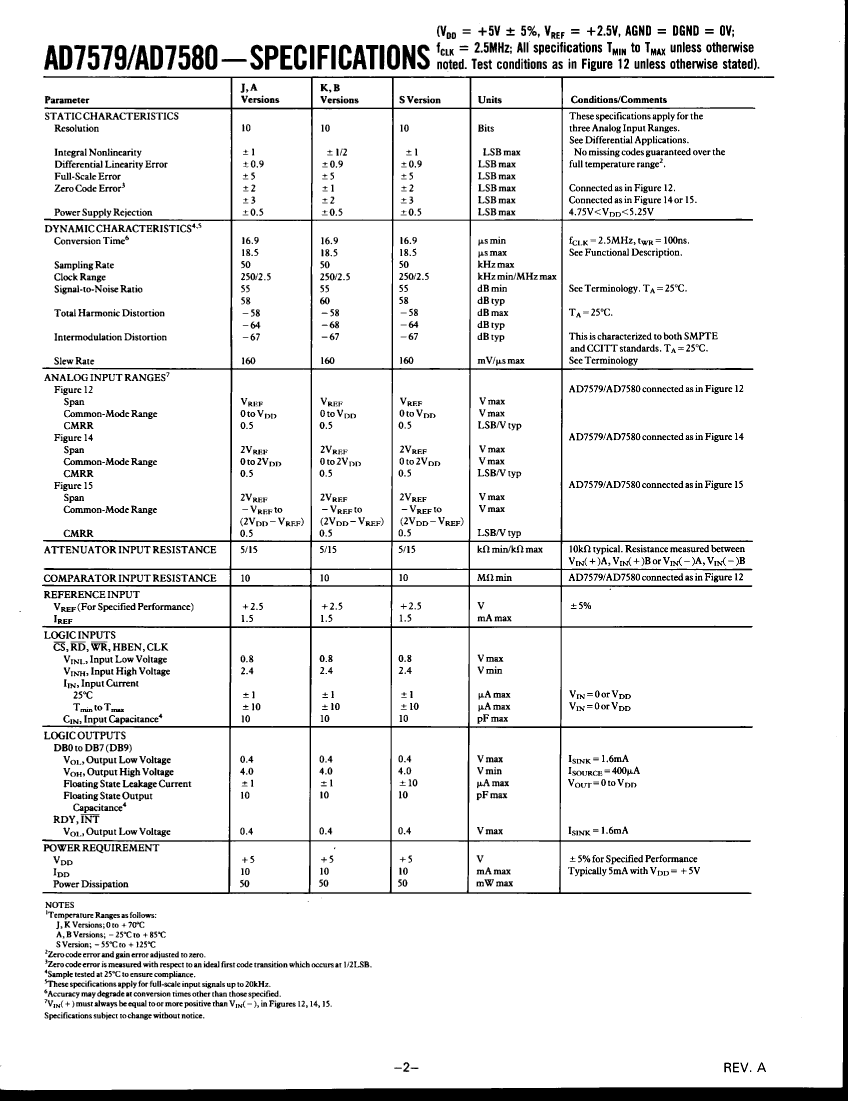

AD7579JNZ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AD7579JNZ Related Products

	AD7579JNZ	AD7580AQ	AD7580KPZ
Description	LC2MOS 10-Bit Sampling A/D Converter with (8+2) Read Data Format	LC2MOS 10-Bit Sampling A/D Converter with 10-Bit Parallel Word Data Format	LC2MOS 10-Bit Sampling A/D Converter with 10-Bit Parallel Word Data Format
Brand Name	Analog Devices Inc	Analog Devices Inc	Analog Devices Inc
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	QLCC
package instruction	DIP, DIP24,.3	DIP, DIP24,.3	PLASTIC, LCC-28
Contacts	24	24	28
Reach Compliance Code	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Maximum analog input voltage	7.3 V	7.3 V	7.3 V
Minimum analog input voltage	-0.3 V	-0.3 V	-0.3 V
Maximum conversion time	18.5 µs	18.5 µs	18.5 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24	R-GDIP-T24	S-PQCC-J28
JESD-609 code	e3	e0	e3
Maximum linear error (EL)	0.39%	0.098%	0.049%
Number of analog input channels	2	2	2
Number of digits	8	10	10
Number of functions	1	1	1
Number of terminals	24	24	28
Maximum operating temperature	70 °C	85 °C	70 °C
Output bit code	BINARY	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP24,.3	DIP24,.3	LDCC28,.5SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT APPLICABLE	NOT APPLICABLE	260
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.05 MHz	0.05 MHz	0.05 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE	SAMPLE
Maximum seat height	5.33 mm	5.08 mm	4.57 mm
Maximum slew rate	10 mA	10 mA	10 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED
width	7.62 mm	7.62 mm	11.5062 mm
Manufacturer packaging code	N-24-1	-	P-28A
length	30.45 mm	-	11.5062 mm
