LTV-844S: Description1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER; CategoryLED optoelectronic/LED; File Size406KB，14 Pages; ManufacturerTenand Co., Ltd.; Websitehttp://www.tenand.com/

Download Datasheet Parametric Compare View All

LTV-844S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LTV-844S	-	-	View	Buy Now

LTV-844S Overview

1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

LTV-844S Parametric

Parameter Name	Attribute value
Maximum operating temperature	100 Cel
Minimum operating temperature	-30 Cel
Number of functions	1
Processing package description	DIP-4
state	ACTIVE
structure	SINGLE
Optoelectronic device type	AC INPUT-TRANSISTOR OUTPUT
Minimum Coll-emtr Bkdn voltage	35 V
Maximum collector dark current	100 nA
Rated current transfer ratio	20 %
Maximum input control current	50 mA
Maximum insulation voltage	5000 V

Preview

Download Datasheet

View All

深圳市腾恩科技有限公司

SHENZHEN TENAND TECHNOLOGY CO.,LTD

http://www.tenand.com

LITE-ON TECHNOLOGY CORPORATION

Property of LITE-ON Only

FEATURES

* AC input response

* High input-output isolation voltage

( V

iso

= 5,000Vrms )

* Low collector dark current

( I

CEO

: MAX. 10

-7

A at V

= 20V )

* Current transfer ratio

( CTR : MIN. 20% at I

= ±1mA, V

= 5V )

* Response time

( t

: TYP. 4µs at V

= 2V, I

= 2mA, R

= 100Ω )

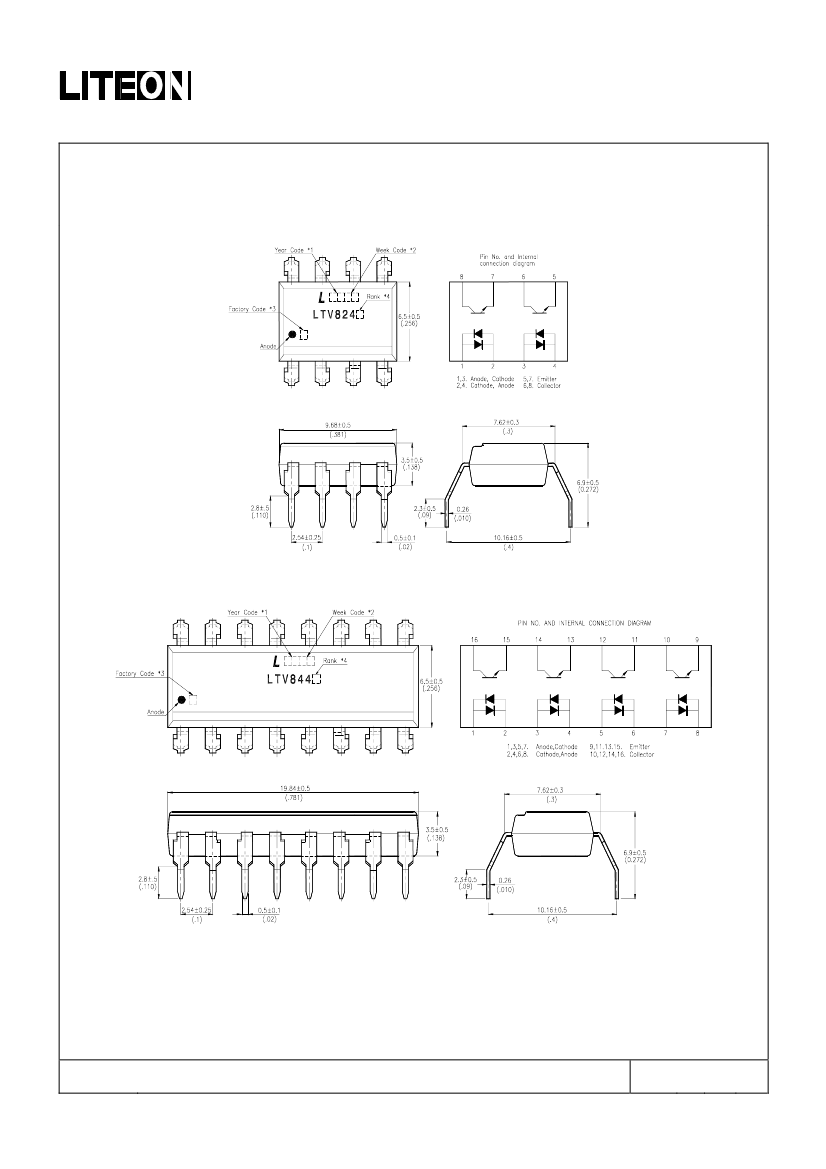

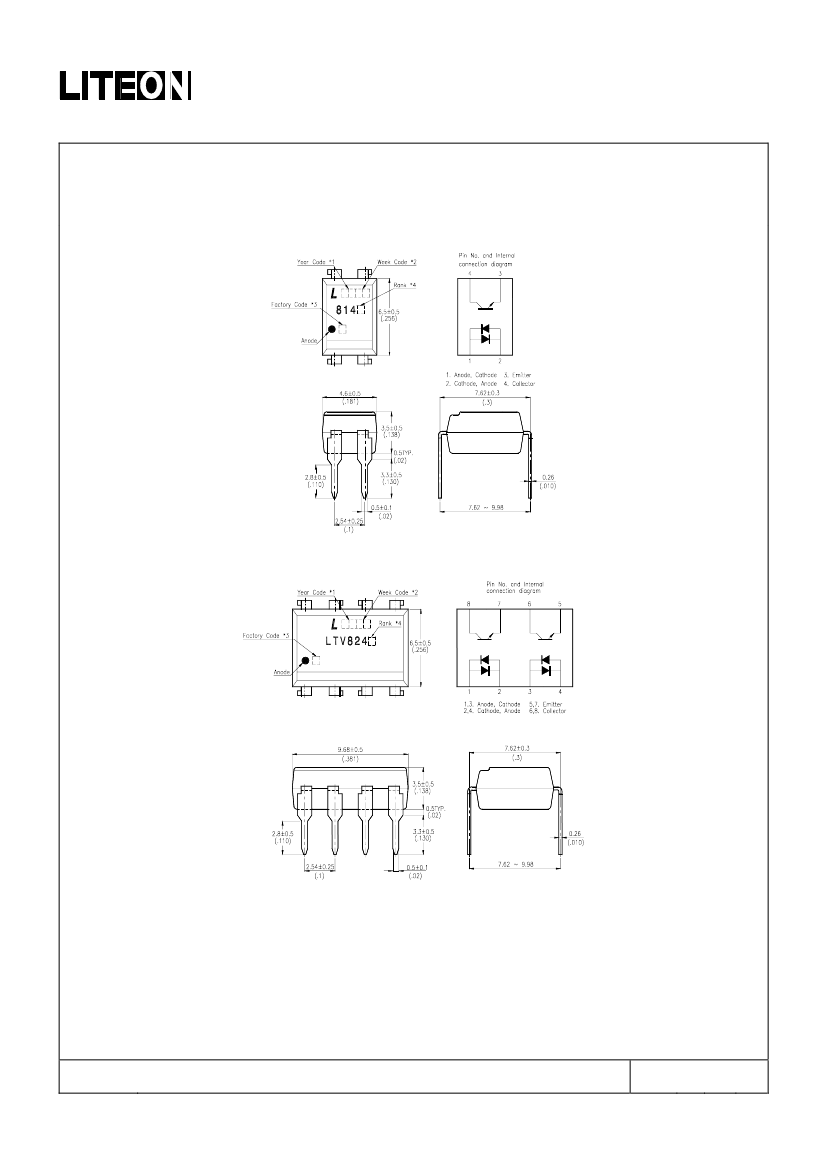

* Dual-in-line package :

LTV-814 : 1-channel type

LTV-824 : 2-channel type

LTV-844 : 4-channel type

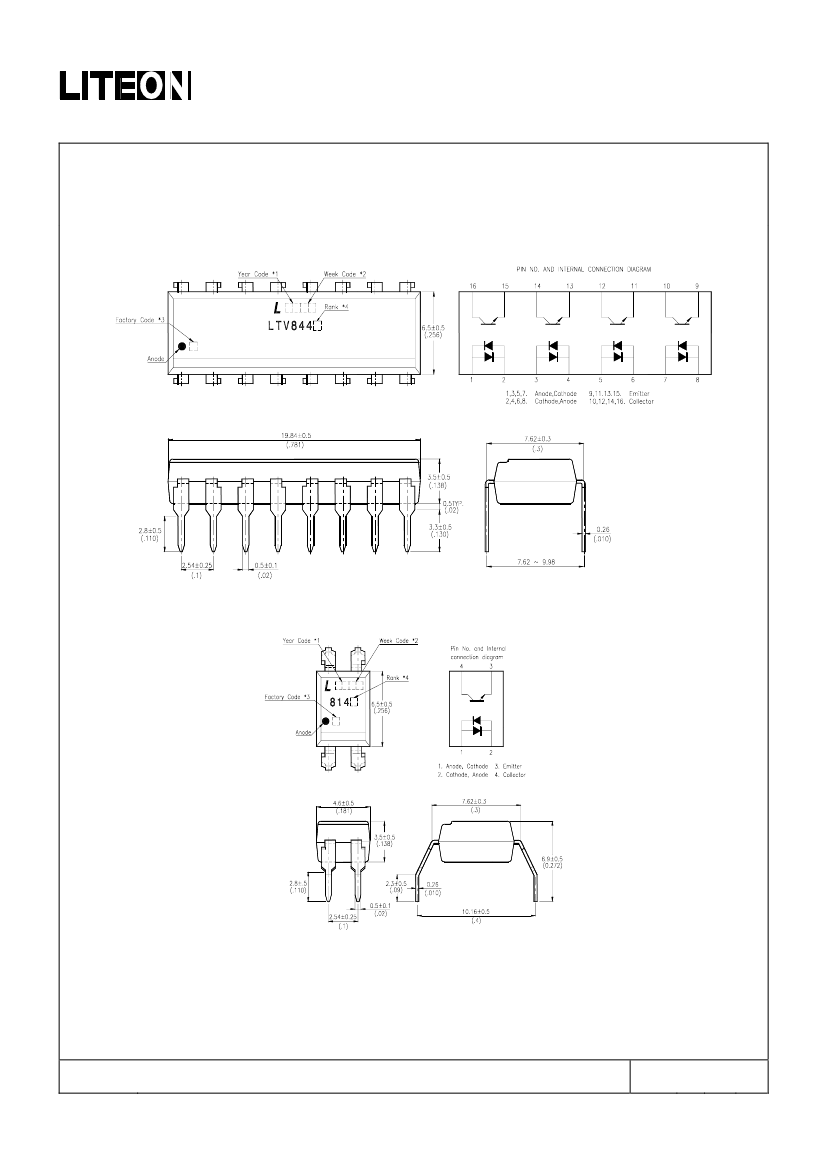

* Wide lead spacing package :

LTV-814M : 1-channel type

LTV-824M : 2-channel type

LTV-844M : 4-channel type

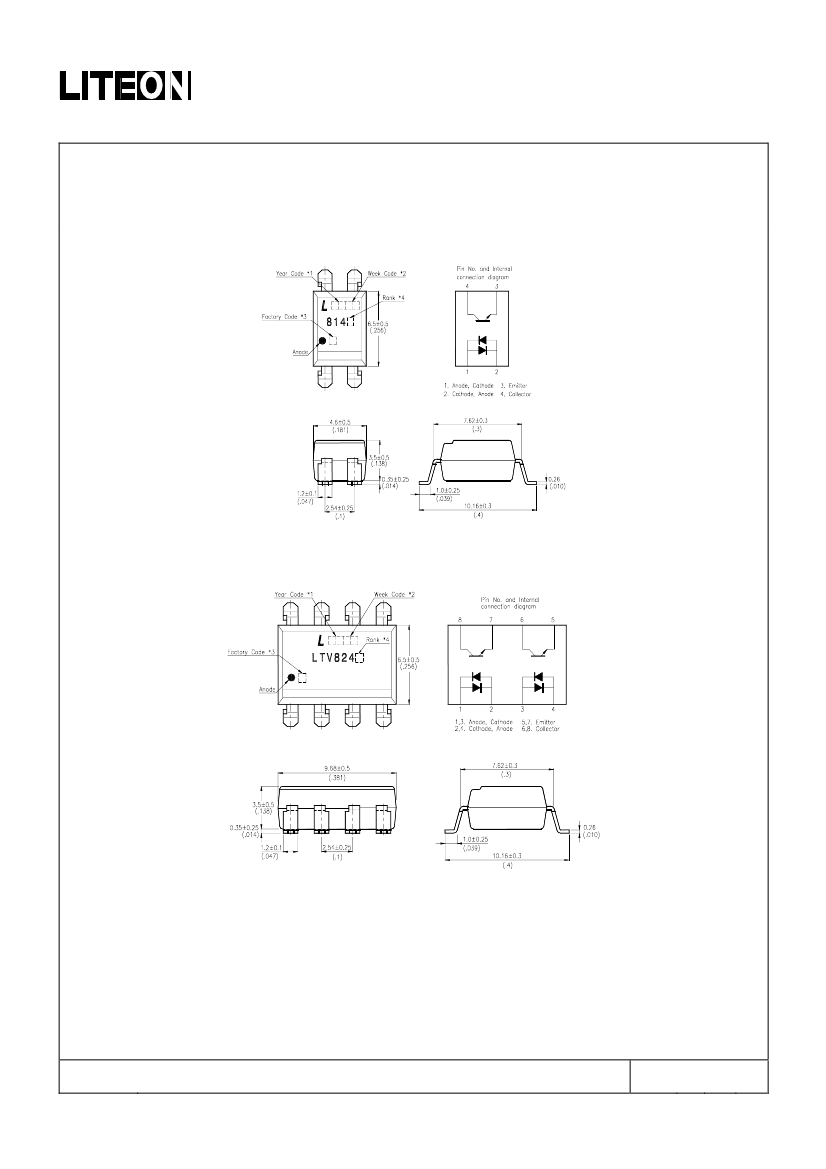

* Surface mounting package :

LTV-814S : 1-channel type

LTV-824S : 2-channel type

LTV-844S : 4-channel type

* Tape and reel packaging :

LTV-814S-TA1, LTV-824S-TA1

* UL approved ( No. E113898 )

* TUV approved ( No. R9653630 )

* CSA approved ( No. CA91533-1 )

* FIMKO approved ( No. 193422-01 )

* NEMKO approved ( No. P96103013 )

* DEMKO approved ( No. 303986 )

* SEMKO approved ( No. 9646047 / 01-30 )

* VDE approved ( No. 094722 )

Part No. : LTV-814 / 824 / 844 ( M, S, S-TA1 )

Page :

1 of 13

深圳市腾恩科技有限公司

http://www.tenand.com

BNS-OD-C131/A4

SHENZHEN TENAND TECHNOLOGY CO.,LTD

LTV-844S Related Products

	LTV-844S	LTV-814	LTV-814S	LTV-814S-TA1	LTV-824	LTV-824M	LTV-824S	LTV-824S-TA1	LTV-844	LTV-844M
Description	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	2 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	2 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	2 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	OPTOCOUPLER TRANS 5KVRMS 16DIP	4 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Maximum operating temperature	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	-	100 Cel
Minimum operating temperature	-30 Cel	-30 Cel	-30 Cel	-30 Cel	-30 Cel	-30 Cel	-30 Cel	-30 Cel	-	-30 Cel
Number of functions	1	1	1	1	2	1	2	2	-	4
Processing package description	DIP-4	DIP-4	SURFACE MOUNT, DIP-4	SURFACE MOUNT, DIP-4	DIP-8	DIP-4	SURFACE MOUNT, DIP-8	SURFACE MOUNT, DIP-8	-	DIP-16
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-	ACTIVE
structure	SINGLE	SINGLE	SINGLE	SINGLE	SEPARATE, 2 CHANNELS	SINGLE	SEPARATE, 2 CHANNELS	SEPARATE, 2 CHANNELS	-	SEPARATE, 4 CHANNELS
Optoelectronic device type	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	AC INPUT-TRANSISTOR OUTPUT	-	AC INPUT-TRANSISTOR OUTPUT
Minimum Coll-emtr Bkdn voltage	35 V	35 V	35 V	35 V	35 V	35 V	35 V	35 V	-	35 V
Maximum collector dark current	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	-	100 nA
Rated current transfer ratio	20 %	20 %	20 %	20 %	20 %	20 %	20 %	20 %	-	20 %
Maximum input control current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	-	50 mA
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	-	5000 V
