LTV-8D52 Overview

1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER

LTV-8D52 Parametric

Parameter Name	Attribute value
Maximum operating temperature	100 Cel
Minimum operating temperature	-30 Cel
Number of functions	1
Processing package description	ROHS COMPLIANT, SURFACE MOUNT, DIP-4
state	ACTIVE
structure	SINGLE WITH BUILT-IN DIODE AND RESISTOR
Optoelectronic device type	DARLINGTON OUTPUT
Minimum Coll-emtr Bkdn voltage	300 V
Maximum collector dark current	200 nA
Rated current transfer ratio	4000 %
Maximum input control current	50 mA
Maximum insulation voltage	5000 V

Preview

Download Datasheet

View All

深圳市腾恩科技有限公司

SHENZHEN TENAND TECHNOLOGY CO.,LTD

http://www.tenand.com

LITE-ON TECHNOLOGY CORPORATION

Property of LITE-ON Only

FEATURES

* High current transfer ratio

( CTR : MIN. 1000% at I

= 1mA, V

= 2V )

* High input-output isolation voltage

( V

iso

= 5,000Vrms )

* High collector-emitter voltage

( V

CEO

= 300V )

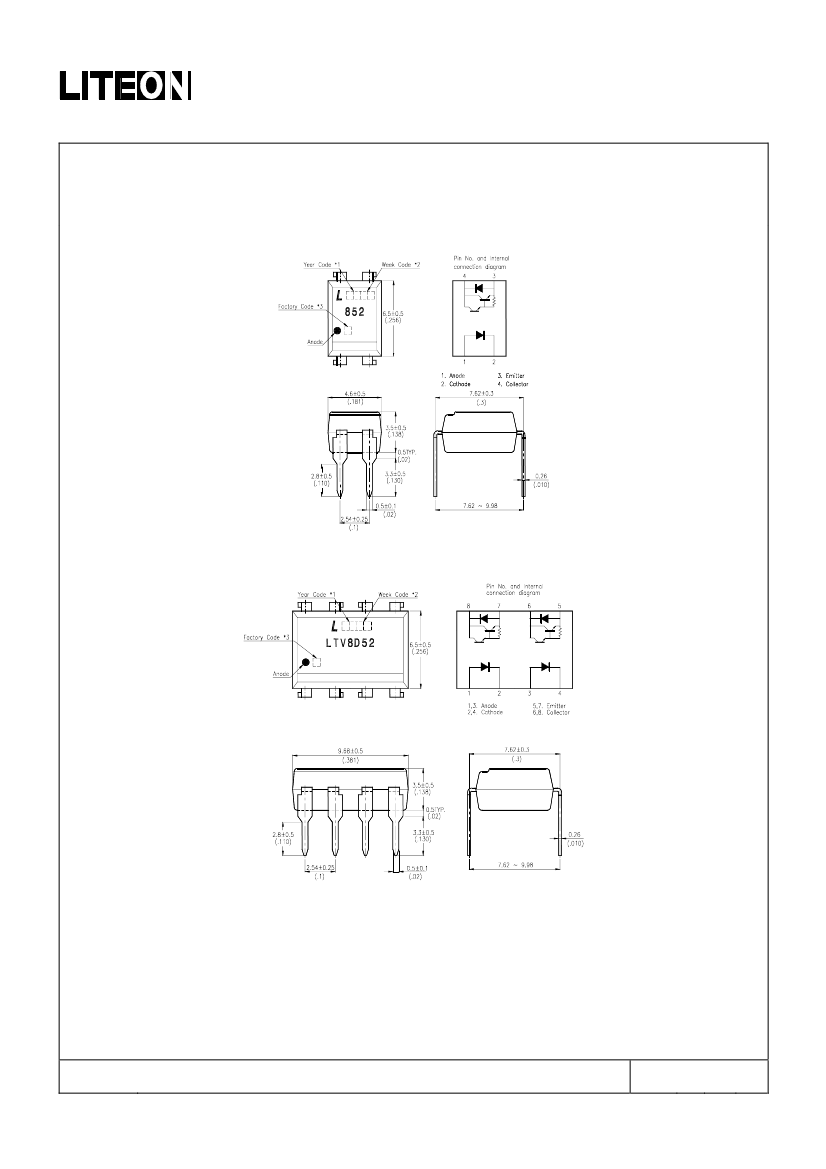

* Dual-in-line package :

LTV-852 : 1-channel type

LTV-8D52 : 2-channel type

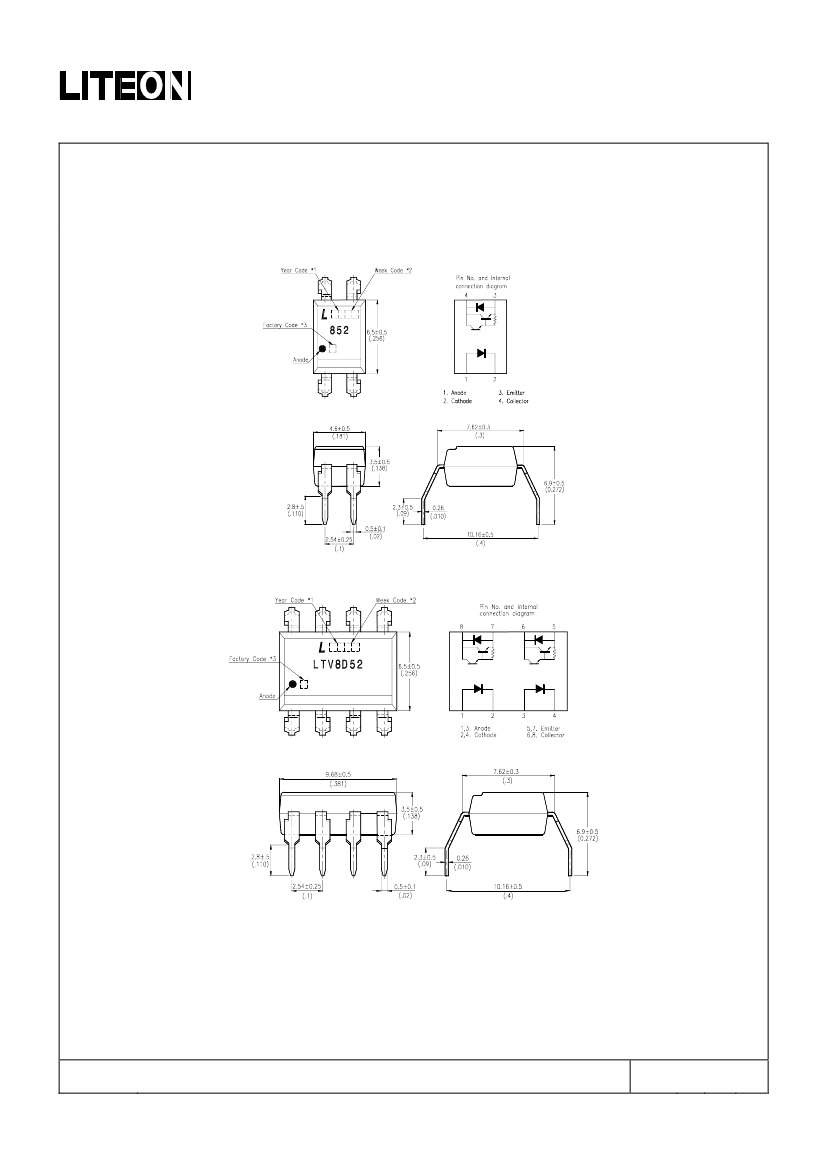

* Wide lead spacing package :

LTV-852M : 1-channel type

LTV-8D52M : 2-channel type

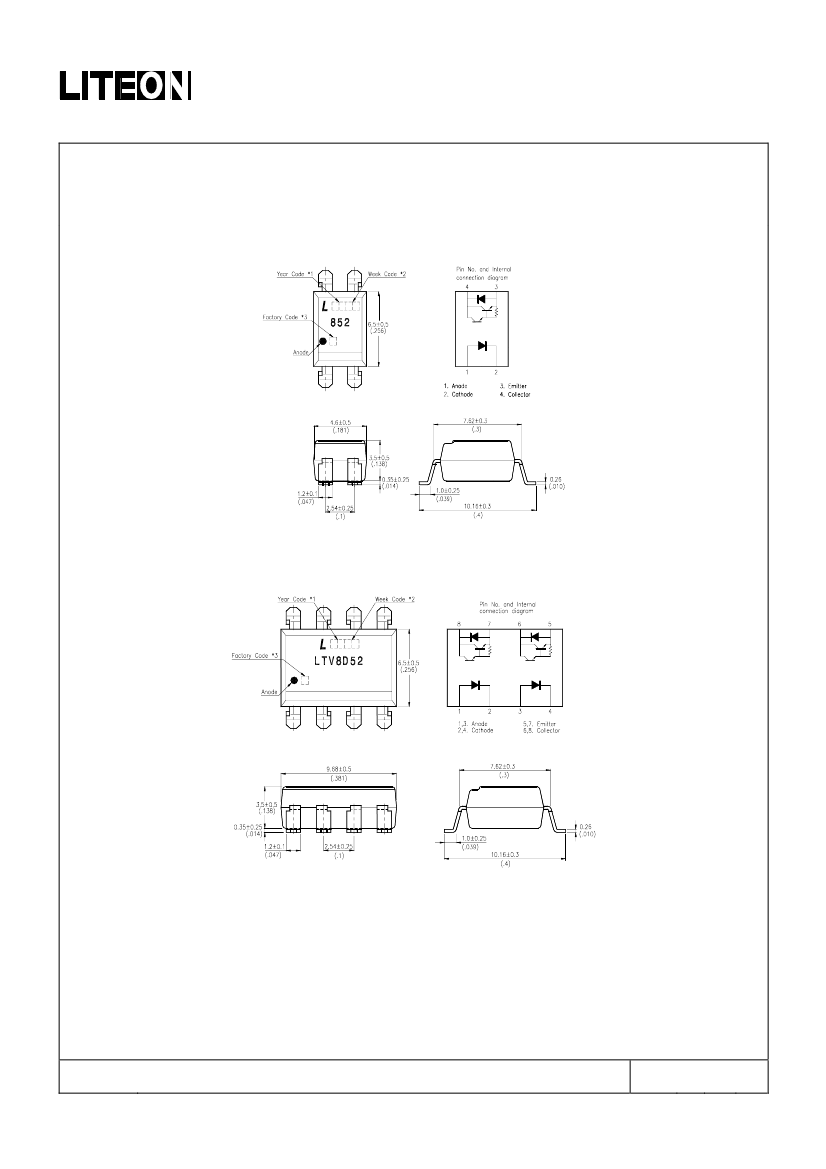

* Surface mounting package :

LTV-852S : 1-channel type

LTV-8D52S : 2-channel type

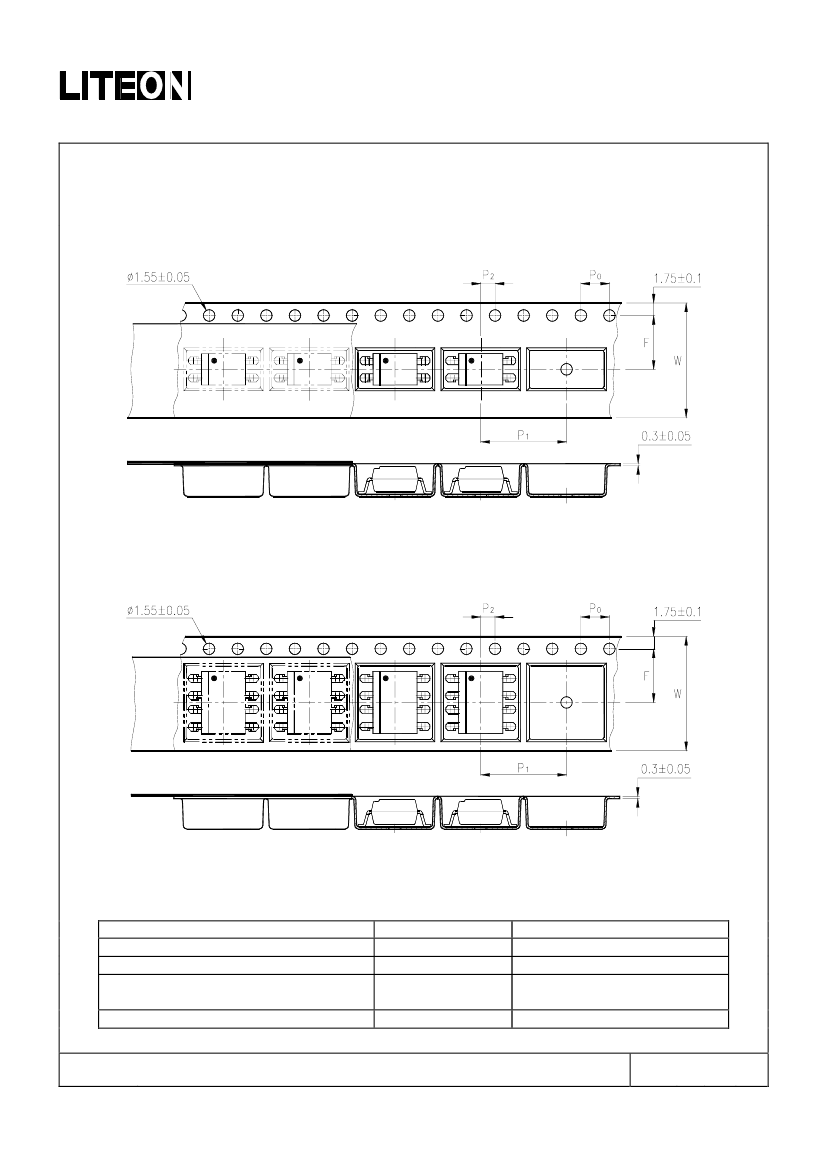

* Tape and reel packaging :

LTV-852S-TA1, LTV-8D52S-TA1

* UL approved ( No. E113898 )

* TUV approved ( No. R9653630 )

* CSA approved ( No. CA91533-1 )

* FIMKO approved ( No. 202944 )

* NEMKO approved ( No. P98101736 )

* DEMKO approved ( No. 307924 )

* SEMKO approved ( No. 9833166 / 01-20 )

* VDE approved ( No. 094722 )

Part No. : LTV-852 / 8D52 ( M, S, S-TA1 )

Page :

1 of 10

深圳市腾恩科技有限公司

http://www.tenand.com

BNS-OD-C131/A4

SHENZHEN TENAND TECHNOLOGY CO.,LTD
