802-001-06Z16-7PN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-001-06Z16-7PN

802-001-06Z16-7PN: DescriptionCircular Connector, 7 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size331KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

802-001-06Z16-7PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	802-001-06Z16-7PN	-	-	View	Buy Now

802-001-06Z16-7PN Overview

Circular Connector, 7 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug,

802-001-06Z16-7PN Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	6
Termination type	CRIMP
Total number of contacts	7

802-001-06Z16-7PN Preview

Series 802 “Aqua Mouse”

Cable Plugs

802-001 & 802-003

How to Order Series 802 Cable Plugs

Series 802 “Aqua Mouse” Cable Plugs

are available in two styles:

Integral Band Platform

for attachment of cable shields.

Integral Molding Platform

for unshielded cable.

How To Order Series 802 Cable Plugs

Series

Banding Platform

Shell

Style

Plug

Shell Material / Finish

Stainless Steel, with Passivated

Finish

Shell Size / Insert

Arrangement

4 Contacts

Contact

Type

Shell

Key

Normal

Alternate Key

Positions

802-001

6-4

7 Contacts

6-7

Socket

Molding Platform

802-003

19 Contacts

9-19

Part Number Example

802-001

—06

9—19

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

D-5

Series 802

Submersible

Series 802

Submersible

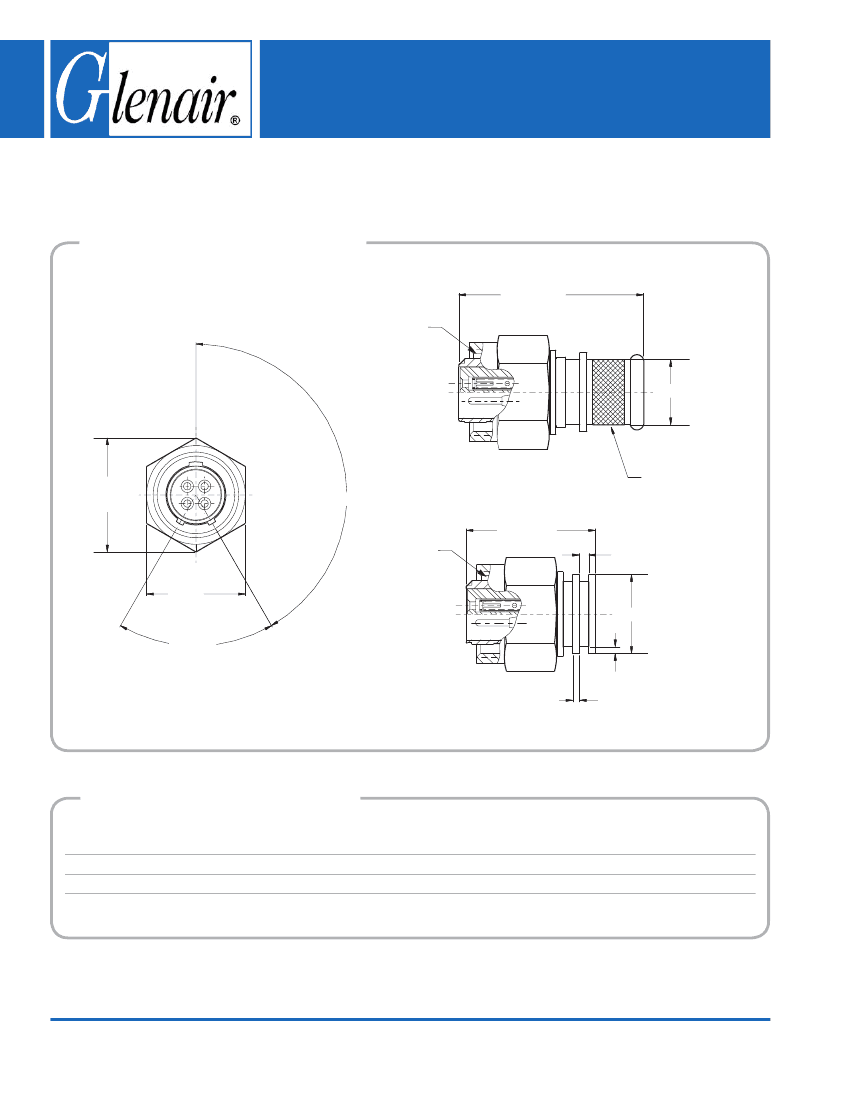

Series 802 “Aqua Mouse”

Cable Plug Dimensions

802-001 & 802-003

Series 802 Cable Plug Dimensions

1.120 (28.4)

MAX

C THREAD

Integral Band

Platform

802-001

øD

ACROSS

CORNERS

150° BSC

1.00 (25.4)

MAX

MEDIUM MALE

DIAMOND KNURL

C THREAD

B HEX

.08 (2.0)

TYP

60° BSC

Integral Molding

Platform

802-003

øE

.037 (0.9)

.035 (0.9)

TYP

Series 802 Cable Plug Dimensions

Layout

6-4

6-7

9-19

.69 (17.5)

.94 (23.9)

B Hex

.625 (15.9)

.813 (20.7)

C Thread

.5625-20 UN-2B

.750-20 UNEF-2B

.30 (7.6)

.52 (13.2)

.375 (9.5)

.595 (15.1)

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

D-6
