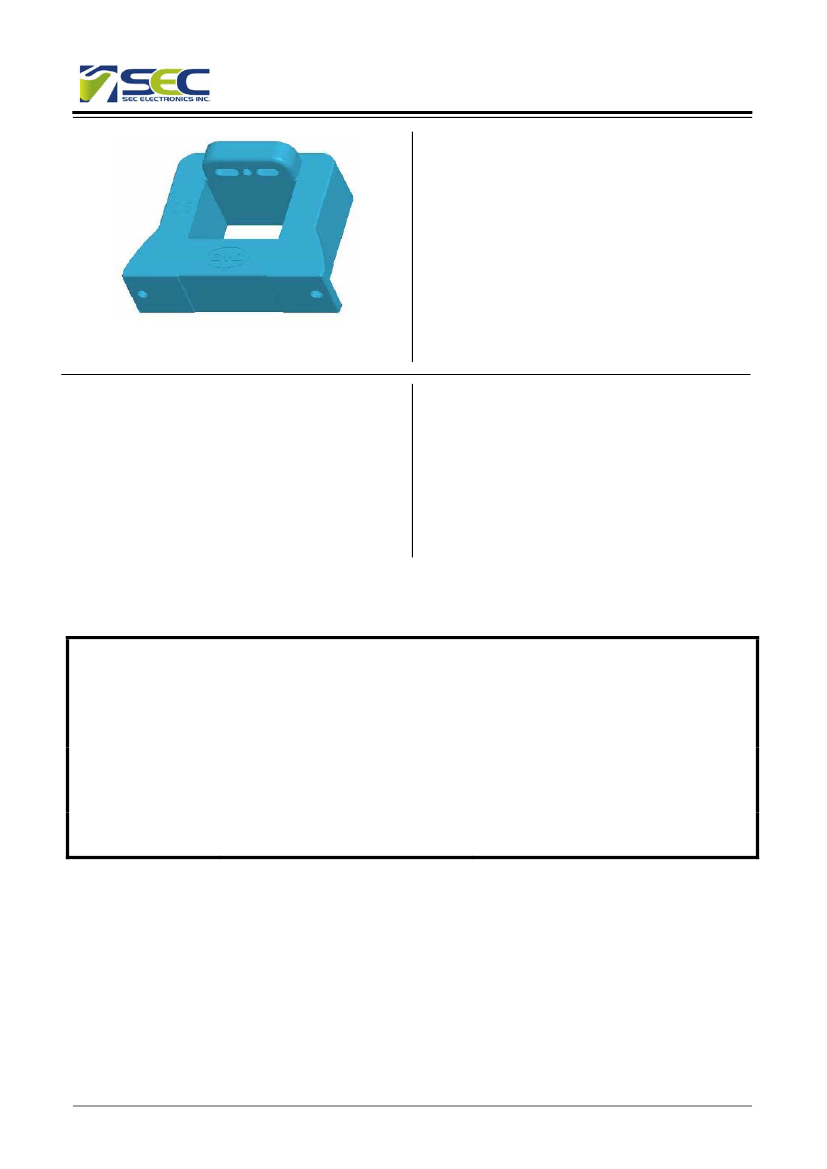

SIOY3SV2
Current Sensors
Features
Hall effect measuring principle
Galvanic isolation between primary and
secondary circuit
Isolation voltage 3000 V
Low power consumption
Extended measuring range (3 *IPN)
Insulated plastic case recognized according
to UL 94-V0
I
PN
= 40…1500A V
OUT
= ± 4 V
Advantages
Easy installation
Small size and space saving
Only one design for wide current ratings
range
High immunity to external interference
Industrial applications
DC motor drives
Switched Mode Power Supplies(SMPS)
AC variable speed drives
Uninterruptible Power Supplies(UPS)
Battery supplied applications
Power supplies for welding applications
Type
SIOY3S400V2
SIOY3S500V2
SIOY3S600V2
SIOY3S800V2
SIOY3S1000V2
SIOY3S1200V2
SIOY3S1500V2
TYPES OF PRODUCTS
Primary current measuring range
Primary nominal current
I
P
(A)
r. m. s I
PN
(A)
400
500
600
800
1000
1200
1500
±1200
±1500
±1800
±2400
±2500
±2500
±2500
General Description
For the electronic measurement of currents : DC, AC, pulsed, mixed, with a galvanic isolation between
the primary circuit and the secondary circuit.
1
V2.00 May 1, 2012
SIOY3SV2
Current Sensors
Parameters Table
PARAMETERS
Supply voltage(±5%)
(1)
Current consumption
Output voltage
Isolation resistance
Output internal resistance
Load resistance
(2)
Linearity
(3)
(0…±I
PN
)
Accuracy
Electrical offset voltage
Hysteresis offset voltage
Temperature coefficient of V
OE
Temperature coefficient of
V
OUT
Response time
Frequency bandwidth
(4)
Ambient operating temperature
Ambient storage temperature
Mass
Rated isolation voltage rms
Rms voltage for AC isolation
test
Creepage distance
Clearance distance
Comparative Tracking Index
SYMBOL
V
C
I
C
V
out
UNIT
Electrical data
V
mA
V
VALUE
±15
±15
±4V
@ ± I
PN
, R
L
= 10 kΩ,
T
A
= 25°C
@ 500 VDC
CONDITIONS
R
IS
MΩ
>1000
R
OUT
Ω
100
R
L
KΩ
>
10
Accuracy - Dynamic performance data
ε
L
X
V
OE
V
OH
TCV
OE
TCV
OUT
t
r
BW
% of I
PN
% of I
PN
mV
mV
mV/K
%/K
μS
kHz
<±1
<±1
<±20
<±10
<1
<±0.1
<5
DC~25
@ I
PN
, T
A
= 25°C
(excluding offset)
@T
A
= 25°C
@ I
P
= 0
after an excursion of 1* IPN
@ 90% of I
PN
step
@-3dB
General data
T
A
°C
-40 ~ +85
T
S
°C
-40 ~ +105
m
g
300
Isolation characteristics
V
b
V
1000
V
d
dC
p
dC
I
CTI
KV
mm
mm
3
>11
>11
275
50 Hz, 1 min
Group IIIa
Notes:
1) Operating at
±12V ≤VC<±15V
will reduce the measuring range.
2) If the customer uses 10KΩ of the load resistor, the primary current has to be limited as the
nominal.
3) Linearity data exclude the electrical offset.
4)
Please refer to derating curves in the technical file to avoid excessive core heating at high
frequency.
2
V2.00 May 1, 2012
SIOY3SV2
Current Sensors

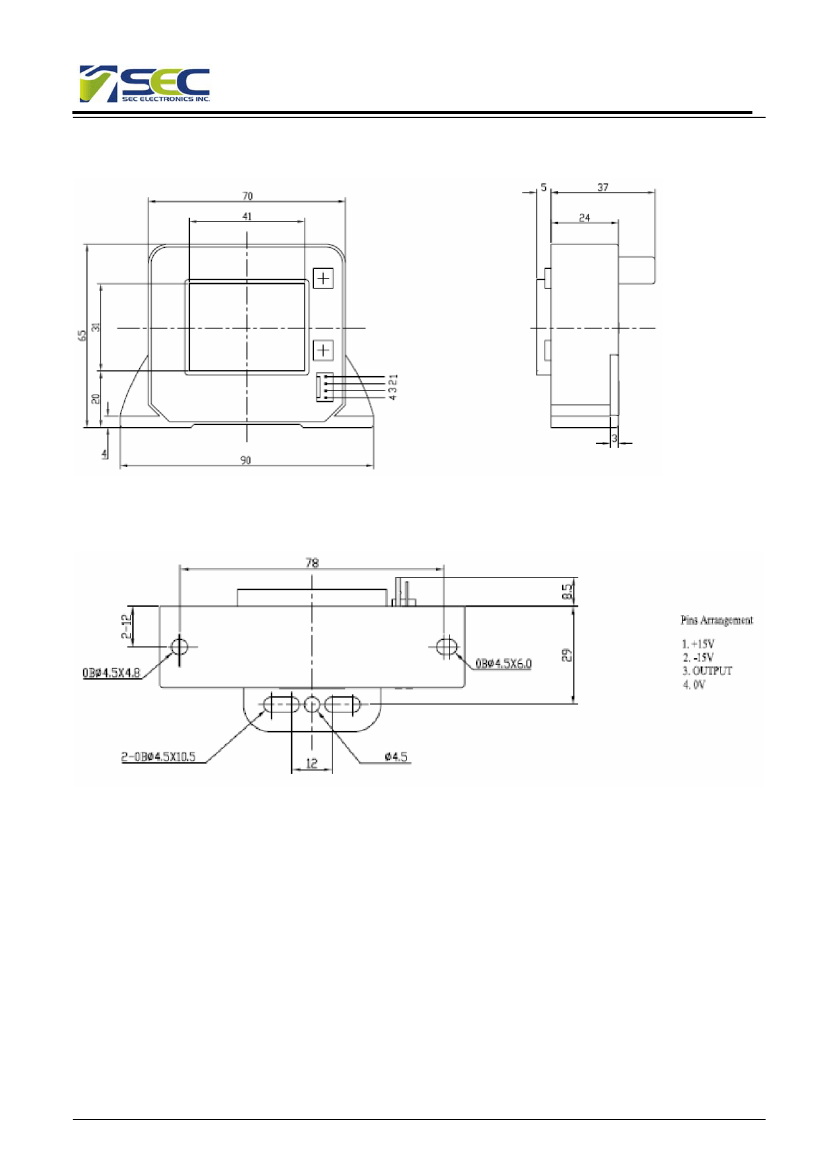

Dimensions SIOY3SV2
(
in mm. 1 mm = 0.0394 inch
)
Instructions of use
1) When the test current passes through the sensors you can get the size of the output
voltage.(Warning: wrong connection may lead to sensors damage)
2) Based on user needs, the sensors output range can be appropriately regulated.
3) According to user needs, different rated input currents and output voltages of the sensors can be
customized.
3
V2.00 May 1, 2012
SIOY3SV2
Current Sensors
RESTRICTIONS ON PRODUCT USE
The information contained herein is subject to change without notice.
SEC ELECTRONICS INC. (for short SEC) exerts the greatest possible effort to ensure high quality
and reliability. Nevertheless, semiconductor devices in general can malfunction or fail due to their
inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer,
when utilizing SEC products, to comply with the standards of safety in making a safe design for the
entire system, including redundancy, fire-prevention measures, and malfunction prevention, to prevent
any accidents, fires, or community damage that may ensue. In developing your designs, please ensure
that SEC products are used within specified operating ranges as set forth in the most recent SEC
products specifications.
The SEC products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic
appliances, etc.). These SEC products are neither intended nor warranted for usage in equipment that
requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause
loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal
instruments, combustion control instruments, medical instruments, all types of safety devices, etc..
Unintended Usage of SEC products listed in this document shall be made at the customer’s own risk.
4
V2.00 May 1, 2012
