ICS85211I-03
L
OW
S
KEW
, 1-
TO
-2
D
IFFERENTIAL
-
TO
-LVHSTL F
ANOUT
B
UFFER
G
ENERAL
D
ESCRIPTION
The ICS85211I-03 is a low skew, high perfor-
mance 1-to-2 Differential-to-LVHSTL Fanout
HiPerClockS™
Buffer and a member of the HiPerClock ™
S
family of High Perfor mance Clock Solutions
from IDT. The CLK, nCLK pair can accept most
standard differential input levels.The ICS85211I-03 is char-
acterized to operate from a 3.3V power supply. Guar-
anteed output and par t-to-par t skew character istics
make the ICS85211I-03 ideal for those clock distribution
applications demanding well defined performance and
repeatability. For optimal performance, terminate all outputs.
F
EATURES
•
•
•
•
•
•
2 differential LVHSTL compatible outputs
1 differential CLK, nCLK input pair
CLK, nCLK pair can accept the following differential
input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
Maximum output frequency: 700MHz
Translates any single-ended input signal to
LVHSTL levels with resistor bias on nCLK input
Output skew: 30ps (maximum)
IC
S
•
Part-to-part skew: 250ps (maximum)
•
Propagation delay: 1ns (maximum)
•
Output duty cycle: 49% - 51% up to 266.6MHz
•
V
OH
= 1V (maximum)
•
3.3V operating supply
•
-40°C to 85°C ambient operating temperature
•
Available in both standard (RoHS 5) and lead-free (RoHS
6) packages.
B
LOCK
D
IAGRAM
Q0
nQ0
Q1
nQ1
P
IN
A
SSIGNMENT
Q0
nQ0
Q1
nQ1
1
2
3
4
8
7
6
5
V
DD
CLK
nCLK
GND
CLK
nCLK
ICS85211I-03
8-Lead SOIC
3.90mm x 4.90mm x 1.37mm package body
M Package
Top View
85211AMI-03
1
REV. B NOVEMBER 14, 2007
ICS85211I-03
L
OW
S
KEW
, 1-
TO
-2
D
IFFERENTIAL
-
TO
-LVHSTL F
ANOUT
B
UFFER
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1, 2
3, 4
5
6
7
8
Name
Q0, nQ0
Q1, nQ1
GND
nCLK
CLK
V
DD
Type
Output
Output
Power
Input
Input
Power
V
DD
/2
Description
Differential output pair. LVHSTL interface levels.
Differential output pair. LVHSTL interface levels.
Power supply ground.
Inver ting differential clock input. V
DD
/2 default when left floating.
Positive supply pin.
Pulldown Non-inver ting differential clock input.
NOTE:
Pulldown
refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
51
51
Test Conditions
Minimum
Typical
Maximum
4
Units
pF
KΩ
KΩ
T
ABLE
3. C
LOCK
I
NPUT
F
UNCTION
T
ABLE
Inputs
CLK
0
1
0
1
Biased; NOTE 1
Biased; NOTE 1
nCLK
0
1
Biased; NOTE 1
Biased; NOTE 1
0
1
Q0, Q1
LOW
HIGH
LOW
HIGH
HIGH
LOW
Outputs
nQ0, nQ1
HIGH
LOW
HIGH
LOW
LOW
HIGH
Input to Output Mode
Differential to Differential
Differential to Differential
Single Ended to Differential
Single Ended to Differential
Single Ended to Differential
Single Ended to Differential
Polarity
Non Inver ting
Non Inver ting
Non Inver ting
Non Inver ting
Inver ting
Inver ting
NOTE 1: Please refer to the Application Information section, "Wiring the Differential Input to Accept Single Ended Levels".
85211AMI-03
2
REV. B NOVEMBER 14, 2007
ICS85211I-03
L
OW
S
KEW
, 1-
TO
-2
D
IFFERENTIAL
-
TO
-LVHSTL F
ANOUT
B
UFFER
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
DD
Inputs, V
DD
Outputs, V
DD
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
DD
+ 0.5 V
-0.5V to V
DD
+ 0.5V
112.7°C/W (0 lfpm)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional
operation of product at these conditions or any conditions be-
yond those listed in the
DC Characteristics
or
AC Character-
istics
is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect product reliability.
T
ABLE
4A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
DD
= 3.3V ± 5%, T
A
= -40°C
TO
85°C
Symbol
V
DD
I
DD
Parameter
Power Supply Voltage
Power Supply Current
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
50
Units
V
mA
T
ABLE
4B. D
IFFERENTIAL
DC C
HARACTERISTICS
,
V
DD
= 3.3V ± 5%, T
A
= -40°C
TO
85°C
Symbol
I
IH
I
IL
V
PP
Parameter
Input High Current
Input Low Current
nCLK
CLK
nCLK
CLK
Test Conditions
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= 3.465V, V
IN
= 0V
V
DD
= 3.465V, V
IN
= 0V
-150
-5
1.3
V
DD
- 0.85
Minimum
Typical
Maximum
150
150
Units
µA
µA
µA
µA
V
V
Peak-to-Peak Input Voltage
0.15
Common Mode Input Voltage;
V
CMR
0.5
NOTE 1, 2
NOTE 1: For single ended applications the maximum input voltage for CLK and nCLK is V
DD
+ 0.3V.
NOTE 2: Common mode voltage is defined as V
IH
.
T
ABLE
4C. LVHSTL DC C
HARACTERISTICS
,
V
DD
= 3.3V ± 5%, T
A
= -40°C
TO
85°C
Symbol Parameter
V
OH
V
OL
V
SWING
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Peak-to-Peak Output Voltage Swing
Test Conditions
Minimum
0.7
0
0.3
0.65
Typical
Maximum
1.0
0.4
1.0
Units
V
V
V
NOTE 1: All outputs must be terminated with 50
Ω
to ground.
85211AMI-03
3
REV. B NOVEMBER 14, 2007
ICS85211I-03
L
OW
S
KEW
, 1-
TO
-2
D
IFFERENTIAL
-
TO
-LVHSTL F
ANOUT
B
UFFER
T
ABLE
5. AC C
HARACTERISTICS
,
V
DD
= 3.3V ± 5%, T
A
= -40°C
TO
85°C
Symbol
f
MAX
t
PD
t
sk(o)
t
sk(pp)
t
R
/ t
F
o dc
Parameter
Output Frequency
Propagation Delay; NOTE 1
Output Skew; NOTE 2, 4
Par t-to-Par t Skew; NOTE 3, 4
Output Rise/Fall Time
Output Duty Cycle
20% to 80%
185
47
IJ 600MHz
0.7
Test Conditions
Minimum
Typical
Maximum
700
1
30
250
450
53
Units
MH z
ns
ps
ps
ps
%
IJ 266.6MHz
49
51
%
All parameters measured at 600MHz unless noted otherwise.
The cycle-to-cycle jitter on the input will equal the jitter on the output. The par t does not add jitter.
NOTE 1: Measured from the differential input crossing point to the differential output crossing point.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at output differential cross points.
NOTE 3: Defined as skew between outputs on different devices operating at the same supply voltages and with equal load
conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
NOTE 4: This parameter is defined in accordance with JEDEC Standard 65.
85211AMI-03
4
REV. B NOVEMBER 14, 2007
ICS85211I-03
L
OW
S
KEW
, 1-
TO
-2
D
IFFERENTIAL
-
TO
-LVHSTL F
ANOUT
B
UFFER

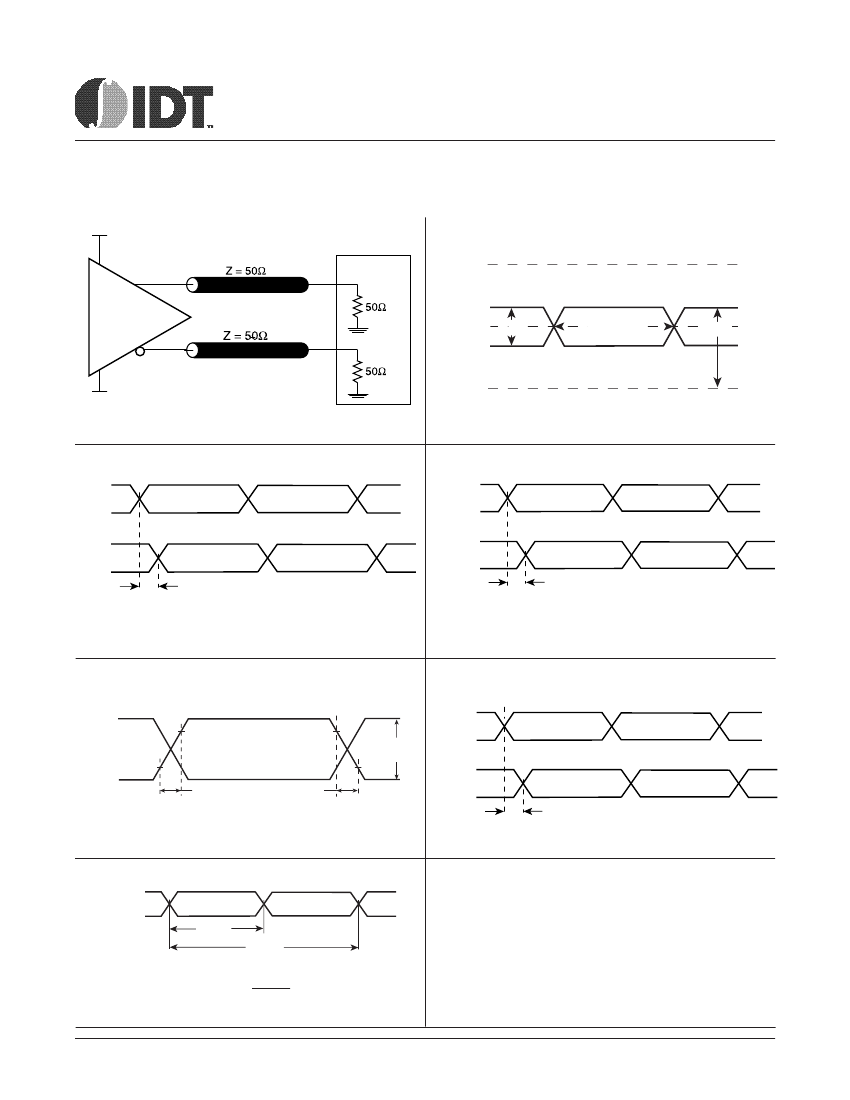

P
ARAMETER
M
EASUREMENT
I
NFORMATION
V
DD
=
3.3V±5%
Qx
SCOPE
V
DD
nCLK
LVHSTL
nQx
V
PP
Cross Points
V
CMR
CLK
GND
GND = 0V
3.3V O
UTPUT
L
OAD
AC T
EST
C
IRCUIT
nQx
Qx
nQy
Qy
tsk(o)
D
IFFERENTIAL
I
NPUT
L
EVEL
Qx
PART 1
nQx
Qy
PART 2
nQy
tsk(pp)
O
UTPUT
S
KEW
P
ART
-
TO
-P
ART
S
KEW
nCLK
80%
Clock
Outputs
80%
V
SW I N G
20%
t
R
t
F
20%
CLK
nQ0, nQ1
Q0, Q1
t
PD
O
UTPUT
R
ISE
/F
ALL
T
IME
nQ0, nQ1
Q0, Q1
t
PW
t
PERIOD
P
ROPAGATION
D
ELAY
odc =
t
PW
t
PERIOD
x 100%
odc & t
P
ERIOD
85211AMI-03
5
REV. B NOVEMBER 14, 2007
