Radiation Hardened Quad Voltage Comparator
HS-139RH, HS-139EH
The Radiation Hardened HS-139RH, HS-139EH consists of four
independent single or dual supply voltage comparators on a
single monolithic substrate. The common mode input voltage
range includes ground, even when operated from a single
supply and the low supply current makes these comparators
suitable for low power applications. These types were designed
to directly interface with TTL and CMOS.
The HS-139RH, HS-139EH is fabricated on our dielectrically
isolated Rad Hard Silicon Gate (RSG) process, which provides
an immunity to Single Event Latch-up and the capability of
highly reliable performance in any radiation environment.
Specifications for Rad Hard QML devices are controlled by the
Defense Logistics Agency Land and Maritime (DLA). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HS-139RH, HS-139EH
are contained in
SMD 5962-98613.
A “hot-link” is provided on
our homepage with instructions for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Features
• QML Qualified Per MIL-PRF-38535 Requirements
• Radiation Environment
- Latch-up Free Under any Conditions
- Total Dose (Max). . . . . . . . . . . . . . . . . . . . . . 3 x 10
5
RAD(Si)
- SEU LET Threshold . . . . . . . . . . . . . . . . . . . 20MeV/cm
2
/mg
- Low Dose Rate Effects Immunity
• 100V Output Voltage Withstand Capability
• ESD Protection to >3000V
• Differential Input Voltage Range Equal to the Supply Voltage
• Input Offset Voltage (V
IO
) . . . . . . . . . . . . . . . . . . . . 2mV (Max)
• Quiescent Supply Current . . . . . . . . . . . . . . . . . . . . 2mA (Max)
• Pb-Free (RoHS Compliant)
Applications
• Pulse Generators
• Timing Circuitry
• Level Shifting
• Analog-to-Digital Conversion
Ordering Information
ORDERING NUMBER
(Note)
5962F9861303VCC
5962F9861301VCC
5962F9861301QCC
HS1-139RH/PROTO
5962F9861301VXC
5962F9861301QXC
5962F9861302VXC
HS9-139RH/PROTO
INTERNAL
MKT. NUMBER
HS1-139EH-Q
HS1-139RH-Q
HS1-139RH-8
HS1-139RH/PROTO
HS9-139RH-Q
HS9-139RH-8
HS9-139EH-Q
HS9-139RH/PROTO
PART
MARKING
Q 5962F98 61303VCC
Q 5962F98 61301VCC
Q 5962F98 61301QCC
HS1-139RH/PROTO
Q 5962F98 61301VXC
Q 5962F98 61301QXC
Q 5962F98 61302VXC
HS9-139RH /PROTO
TEMP. RANGE
(°C)
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
-55 to +125
PACKAGE
(RoHS Compliant)
14 Ld SBDIP
14 Ld SBDIP
14 Ld SBDIP
14 Ld SBDIP
14 Ld FLATPACK
14 Ld FLATPACK
14 Ld FLATPACK
14 Ld FLATPACK
PACKAGE
DRAWING NUMBER
D14.3
D14.3
D14.3
D14.3
K14.A
K14.A
K14.A
K14.A
NOTE: These Intersil Pb-free Hermetic packaged products employ 100% Au plate - e4 termination finish, which is RoHS compliant and compatible with
both SnPb and Pb-free soldering operations.
July 12, 2012
FN3573.5
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Copyright Intersil Americas Inc. 1999, 2004, 2008, 2009, 2012. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
HS-139RH, HS-139EH

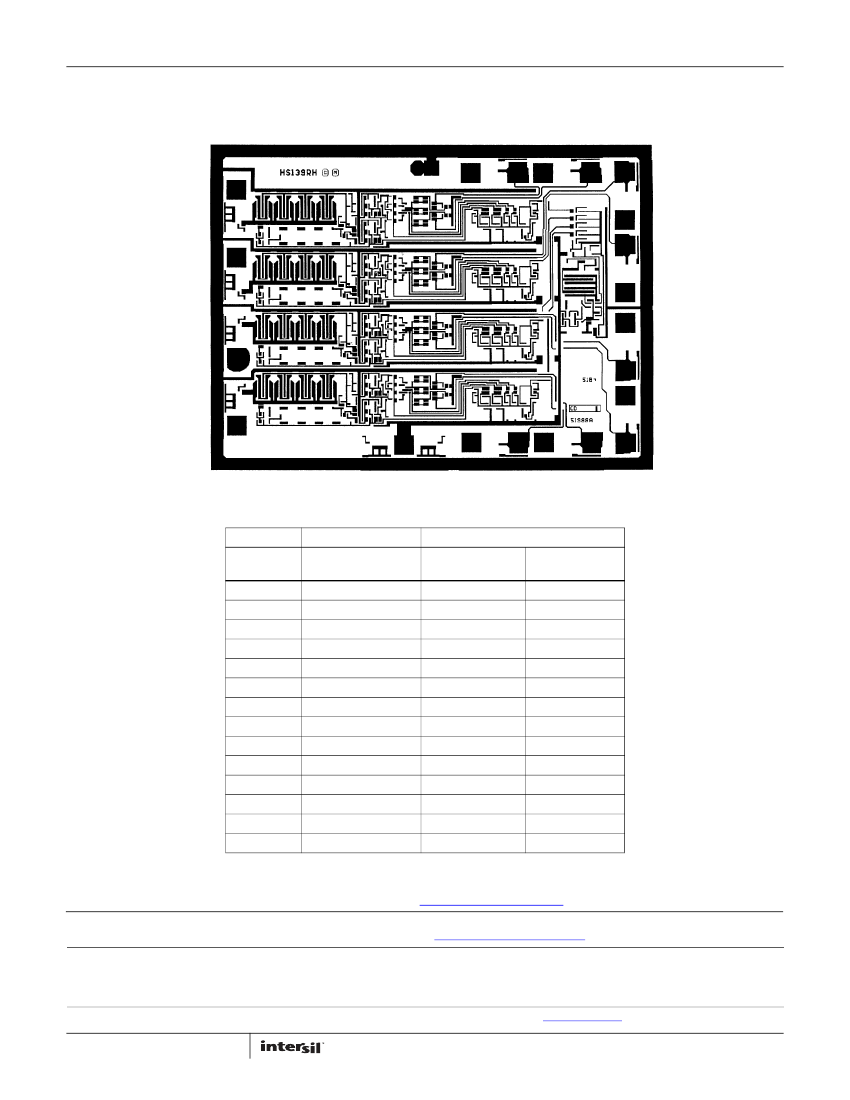

Metallization Mask Layout
HS-139RH, HS-139EH
GND
(12)
+IN4
(11)
-IN4
(10)
OUT4
(13)
+IN3
(9)
OUT3
(14)
-IN3
(8)
+IN2
(7)
OUT2
(1)
-IN2
(6)
OUT1
(2)
V+
(3)
-IN1
(4)
+IN1
(5)
TABLE 1. HS-139RH, HS-139EH PAD COORDINATES
RELATIVE TO PIN 1
PIN NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PAD NAME
OUT 2
OUT 1
V+
-IN 1
+IN 1
-IN 2
+IN 2
-IN 3
+IN 3
-IN 4
+IN 4
GND
OUT 4
OUT 3
X
COORDINATES
0
0
1323
1862
2439
3084
3084
3084
3084
2439
1862
1550
0
0
Y
COORDINATES
0
-535
-688
-670
-670
-299
278
518
1095
1466
1466
1503
1331
796
NOTE: Dimensions in microns
For additional products, see
www.intersil.com/product_tree
Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems as noted
in the quality certifications found at
www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time
without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be
accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see
www.intersil.com
3
FN3573.5
July 12, 2012
