M3V28T2CJFREQ: DescriptionCMOS Output Clock Oscillator, 1.544MHz Min, 160MHz Max; CategoryPassive components oscillator; File Size68KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3V28T2CJFREQ Overview

CMOS Output Clock Oscillator, 1.544MHz Min, 160MHz Max

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	20%
linearity	10%
Manufacturer's serial number	M3V
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	10 TTL, 50 pF
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

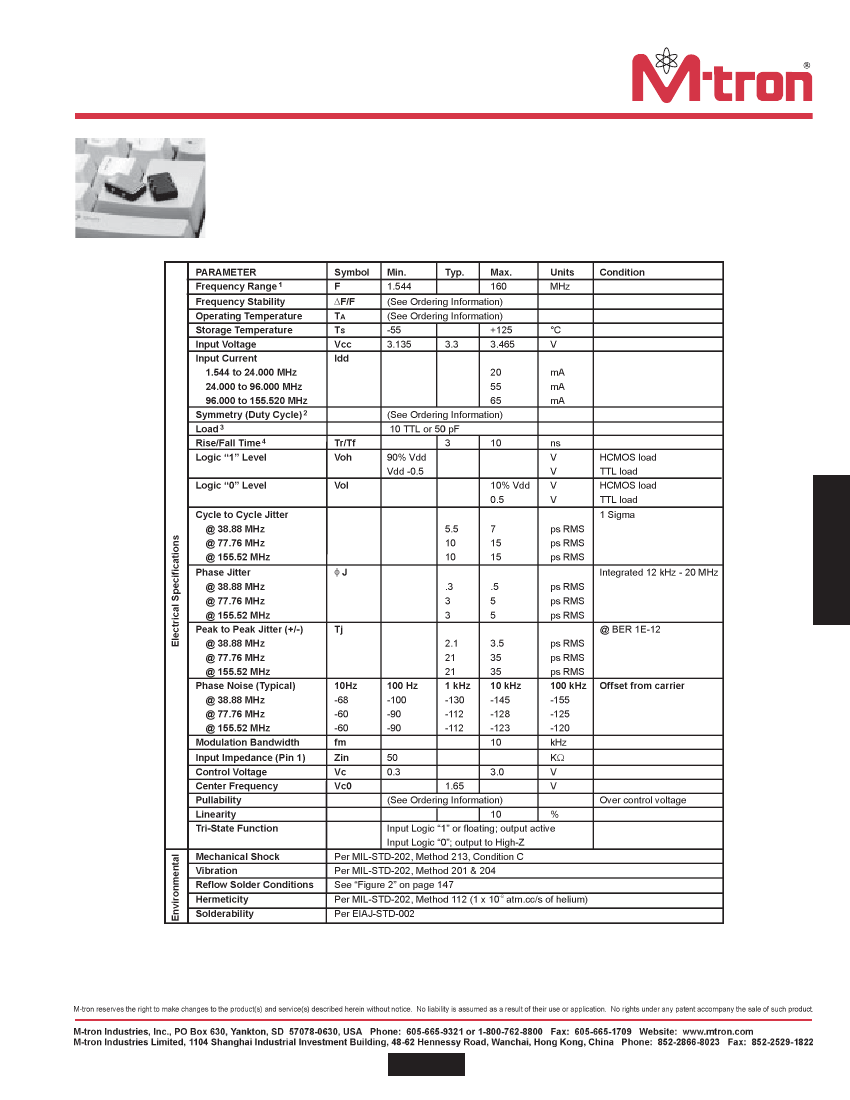

M3V Series

9x14 mm, 3.3 Volt, HCMOS/TTL, VCXO

•

HCMOS/TTL output to 160 MHz and excellent

jitter (2.1 ps typ.) in a SMT package

Phase-Locked Loops (PLL’s), Clock Recovery,

Reference Signal Tracking, Synthesizers,

Frequency Modulation/Demodulation

•

*Contact factory for availability.

**Other pull ranges available. Contact factory.

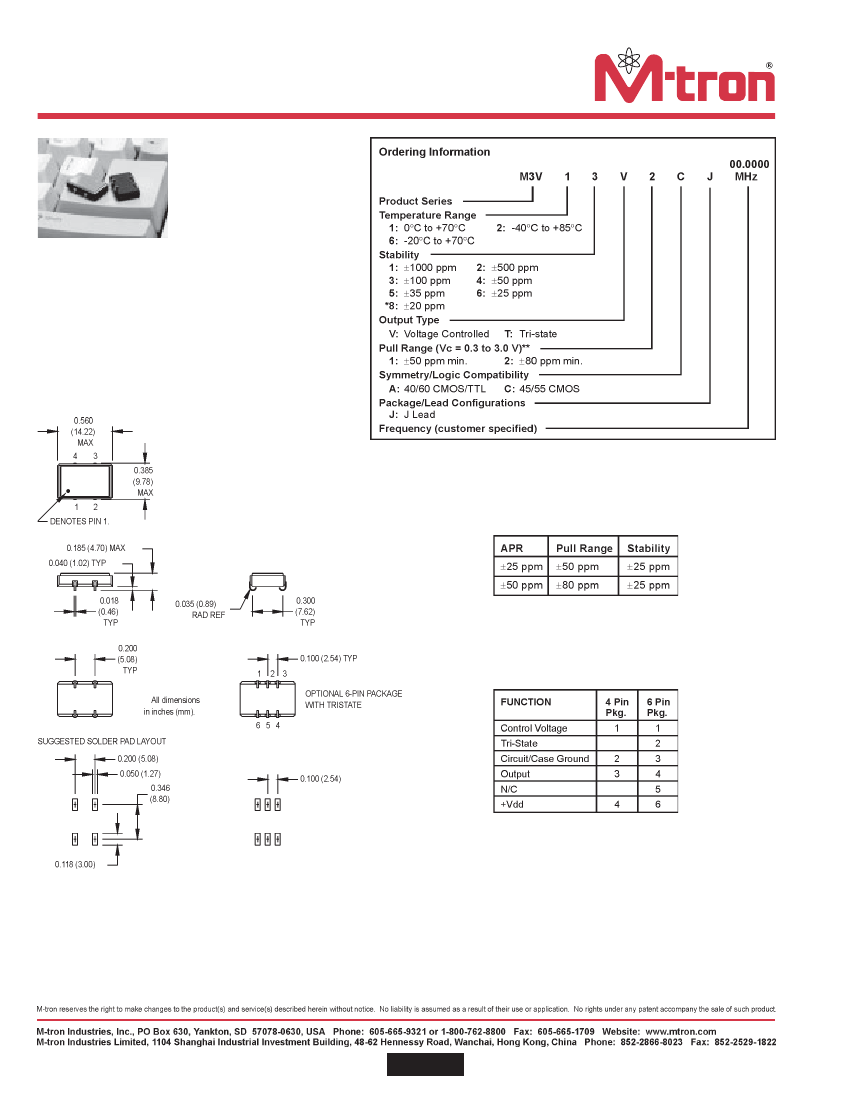

APR Equivalents

Pin Connections
