OADM20S4470/S14F: DescriptionThrough Beam Photoelectric Sensor, 50mm Min, 250mm Max, 100mA, Rectangular, Board Mount; CategoryThe sensor; File Size124KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

OADM20S4470/S14F Overview

Through Beam Photoelectric Sensor, 50mm Min, 250mm Max, 100mA, Rectangular, Board Mount

OADM20S4470/S14F Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	20.6 mm
body height	65 mm
Body length or diameter	50 mm
shell	DIE-CAST ZINC
Maximum measuring range (mm)	250 mm
Minimum measuring range (mm)	50 mm
Installation features	BOARD MOUNT
Maximum working current	120 mA
Maximum operating temperature	50 °C
Minimum operating temperature
Output interface type	8-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	10000 µs
Sensor/temperature sensor type	LINEAR POSITION SENSOR,PHOTOELECTRIC,THROUGH BEAM
Maximum supply voltage	28 V
Minimum supply voltage	12 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

Photoelectric sensors

Distance sensors

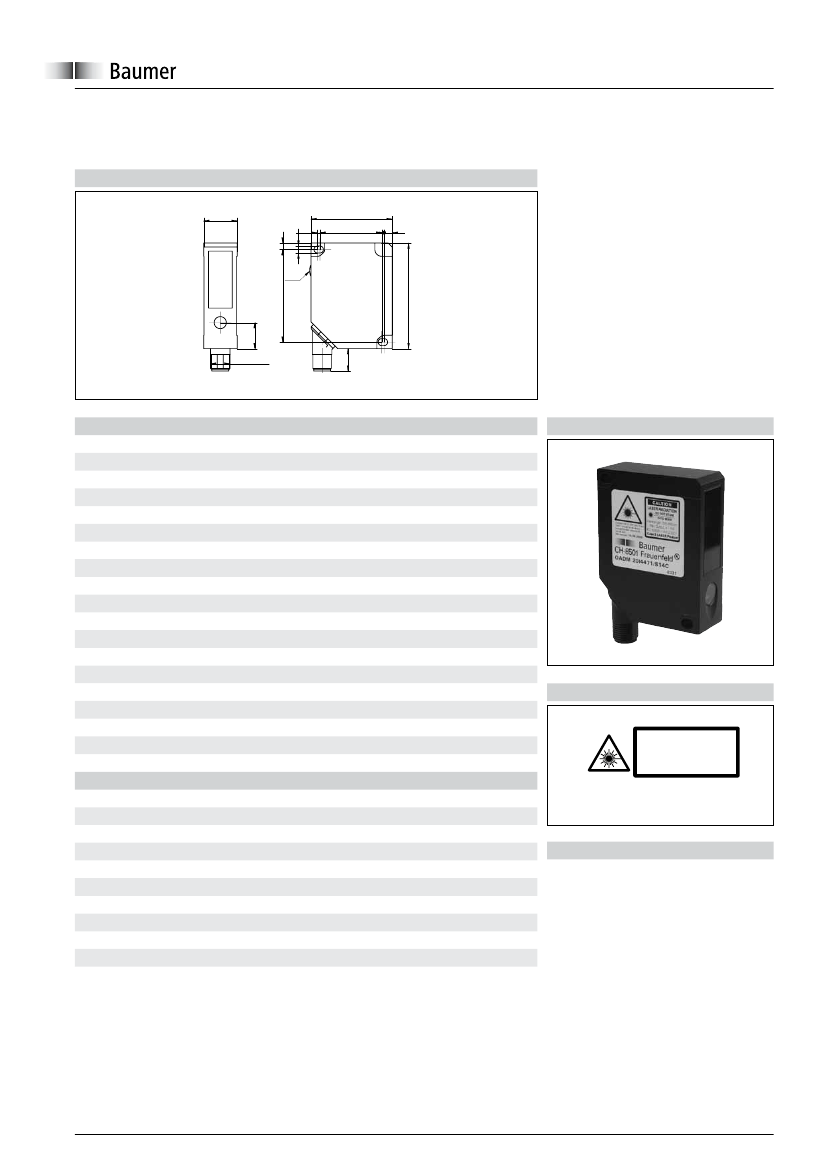

sample drawing

20,6

4,3

1,5

50

38

OADM 20 (Laser, RS485 interface, < 250 mm)

1,5

5

4

LED

57

65

14

M12 x 1

* emitter axis

general data

adjustment

power on indication

soiled lens indicator

light source

wave length

laser class

measuring distance Sd = 30 ... 50 mm

resolution

linearity error

temperature drift

measuring distance Sd = 30 ... 130 mm

resolution

linearity error

temperature drift

measuring distance Sd = 50 ... 250 mm

resolution

linearity error

temperature drift

electrical data

response time / release time

voltage supply range +Vs

current consumption max. (no load)

output circuit

baud rate

output current

alarm output

short circuit protection

reverse polarity protection

< 10 ms

12 ... 28 VDC

100 mA

RS 485

19200

< 100 mA

push-pull

yes

yes, Vs to GND

0,1 ... 0,3 mm

± 0,3 ... ± 0,8 mm

< 0,03 % Sde/K

0,05 ... 0,07 mm

± 0,15 ... ± 0,22 mm

< 0,03 % Sde/K

< 0,01 mm

± 0,03 mm

< 0,015 % Sde/K

no

LED green

LED red

pulsed red laser diode

650 nm

2

* 16

sample picture

laser warning

LASER RADIATION

DO NOT STARE INTO BEAM

Wavelength: 620...680nm

Max. av. Output: < 1mW

IEC 60825-1, Ed. 2, 2007

CLASS 2 LASER PRODUCT

Complies with 21 CFR 1040.10 and 1040.11 except for deviations

pursuant to laser notice No. 50, dated June 24, 2007

remarks

The sensor has a switching output (out)

that is activated when the measurement

is determined within the range between

threshold 1 and threshold 2. Both

thresholds can be set via interface.

1

www.baumer.com

9/1/2014
