NKSD400-100 Series
RoHS
Vishay High Power Products
Schottky Rectifier, 400 A

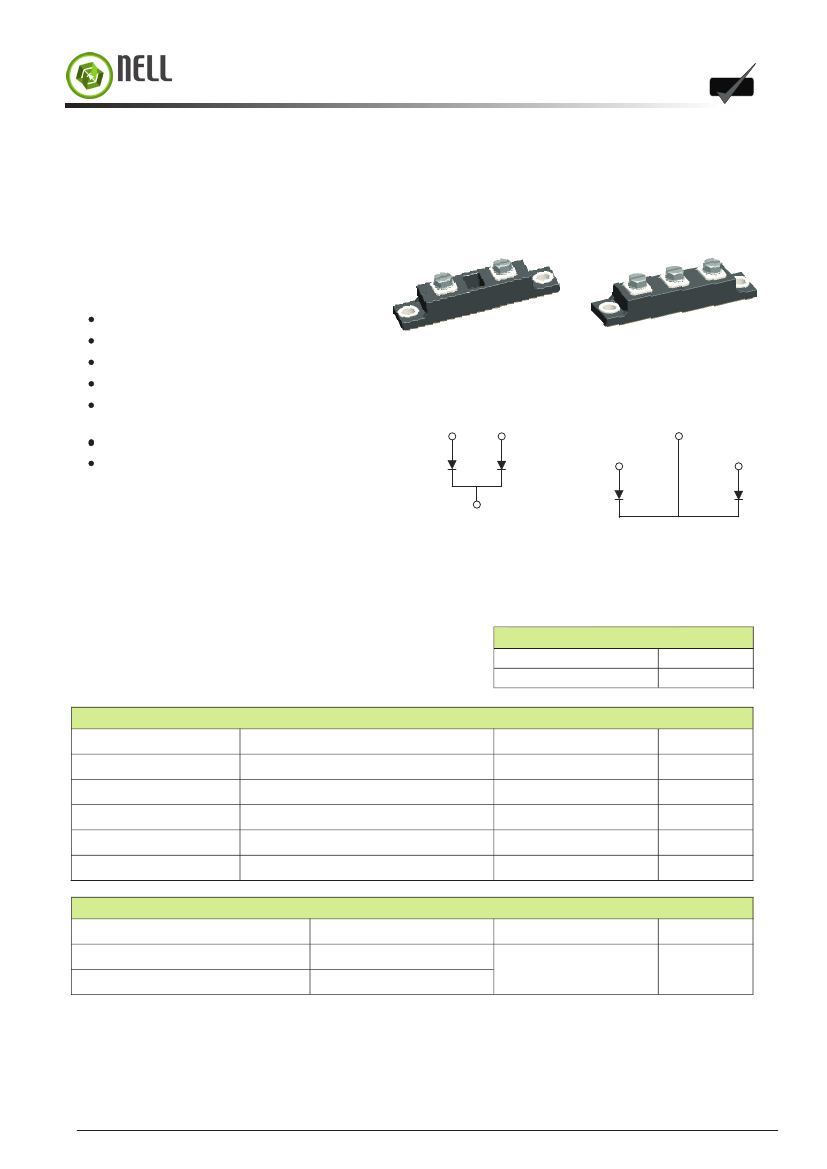

FEATURES
175°C T
J
operation
Center tap module
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and
long term reliability
Lead (Pd)-free
Designed and qualified for industrial level
Lug
terminal
anode 1
Lug
terminal
anode 2
Lug terminal
common cathode
Lug
terminal
anode 1
Lug
terminal
anode 2
TO-244
(non-insulated)
TO-244
(insulated)
DESCRIPTION
The NKSD400... Schottky rectifier common
cathode module series has been optimized
for low reverse leakage at high temperature.
The proprietary barrier technology allows for
reliable operation up to 175 °C junction
temperature. Typical applications are in high
current switching power supplies, plating
power supplies, UPS systems, converters,
freewheeling diodes, welding, and reverse
battery protection.
Base
common cathode
PRODUCT SUMMARY
l
F(AV)
V
R
400A
100
V
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
l
FSM
V
F
T
J
t
p =
5
µs sine
200 Apk, TJ = 125°C (per leg)
Range
CHARACTERISTICS
VALUES
400
100
25500
0.69
-55 to 175
UNIT
A
V
A
V
ºC
Rectangular waveform
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
100
V
RWM
V
NKSD400-100
UNIT
www.nellsemi.com
Page 1 of 6
SEMICONDUCTOR
RoHS
NKSD400-100 Series
RoHS
Vishay High Power Products
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward
current
See fig.5
per leg
per device
SYMBOL
I
F(AV)
TEST CONDITIONS
50% duty cycle at T
C
= 141°C, rectangular waveform
400
l
FSM
E
AS
l
AR
Following any rated load
condition and with rated
10 ms sine or 6 ms rect. pulse V
RRM
applied
5
µs sine or 3 µs rect. pulse
T
J
=25°C, l
AS
=13A, L=0.2mH
Current decaying linearly to zero in 1
µs
Frequency limited by T
J
maximum V
A
=1.5xV
R
typical
A
VALUES UNIT
200
Maximum peak one cycle non-repetitive
surge current per leg
See fig.7
Non- repetitive avalanche energy per leg
Repetitive avalanche current per leg
25500
3300
15
1
mJ
A
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
200A
T
J
= 25°C
Maximum forward voltage drop per leg
See fig.1
400A
V
FM (1)
200A
T
J
= 125°C
400A
Maximum reverse leakage current per leg
See fig.2
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Maximum RMS insulation voltage
Note
(1) Pulse width
< 300 µs, duty cycle < 2%
T
J
= 25°C
l
RM (1)
T
J
= 125°C
C
T
L
S
dV/dt
V
INS
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHZ) 25°C
From top of terminal hole to mounting plane
Rated V
R
50 Hz
3600 (1s)
V
R
= Rated V
R
80
5500
5
10000
3000 (1min)
V
pF
TEST CONDITIONS
VALUES
UNIT
0.84
1.07
V
0.69
0.82
6
mA
nH
V/µs
THERMAL-MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage temperature range
TO-244 (non-insulated)
Thermal resistance, junction to case per leg
TO-244 (insulated)
Thermal resistance, junction to case
per module
Thermal resistance, case to heatsink
TO-244 (non-insulated)
Weight
TO-244 (insulated)
Mounting torque
Mounting torque center hole
Terminal torque
vertical pull
2" lever pull
Case style
-
35.4 (4)
30 (3.4)
30 (3.4)
-
-
JEDEC
100 (3.53)
-
-
-
-
-
-
53.1 (6)
40 (4.6)
44.2 (5)
80
lbf ∙ in
35
TO-244AA compatible
lbf ∙ in
(N∙m)
TO-244 (non-insulated)
R
thCS
TO-244 (insulated)
R
thJC
SYMBOL
T
J
,T
Stg
MIN.
-55
-
-
-
-
-
-
TYP.
-
-
-
-
-
0.1
85 (3)
MAX.
175
0.19
0.26
0.095
0.13
-
-
g(oz.)
ºC/W
UNIT
ºC
www.nellsemi.com
Page 2 of 6
SEMICONDUCTOR
RoHS
NKSD400-100 Series
RoHS
Vishay High Power Products
Ordering Information Tabel
Device code
NK
1
S
2
D
3
400
4
-
100
5
I
6
1 -
Nell's power module
2 -
S for Schottky Barrier Diode
3 -
D for Dual Diodes, TO-244 Package
4 -
Maximum average forward current, A
5 -
Voltage rating (100 = 100V)
6 -
None for non-insulated type
"I"
for insulated type

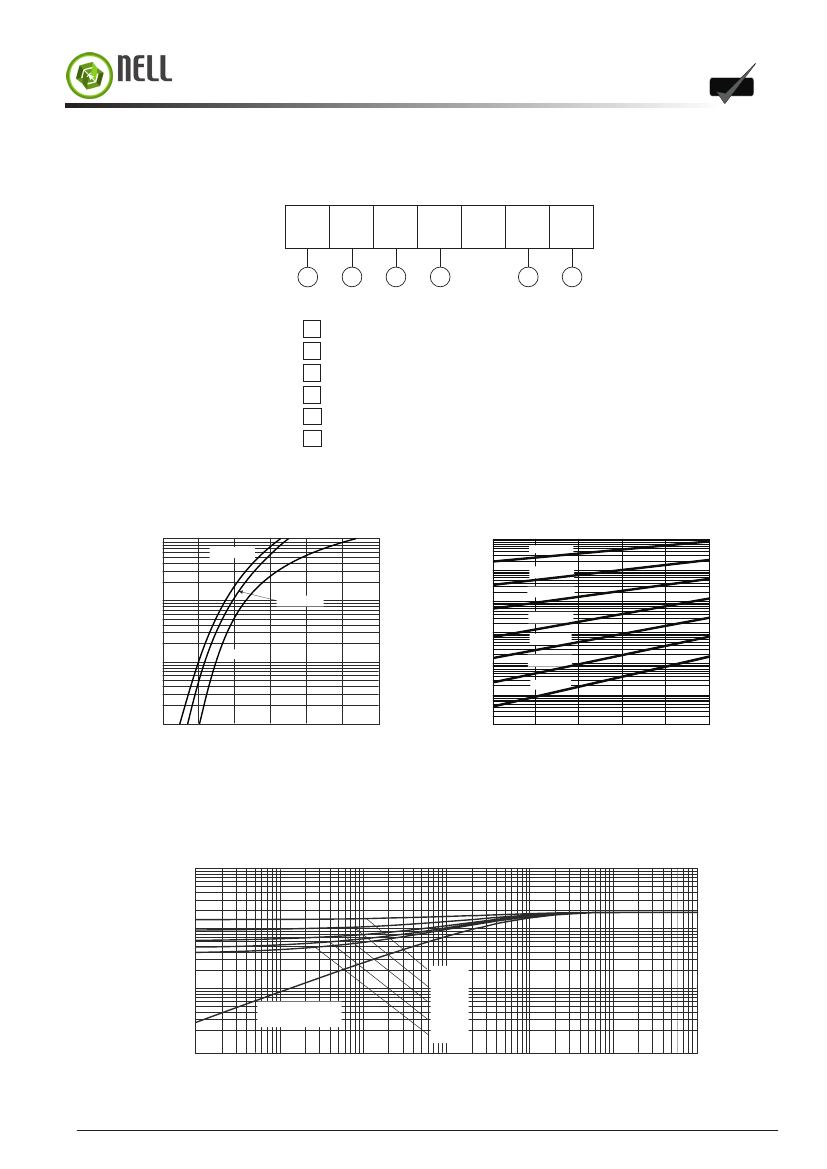

Fig.1 Maximum forward voltage drop
characteristics (Per Leg)
lnstantaneous forward current, l
F
(A)
1000
T
J
= 17 5ºC
Fig.2 Typical values of reverse current vs.
Reverse voltage (Per Leg)
1000
T
J
= 17 5ºC
100
Reverse curret, l
R
(mA)
100
T
J
= 1 25ºC
T
J
= 1 50ºC
T
J
= 125 ºC
T
J
= 100 ºC
10
1
0.1
0.01
T
J
= 7 5ºC
T
J
= 50ºC
T
J
= 2 5ºC
10
T
J
= 25ºC
1
0
0.3
0.6
0.9
1.2
1.5
1.8
0.001
0
20
40
60
80
100
Forward voltage drop, V
FM
(V)
Reverse voltage, V
R
(V)
Fig.3-1 Maximum thermal impedance R
th(j-c)
characteristics
(Per Leg, for TO-244 non-insulated)
1
Thermal lmpedance, R
th(j-c)
0.1
D = 0.75
0.01
Single pulse
(thermal resistance)
D = 0.50
D= 0.33
D = 0.25
D =0.20
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Rectangular pulse duration,t
1
(s)
www.nellsemi.com
Page 3 of 6
SEMICONDUCTOR
RoHS
NKSD400-100 Series
RoHS
Vishay High Power Products

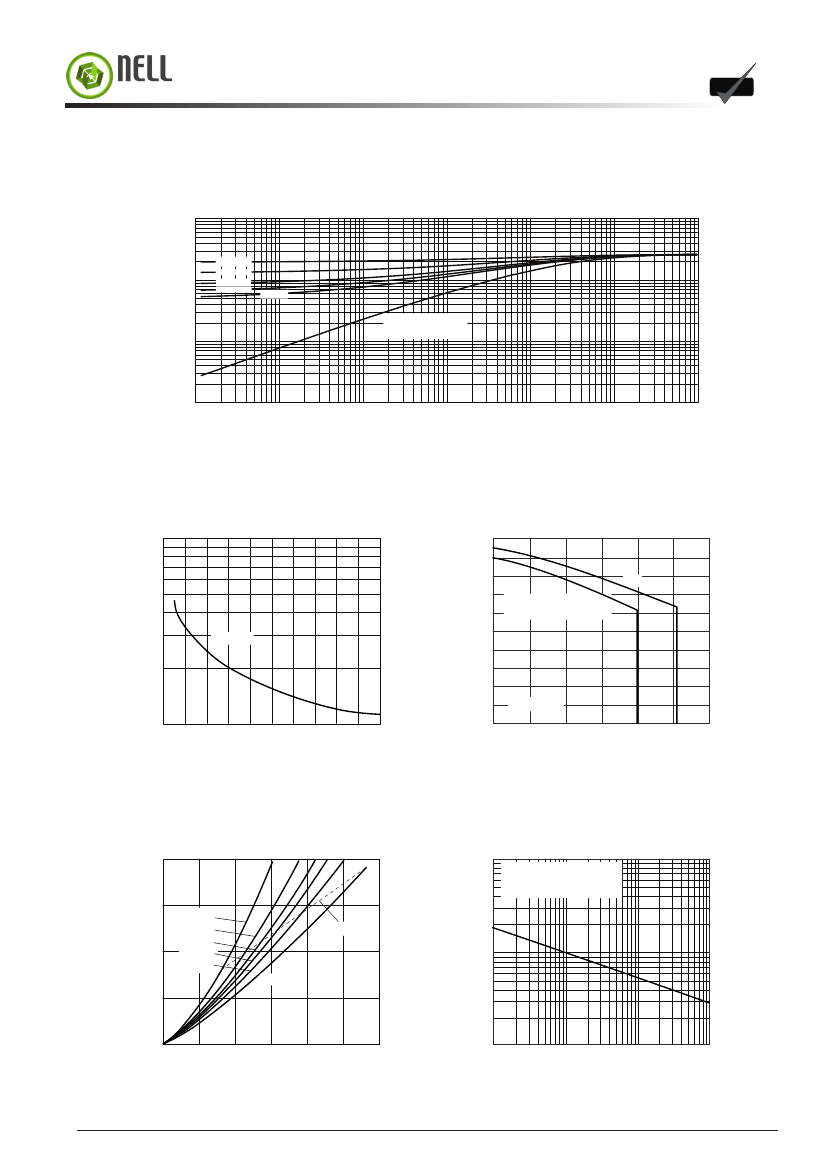

Fig.3-2 Maximum thermal impedance R
th(j-c)
characteristics
(Per Leg, for TO-244 insulated)
1
Thermal lmpedance, R
th(j-c)
0.1
D = 0.75
D = 0.5
D= 0.33
D = 0.25
D =0.2
Single pulse
(thermal resistance)
0.01
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
Rectangular pulse duration,t
1
(s)
Fig.4 Typical junction capacitance vs.
Reverse voltage (Per Leg )
Fig.5 Maximum allowable case temperature
vs. Average forward current (Per Leg)
180
10000
Allowable case temperature (°C)
Junction capacitance, C
T
(pF)
160
Square wave (D = 0.50)
80% rated V
r
applied
DC
140
T
J
= 25ºC
120
100
See note (1)
1000
0
10
20
30
40
50
60
70
80
90 100
80
0
50
100
150
200
250
300
Reverse voltage, V
R
(V)
Average forward current, l
F(AV)
(A)
Fig.6 Forward power loss characteristics
(Per Leg)
Non-Repetitive surge current, l
FSM
(A)
200
Fig.7 Maximum non-repetitive surge current
(Per Leg)
10
5
At any rated load condition
and with rated V
RRM
applied
following surge
Average power loss (W)
150
D=0.08
D=0.17
D=0.25
D=0.33
D=0.50
RMS limit
100
10
4
DC
50
0
0
50
100
150
200
250
300
10
3
10
10
2
10
3
10
4
Average forward current, l
F(AV)
(A)
Square wave pulse duration, t
p
(µs)
www.nellsemi.com
Page 4 of 6
SEMICONDUCTOR
RoHS
NKSD400-100 Series
RoHS
Vishay High Power Products
Fig.8 Unclamped lnductive test circuit
L
High-speed
switch
IRFP460
D.U.T.
R
g
= 25Ω
Current
monitor
Freewheel
diode
+
V
d
= 25V
Note
(1) Formula used:T
C
= T
J
- (Pd+Pd
REV
) x R
thJC
;
Pd = Forward power loss = l
F(AV)
x V
FM
at(l
F(AV)
/D)(see fig.6)
Pd
REV
= lnverse power loss = V
R1
x l
R
(1-D); l
R
at V
R1
= 80% rated V
R

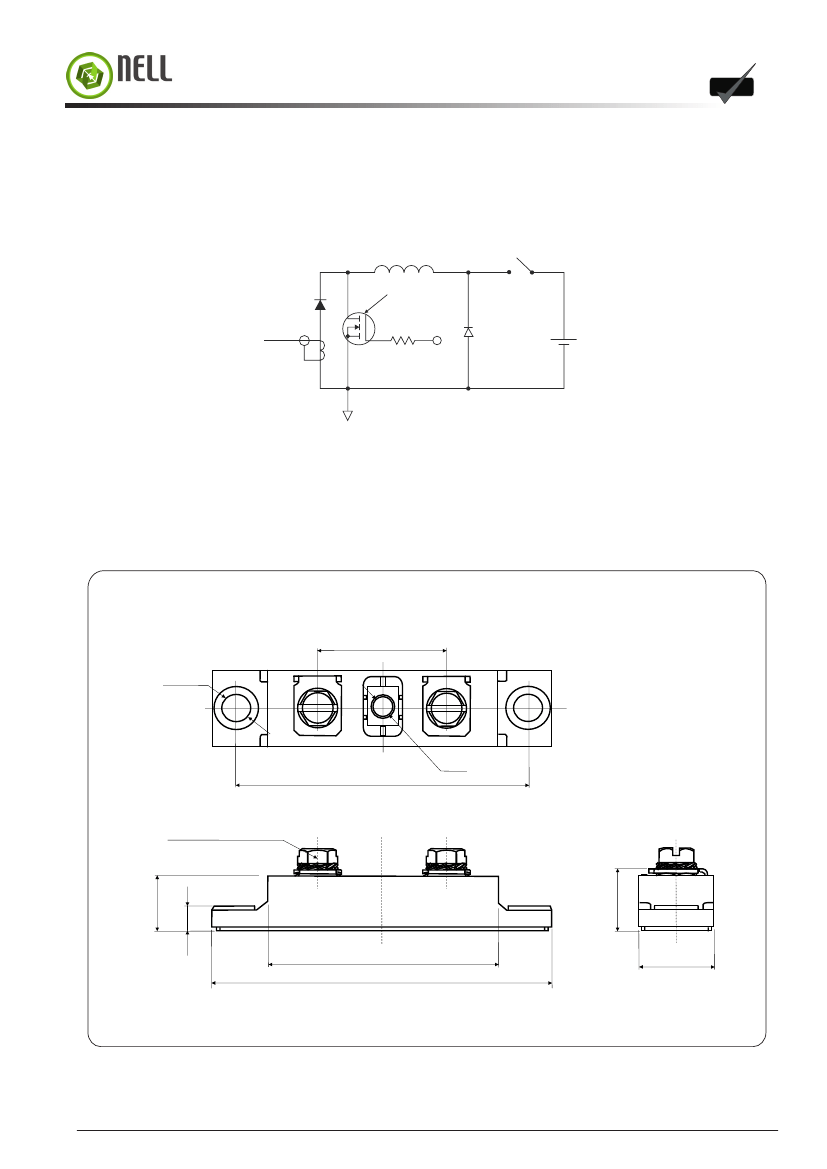

TO-244 (Non-Insulated)
35.0
2-Φ7.2
3
3
1
2
Φ5.2
80.0
2-1/4"
20
UNC SCREWS
15.0
7.0
64
93
16.8
21.0
All dimensions in millimeters
www.nellsemi.com
Page 5 of 6
