Preliminary
®
SF2036E
1880 MHz
SAW Filter
•
•
Low Insertion Loss
3.0 X 3.0 mm Surface-Mount Case
Absolute Maximum Ratings
Rating
Maximum Incident Power in Passband
Max. DC voltage between any 2 terminals
Operating Temperature
Storage Temperature
Max Soldering Profile
Value
+10
5
-30 to +85
-40 to +85
265°C for 10 s
Units
dBm
V
°C
°C
SM3030-6
Electrical Characteristics
Characteristic
Center Frequency
Insertion Loss
Amplitude Ripple (p-p)
Attenuation (Reference level from 0 dB)
1850~1910 MHz
1850~1910 MHz
D.C.~1660 MHz
1660~1721 MHz
1721~1800 MHz
1930~1990 MHz
2000~2040 MHz
2040~2480 MHz
3700~3820 MHz
Sym
f
C
IL
Notes
Typ
Max
1880
2.45
4.0
1.2
2.5
20
32
30
35
20
37
7
19
25
37
31
38
25
35
7.4
13
50
50
SM3030-6 3 x 3 mm Nominal Footprint
510 YWWS
Min
Units
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
Ω
Ω
Input/Output Return Loss (1850~1910 MHz)
Source Impedance
Load Impedance
Case Style
Lid Symbolization (Y=year, WW=week, S=shift) See note 4
Z
S
Z
L
Notes:
1.
2.
3.
4.
US and international patents may apply.
RFM, stylized RFM logo, and RF Monolithics, Inc. are registered trademarks of RF Monolithics, Inc.
©Copyright 1999, RF Monolithics Inc.
Electrostatic Sensitive Device. Observe precautions for handling.
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF2036E-060607
Page 1 of 5

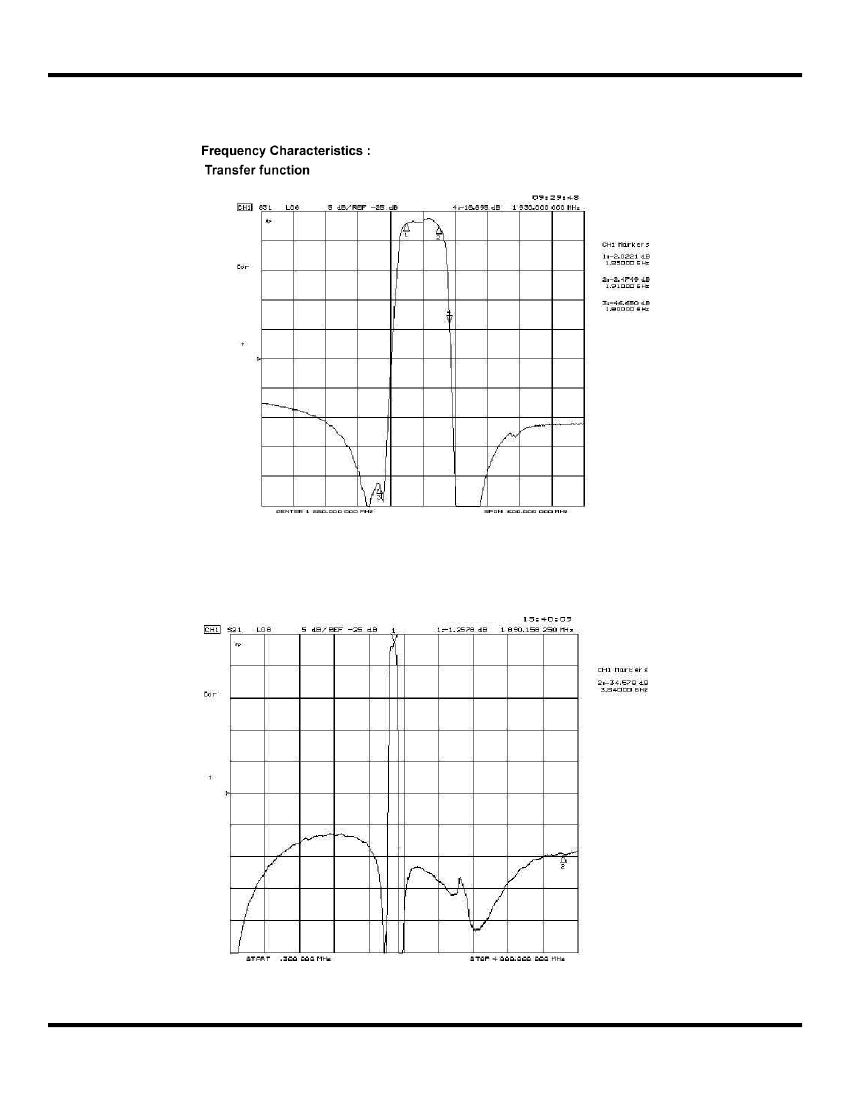

1880.00 MHz
SAW Filter
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF2036E-060607
Page 2 of 5

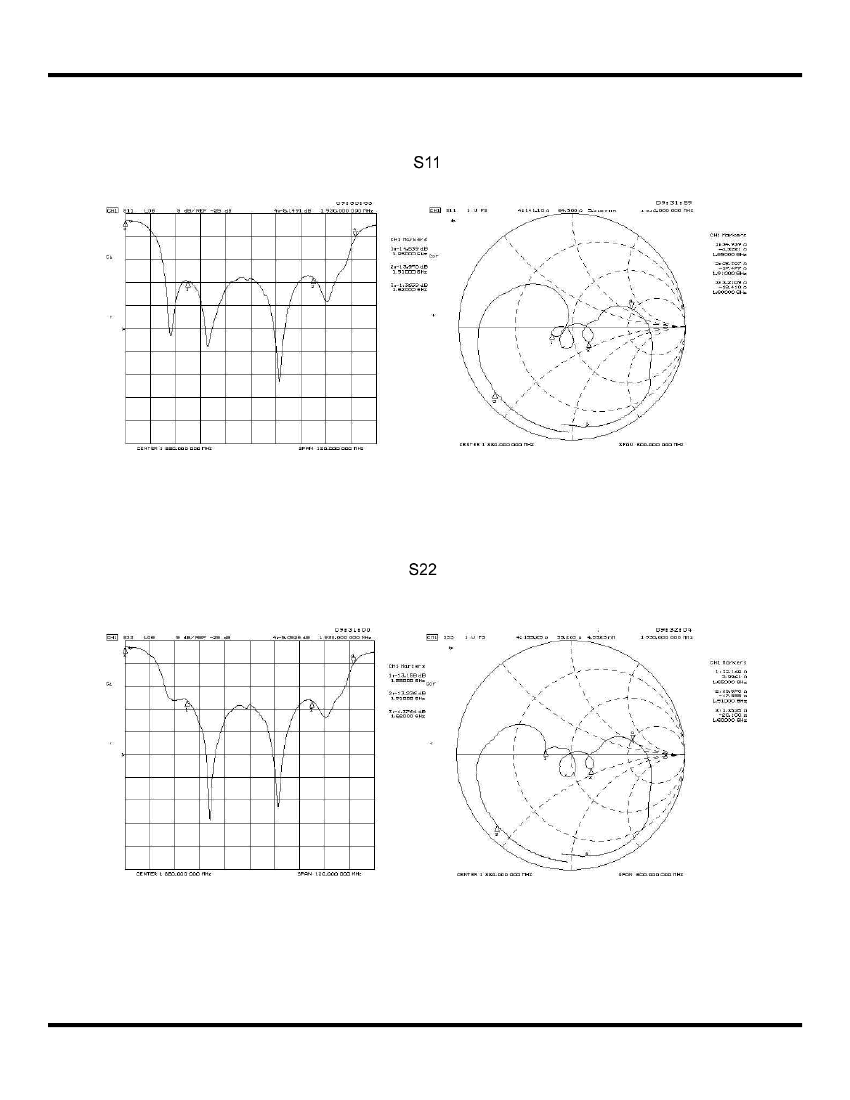

1880.00 MHz
SAW Filter
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF2036E-060607
Page 3 of 5
1880.00 MHz

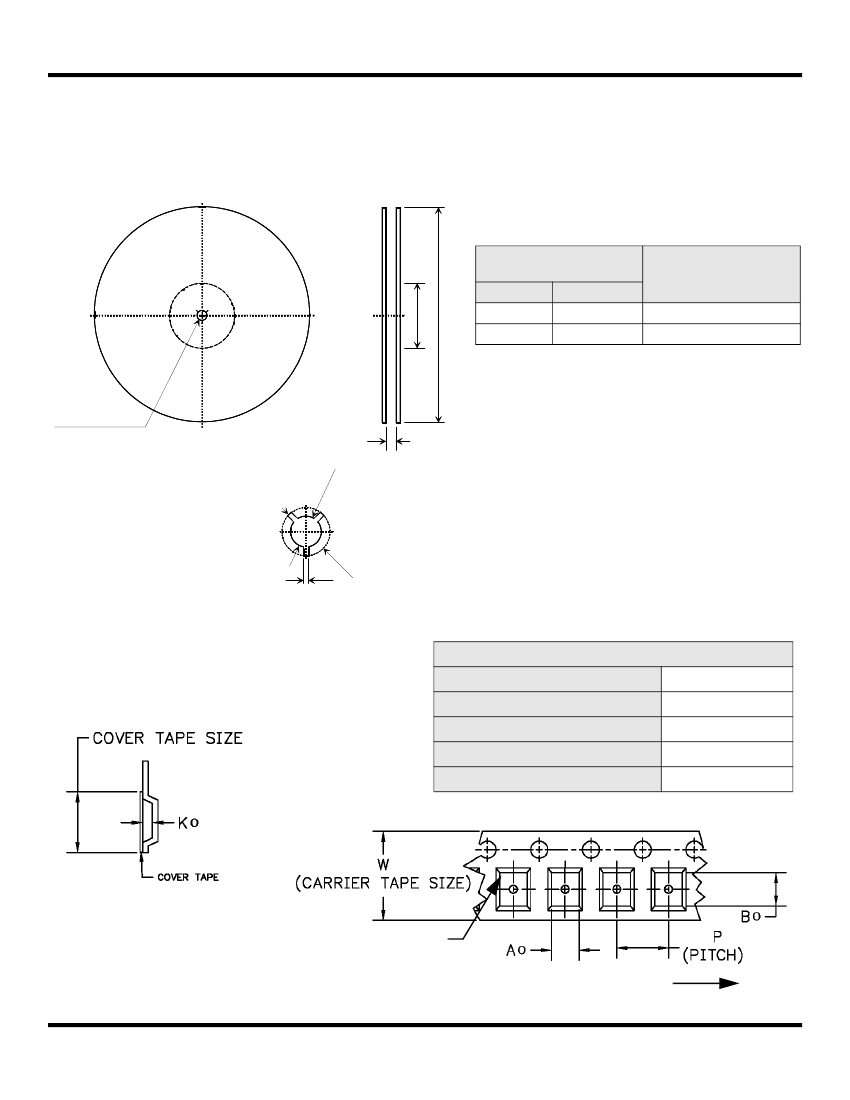

Tape and Reel Specifications
SAW Filter
“B “
Nominal Size
Inches
100 REF.
"B" REF.
Quantity Per Reel
500
2000
millimeters
178
330
7
13
See Detail "A"
12.0
0
13.
20
.2
2.0
COMPONENT ORIENTATION and DIMENSIONS
Carrier Tape Dimensions
Ao
Bo
Ko
Pitch
W
3.35 mm
3.35 mm
1.4 mm
8.0 mm
12.0 mm
PIN #1
USER DIRECTION OF FEED
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF2036E-060607
Page 4 of 5
1880.00 MHz
SAW Filter
SM3030-6 Case
6-Terminal Ceramic Surface-Mount Case
3.0 X 3.0 mm Nominal Footprint
Case Dimensions
Dimension
A
B
C
D
E
F
G
H
I
J
Min
mm
Nom
3.0
3.0
1.1
0.9
2.8
1.6
0.85
1.5
0.6
1.3
Max
Min
Inches
Nom
0.118
0.118
0.051
0.035
0.100
0.063
0.033
0.059
0.024
0.051
Max
Electrical Connections
Connection
Port 1
Port 2
Single Ended Input
Single Ended Output
Ground
Single Ended Operation Only
Dot indicates Pin 1
Terminals
2
5
All others
TOP VIEW
B
1
6
C
6
BOTTOM VIEW
G
H
1
A 2
5
E
F
5
2
I
3
4
D
4
J
3
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
SF2036E-060607
Page 5 of 5
