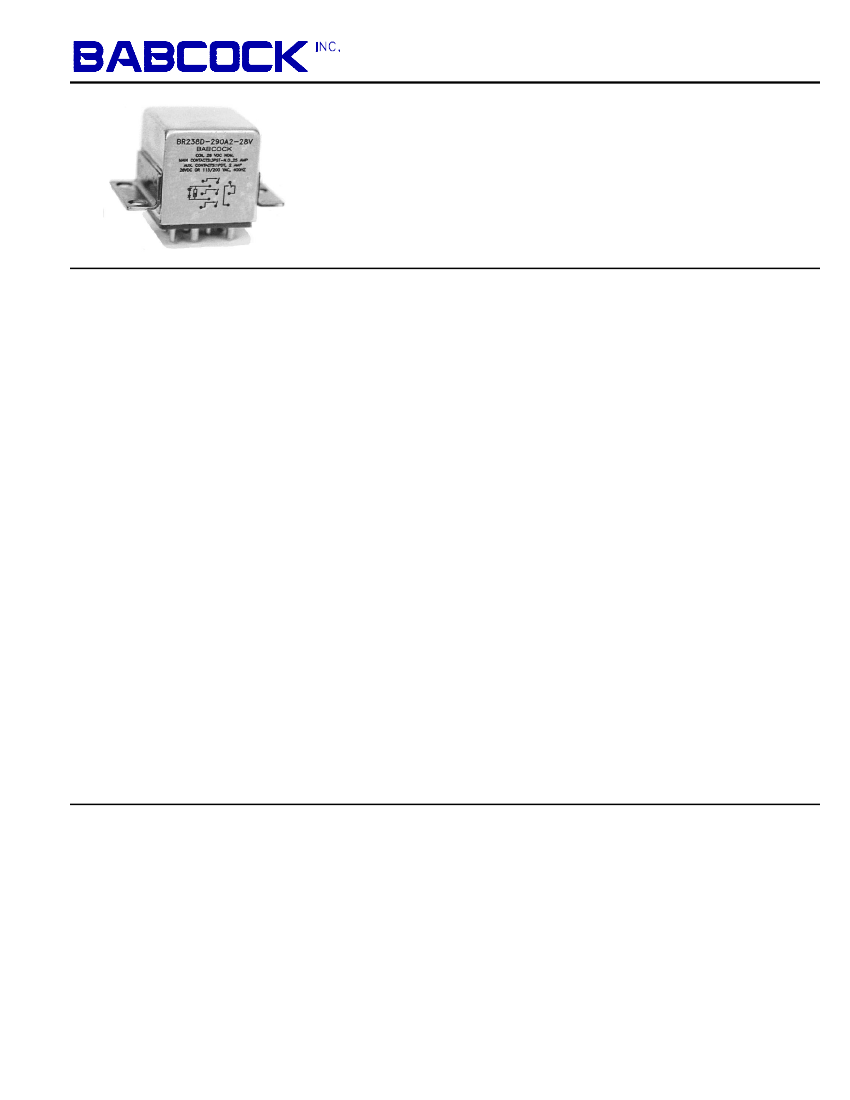

BR238D
Miniature
25 Amps • 3PST, 1 PDT
To MIL-PRF-6106
DC Suppressed Coils
SPECIFICATIONS
GENERAL
Operate/Release Time:
Contact Arrangement
................................. 3PST, 1 PDT
Weight..........................................................3.0
oz approx.
Designed to meet the requirements of MIL-PRF-6106
PERFORMANCE
Contact Rating
(Note 1): (Case Grounded)
Power Contacts:
Resistive .............................. 25 Amps @ 28 VDC or
115/208V 400 Hz
Inductive ...................15 Amps @ 115/208V 400 Hz
12 Amps @ 28 VDC
Motor ................................... 10 Amps @ 28 VDC or
115/208V 400 Hz
Lamp ..................................... 5 Amps @ 28 VDC or
115/208V 400 Hz
Auxiliary Contacts:
Configuration................................................... SPDT
Resistive ................................ 2 Amps @ 28 VDC or
115/208V 400 Hz
Inductive ...................................... 1 Amp @ 28 VDC
115/208V 400 Hz
Lamp .................................. 0.5 Amps @ 28 VDC or
115/208V 400 Hz
Life
.......................50,000 operations minimum @ rated
o
resistive load, 125 C
Pull In Power
............................................500 mw approx.
DC Coil
15 ms max
Excluding bounce time at nominal coil voltage
Contact Bounce Time.......................................
1 ms max
@ rated contact load, 28 VDC
Contact Voltage Drop:
Before Life............................. 150 mv max @ 25 Amps
and 6 VDC
After Life ................................ 175 mv max @ 25 Amps
and 6 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -70 C to +125 C
Vibration
(Note 2).............................. 0.12" DA 10 - 70 Hz
30 G's 70 - 3,000 Hz
Shock (Operating)(Note
2) ......................... 200 G's 6 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance...............................
100 megohms
o
@ 500V 25 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,250 VRMS
Contact to Coil ..................................... 1,250 VRMS
Coil to Case ......................................... 1,000 VRMS
Across Open Contacts ........................ 1,250 VRMS
80,000 Feet:
All Points ................................................. 350 VRMS
Notes:
1.
For other ratings consult the factory.
2.
For applications requiring higher shock and vibration,
consult the factory.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752
(714) 994-6500
FAX (714) 994-3013
W:2000, Rev. 3
BR238D
COIL DATA:
MODEL BR238D PART NUMBER
BR238D-20()()-6V
BR238D-78()()-12V
BR238D-290()()-28V
BR238D-890()()-48V
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
DROP OUT VOLTAGE (MAX)
COIL RESISTANCE ± 10% @ 25 C
o
o
6 VDC
8 VDC
4.5 VDC
1.8 VDC
20 OHMS
12 VDC
15 VDC
9 VDC
3.5 VDC
78 OHMS
Relay Type
Nominal coil resistance
Terminal style
Mounting Type
Nominal coil voltage
28 VDC
29 VDC
18 VDC
5.1 VDC
290 OHMS
48 VDC
59 VDC
36 VDC
11 VDC
890 OHMS
BR238D - 290
C
2 - 28V

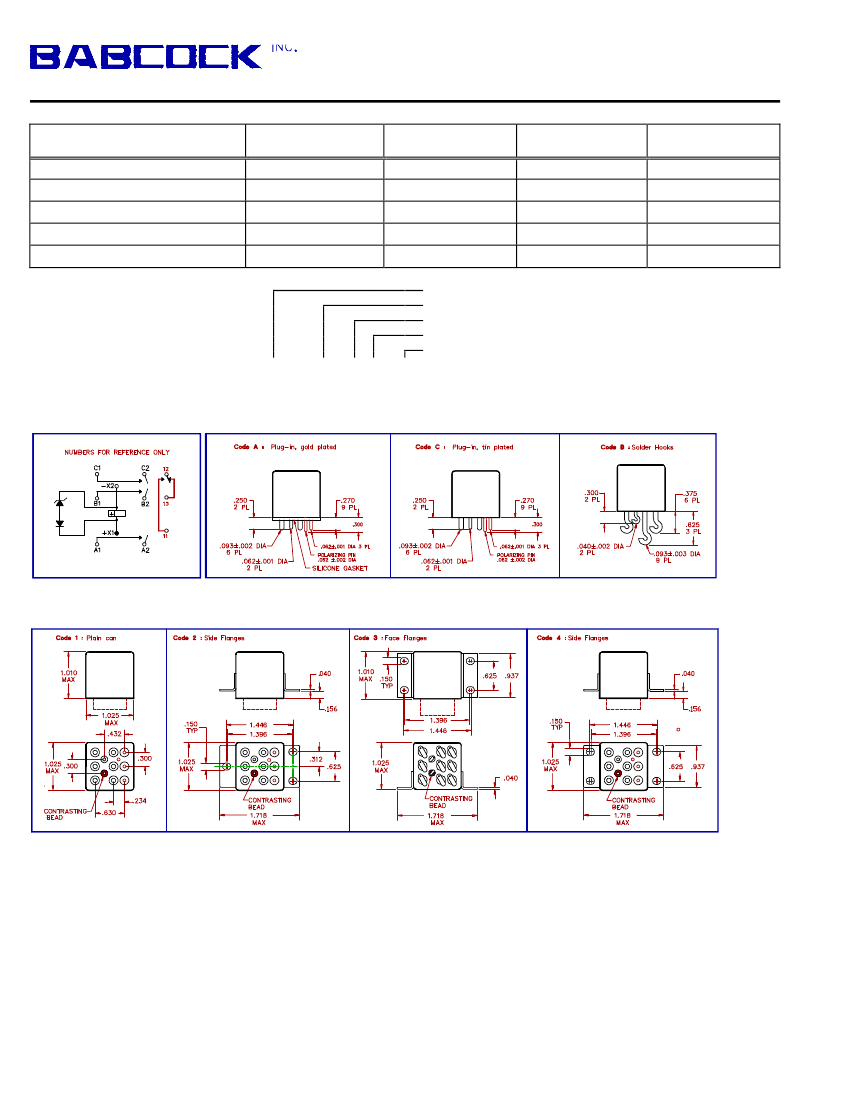

SCHEMATIC
TERMINAL VIEW
TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal coil
voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752
o
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
(714) 994-6500
FAX (714) 994-3013
W:2000, Rev. 3
