A3020-04A-ST2-60C-G1-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A3020-04A-ST2-60C-G1-Z

Preview

A3020-04A-ST2-60C-G1-Z: DescriptionTelecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size561KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3020-04A-ST2-60C-G1-Z Overview

Telecom and Datacom Connector, 16+16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3020-04A-ST2-60C-G1-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, WITH LED
Board mount options	SPLIT BOARD LOCK
body width	1.073 inch
subject depth	1.23 inch
body length	1.315 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	A3020
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

LED#1 (Top)

LED#2 (Top)

LED#1 (Bottom)

LED#2 (Bottom)

LED OPTION TABLE:

OPTION

G

Y

R

1

2

3

4

5

6

7

8

FORWARD REVERSE

TOP & BOTTOM

GREEN

------

TOP & BOTTOM

YELLOW

------

TOP & BOTTOM

RED

------

GREEN ORANGE

TOP & BOTTOM

YELLOW ORANGE

TOP & BOTTOM

GREEN

RED

TOP & BOTTOM

YELLOW

RED

GREEN YELLOW

TOP & BOTTOM

YELLOW

RED

GREEN

TOP & BOTTOM

YELLOW

TOP & BOTTOM

LED

FORWARD DC CURRENT: 2mA

FORWARD VOLTAGE: 1.8 V Typical

REVERSE VOLTAGE: 5 V Min.

POWER DISSIPATION: Green=24 mW; Yellow=36 mW

MATERIAL:

INSULATOR: NYLON 46 (UL94V-0)

CONTACT: 0.35mm Thickness Phosphor Bronze

CONTACT PLATING: Gold Plating Over Nickel

MECHANICAL:

ELECTRICAL:

DURABILITY: 500 Mating Cycles Min.

VOLTAGE RATING: 125 VAC RMS

CURRENT RATING: 1.5A Min.

CONTACT RESISTANCE: 50 milli-Ohm Max.

INSULATION RESISTANCE: 1,000 mega-Ohm Min.

DIELECTRIC STRENGTH: 1000V VAC RMS 60HZ, 1 Min.

OPERATING TEMPERATURE: 0° C to +70° C

HOW TO ORDER:

A

3

0

2

0

-

0

4

A

-

S

T

2

-

X

0

C - X

X

-

Z

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 15u" Au CONTACT AREA/TIN TAIL

8 - 30u" Au CONTACT AREA/TIN TAIL

9 - 50u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved Date

D.H.

S.M.

03/10/04

D.H.

S.M.

06/07/04

WHS

09/20/06

S.M.

B.S.

10/12/07

S.M.

LED 1:

LED 2:

CHOOSE OPTION

FROM TABLE ABOVE

RoHS

COMPLIANT

Rev

0

Issued

A LED Options Table updated

B Revised for RoHS Compliance

C Revised LED Table

SCALE: N/A

TOL. DEC.

.XX +/- 0.25

.XXX +/- 0.13

.XXXX +/- 0.05

SMP TECHNOLOGY, INC.

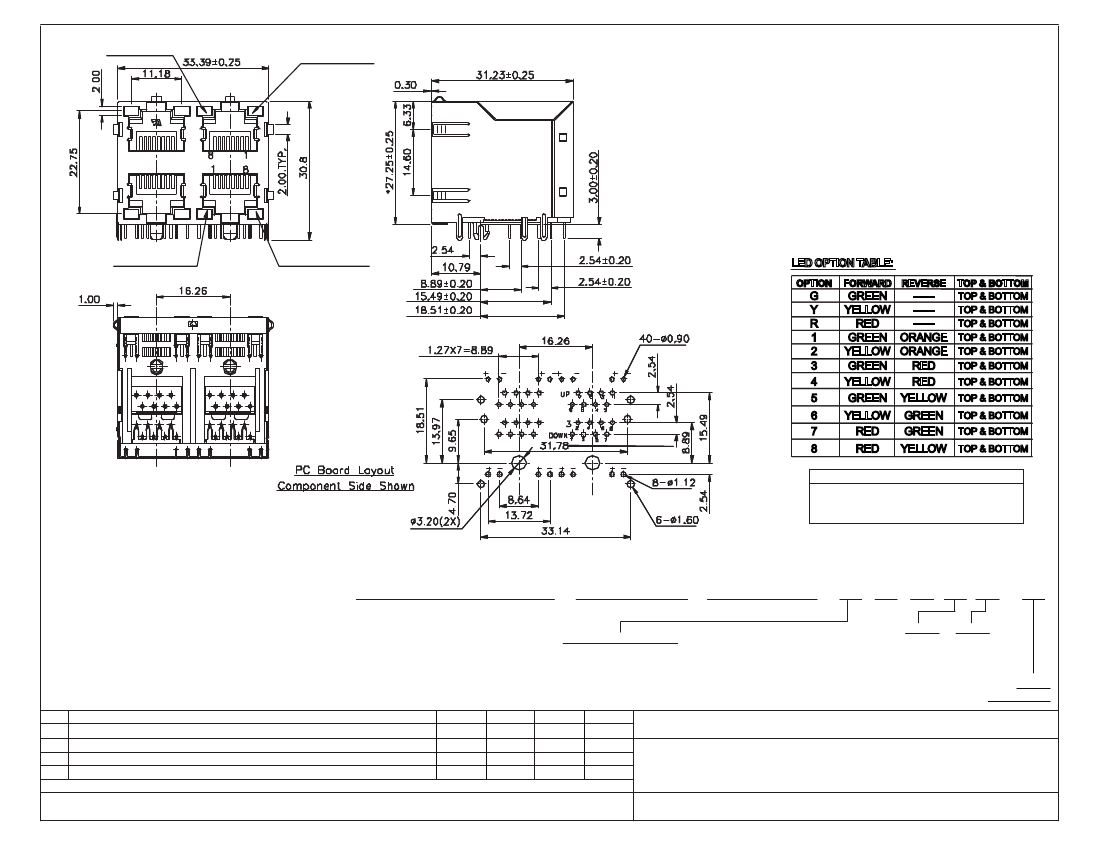

RJ45 GANGED JACK w/ LED, 2x2, w/ PANEL GROUND on

TOP AND SIDES (AMP STYLE)

P/N: A3020-04A-ST2-X0C-XX-Z

Pg: 1

ANGLE +0.45 / -0.15

UNIT: mm
