SP8605A datasheet, PDF - EEWORLD Datasheet

SP8605A: DescriptionPrescaler, ECL, CDIP14,; Categorylogic logic; File Size176KB，4 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

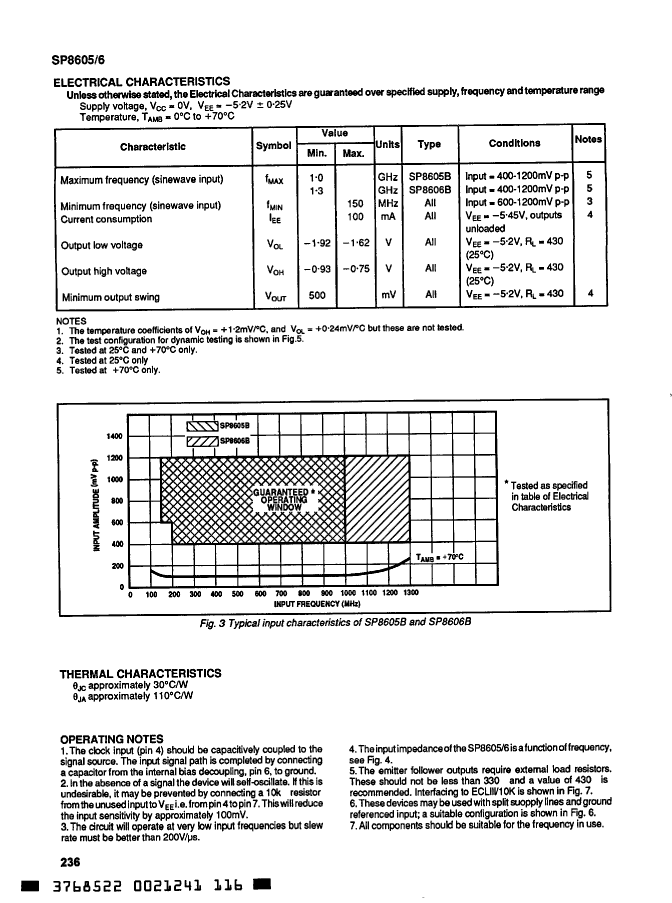

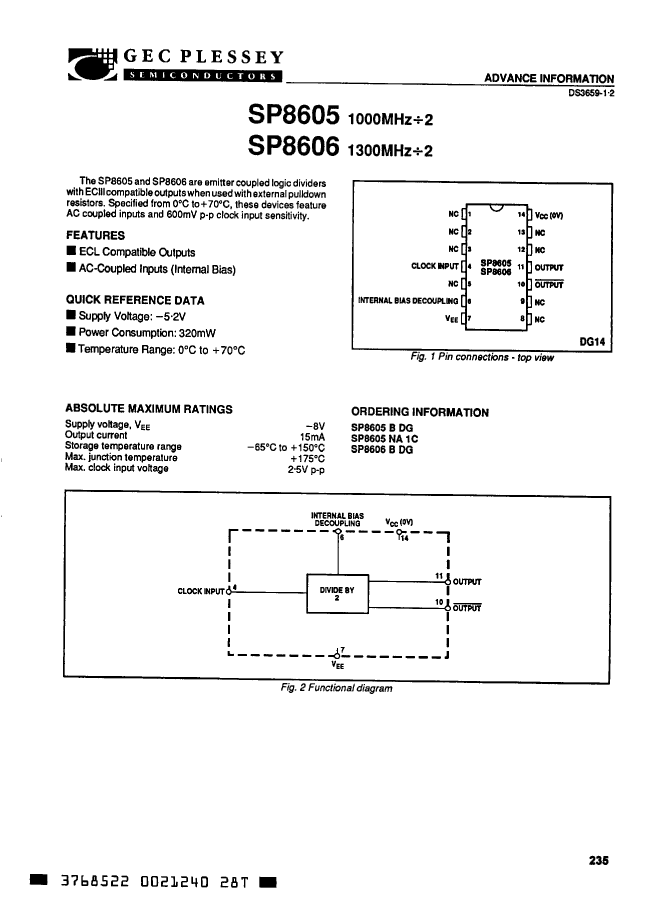

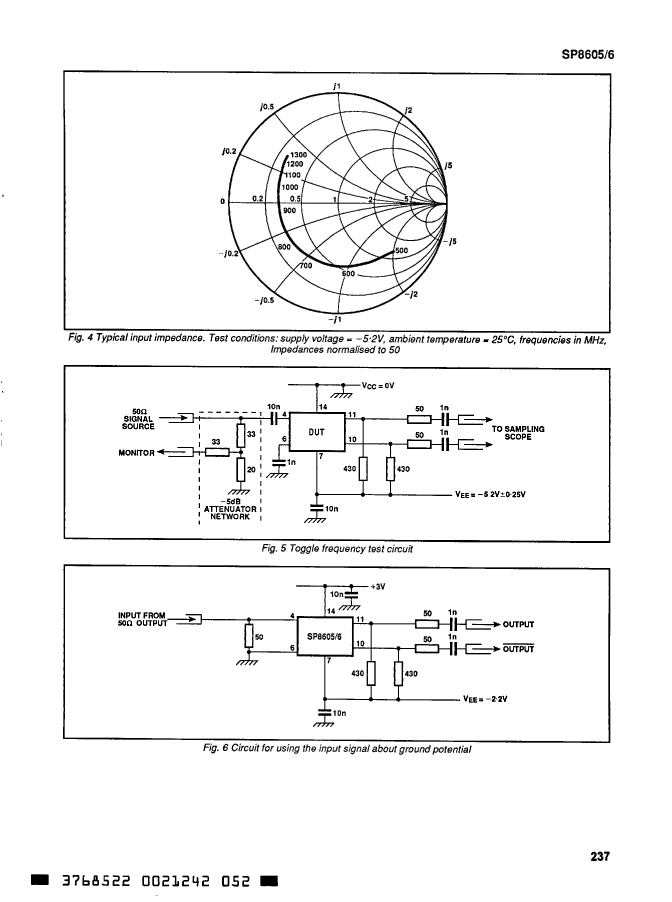

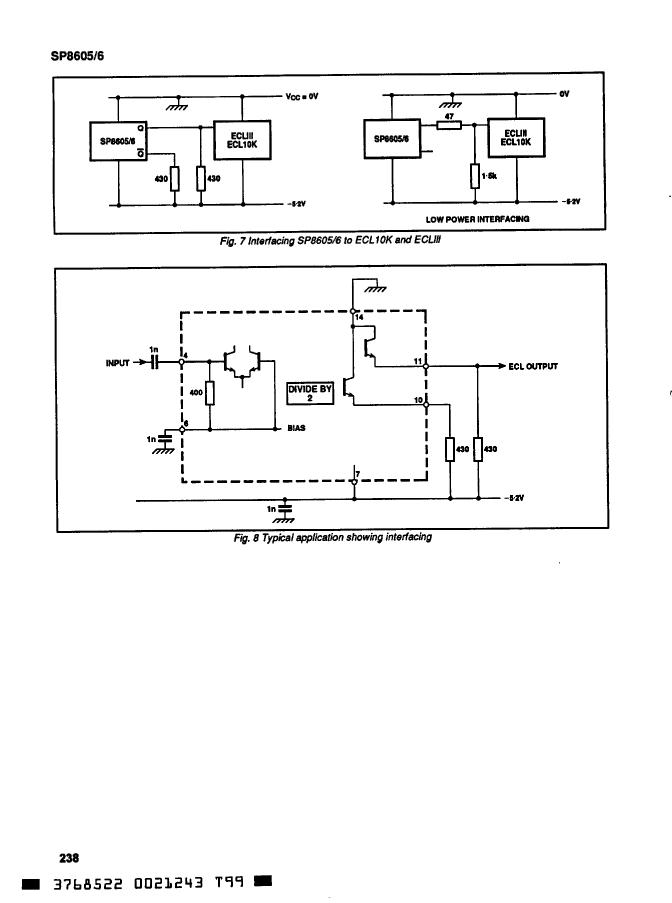

SP8605A Overview

Prescaler, ECL, CDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	PRESCALER
Maximum Frequency@Nom-Sup	1000000000 Hz
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Maximum supply current (ICC)	100 mA
Certification status	Not Qualified
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	SP8605A	SP8605M-DG
Description	Prescaler, ECL, CDIP14,	Prescaler, ECL, CDIP14
Is it Rohs certified?	incompatible	incompatible
Maker	Dynex	Dynex
package instruction	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	PRESCALER	PRESCALER
Maximum Frequency@Nom-Sup	1000000000 Hz	1000000000 Hz
Number of terminals	14	14
Maximum operating temperature	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	-5.2 V	-5.2 V
Maximum supply current (ICC)	100 mA	100 mA
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	ECL	ECL
Temperature level	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
