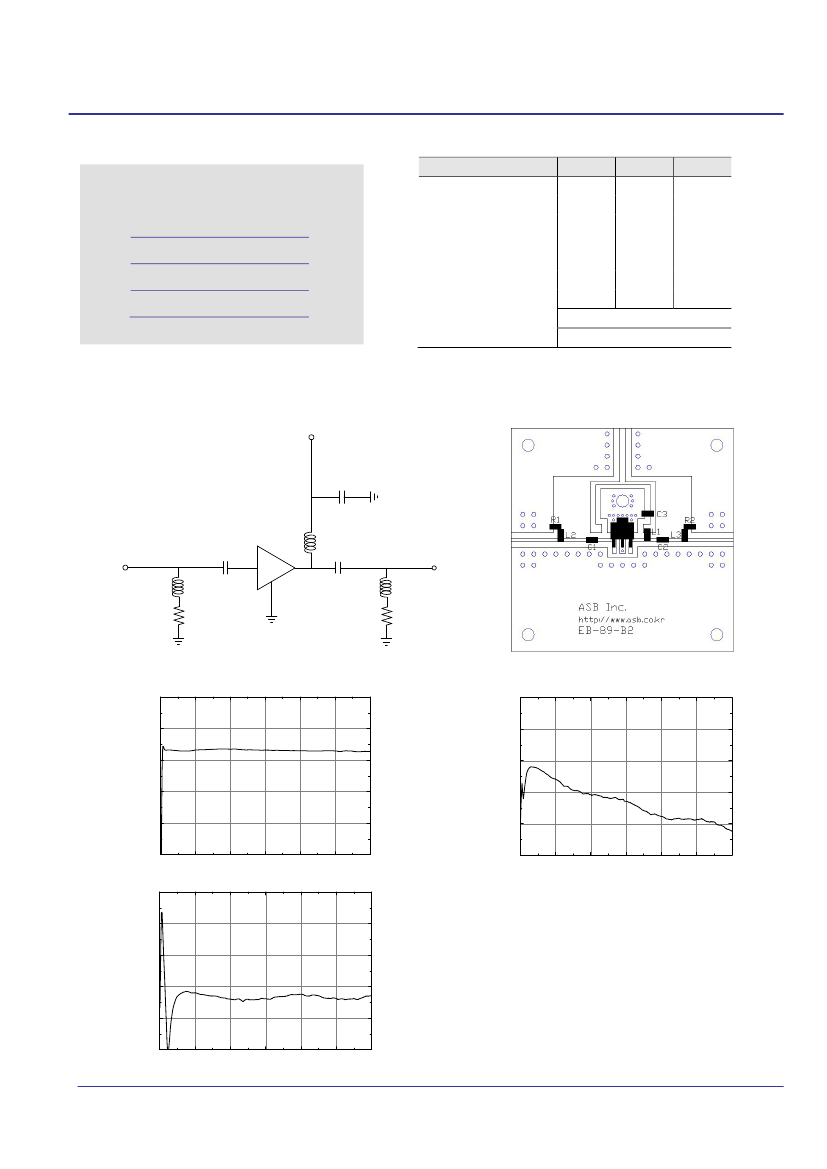

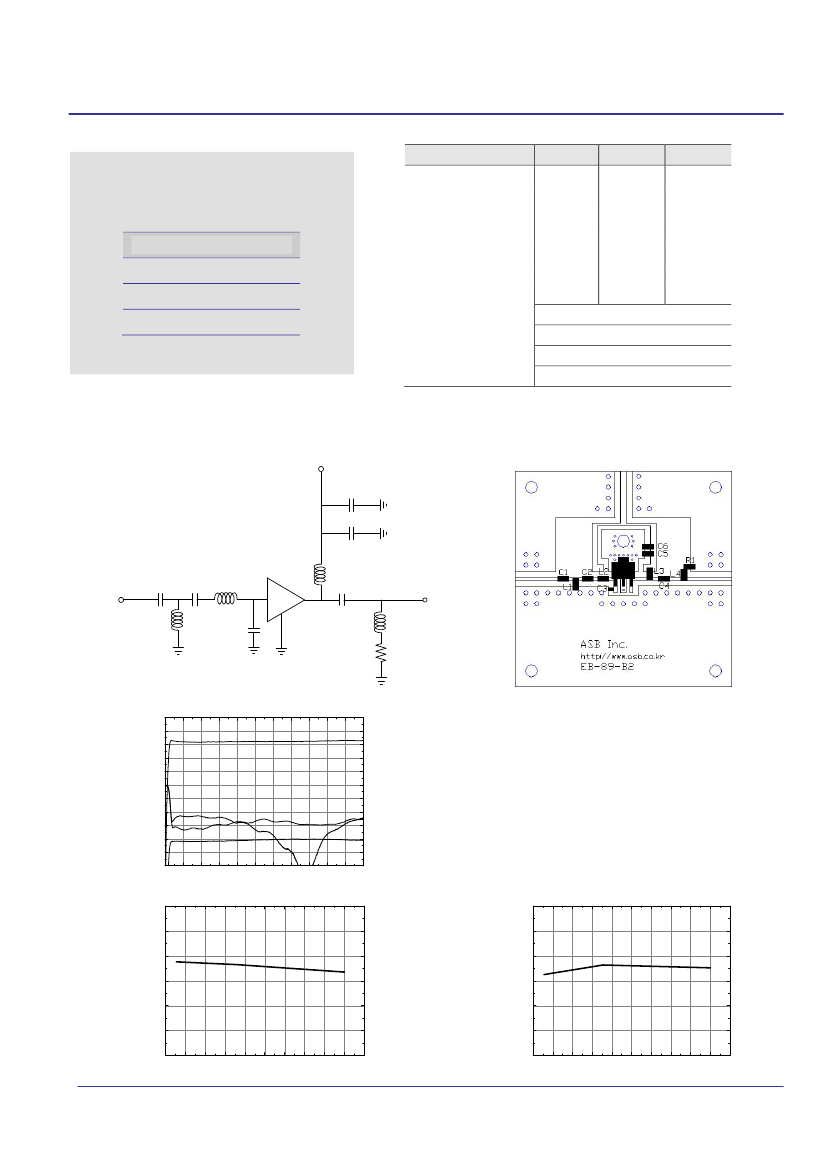

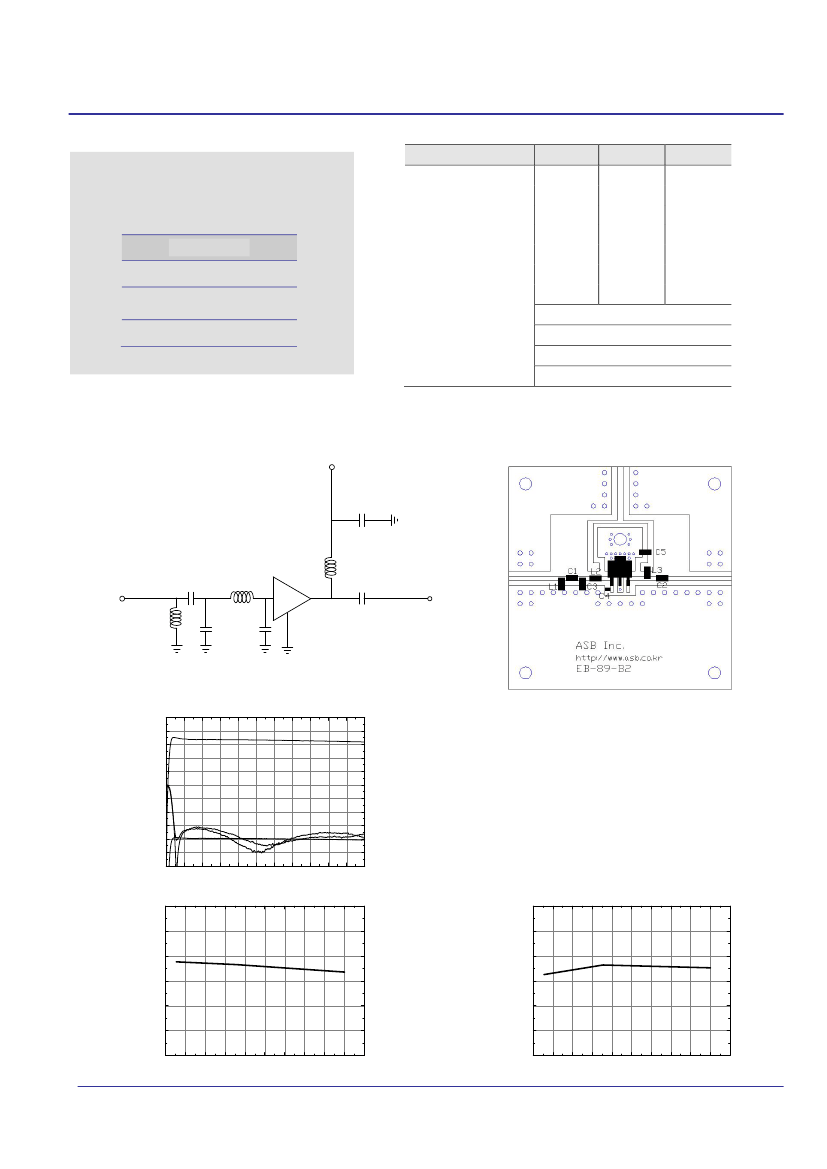

ASL330
Wideband Linear Amplifier MMIC
Features
·16.4
dB Gain at 500 Mz
·21
dBm P1dB at 500 MHz
·41
dBm Output IP3 at 500 MHz
·1.7
dB NF at 500 MHz
·75
Ohm Input / Output Match
·Bandwidth
5 ~ 1000 MHz
·Single
Supply 5 V
Description
The ASL330, a wideband linear amplifier MMIC,
has a high linearity and low noise over a wide range
of frequency 5 MHz to 1 GHz, being suitable for use
in the fiber receiver, distribution amplifiers and drop
amplifiers of CATV systems, and in the mobile wire-
less repeaters and BTS. The amplifier is available in
an SOT-89 package and passes through the strin-
gent DC, RF, and reliability tests.
ASL330
Typical Performance
Parameters
Frequency
Noise Figure
Gain
S11
S22
Output P1dB
Output IP3
Output IP2
CSO
CTB
4)
4)
1),2),3)
Package Style: SOT-89
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBc
dBc
mA
V
5
2.1
15.9
-18
-15
16
29.5
44
1)
Typical
50
1.8
17.2
-20
-18
21
41
2)
Application Circuit
860
1.8
15.9
-18
-17
19.5
37
2)
500
1.7
16.4
-20
-20
21
41
2)
2200
2.7
14.7
-18
-11
20
39.5
51
2)
·50
~ 1000 MHz
(Gain Flatness: 0.3 dB)
·50
~ 1000 MHz (Min. VSWR)
·5
~ 200 MHz
·150
~ 2200 MHz (SMATV)
·
50 ~ 1000 MHz
(Push-Pull / 1:1 transformer)
54
56
66
76
105
5
50
Current
Device Voltage
1) OIP3 and OIP2 are measured with two tones at an output power of +8 dBm/tone separated by 1 MHz.
2) OIP3 and OIP2 are measured with two tones at an output power of +5 dBm/tone separated by 6 MHz.
3) OIP2 is measured at F1+F2 Frequency.
4) 160 channels, +20 dBmV per channel (measured at output).
Product Specifications
Parameters
Testing Frequency
Gain
S11
S22
Output IP3
Noise Figure
Output P1dB
Current
Device Voltage
Units
MHz
dB
dB
dB
dBm
dB
dBm
mA
V
Min
Typ
500
16.4
-20
-20
41
1.7
21
105
5
Max
Pin Configuration
Absolute Maximum Ratings
Parameters
Operating Case Temperature
Storage Temperature
Device Voltage
Operating Junction Temperature
Input RF Power (CW, 75ohm matched)*
Rating
-40 to
+85°C
-40 to
+150°C
+6V
+150°C
10 dBm
Pin No.
1
2
3
Function
RF IN
GND
RF OUT / Bias
* Please find the max. input power data from
http://www.asb.co.kr/pdf/Maximum_Input_Power_Analysis.pdf
1/8
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2011
ASL330
Wideband Linear Amplifier MMIC

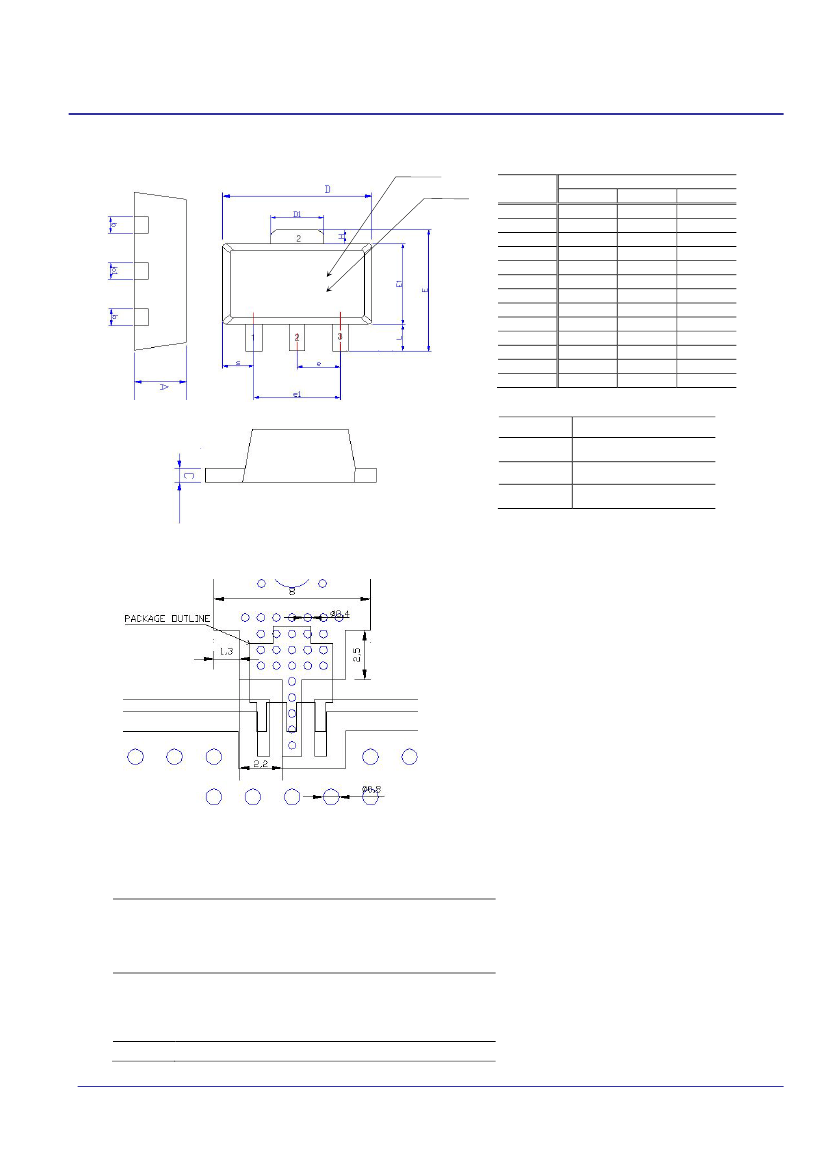

Outline Drawing
Part No.
Lot No.
Symbols
A
L
b
b1
C
D
D1
E
E1
e1
H
S
e
Dimensions (In mm)
MIN
NOM
MAX
1.40
1.50
1.60
0.89
1.04
1.20
0.36
0.42
0.48
0.41
0.47
0.53
0.38
0.40
0.43
4.40
4.50
4.60
1.40
1.60
1.75
3.64
---
4.25
2.40
2.50
2.60
2.90
3.00
3.10
0.35
0.40
0.45
0.65
0.75
0.85
1.40
1.50
1.60
ASL330
Pxxxx
Pin No.
1
2
3
Function
RF IN
GND
RF OUT / Bias
Mounting Recommendation (in mm)
Note:
1. The number and size of ground via holes in
a circuit board is critical for thermal and RF
grounding considerations.
2. We recommend that the ground via holes
be placed on the bottom of the lead pin 2
and exposed pad of the device for better RF
and thermal performance, as shown in the
drawing at the left side.
ESD Classification & Moisture Sensitivity Level
ESD Classification
HBM
MM
Class 1B
Voltage Level: 550 V
Class A
Voltage Level: 50 V
CAUTION: ESD-sensitive device!
Moisture Sensitivity Level (MSL)
Level 3 at 260°C reflow
2/8
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2011
ASL330
Wideband Linear Amplifier MMIC
Frequency (MHz)
Noise Figure (dB)
50
1.8
16.2
-14
-12
21
39
51
500
1.8
16.0
-12
-15
21
41
51
66
76
5
105
.
860
2.1
16.3
-14
-20
19.5
38
50
APPLICATION CIRCUIT
Gain Flatness (0.3 dB)
CATV
50 ~ 1000 MHz
+5 V
Magnitude S21 (dB)
Magnitude S11 (dB)
Magnitude S22 (dB)
Output P1dB (dBm)
Output IP3 (dBm)
Output IP2
3)
3)
1),2)
1)
(dBm)
CSO (dBc)
CTB (dBc)
Supply Voltage (V)
Current (mA)
1) OIP3 and OIP2 are measured with two tones at an output power of +5 dBm/tone se-
parated by 6 MHz.
2) OIP2 is measured at F1+F2 Frequency.
3) 160 channels, +20 dBmV per channel (measured at output), 6 MHz channel spacing.
Schematic
Vs=5 V
2
Board Layout (FR4, 40x40 mm , 0.8T)
C6=1
mF
C5=68 pF
L3=220 nH
(Coil Inductor)
RF OUT
ASL330
RF IN C1=100 pF C2=100 nF
L1=270 nH
(Coil Inductor)
L2=5.6 nH
C3=0.3 pF
C4=4.7 nF
L4=68 nH
R1=240
W
S-parameters
25
20
15
10
S21
S - parameter [dB]
5
0
-5
-10
-15
-20
-25
-30
0
100
200
300
400
500
600
700
800
900
S11
S22
S12
1000 1100
CSO & CTB
90
80
Frequency [MHz]
100
90
70
80
CSO (dBc)
60
CTB (dBc)
0
100
200
300
400
500
600
700
800
900
1000
70
50
60
40
50
30
40
0
100
200
300
400
500
600
700
800
900
1000
Frequency (MHz)
Frequency (MHz)
3/8
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2011
ASL330
Wideband Linear Amplifier MMIC
Frequency (MHz)
Noise Figure (dB)
50
1.8
17.2
-20
-18
21
41
54
500
1.7
16.4
-20
-20
21
41
56
66
76
5
105
.
860
1.8
15.9
-18
-17
19.5
37
50
APPLICATION CIRCUIT
Min. VSWR
CATV
50 ~ 1000 MHz
+5 V
Magnitude S21 (dB)
Magnitude S11 (dB)
Magnitude S22 (dB)
Output P1dB (dBm)
Output IP3 (dBm)
Output IP2
3)
3)
1),2)
1)
(dBm)
CSO (dBc)
CTB (dBc)
Device Voltage (V)
Current (mA)
1) OIP3 and OIP2 are measured with two tones at an output power of +5 dBm/tone se-
parated by 6 MHz.
2) OIP2 is measured at F1+F2 Frequency.
3) 160 channels, +20 dBmV per channel (measured at output).
Schematic
Vs=5 V
2
Board Layout (FR4, 40x40 mm , 0.8T)
C5=1
mF
L3=390 nH
(Coil Inductor)
RF IN
L1=330 nH
(Coil Inductor)
C1=470 pF
L2=8.6 nH
RF OUT
ASL330
C2=4.7 nF
C3=0.75 pF
C4=0.3 pF
S-parameters
25
20
15
10
S21
S - parameter [dB]
5
0
-5
-10
-15
-20
-25
-30
0
100
200
300
400
500
600
700
800
900
S22
S11
S12
1000 1100
CSO & CTB
90
80
Frequency [MHz]
100
90
70
80
CSO (dBc)
60
CTB (dBc)
0
100
200
300
400
500
600
700
800
900
1000
70
50
60
40
50
30
40
0
100
200
300
400
500
600
700
800
900
1000
Frequency (MHz)
Frequency (MHz)
4/8
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2011
ASL330
Wideband Linear Amplifier MMIC
Frequency (MHz)
Noise Figure (dB)
5
1.7
16.7
-14
-8
17.5
30.5
36
50
1.9
16.3
-13
-15
21
37.5
57
5
105
.
200
1.8
16.2
-16
-15
21
40
55
APPLICATION CIRCUIT
CATV
5 ~ 200 MHz
+5 V
Magnitude S21 (dB)
Magnitude S11 (dB)
Magnitude S22 (dB)
Output P1dB (dBm)
Output IP3 (dBm)
Output IP2
1),2)
1)
(dBm)
Device Voltage (V)
Current (mA)
1) OIP3 and OIP2 are measured with two tones at an output power of +8 dBm/tone
separated by 1 MHz.
2) OIP2 is measured at F1+F2 Frequency.
Schematic
Vs=5 V
Board Layout (FR4, 40x40 mm
2
, 0.8T)
C3=10
mF
L1=12
mH
RF IN
C1=10 nF
ASL330
L2=2.2 uH
L3=0.56 uH
C2=1 nF
RF OUT
R1=100
W
R2=91
W
S-parameters
25
0
20
-5
Gain (dB)
15
-10
10
S11 (dB)
0
50
100
150
200
250
300
-15
5
-20
0
-25
0
50
100
150
200
250
300
Frequency (MHz)
0
Frequency (MHz)
-5
-10
S22 (dB)
-15
-20
-25
0
50
100
150
200
250
300
Frequency (MHz)
5/8
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2011
