TS9005DCY: Description600mA Adjustable CMOS LDO with Enable Function; File Size199KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet View All

TS9005DCY Overview

600mA Adjustable CMOS LDO with Enable Function

Preview

Download Datasheet

View All

TS9005

600mA Adjustable CMOS LDO

with Enable Function

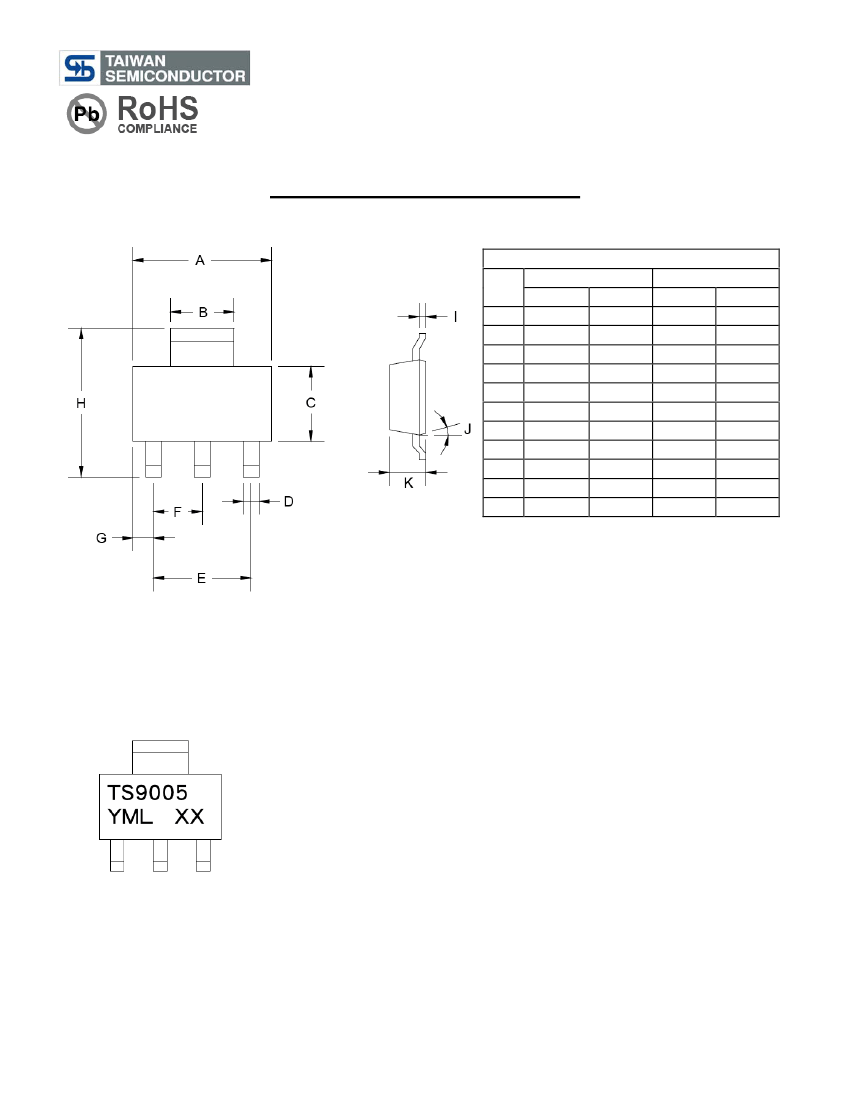

SOT-223

Pin Definition:

1. Ground

2. Input

3. Output

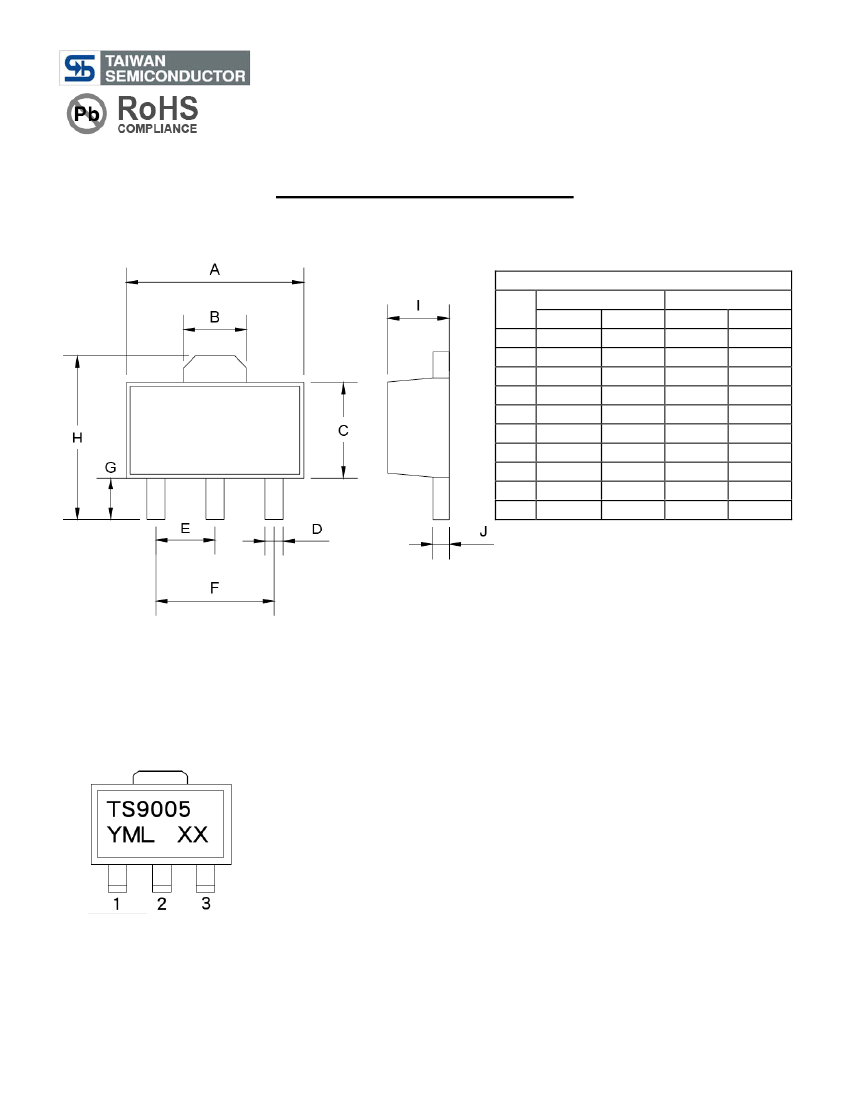

SOT-89

Pin Definition:

1. Ground

2. Input

3. Output

SOT-25

Pin Definition:

1. Input

2. Ground

3. Enable

4. Bypass

5. Output

General Description

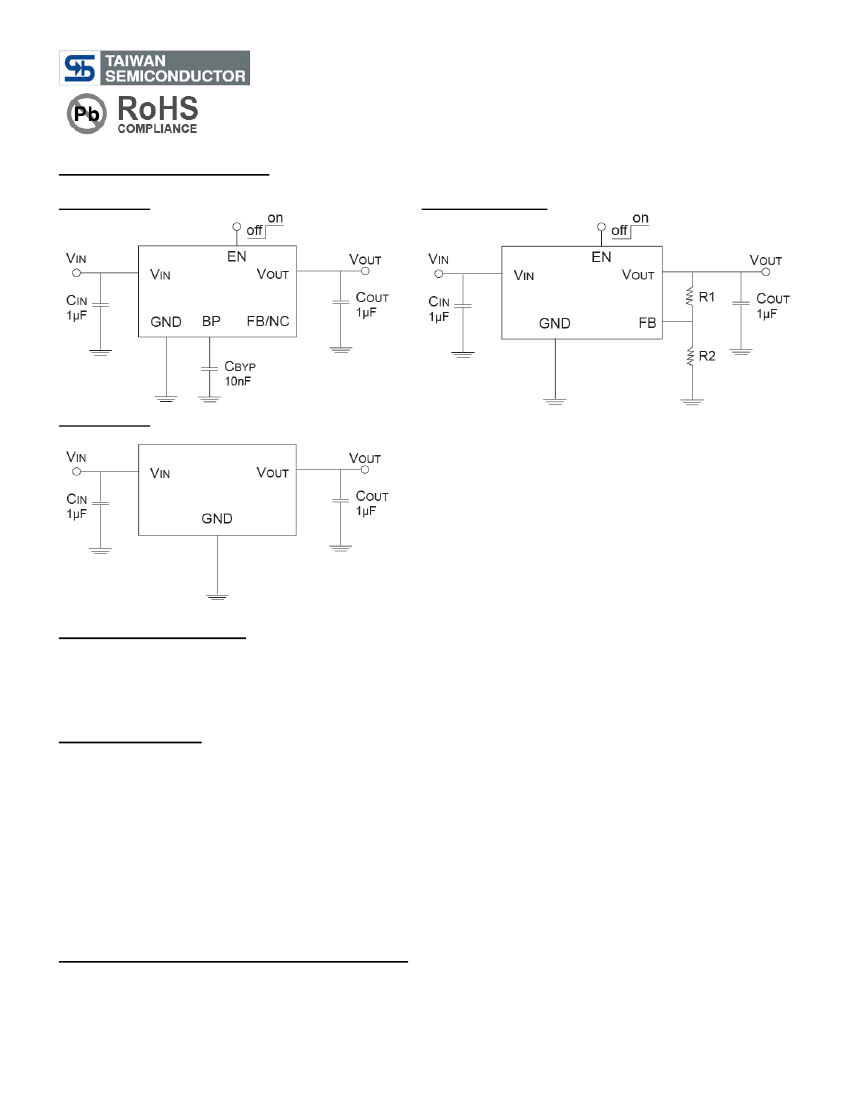

The TS9005 is a low dropout, positive linear regulator with very low quiescent. It can supply 600mA output current

with low dropout about 500mV.The BP pin with a 10nF bypass capacitor can help reduce the output noise level. The

characteristics of low dropout voltage and less quiescent current make it good for some critical current application,

for example, some battery powered devices. The typical quiescent current is approximately 45µA. In the shutdown

mode, the maximum supply current is less than 1uA. The TS9005 regulator is able to operate with output capacitors

as small as 1uF for stability.

Features

●

Input voltage range: 2.5V~6V

DROP

typically 400mV@Io=600mA (Vout≥2.8V)

OUT

adjust range from 0.8V~5V

Output current up to 600mA guaranteed

Current limit and thermal shutdown protection

Low quiescent current at 45uA (typ.)

Needs only 1uF capacitor for stability

Maximum supply current in shutdown mode <1uA

Ordering Information

Part No.

TS9005xCW RP

Package

SOT-223

Packing

2.5Kpcs / 13” Reel

Applications

●

Instrumentation

Wireless device

Battery powered equipment

Portable Devices

TS9005xCY RM

SOT-89

1Kpcs / 7” Reel

TS9005xCX5 RF

SOT-25

3Kpcs / 7” Reel

Note: Where

denotes voltage option, available are

D=1.8V

K=2.5V

S=3.3V

Leave blank for adjustable voltage

Contact factory for additional voltage options.

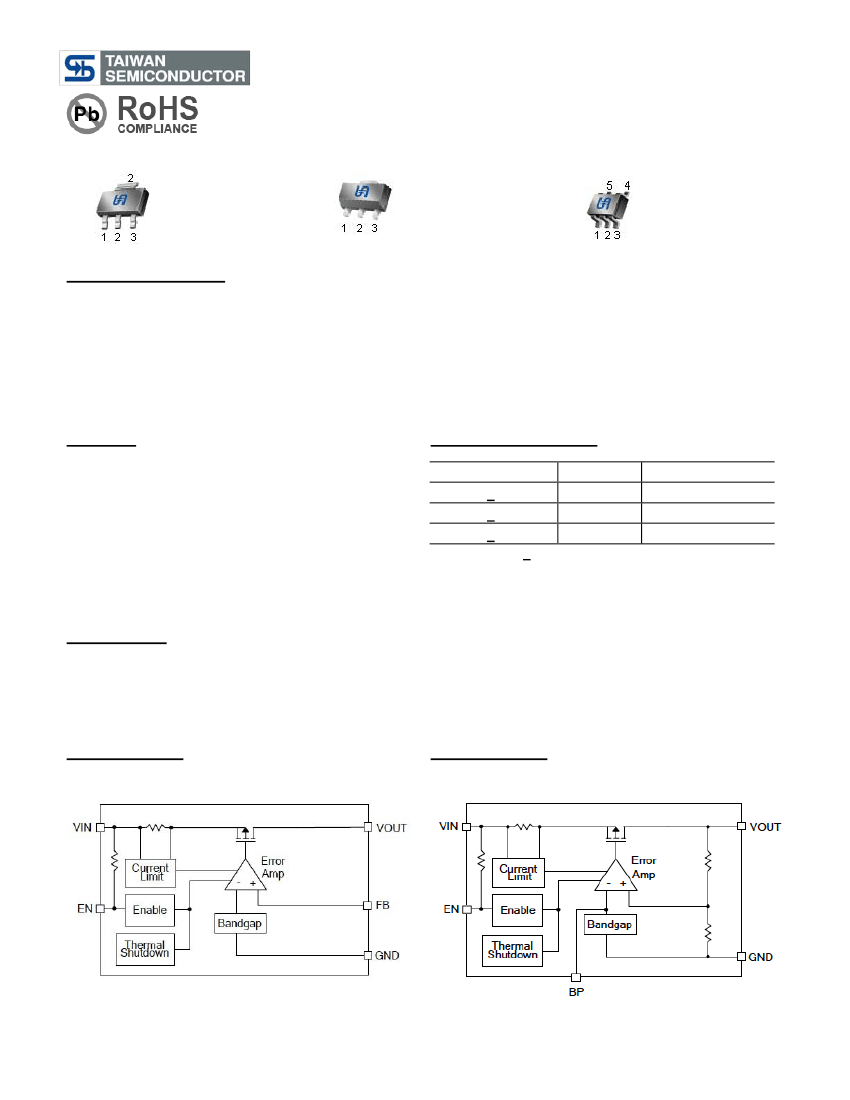

Block Diagram

(Adjustable Version)

Block Diagram

(Fixed Version)

1/7

Version: C07
