SZ016M1000B2S81015 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SZ016M1000B2S81015

SZ016M1000B2S81015: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size60KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SZ016M1000B2S81015 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

SZ016M1000B2S81015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.48 mA
Manufacturer's serial number	SZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	160 mA
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

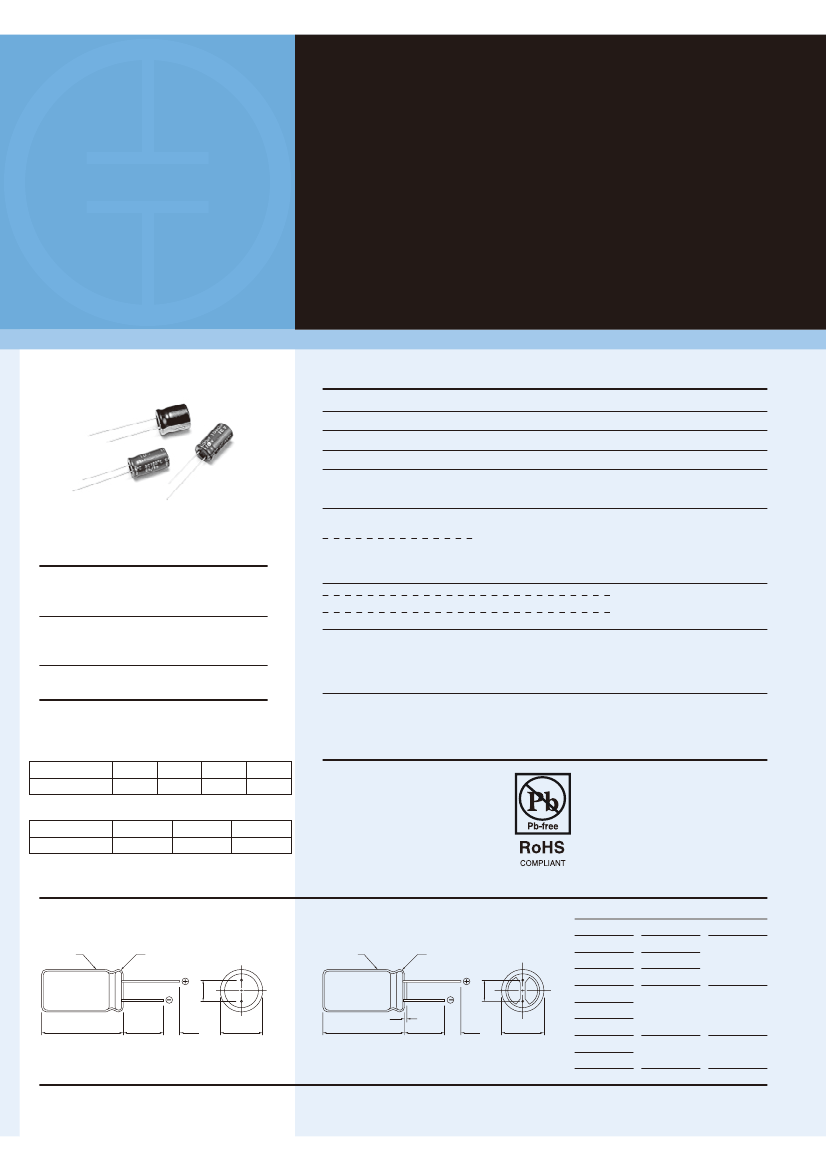

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ Ultra Low ESR ]

105°C Single-Ended Lead Aluminum Electrolytic Capacitors For High Frequency Applications

ELECTRICAL CHARACTERISTICS

Operating Temperature : -40° ~ +105°C

Working Voltage : 6.3 ~ 16V

Rate Capacitance Range : 470 ~ 3300µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : I = 0.03 CV Whichever is greater.

( Measurements shall be Made After a 2 Minute Charge at Rated Working Voltage )

Dissipation Factor : at 120 Hz, 25°C

WV (V) : 6.3

D.F (%) : 22

For capacitor whose capacitance exceeds 1000µF. The value of D.F(%) is increased by 2% for every

addition of 1000µF.

WV (V)

: Rated Voltage (V)

6.3

Impedance : Z - 25°C / Z + 20°C

Impedance : Z - 40°C / Z + 20°C

Load Life : 2000 Hours at 105°C Assured with Full Rated Maximum Ripple Current Applied

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Shelf Life : 1000 Hours, No Voltage Applied, at 105°C

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200 % of Initial Requirement

Frequency(Hz)

Factor

120

0.50

0.80

10K

0.90

100K

1.00

DESCRIPTION

Used in switching regulator applications in com-

puters. Especially for high frequency.

Low impedance and E.S.R., high permissible ripple

current at high frequency and higher operating

temperature (-40°C to +105°C).

High Temperature Load Life at 105°C for 2000

Hours

Temperature(°C)

Factor

2.10

1.70

105

1.00

DIAGRAM OF DIMENSIONS

Rubber Stand-off

Dø

4.0

Rubber End Seal

Dimensions : mm

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

5.0

6.0

8.0

10.0

12.0

13.0

16.0

18.0

22.0

F 0.5

0.4Max.

15Min.

0.6

15Min.

5Min.

D 0.5

5Min.

D 0.5

7.5

10.0

0.8
