HTSS-102-03-P-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> HTSS-102-03-P-D

HTSS-102-03-P-D: DescriptionBoard Stacking Connector; CategoryThe connector The connector; File Size456KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

HTSS-102-03-P-D Overview

Board Stacking Connector

HTSS-102-03-P-D Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
Connector type	BOARD STACKING CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HTSS
Options	GENERAL PURPOSE

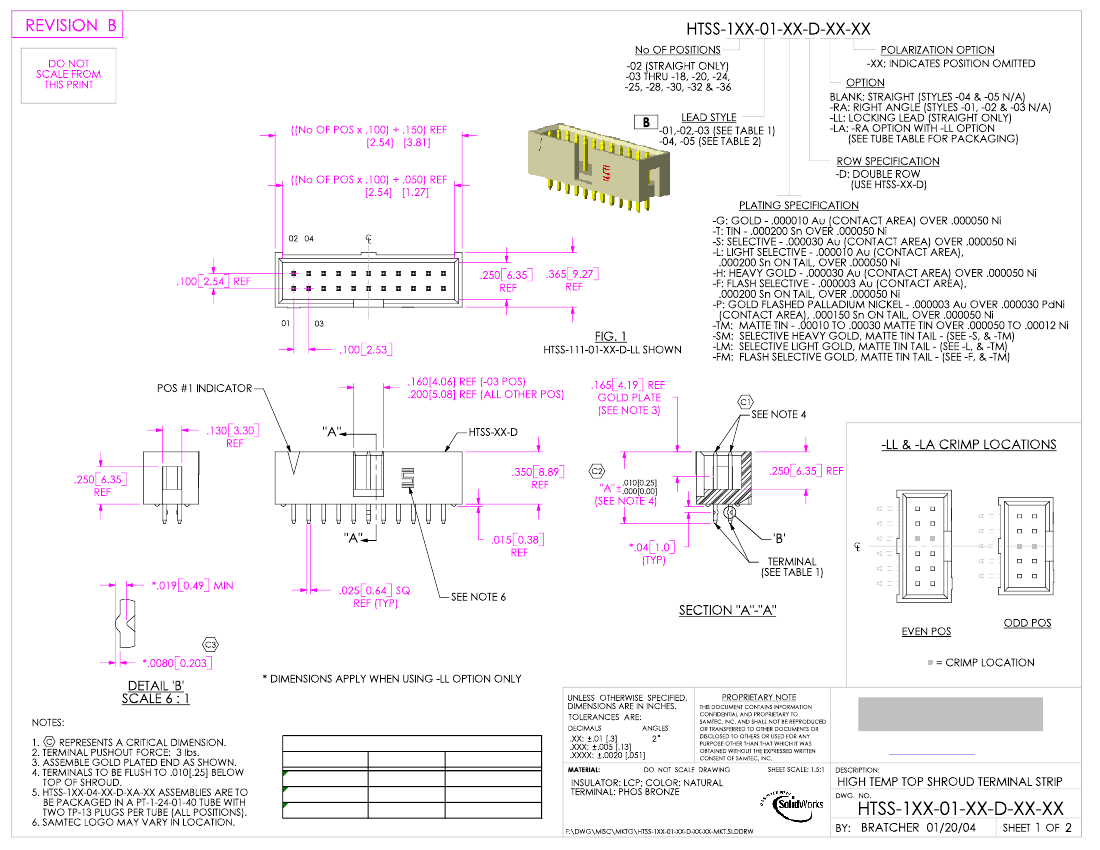

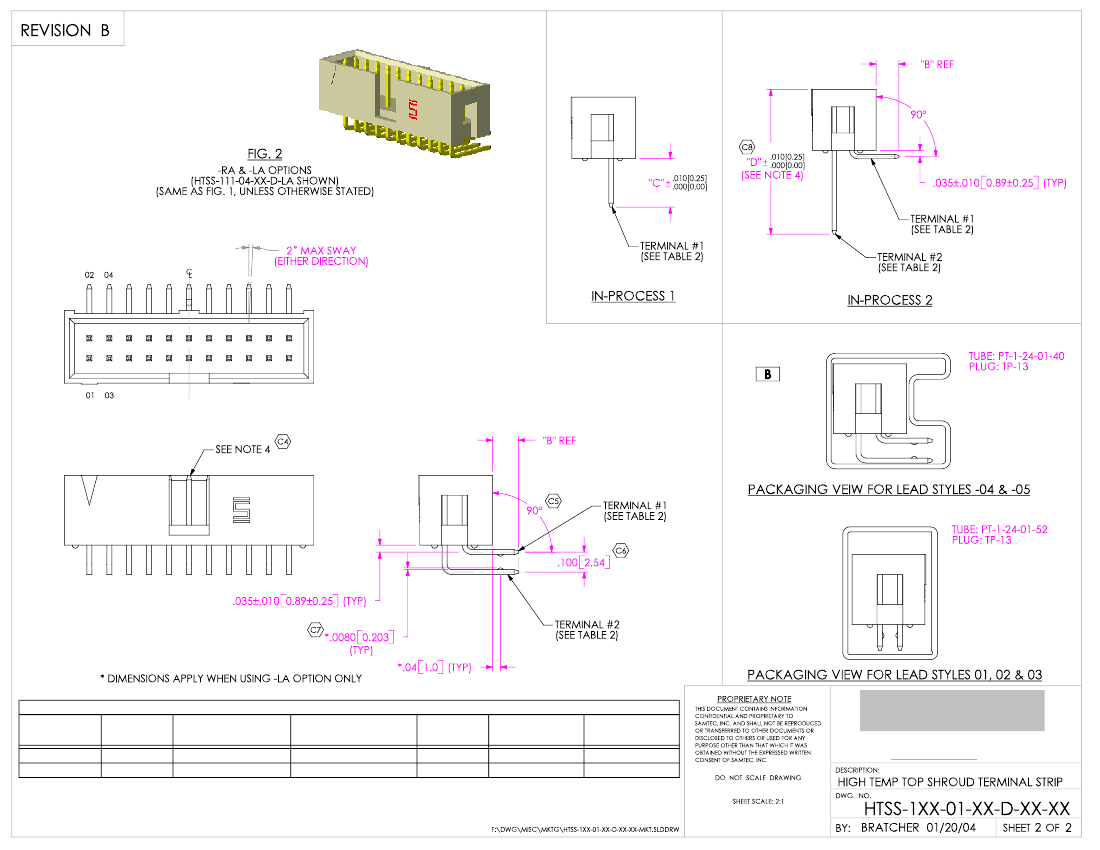

HTSS-102-03-P-D Preview

S A M TE C

LEAD STYLE

-01

-02

-03

TABLE 1

"A"

.480[12.19]

.530[13.46]

.930[23.62]

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

TERMINAL

T-1S6-17-XX-2

T-1S6-08-XX-2

T-1S6-11-XX-2

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322

LEAD STYLE

-04

-05

"B"

.130[3.30]

.230[5.84]

"C"

(NO RA REPRESS)

.280[7.11]

.380[9.65]

TABLE 2

"C"

(WITH RA REPRESS)

.350[8.89]

.450[11.43]

"D"

.830[21.08]

.930[23.62]

TERMINAL #1

T-1S6-15-XX-2

T-1S6-09-XX-2

TERMINAL #2

T-1S6-10-XX-2

T-1S6-11-XX-2

S A MTEC

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812.944.6733

FAX: 812.948.5047

e-Mail:

INFO@SAMTEC.COM

CODE: 55322
