Small Signal Schottky Barrier Diode
BAS70JW

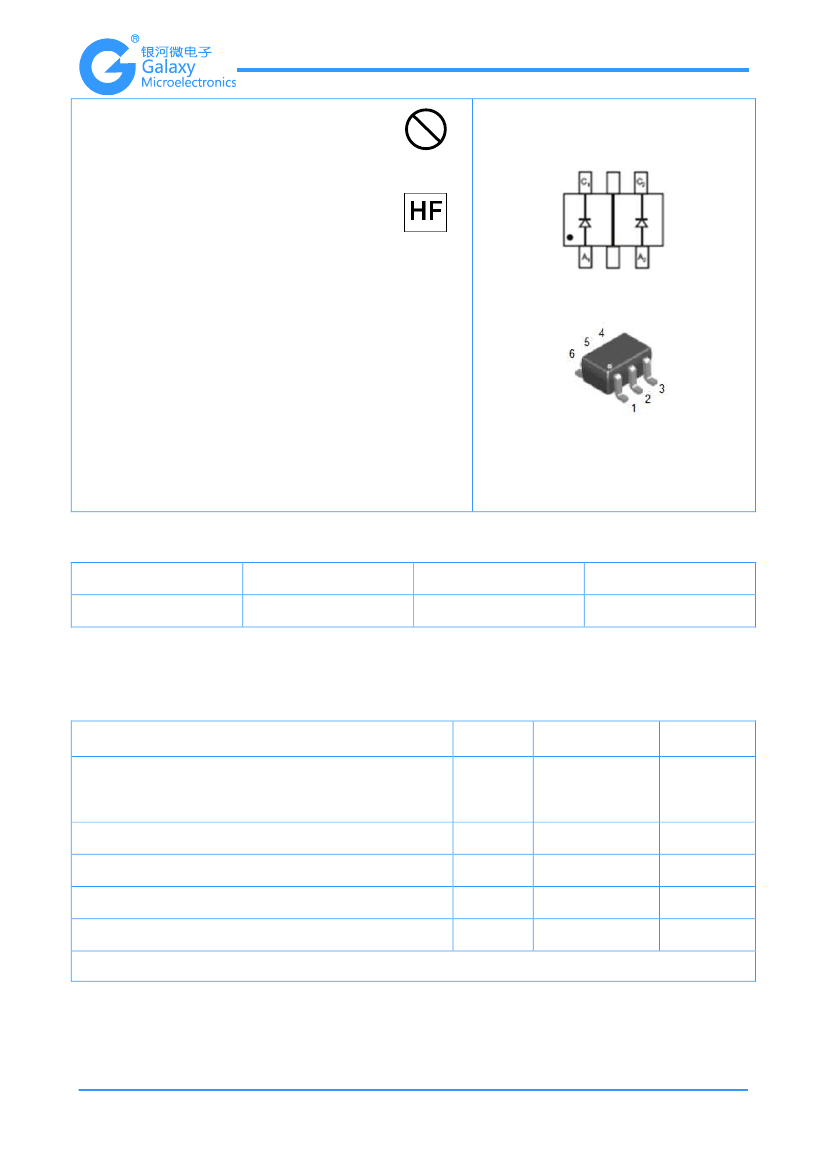

Features
Fast switching.
Low forward voltage drop.
Ultra-small surface mount package.
PN junction guard ring for transient and
ESD protection.
Pb
Lead-free
Typical Applications
High speed switching applications.
Circuit protecting.
Voltage clamping.
Mechanical Data
Case: SOT-363
Terminals: solderable per MIL-STD-202, Method 208.
SOT-363
Ordering Information
Part Number
BAS70JW
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Package
SOT-363
Shipping
3000/Tape&Reel
Marking Code
K78
Maximum Ratings
(@T
A
=25℃ unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Reverse Voltage
RMS Reverse voltage
Forward Continuous Current *
Non-Repetitive Peak Forward Surge Current@t
p=
8.3ms
Power Dissipation *
* part mounted on FR-4 board with recommended pad layout
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F
I
FSM
P
d
Limits
Unit
70
49
70
100
200
V
V
mA
mA
mW
SSM0056A
www.gmesemi.com
1
Small Signal Schottky Barrier Diode
BAS70JW
Thermal Characteristics
Parameter
Thermal Resistance Junction to Ambient Air
Operating Temperature Range
Storage Temperature Range
Symbol
R
θJA
T
j
T
STG
Limits
500
-55 to +125
-55 to +150
Unit
℃/W
℃
℃
Electrical Characteristics
(@T
A
=25℃ unless otherwise specified)
Parameter
Forward Voltage *
1
Reverse Leakage Current *
2
Capacitance Between Terminals
Reverse Recovery Time
*1: pulse test,tp≤300μs
*2: pulse test,tp≤5ms
Symbol
V
F
I
R
C
T
t
rr
Conditions
I
F
=1mA
I
F
=15mA
V
R
=50V
V
R
=0V,f=1MHz
I
F
=I
R
=10mA,I
rr
=0.1*I
R
,
R
L
=100Ω
Min
Typ
Max
0.41
1
100
2
5
Unit
V
V
nA
pF
ns

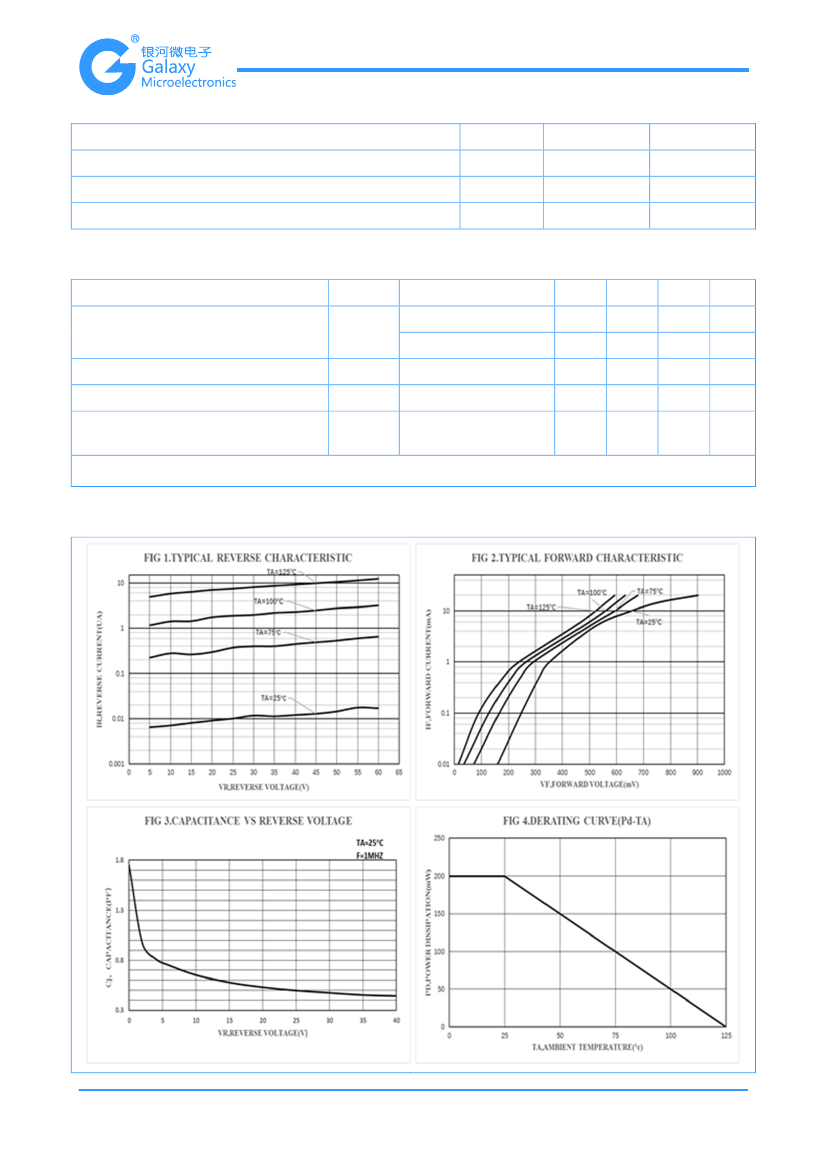

Ratings and Characteristic Curves
(T
A
=25℃ unless otherwise noted)
SSM0056A
www.gmesemi.com
2
Small Signal Schottky Barrier Diode
BAS70JW
Package Outline Dimensions
(unit:mm)
SOT-363
A
E
SOT-363
Dim
A
Min
2.00
1.15
0.85
0.15
0.25
0.60
0.02
0.05
2.20
Max
2.20
1.35
1.05
0.35
0.40
0.70
0.10
0.15
2.40
K
B
B
C
D
D
G
H
C
J
E
G
H
J
K
Mounting Pad Layout
(unit:mm)
SOT-363
0.50
0.40
1.90
IMPORTANT NOTICE
Galaxy Microelectronics (GME) reserves the right to make changes without further notice to any product
herein to make corrections, modifications , improvements , or other changes. GME does not assume any
liability arising out of the application or use of any product described herein; neither does it convey any
license under its patent rights ,nor the rights of others .
SSM0056A
0.65
0.65
www.gmesemi.com
3
