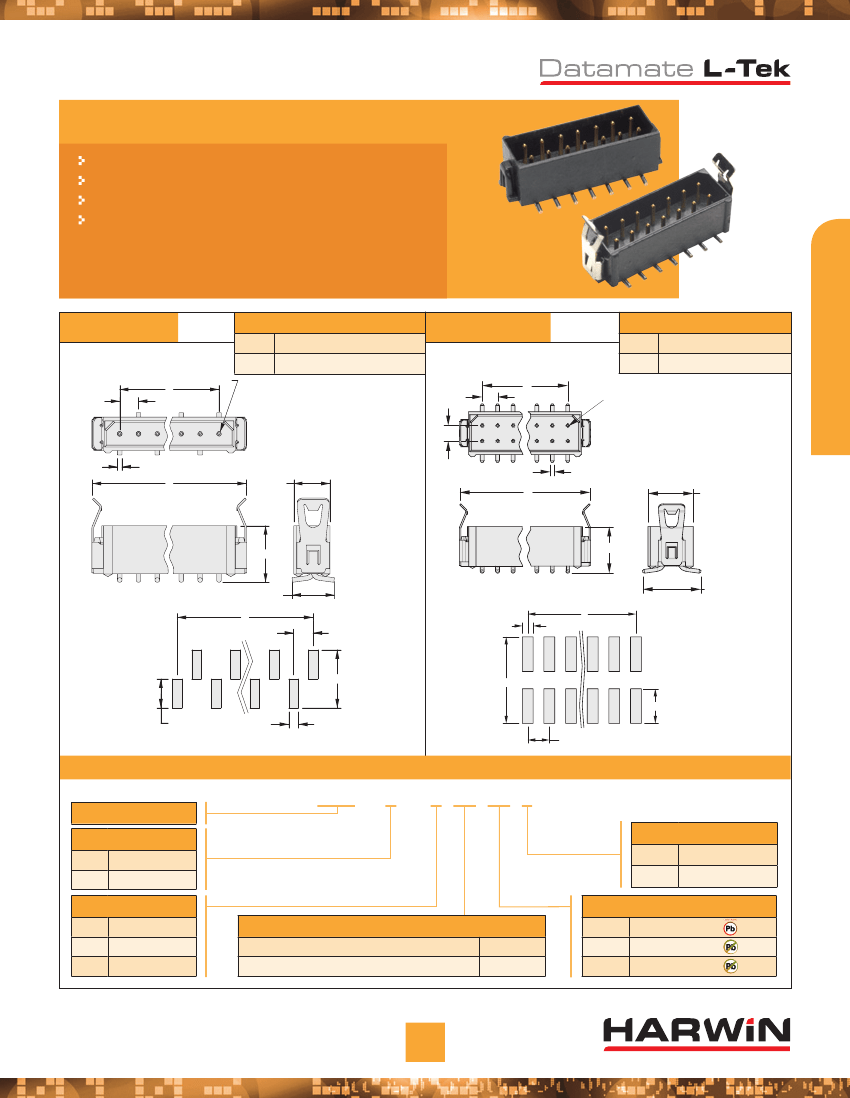

Datamate Connectors
Male Vertical Surface Mount
Contact
datamate@harwin.com
for tape & reel options.
Optional pick and place cap.
Mates with female connectors on pages 21 to 24.
Gull wing SMT tails simplify inspection process.
SINgLE rOw
No. 1 contact
CALCULAtion
A
B
B + 5.60
(Total no. of contacts - 1) x 2
DOuBLE rOw
CALCULAtion
A
B
B + 5.60
Total no. of contacts - 2
B
2.00
Latches (when
fitted) add 0.5mm
to overall length ‘A’
B
2.00
No. 1 contact
Latches (when fitted)
add 0.5mm to
overall length ‘A’
Ø0.50
2.00
A
3.85
ø
0.50
A
5.90
6.00
6.00
4.50
7.50
B
B
2.00
1.00
6.00
8.00
3.20
3.00
1.00
recommended PC Board Pattern
2.00
recommended PC Board Pattern
HOw TO OrDEr
M80 - X 2 X XX XX P
seRies CoDe
RoWs
9
8
Single Row
Double Row
PiCk AnD PLACe CAP
BLAnk
P
No cap
Pick and place cap
tyPe
6
7
8
Unlatched
Friction Latch
Locking Latch
Finish
totAL no. oF ContACts
02 to 07, 17, 22
04, 06, 08, 10, 12, 14, 16, 18, 20, 26, 34, 44
Single Row
Double Row
22
42
45
Gold + Tin/Lead
Gold + Tin
Gold
All dimensions in mm.
