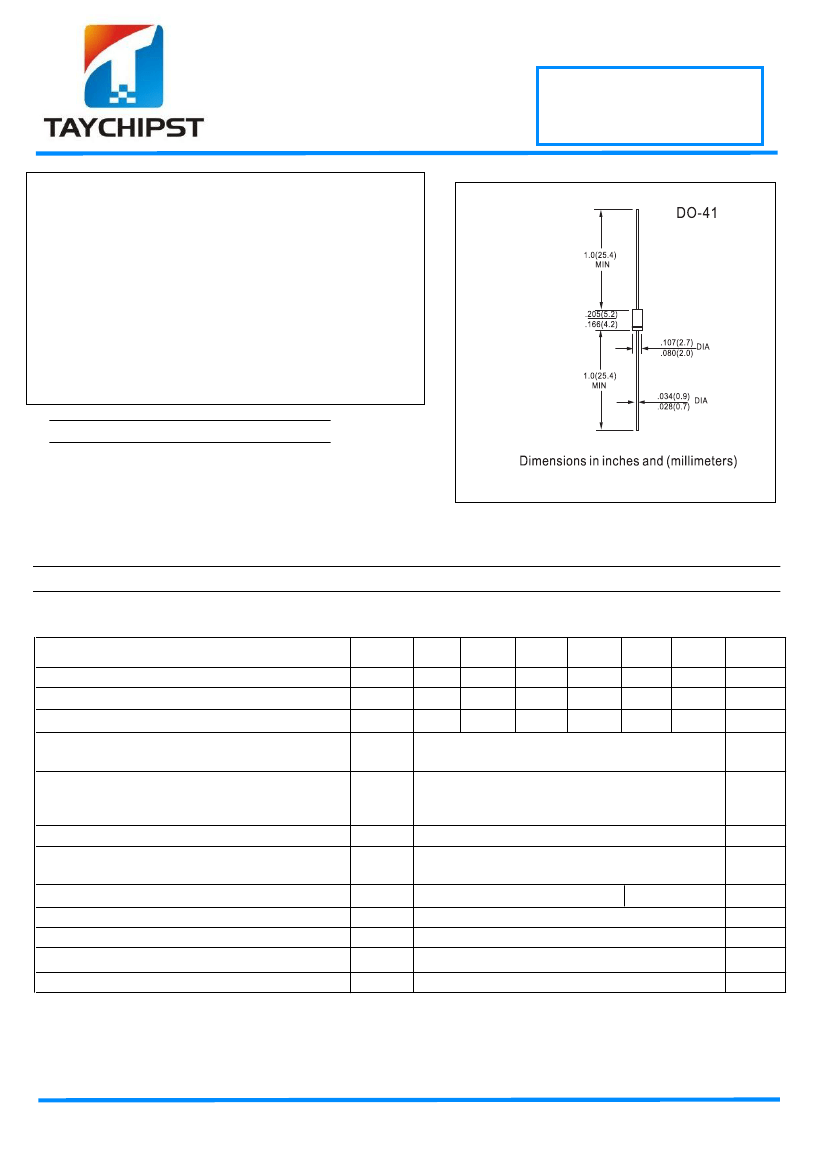

FAST SWITCHING PLASTIC RECTIFIER
FEATURES
SRP100A THRU SRP100K
50V-800V 1.0A
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
High surge current capability
♦
Construction utilizes void-free molded plastic technique
♦
1.0 Ampere operation at T
A
=55°C with
no thermal runaway
♦
Fast switching for high efficiency
♦
High temperature soldering guaranteed:
250°C/10 seconds 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
MECHANICAL DATA
Case:
JEDEC DO-204AL molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color Band denotes cathode end
Mounting Position:
Any
Weight:
0.012 ounce, 1.3 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
SRP
100A
SRP
100B
SRP
100D
SRP
100G
SRP
100J
SRP
100K
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=55°C
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at T
A
=75°C
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time
(NOTE 1)
Typical junction capacitance
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction temperature range
Storage temperature range
T
A
=25°C
T
A
=100°C
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
1.0
400
280
400
600
420
600
800
560
800
Volts
Volts
Volts
Amp
I
FSM
V
F
I
R
t
rr
C
J
R
ΘJA
T
J
T
STG
30.0
1.3
10.0
200.0
100
12.0
41.0
-50 to +125
-50 to +150
200
Amps
Volts
µA
ns
pF
°C/W
°C
°C
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient at 0.375" (9.5mm) lead length, P.C.B. mounted
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
FAST SWITCHING PLASTIC RECTIFIER

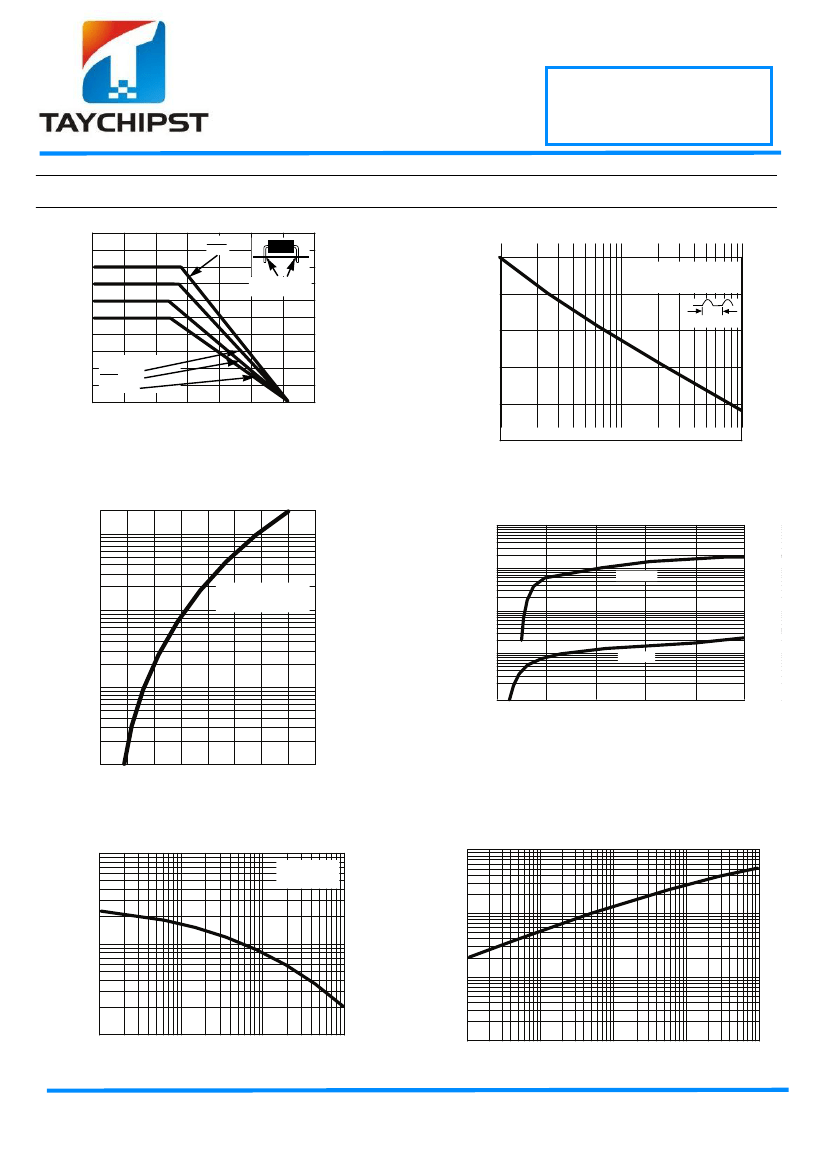

RATINGS AND CHARACTERISTIC CURVES
FIG. 1 - FORWARD CURRENT DERATING CURVE
SRP100A THRU SRP100K
50V-800V 1.0A
SRP100A THRU SRP100K
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
1.25
AVERAGE FORWARD CURRENT,
AMPERES
I
(pk)
I
(AV)
=π
FORWARD SURGE CURRENT
1.0
FORWARD SURGE CURRENT,
AMPERES pk (HALF-SINE WAVE)
0.375” (9.5mm)
LEAD LENGTH
30
T
A
=75°C
8.3ms SINGLE HALF
SINE-WAVE
0.75
0.5
0.25
0
CAPACITIVE LOADS
I
(pk)
5.0
=
10
I
(AV)
20
25
1.0 CYCLE
20
15
0
20
40
60
80
100
120
140
10
5.0
1
10
NUMBER OF CYCLES AT 60Hz
AMBIENT TEMPERATURE, °C
100
20
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT
MICROAMPERES
100
10
T
J
=100°C
1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
1
0.1
T
J
=25°C
0.1
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
0.01
0.4
0.6
0.8 1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
100
TYPICAL THERMAL IMPEDANCE,
°C/W
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
100
10
10
1
1
0.1
1
10
100
0.1
0.01
0.1
1
t, PULSE DURATION, sec.
10
100
REVERSE VOLTAGE, VOLTS
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
