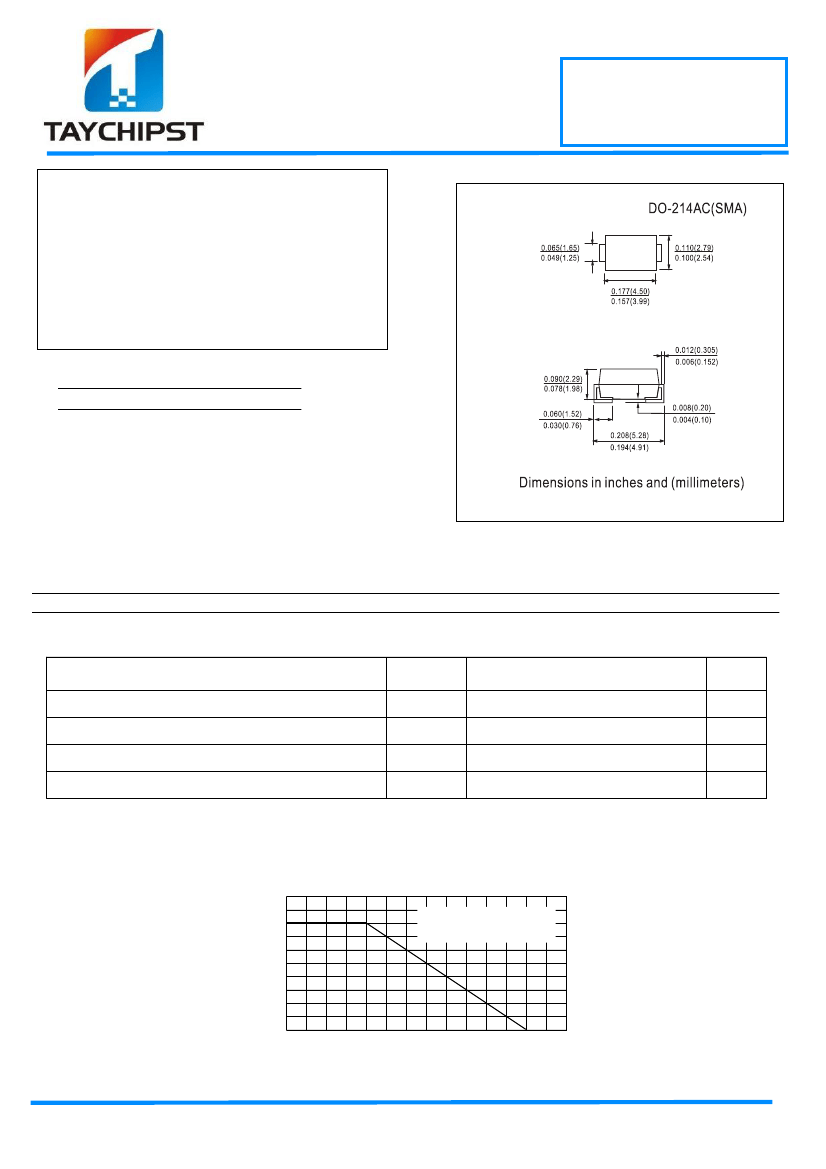

SZ103D THRU SZ10D0
SURFACE MOUNT SILICON ZENER DIODES
FEATURES
3.3V-200V
1W
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
Mechanical Data
* Case : SMA (DO-214AC) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.064 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 50
°C
(Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
T
J
Ts
Value
1.0
1.2
- 55 to + 150
- 55 to + 150
Unit
Watt
Volts
°C
°C
Note :
(1) T
L
= Lead temperature at 5.0 mm
2
( 0.013 mm thick ) copper land areas.
Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
1.25
1.00
0.75
0.50
0.25
0
0
25
50
75
100
125
150
175
5.0 mm
2
( 0.013 mm thick )
copper land areas.
T
L,
LEAD TEMPERATURE (°C)
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
SZ103D THRU SZ10D0
SURFACE MOUNT SILICON ZENER DIODES
ELECTRICAL CHARACTERISTICS
Rating at = 25
°
C ambient temperature unless otherw ise specified
Nominal Zener
Voltage
V
Z
@ I
ZT
I
ZT
(V)
(mA)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
76.0
69.0
64.0
58.0
53.0
49.0
45.0
41.0
37.0
34.0
31.0
28.0
25.0
23.0
21.0
19.0
17.0
15.5
14.0
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
3.0
2.8
2.5
2.3
2.0
1.9
1.7
1.6
1.4
1.2
Maximum Zener
Impedance
Z
ZK
@ I
ZK
(
Ω
)
400
400
400
400
500
550
600
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
6000
6500
7000
8000
Maximum Reverse
Leakage Current
I
R
@ V
R
(V)
(
µ
A)
100
100
50
10
10
10
10
10
50
50
50
50
50
50
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
Maximum DC
Zener Current
I
ZM
(mA)
276
252
234
217
193
178
162
146
133
121
110
100
91
83
76
69
61
57
50
45
41
38
34
30
27
25
23
22
19
18
16
14
13
12
11
10
9.0
8.6
7.8
7.0
6.4
5.8
5.2
4.7
3.3V-200V
1W
TYPE
Z
ZT
@ I
ZT
(
Ω
)
10
10
9.0
9.0
8.0
7.0
5.0
2.0
3.5
4.0
4.5
5.0
7.0
8.0
9.0
10
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
125
150
175
200
250
350
450
550
700
1000
1100
1200
1500
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
SZ103D
SZ103G
SZ103J
SZ104D
SZ104H
SZ105B
SZ105G
SZ106C
SZ106I
SZ107F
SZ108C
SZ109B
SZ1010
SZ1011
SZ1012
SZ1013
SZ1015
SZ1016
SZ1018
SZ1020
SZ1022
SZ1024
SZ1027
SZ1030
SZ1033
SZ1036
SZ1039
SZ1043
SZ1047
SZ1051
SZ1056
SZ1062
SZ1068
SZ1075
SZ1082
SZ1091
SZ10B0
SZ10B1
SZ10B2
SZ10B3
SZ10B5
SZ10B6
SZ10B8
SZ10D0
Note :
( 1 ) The type number listed have a standard tolerance on the nominal zener voltage of
±
10%,
altered the fourth number of type from " 0 " for
±
10% tolerance to be " 5 " for
±
5.0% tolerance.
( 2 ) " SZ " w ill be omitted in marking on the diode.
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
