JB5CS06FN20N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> JB5CS06FN20N

JB5CS06FN20N: DescriptionCircular Connector, 6 Contact(s), Copper Alloy, Female, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size734KB，8 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

JB5CS06FN20N Overview

Circular Connector, 6 Contact(s), Copper Alloy, Female, Solder Terminal, Receptacle, ROHS COMPLIANT

JB5CS06FN20N Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	JB5
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CHROME PLATED
Shell material	COPPER ALLOY
Housing size	S
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

COMPONENTS PRODUCT INFORMATION

NEW

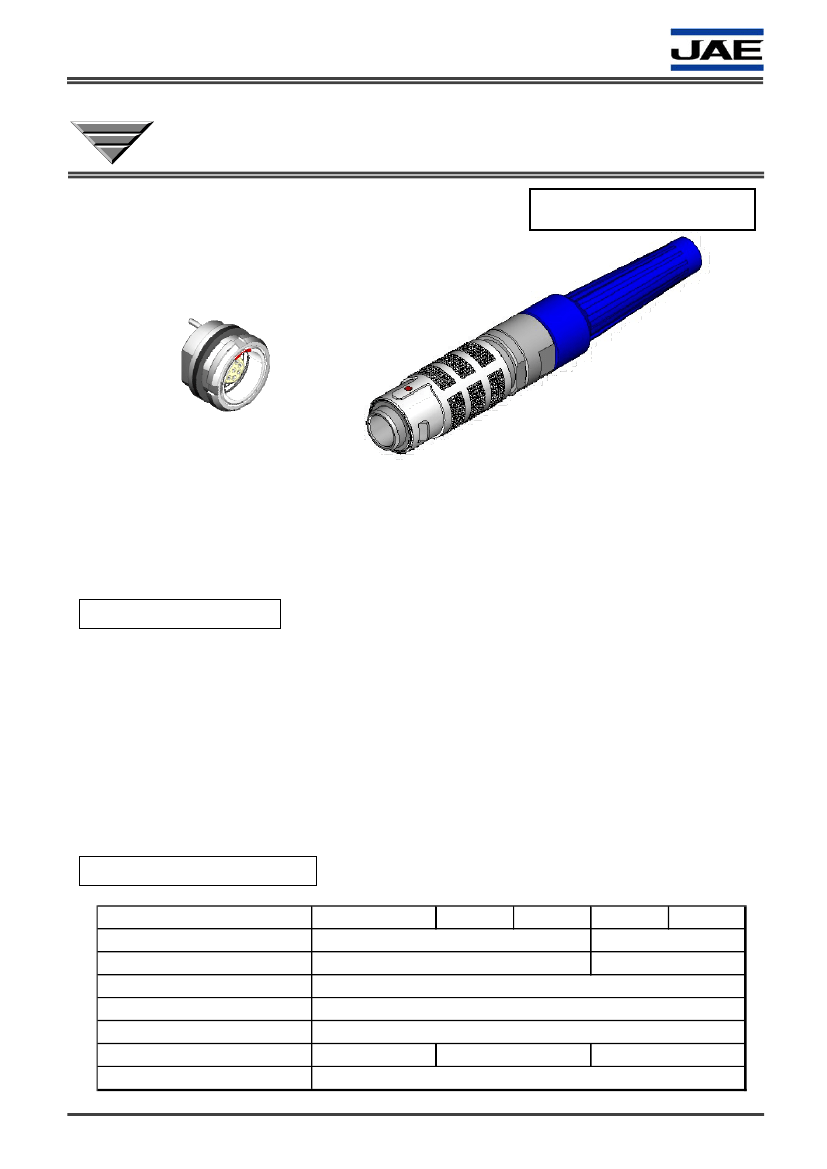

Compact Push-Pull Circular Connector

CONNECTOR

MB-0101-4

August 2009

JB5 Series

RoHS　Compliant

Receptacle

Plug

<<Outline>>

The JB5 Series connectors are small circular connectors with IP68 waterproof rating

and a push-pull mating structure to enable easy insertion and removal. They have high

environmental durability and user-friendly designs that can be widely used in medical,

measurement, and communication equipment, as well as handheld PCs, scanners and

other small equipment.

Features

Waterproof and dustproof rating: IP68 protection level (when mated, and for the

receptacle alone)

Small 14.8mm diameter available for connectors up to 8 contacts

(plug outside diameter: 11mm dia.)

Push-pull mating structure enables easy one-handed insertion and removal

Audible and tactile

“click”

confirms secure locking when mating

Metal outer parts and ground terminal in the receptacle ensure excellent shielding

Mis-mating can be visibly prevented with color variation of plug boots

Connector mating life: 5,000 times

General Specifications

No. of Contacts

3 pos.

4 pos. 5 pos. 6 pos. 8 pos.

Rated Current

3A per pos.

2A per pos.

Rated Voltage

320VAC

200VAC

Operating Temperature

-55 Deg. C to +85 Deg. C

Water-proof

IP68 (when mated and receptacle alone)

Durability

5000 mating cycles

Applicable Wire

22 AWG max. 24 AWG max.

28 AWG max.

Applicable Dia. of Cable

Max. outer dia. of cable: 4.5 to 5mm

1/8
