510-1022 datasheet, PDF - EEWORLD Datasheet

510-1022: DescriptionGeneral Purpose Inductor, 29.6uH, 20%, 2 Element, SMD, 0202; CategoryPassive components inductor; File Size141KB，2 Pages; ManufacturerBH Electronics

Download Datasheet Parametric View All

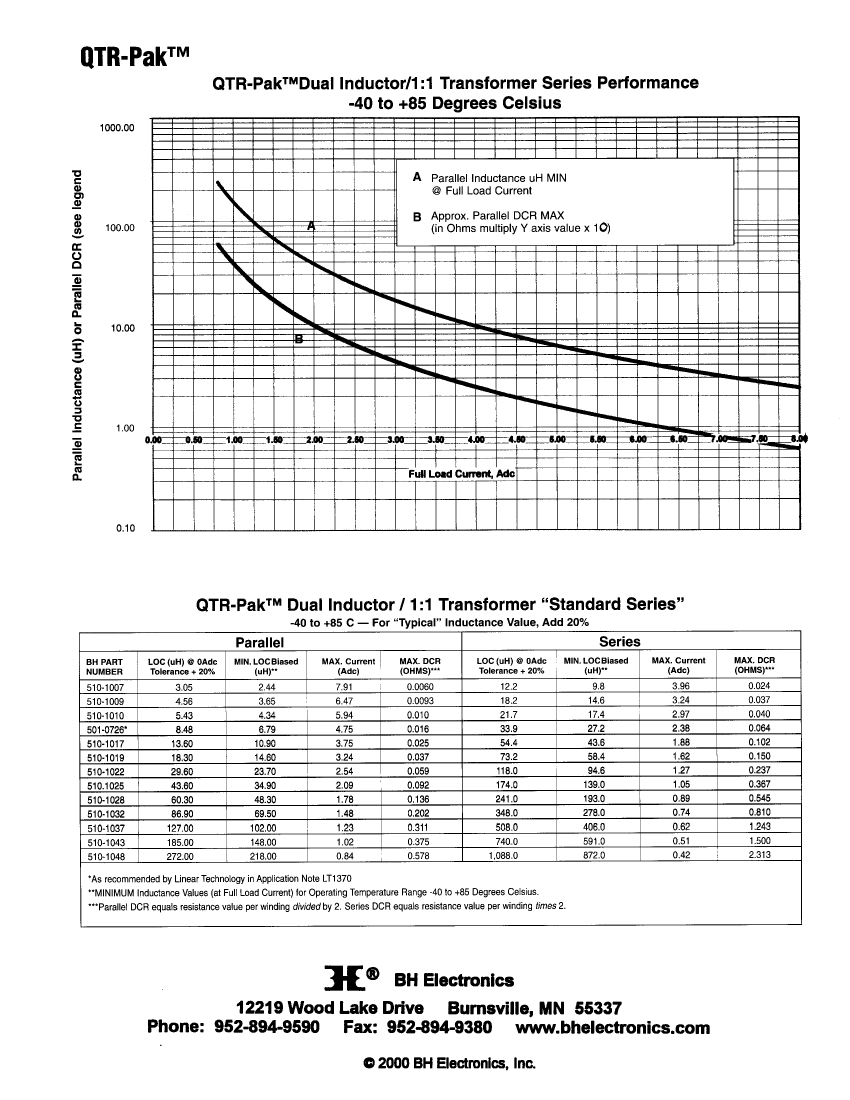

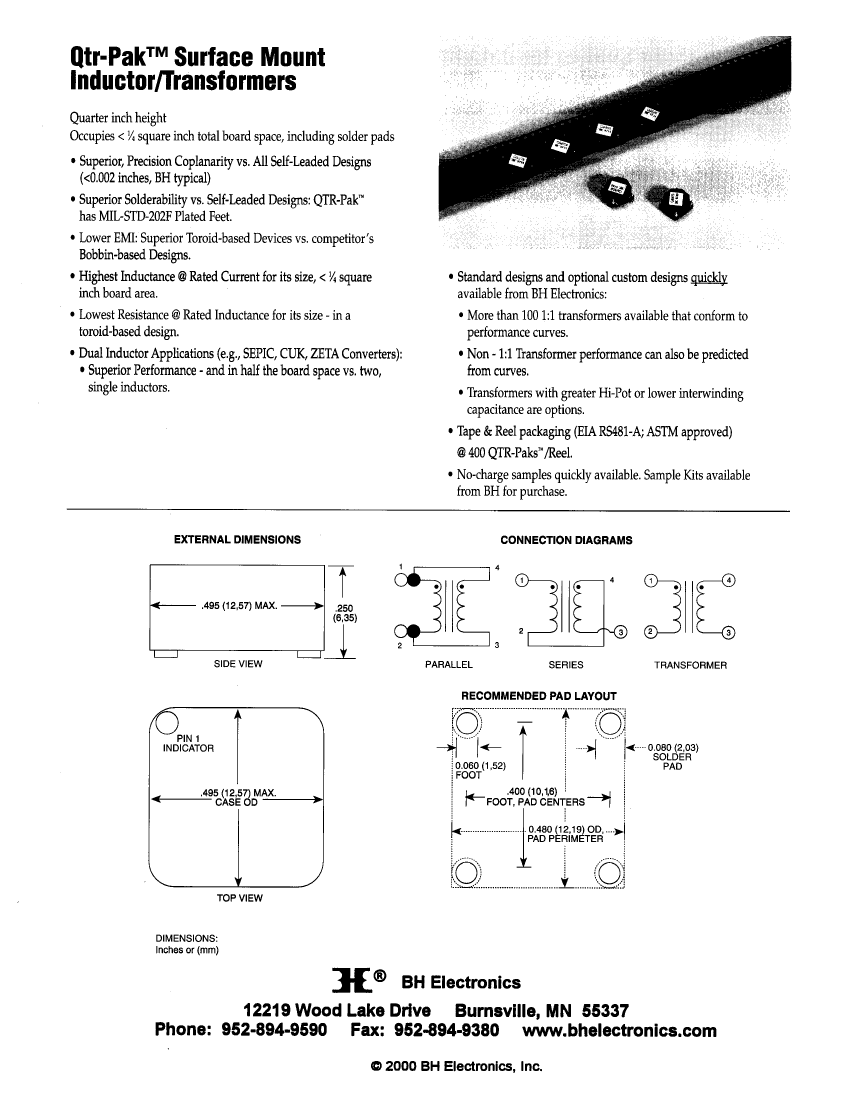

510-1022 Overview

General Purpose Inductor, 29.6uH, 20%, 2 Element, SMD, 0202

Parameter Name	Attribute value
Maker	BH Electronics
package instruction	0202
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0202
structure	Toroid
DC Resistance	0.059 Ω
Nominal inductance(L)	29.6 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.25 mm
Package length	0.5 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR
Maximum rated current	2.54 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	PARALLEL CONNECTED
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WIRE BOND PAD
Tolerance	20%
