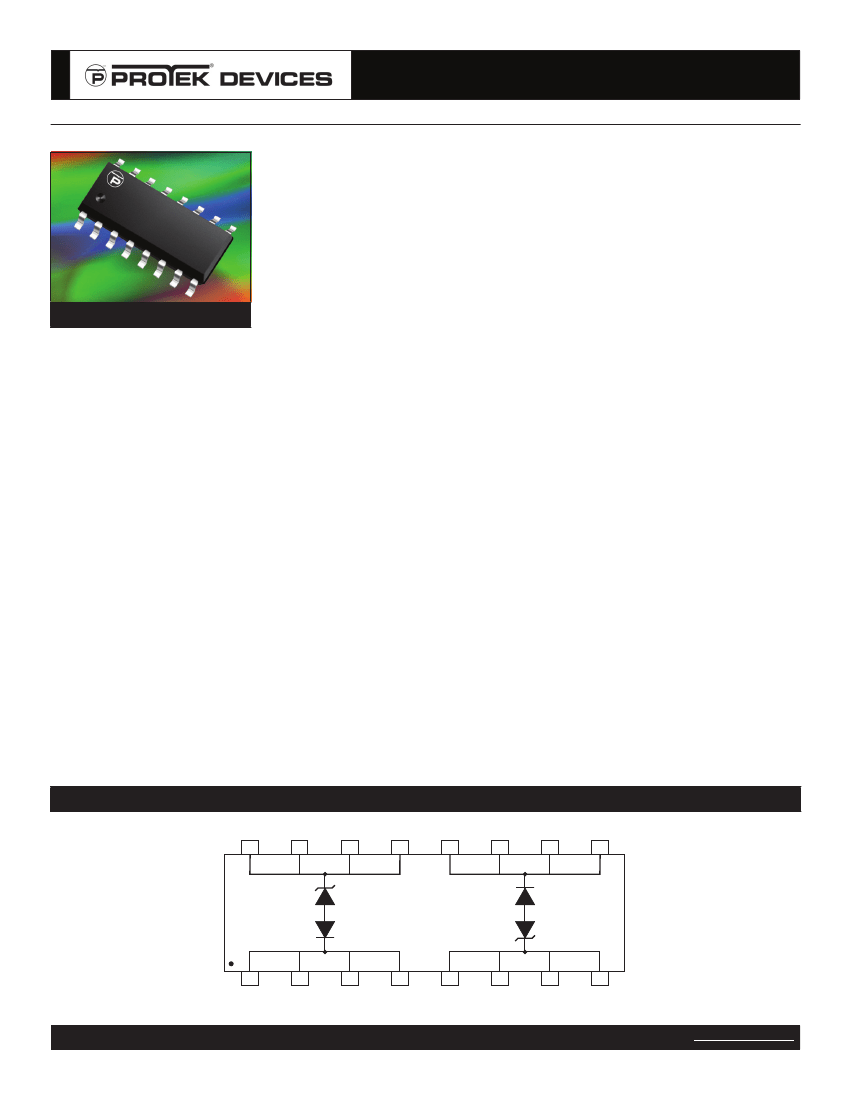

05071
Only One Name Means ProTek’Tion™
PLC01-6
high PoweRed MULTi-LiNe Low CaPaCiTaNCe TVS aRRaY
deSCRiPTioN
The PLC01-6 is a high powered multi-line low capacitance transient voltage suppressor array that provides board
level protection for Bellcore 1089, standard TTL and CMOS bus line applications against the damaging effects of ESD,
tertiary lightning and switching transients.
This device has a peak pulse power rating of 1500 Watts for an 10/1000µs waveshape. The PLC01-6 meets the IEC
61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.
So-16wB PaCkage
FeaTUReS
• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
• Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs -L3(Line-Gnd),
L4(Line-Line) & L1(Power)
• 1,500 Watts Peak Pulse Power per Line (tp = 10/1000µs)
• Low Clamping Voltage
• 100A (10/1000µs) per Bellcore 1089 (Intra-Building)
• 200A (10/160µs) per FCC Part 68
• ESD Protection > 25 kilovolts
• Bidirectional Configuration
• Protects 1 Line
• RoHS Compliant
• REACH Compliant
aPPLiCaTioNS
•
•
•
•
•
T1/E1 Line Cards
Telecommunications Equipment
xDSL, USB, SCSI & Ethernet Interfaces
Cellular Base Stations
Data & Bus Lines for FCC Part 68 Applications
MeChaNiCaL ChaRaCTeRiSTiCS
•
•
•
•
Molded JEDEC SO-16 (Wide Body) Package
Approximate Weight: 0.5 grams
Lead-Free Pure-Tin Plating (Annealed)
Solder Reflow Temperature:
Pure-Tin - Sn, 100: 260-270°C
• 16mm Tape and Reel Per EIA Standard 481
• Flammability Rating UL 94V-0
PiN CoNFigURaTioN
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
05071.R9 9/12
Page 1
www.protekdevices.com
05071
Only One Name Means ProTek’Tion™
PLC01-6
TYPiCaL deViCe ChaRaCTeRiSTiCS
MaXiMUM RaTiNgS
@ 25°C Unless otherwise Specified
PaRaMeTeR
Operating Temperature
Storage Temperature
Peak Pulse Power (tp = 10/1000µs) - See Figure 1
SYMBoL
T
L
T
STG
P
PP
VaLUe
-55 to 150
-55 to 150
1,500
UNiTS
°C
°C
Watts
eLeCTRiCaL ChaRaCTeRiSTiCS PeR LiNe
@ 25°C Unless otherwise Specified
PaRT
NUMBeR
(Note 1)
RaTed
STaNd-oFF
VoLTage
MiNiMUM
BReakdowN
VoLTage
@1ma
V
(BR)
VoLTS
8.0
MaXiMUM
CLaMPiNg
VoLTage
(Note 2)
@i
P
= 100a
V
C
VoLTS
15.0
MaXiMUM
CLaMPiNg
VoLTage
(Note 3)
@i
P
= 200a
V
C
VoLTS
16.0
MaXiMUM
Leakage
CURReNT
@V
wM
i
d
µa
25
TYPiCaL
CaPaCiTaNCe
V
wM
VoLTS
PLC01-6
NoTeS
6.0
@0V, 1Mhz
C
pF
50
1. Electrical characteristics apply from pins 13-16 to 1-4 and 5-8 to 9-12 - see pin configuration.
2. V
C
tested at 10/1000µs impluse waveform.
3. 10/160µs impulse waveform per FCC Part 68.
100
FigURe 1
Peak PULSe PoweR VS PULSe TiMe
P
PP
- Peak Pulse Power - kilowatts
10
1500W, 10/1000µs
Waveform
1
0.1
0.1
1
10
100
t
d
- Pulse duration - µs
1,000
10,000
100,000
05071.R9 9/12
Page 2
www.protekdevices.com
05071
Only One Name Means ProTek’Tion™
PLC01-6
So-16wB PaCkage iNFoRMaTioN
oUTLiNe diMeNSioNS
diM
A
B
C
D
F
G
J
K
P
R
1.
2.
3.
4.
5.
6.
-A-
MiLLiMeTeRS
MiN
10.15
7.40
2.23
0.35
0.50
iNCheS
MiN
0.400
0.292
0.093
0.014
0.020
MaX
10.45
7.60
2.65
0.49
0.90
MaX
0.411
0.299
0.104
0.019
0.035
G
D
R X 45°
1
8
16
9
-B-
P
+
0.010” (0.25mm) M B M
8 PL
1.27 BSC
0.25
0.10
10.05
0.25
0.32
0.25
10.55
0.50
0.05 BSC
0.010
0.004
0.395
0.010
0.012
0.008
0.415
0.019
C
0° - 10°
-T-
NoTeS
+
0.010” (0.25mm)
M
T B S A S
16 PL
K
F
J
-T- = Seating plane and datum surface.
Dimensions “A” and “B” are datum.
Dimensions “A” and “B” do not include mold protrusion.
Maximum mold protrusion is 0.015” (0.380mm) per side.
Dimensioning and tolerances per ANSI Y14.5M, 1982.
Dimensions are exclusive of mold flash and metal burrs.
Pad LaYoUT diMeNSioNS
diM
A
B
C
D
E
NoTeS
A
MiLLiMeTeRS
MiN
1.14
0.64
10.67
8.13
1.02
iNCheS
MiN
0.045
0.025
0.420
0.320
0.040
B
MaX
1.40
0.89
-
8.38
1.27
MaX
0.055
0.035
-
0.330
0.050
E
D
C
1. Controlling dimension: inches.
05071.R9 9/12
Page 5
