DSC8004

Silicon NPN epitaxial planar type

For low frequency output ampliﬁcation

Complementary to DSA8004

DSC7004 in MT-2 through hole type package



Features



Low collector-emitter saturation voltage V

CE(sat)



Contributes to miniaturization of sets, mount area reduction



Eco-friendly Halogen-free package



Package



Code

MT-2-A2-B

Package dimension clicks here.→

Click!



Packaging

DSC8004×0A Radial type : 2000 pcs / carton



Absolute Maximum Ratings

= 25°C

Parameter

Collector-base voltage (Emitter open)

Collector-emitter voltage (Base open)

Emitter-base voltage (Collector open)

Collector current

Peak collector current

Collector power dissipation

Junction temperature

Storage temperature

Symbol

CBO

CEO

EBO

stg

Rating

150

–55 to +150

Unit

°C



Name

1. Emitter

2. Collector

3. Base



Marking Symbol: 5B

Note) *: Printed circuit board: Copper foil area of 1 cm

or more, and the board thickness

of 1.7 mm for the collector portion



Electrical Characteristics

= 25°C±3°C

Parameter

Collector-base voltage (Emitter open)

Collector-emitter voltage (Base open)

Emitter-base voltage (Collector open)

Collector-base cutoff current (Emitter open)

Forward current transfer ratio

Collector-emitter saturation voltage

Base-emitter saturation voltage

Transition frequency

Collector output capacitance

(Common base, input open circuited)

Symbol

CBO

CEO

EBO

CBO

FE1 *2

FE2

CE(sat)

BE(sat)

Conditions

= 10

mA,

= 0

= 1 mA, I

= 0

= 10

mA,

= 0

= 20 V, I

= 0

= 2V, I

= 200 mA

= 2 V, I

= 1 A

= 1 A, I

= 50 mA

= 1 A, I

= 50 mA

= 10 V, I

= 50 mA

= 10 V, I

= 0, f = 1 MHz

120

0.15

0.9

120

0.3

1.2

Min

0.1

340

Typ

Max

Unit



MHz

Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.

2. *1: Pulse measurement

*2: Rank classiﬁcation

Code

Rank

FE1

Marking Symbol

120 to 240

5BR

170 to 340

5BS

No-rank

120 to 340

Product of no-rank is not classiﬁed and have no marking symbol for rank.

Publication date: February 2012

Ver. AED

This product complies with the RoHS Directive (EU 2002/95/EC).

DSC8004

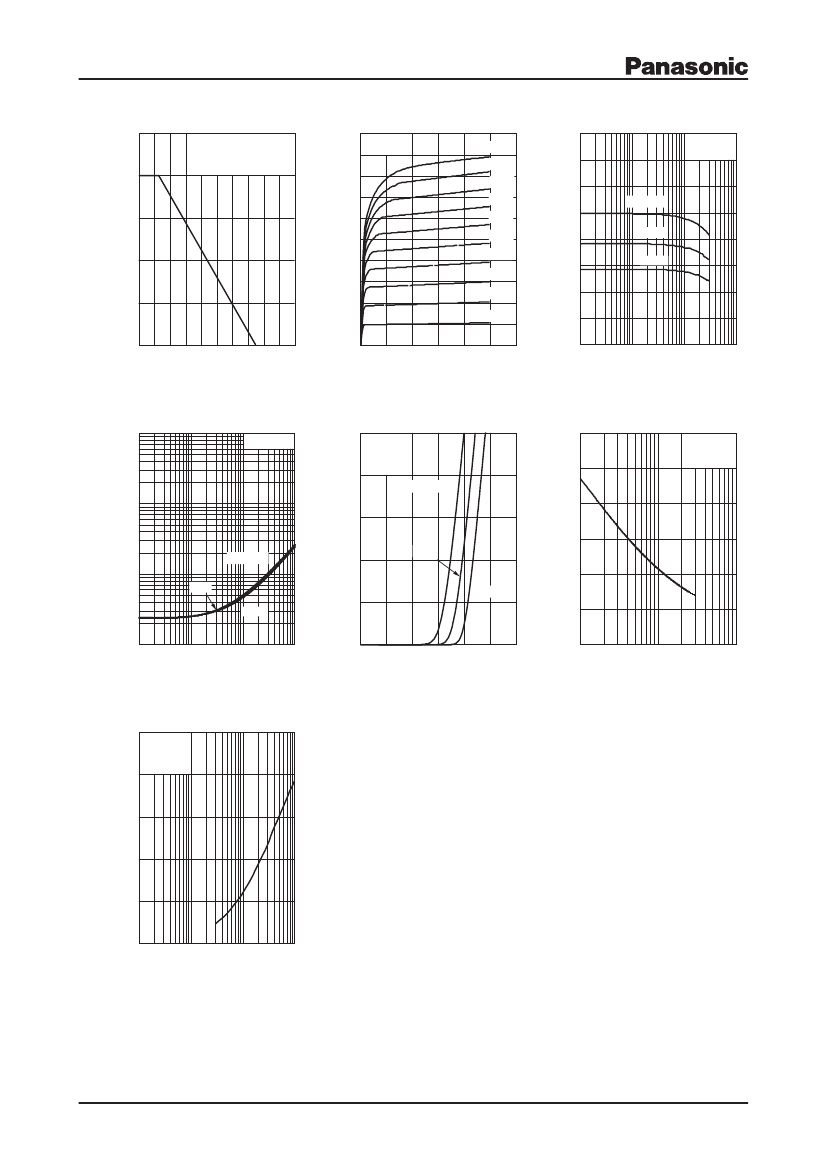

DSC8004_PC-Ta
