DMA96104
Silicon PNP epitaxial planar type
For digital circuits
DMA56104 in SSMini5 type package
Features
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

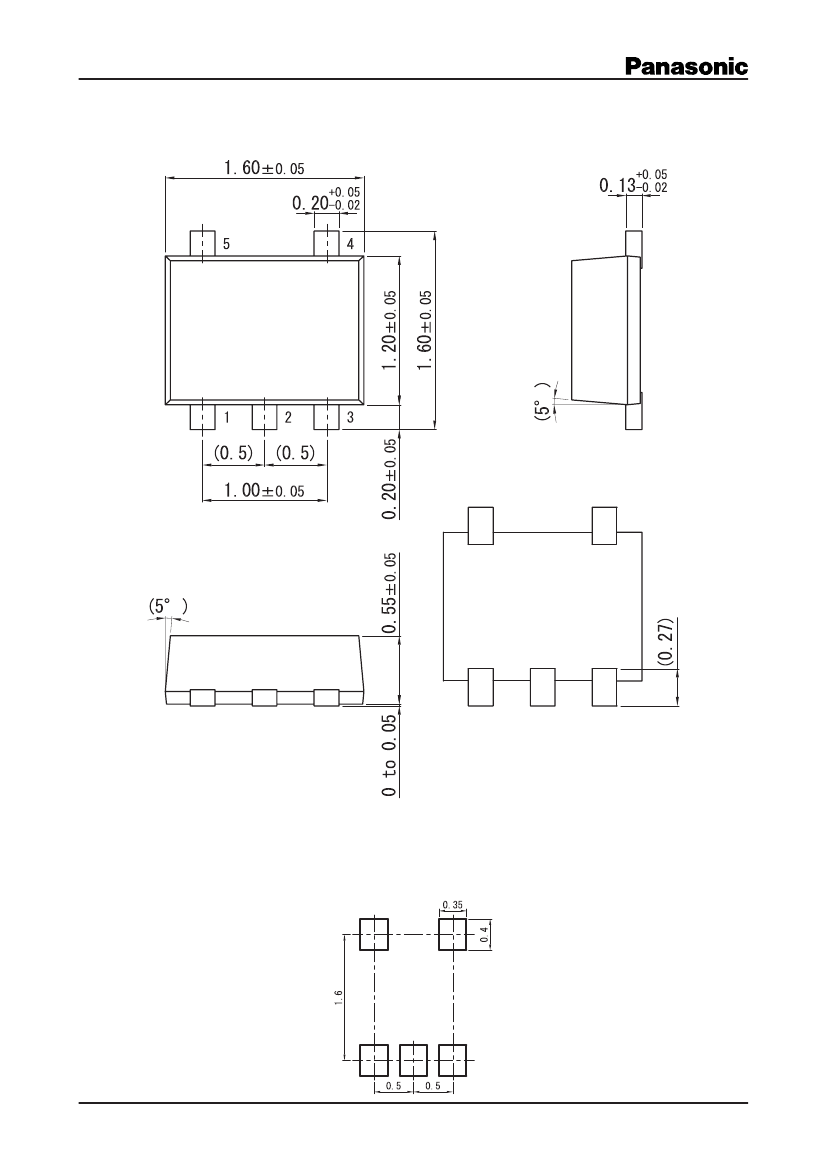

Unit: mm
Marking Symbol: J1
Basic Part Number
Dual DRA2114Y (Common emitter)
1: Base (Tr1)
2: Emitter (Common)
3: Base (Tr2)
Panasonic
JEITA
Code
(C1)
5
Tr1
R
2
R
1
R
2
R
1
Packaging
DMA961040R Embossed type (Thermo-compression sealing): 8 000 pcs / reel (standard)
4: Collector (Tr2)
5: Collector (Tr1)
SSMini5-F4-B
SC-107BB
SOT-665
(C2)
4
Tr2
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Tr1
Tr2
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Overall
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
P
T
T
j
T
opr
T
stg
Rating
–50
–50
–100
125
150
–40 to +85
–55 to +150
Unit
V
V
mA
mW
°C
°C
°C
1
(B1)
2
(E)
3
(B2)
Resistance value
R
1
R
2
10
47
kΩ
kΩ
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Resistance ratio
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
R
1
/ R
2
Conditions
I
C
= –10 µA, I
E
= 0
I
C
= –2 mA, I
B
= 0
V
CB
= –50 V, I
E
= 0
V
CE
= –50 V, I
B
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –10 V, I
C
= –5 mA
I
C
= –10 mA, I
B
= – 0.5 mA
V
CE
= – 0.2 V, I
C
= –5 mA
V
CE
= –5 V, I
C
= –100 µA
–30%
0.17
10
0.21
–1.7
– 0.5
+30%
0.25
80
– 0.25
Min
–50
–50
– 0.1
– 0.5
– 0.2
Typ
Max
Unit
V
V
µA
µA
mA
V
V
V
kΩ
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: September 2013
Ver. DED
1
