CTH11003L45-1.0TS datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CTH11003L45-1.0TS

CTH11003L45-1.0TS: DescriptionCMOS/LSTTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, GULLWING, DIP-14/4; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CTH11003L45-1.0TS Overview

CMOS/LSTTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, GULLWING, DIP-14/4

CTH11003L45-1.0TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
package instruction	ROHS COMPLIANT, GULLWING, DIP-14/4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e3
Manufacturer's serial number	CTH11
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

Crystal Clock Oscillator

• Gull wings optional

• Optional tristate

• TTL and CMOS compatible

CARDINAL COMPONENTS

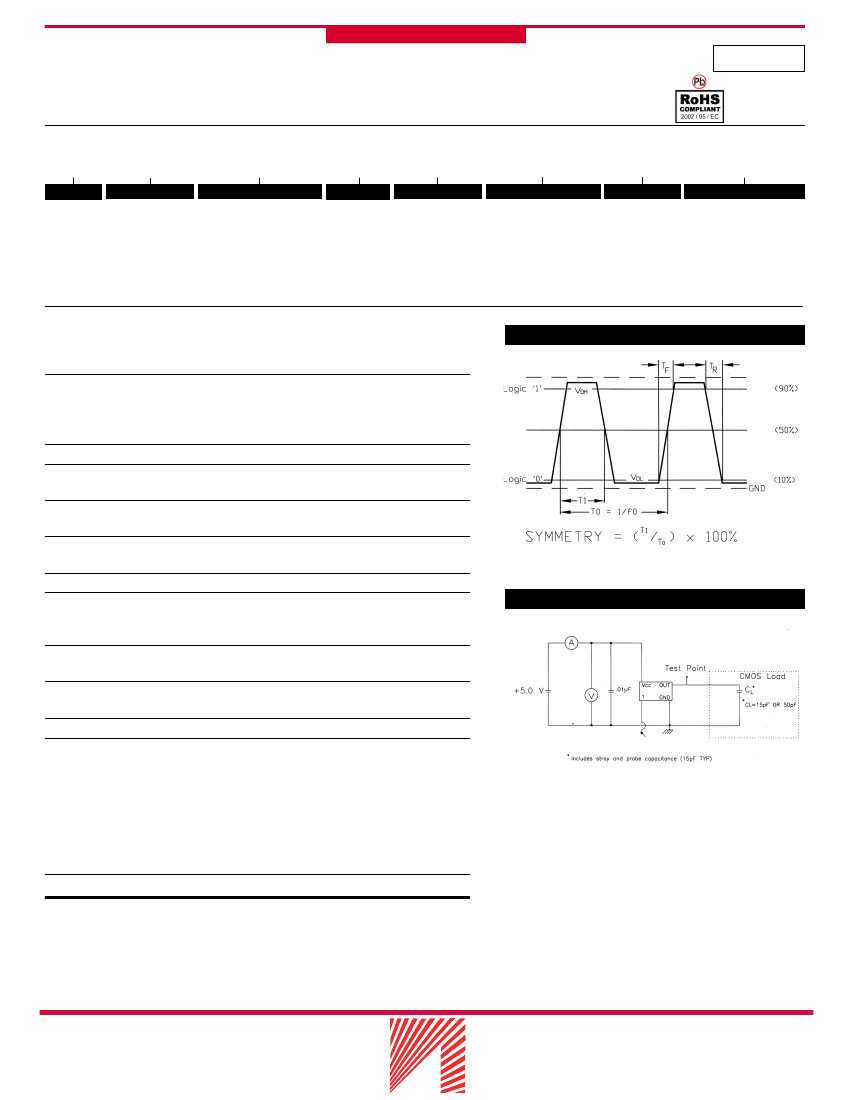

Series CTH11

Part Numbering Example: CTH11 00 4 L 45 - A2 - 50.0 TS L

CTH11

SERIES

CTH11

STABILITY

00 = ±100 ppm

50 = ± 50 ppm

25 = ± 25 ppm

10 = ± 10 ppm

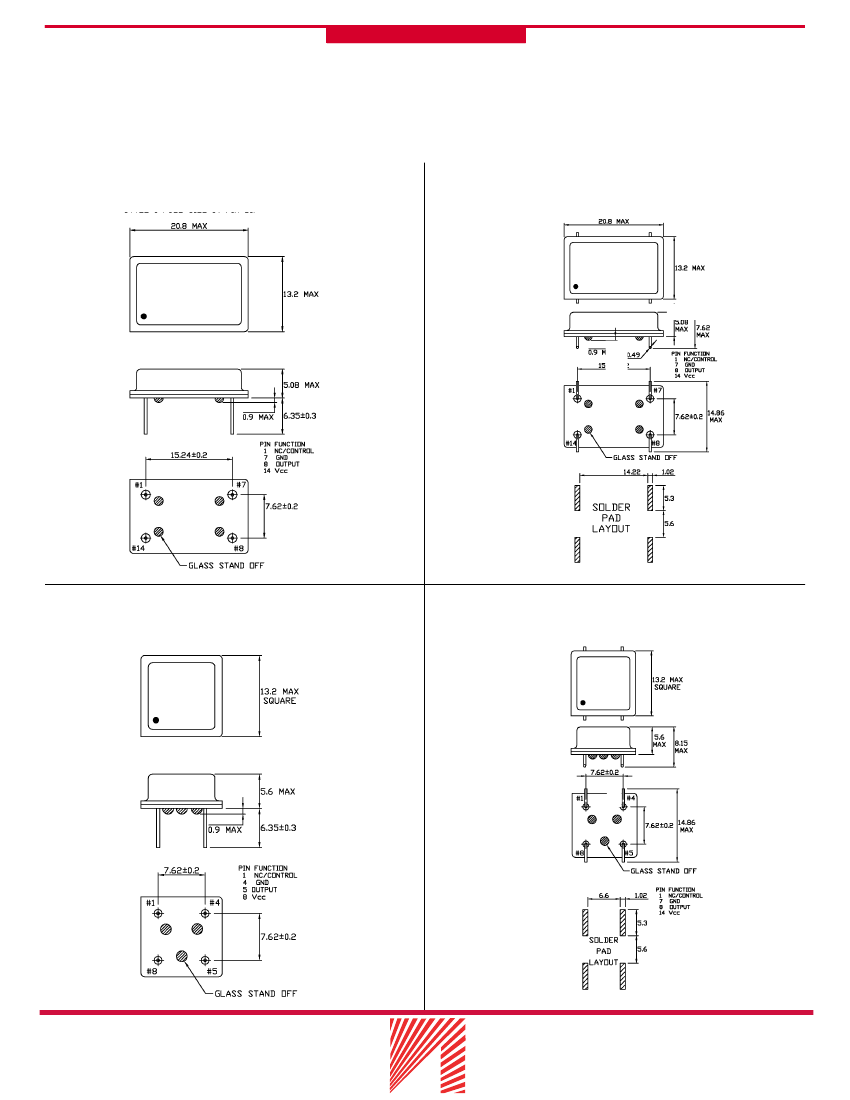

PACKAGE STYLE

= Full Size

= Full Size, Gull Wing

= Half Size

= Half Size, Gull Wing

VOLTAGE

Blank = 5V

L = 3.3V

50.0

FREQUENCY

Blank = No Connection

TS = Tristate, pin 1

SYMMETRY

OPERATING TEMP.

Blank = 40/60% Blank = 0°C ~ +70°C

45 = 45/55%

A2=-40°C ~ +85°C

Specifications:

Frequency Range:

1.000 MHz to 70.000 MHz

Available Stability Options:

±100 ppm

±50 ppm

±25 ppm

±10 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

TTL/CMOS

+5.0 VDC ±10%

+3.3 VDC ±10%

-10°C to +70°C

HCMOS V

= 10% V

V Max.

HCMOS V

= 90% V

V Min.

10 LS TTL, 15 pf CMOS

20 mA (1.000 to 24.999 MHz)

35 mA (25.000 to 49.999 MHz)

50 mA (50.000 to 70.000 MHz)

10 ns (1.000 to 23.999 MHz)

6 ns (24.000 to 70.000 MHz)

40/60%

45/55%

10 ms

@+5 VDC Input

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or Open to Enable

@+3.3 VDC Input

+0.80 VDC Max. to Disable

+2.20 VDC Min. to Enable

or open to Enable

-55°C to +125°C

OUTPUT WAVE FORM

Standard

TEST CIRCUIT

Maximum Rise/Fall Time:

Duty Cycle:

Max. Start-Up Time:

Tristate Input:

Standard

Storage Temperature:

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

O-56

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
