CW3xx-Series
3.2x2.5mm
LVCMOS Clock Oscillator
Description:
2111 Comprehensive Drive
2111 Comprehensive Drive
Aurora, Illinois 60505
Aurora, Illinois 60505
Phone: 630- 851- 4722
Phone: 630- 851- 4722
Fax: 630- 851- 5040
Fax: 630- 851- 5040
www.conwin.com
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
Features:
Supply Voltages Available:
1.8V, 2.5V, 2.8V or 3.3V Operation
Frequency Tolerances Available:
± 25 ppm, ± 50 ppm or ± 100 ppm
Temperature Ranges Available:
-10 to 70°C or -40 to 85°C
LVCMOS Output Logic
Tri-State Enable/Disable Pad 1
Low Jitter: <1ps RMS
Ceramic Surface Mount Package
Tape and Reel Packaging
RoHS Compliant / Lead Free
The Connor-Winfield CW3xx series
3.2x2.5 mm, LCMOS, Surface Mount,
Crystal Controlled Oscillators (XO) are
designed for applications requiring low
jitter and tight frequency stability. The
RoHS compliant surface mount package is
designed for high-density mounting and is
optimum for mass production.
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage (Vcc)
Input Voltage
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
125
5.0
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Parameter
Output Frequency (Fo)
1.0
-
160
Total Frequency Tolerance: (See Ordering Information on page 2.)
Model CW3x1
-25
-
25
Model CW3x2
-50
-
50
Model CW3x3
-100
-
100
Operating Temperature Range: (See Ordering Information on page 2.)
CW31x, CW32x, CW33x, CW34x -10
-
70
CW35x, CW36x, CW37x, CW38x -40
-
85
Supply Voltage (Vcc) (See Ordering Information on page 2.)
Models CW31x, CW35x
1.710
1.8
1.890
Models CW32x, CW36x
2.375
2.5
2.625
Models CW34x, CW38x
2.660
2.8
2.940
Models CW33x, CW37x
3.135
3.3
3.465
Supply Current (Icc)
1.8V Models
-
-
10
2.5V, 2.8V. 3.3v Models
-
-
20
Jitter:
Period Jitter
-
3
5
Integrated Phase Jitter
-
0.5
1
SSB Phase Noise
@ 10 Hz offset
-
-60
-
@ 100 Hz offset
-
-90
-
@ 1 KHz offset
-
-125
-
@ 10 KHz offset
-
-140
-
@ 100 KHz offset
-
-145
-
Start Up Time
-
2
5
Minimum
Nominal
Maximum
Units
MHz
ppm
ppm
ppm
°C
°C
Vdc
Vdc
Vdc
Vdc
mA
mA
ps RMS
ps RMS
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ms
Notes
1
1
1
2
Input Characteristics
Enable Input Voltage - (Vih)
70%Vcc
Disable Input Voltage - (Vil)
-
Standby Current (Osc. Disabled)
-
Parameter
Minimum
Nominal
-
-
-
Maximum
-
30%Vcc
10
Units
Vdc
Vdc
uA
Notes
3
3
LVCMOS Output Characteristics
Load
Voltage High (Voh)
Low (Vol)
Duty Cycle at 50% Level
Rise / Fall Time: 10% to 90%
Bulletin
Page
Revision
Date
Parameter
Minimum
-
90%Vcc
-
45
-
Nominal
15
-
-
50
5
Maximum
-
-
10%Vcc
55
8
Units
pF
Vdc
Vdc
%
ns
Notes
Sm128
1 of 2
03
30 Sep 2011
Notes:
1. Includes calibration @ 25°C, frequency stability vs. change in temperature, supply voltage and load variations, shock and
vibration and 10 years aging.
2. BW = 12 KHz to Fo/2 MHz.
3 When the oscillator is disabled the output is at high impedance. Output is enabled with no connection on pad 1.
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

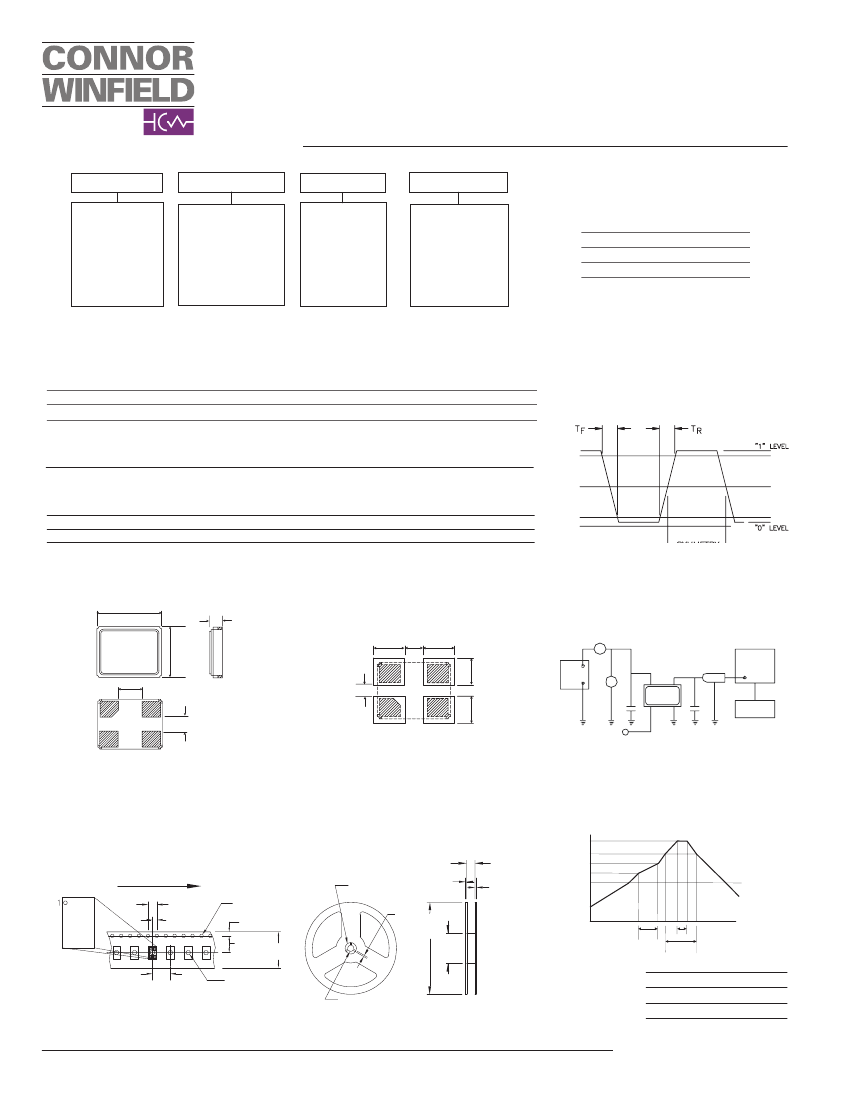

Ordering Information
CW3
Oscillator
Type
3.2x2.5 mm
LVCMOS Clock
Oscillator
Series
Pad Connections
-044.736M
Output
Frequency
Frequency
Format
-xxx.xM Min.*
-xxx.xxxxxxM Max*
*Amount of
numbers after the
decimal point.
M = MHz
3
Supply Voltage and
Temperature Range
1 = 1.8V, -10 to 70°C
2 = 2.5V, -10 to 70°C
3 = 3.3V, -10 to 70°C
4 = 2.8V, -10 to 70°C
5 = 1.8V, -40 to 85°C
6 = 2.5V, -40 to 85°C
7 = 3.3V, -40 to 85°C
8 = 2.8V, -40 to 85°C
3
Frequency
Stability
1 = ±25 ppm
2 = ±50 ppm
3= ±100 ppm
1:
2
3:
4:
Tri-State E/D
Ground
Output
Supply Voltage (Vcc)
Example Part Numbers:
CW333-044.736M = 3.5x2.5mm package, 3.3 Vdc, -10 to 70°C,
±100
ppm, LVCMOS, Output Frequency 44.736 MHz
CW311-050.0M = 3.5x2.5mm package, 1.8 Vdc, -10 to 70°C,
±25
ppm, LVCMOS, Output Frequency 50 MHz
Enable / Disable Function
High or Open: (Voh)
Low:
(Vol)
Package
LVCMOS Output Waveform
Function:
(Pin 1)
Output:
Enabled
Disabled (High Impedance)
Package Characteristics
Hermetically sealed ceramic package and metal cover
90%
50%
10%
Environmental Characteristics
Vibration:
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Shock:
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
Soldering Process;
RoHS compliant lead free. See soldering profile on page 2.
Package Layout
0.125
(3.2mm)
4
3
0.051 Max.
(1.3mm Max.)
Suggested Pad Layout
0.031
(0.8mm)
Test Circuit
44.70D
*CW333
1
1
0.047
(1.2mm)
0.098
(2.5mm)
0.055
(1.4mm)
0.055
(1.4mm)
Vcc
A
PROBE
V
.01uf
4
3
OSCILLOSCOPE
0.020
4
(0.50mm)
2
2
3
0.047
(1.2mm)
POWER
SUPPL
Y
OSC
1
2
1
Bottom View
0.027
(0.7mm)
2
Top View
0.047
(1.2mm)
CL
INPUT for E/D
FREQ
COUNTER
4
3
Marking drawing 90231DWG74
Dimensional Tolerance: ±0.005 (±0.127mm)
Tape and Reel Dimensions
Temperature
260°C
220°C
Solder Profile
260°C
.488
(12.4mm)
180°C
150°C
120°C
Direction of Feed (Customer)
.157
(4mm)
.059
(1.5mm)
.069
(1.75mm)
.216
(5.5mm)
.315
(8mm)
.472
(12mm)
.795
(20.2mm)
.059
(1.5mm)
.059
(1.5mm) 7.09
(180mm)
2.36
(60mm)
.059
(1.5mm)
.079
(2mm)
0
10 s
Up to 120 s
60 to 90 s
Typical
Typical
Meets IPC/JEDEC J-STD-020C
.059
(1.5mm)
.512
(13mm)
Bulletin
Page
Meets EIAi481A and EIAJ-1009B
2000 Pieces per Reel
Revision
Date
Sm128
2 of 2
03
30 Sep 2011
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
