Surface Mount 5x7mm
LVDS Clock Oscillator
Description:
2111 Comprehensive Drive
2111 Comprehensive Drive
Aurora, Illinois 60505
Aurora, Illinois 60505
Phone: 630- 851- 4722
Phone: 630- 851- 4722
Fax: 630- 851- 5040
Fax: 630- 851- 5040
www.conwin.com
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
The Connor Winfield Lxxx - Series is a
5x7 mm Surface Mount, LVDS, Fixed
Frequency Crystal Controlled Oscillator
(XO) designed for applications requiring
tight frequency stability, wide temperature range
and low jitter. Operating at 2.5V or 3.3V supply
voltage, the Lxxx - Series provides an LVDS
Differential Outputs with enable / disable function.
The surface mount package is designed for
high-density mounting and is optimum for mass
production.
CW
0946
155.5 L143
2 MHz
Features:
Model Lxxx - Series
5.0 x7.0mm Surface Mount Package
2.5V or 3.3V Operation
LVDS Output Logic
Frequency Stabilities Available:
+/-20ppm,+/-25ppm, +/-50ppm, +/-100ppm
Temperature Ranges Available:
0 to 70°C, -40 to 85°C, 0 to 85°C, -20 to 70°C
Low Jitter <1pS RMS
Tri-State Enable/Disable on Pad 1 or 2
Tape and Reel Packaging
RoHS Compliant / Lead Free
Absolute Maximum Ratings
Storage Temperature
Supply Voltage (Vcc)
Input Voltage (Vc)
Parameter
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
125
4.6
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Output Frequency (Fo)
19.44
-
260
Total Frequency Tolerance
(See Ordering Information for full part number)
Model Lx4x
-20
-
20
Model Lx1x
-25
-
25
Model Lx2x
-50
-
50
Model Lx3x
-100
-
100
Operating Temperature Range
Model L1xx
0
-
70
Model L2xx
-40
-
85
Model L3xx
0
-
85
Model L4xx
-20
-
70
Supply Voltage (Vcc)
Model Lxx2 E/D Pad 1
2.375
2.5
Model Lxx3 E/D Pad 1
3.135
3.3
Model Lxx4 E/D Pad 2
2.375
2.5
Model Lxx5 E/D Pad 2
3.135
3.3
Supply Current (Icc)
-
45
65
Jitter:
Period Jitter
-
2.5
3.5
Integrated Phase Jitter (BW = 12 KHz to 20 MHz)
Fo > 100 MHz
-
0.5
0.7
80 MHz < Fo < 100 MHz
-
0.8
1.0
Fo <80 MHz
-
1.5
2.5
SSB Phase Noise
@ 10 Hz offset
-
-60
-
@ 100 Hz offset
-
-90
-
@ 1 KHz offset
-
-115
-
@ 10 KHz offset
-
-140
-
@ 100 KHz offset
-
-145
-
Start-Up Time
-
5
10
Parameter
Minimum
Nominal
Maximum
Units
MHz
ppm
ppm
ppm
ppm
°C
°C
°C
°C
2.625
3.465
2.625
3.465
mA
ps RMS
ps RMS
ps RMS
ps RMS
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ms
Notes
1
1
1
1
Vdc
Vdc
Vdc
Vdc
Input Characteristics
Nominal
-
-
-
-
-
Enable Input Voltage - (High) -(Vih)
70%Vcc
Disable Input Voltage - (Low) - (Vil)
-
Enable Time
-
Disable Time
-
Standby Current (When Osc. is disabled) -
Parameter
Minimum
Maximum
-
30%Vcc
500
200
30
Units
Vdc
Vdc
us
ns
uA
Notes
2
2
LVDS Output Characteristics
Load
-
-
Output Differential Voltage (Vod)
250
Output Swing (Dif. Output Pk to Pk)
500
Duty Cycle at 50% Level
45
Differential Rise / Fall Time: 20% to 80%
-
Parameter
Minimum
Nominal
100
-
700
50
0.3
Maximum
-
450
900
55
0.7
Units
Ohm
mV
mV
%
ns
Notes
3
4
Bulletin
Page
Revision
Date
DS021
1 of 2
08
02 Dec 2009
Notes:
1. Includes calibration @ 25°C, frequency stability vs. change in temperature, supply voltage and load variations, shock and vibration and 20 years
aging.
2 When the oscillator is disabled the outputs are at high impedance. Outputs are enabled with no connection on pad 1.
3. Vod is measured with a 100 ohm resistor between the true and the complementary outputs.
4. Duty cycle measured at 50% of output voltage swing..
Specifications subject to change without notice. All dimensions in inches. © Copyright 2009 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

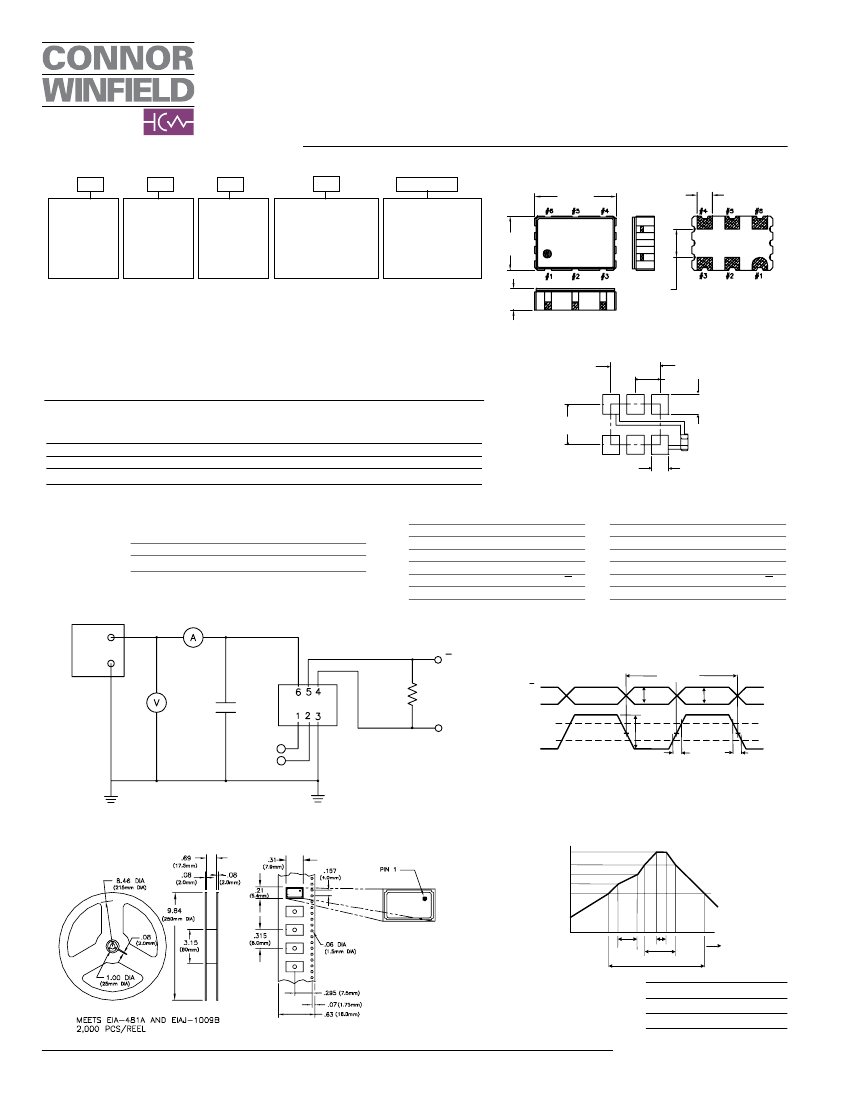

Ordering Information
L
Type
LVDS
Clock Series
5x7mm
Package Outline
- 155.52M
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of numbers
after the decimal
point. M = MHz
0.275
(7.0mm)
0.055
(1.4mm)
1
Temperature
Range
1 = 0 to 70°C
2 = -40 to 85°C
3 = 0 to 85°C
4 = -20 to 70°C
4
Frequency
Stability
4 = ±20 ppm
1 = ±25 ppm
2 = ±50 ppm
3 = ±100 ppm
3
Supply Voltage
2 = 2.5 Vdc, E/D Pad 1
3 = 3.3 Vdc, E/D Pad 1
4 = 2.5 Vdc, E/D Pad 2
5 = 3.3 Vdc, E/D Pad 2
0.197
(5.0mm)
CW 0946
L143
155.52M
0.102
(2.6mm)
Example: Part Number
L143-155.52M = LVDS Output,
0 to 70, +/-20ppm, 3.3Vdc, E/D Pad 1, Output Frequency 155.52MHz
To order an L143 with an output frequency of:
25 MHz = L143-025.0M
44.736 MHz = L143-044.736M
155.52 MHz = L143-155.52M
.059
(1.50mm)
Dimensional Tolerance
+/-0.008 (+/-0.2mm)
Suggested Pad Layout
0.200
(5.08mm)
0.100
(2.54mm)
6
0.165
(4.2mm)
Top
View
1
2
3
5
4
0.079
(2.0mm)
Package Characteristics
Package
Hermetically sealed ceramic package and metal cover
Environmental Characteristics
Vibration:
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Shock:
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
Soldering Process; RoHS compliant lead free. See soldering profile on page 2.
Solderability;
Solderability per Mil Std 883E Method 2003.
Bypass
Capacitor
0.01uF
Ground
0.070
(1.78mm)
Enable / Disable Function
Function:
Output
Low:
Disabled (High Impedance)
High or Open: Enabled
1:
2
3:
4:
5:
6:
Models: Lxx2, Lxx3
Enable / Disable
N/C
Ground
Output Q
Complementary Output Q
Supply Voltage (Vcc)
Pad Connections
1:
2
3:
4:
5:
6:
Models: Lxx4, Lxx5
N/C
Enable / Disable
Ground
Output Q
Complementary Output Q
Supply Voltage (Vcc)
Vcc
Power
Supply
Test Circuit
Q
Output Waveform
Duty Cycle
Ground
0.01 uF
100
Ohm
Q
Enable /
Disable
or N/C
Q
Vod
Q
Differential
Output
Waveform
peak-to-peak
80%
0V
t
r
t
f
0V
20%
Vod
Vopp
0V
Tape and Reel Dimensions
Temperature
260°C
220°C
180°C
150°C
120°C
Solder Profile
260°C
0
120 S
Max.
Time
10 S
60 S
Max.
360 Sec. Max.
Bulletin
Dimensional Tolerance: ±.02” (.508mm)
±.005” (.127mm)
Page
Revision
Date
Ds021
2 of 2
08
02 Dec 2009
Specifications subject to change without notice. All dimensions in inches. © Copyright 2009 The Connor-Winfield Corporation
