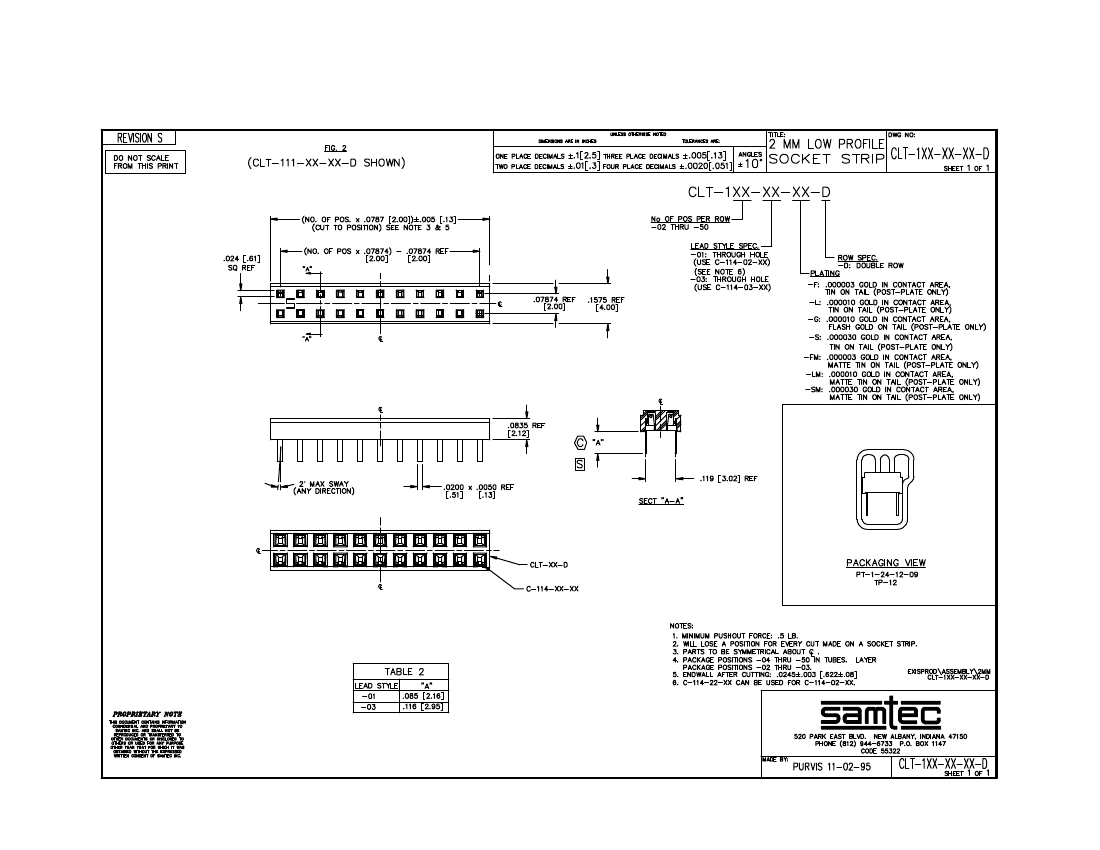

CLT-143-03-LM-D datasheet, PDF

CLT-143-03-LM-D: DescriptionBoard Connector, 86 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket,; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

CLT-143-03-LM-D Overview

Board Connector, 86 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket,

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Samacsys Description	86 Position, Low Profile Dual-Wipe Socket, 2.00mm Pitch
Other features	LOW PROFILE
body width	0.157 inch
subject depth	0.084 inch
body length	3.386 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CLT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.0226 mm
Plating thickness	10u inch
Rated current (signal)	4.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.116 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	86
Evacuation force-minimum value	.1668 N
