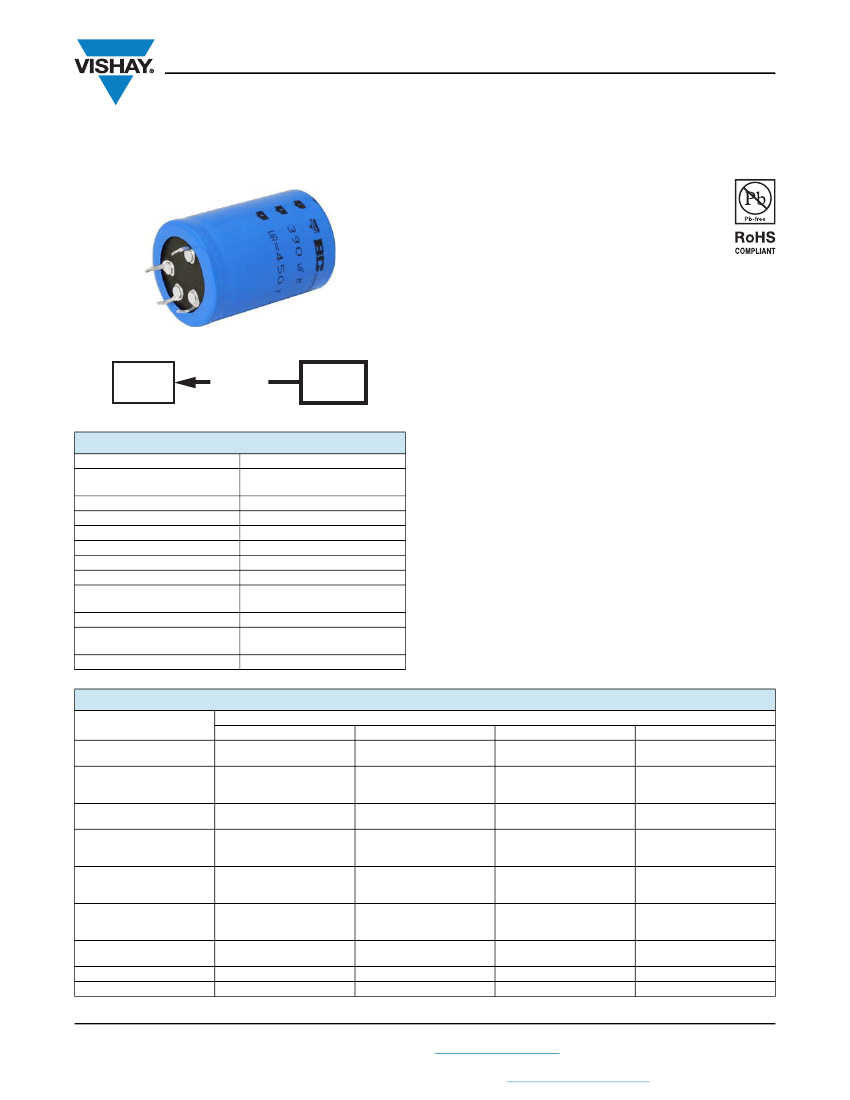

095 PLL-4TSI

www.vishay.com

Vishay BCcomponents

Aluminum Capacitors

Power Long Life 4-Terminal Snap-In

FEATURES

• Polarized aluminum electrolytic capacitors,

non-solid electrolyte

• Large types, minimized dimensions, cylindrical

aluminum case, insulated with a blue sleeve

• Pressure relief on the side of the aluminum case

• Very long useful life: 10 000 h at 85 °C

• Temperature range up to 85 °C

• Keyed polarity

• Low ESR, high ripple current capability

• Compliant to RoHS Directive 2002/95/EC

APPLICATIONS

096

smaller

dimensions

Fig. 1

095

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size

(D x L in mm)

Rated capacitance range C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 85 °C

Useful life at 85 °C

Useful life at 40 °C,

1.4 x I

applied

Shelf life at 0 V, 85 °C

Based on sectional

specification

Climatic category IEC 60068

VALUE

35 x 50 to 45 x 100

390 μF to 2200 μF

± 20 %

350 V to 450 V

- 40 °C to + 85 °C

3000 h

10 000 h

400 000 h

1000 h

IEC 60384-4/EN130300

40/085/56

•

Telecommunication and industrial systems

Smoothing and filtering applications

Switched mode power supplies

Renewable energy power converters

Energy storage in pulse systems

For excellent mounting stability

MARKING

The capacitors are marked (where possible) with the

following information:

• Rated capacitance (in μF)

• Tolerance code on rated capacitance, code letter in

accordance with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Date code (YYMM)

• Name of manufacturer

• Code for factory of origin

• “-” sign to identify the negative terminal, visible from the

top and side of the capacitor

• Code number

• Climatic category in accordance with IEC 60068

SELECTION CHART FOR C

, U

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

390

470

560

680

820

1000

1500

1800

2200

(V)

350

35 x 50

35 x 60

40 x 50

35 x 70

40 x 60

35 x 80

40 x 60

45 x 50

40 x 80

45 x 70

40 x 100

45 x 100

400

35 x 50

40 x 40

35 x 60

45 x 40

35 x 70

40 x 60

45 x 50

35 x 80

40 x 60

35 x 100

40 x 70

45 x 60

40 x 100

45 x 80

45 x 100

420

35 x 50

40 x 40

35 x 60

35 x 70

40 x 60

45 x 50

35 x 80

40 x 70

45 x 50

35 x 100

40 x 80

45 x 60

40 x 100

45 x 80

45 x 100

450

35 x 50

40 x 40

35 x 60

40 x 50

45 x 40

35 x 70

40 x 60

35 x 80

40 x 60

45 x 50

40 x 70

45 x 60

40 x 100

45 x 70

45 x 100
