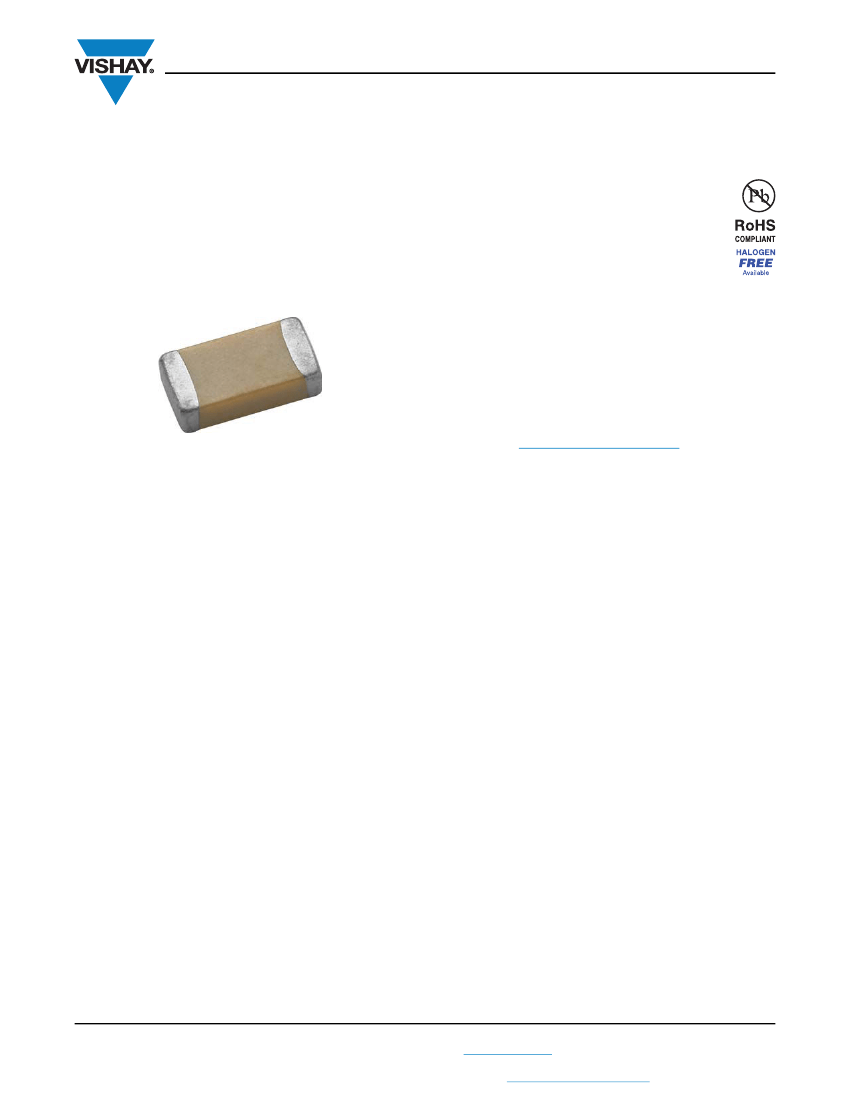

DSCC 05002

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer Ceramic Chip Capacitors

High Frequency DSCC Qualified Type 05002

FEATURES

• US Defense Supply Center approved

• Federal stock control number,

CAGE CODE SHV71

• Case size 0603

• High frequency

• Excellent aging characteristics

• Tin/lead termination code “Z”

• Lead (Pb)-free terminations code “M”

• Surface mount, wet build process

• Reliable Noble Metal Electrode (NME) system

• Made with a combination of design, materials and tight

process control to achieve very high field reliability

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

Lead (Pb)-containing terminations are not RoHS-compliant.

Exemptions may apply.

APPLICATIONS

• Broadband wireless communication

• Satellite communication

• WiFi (802.11) and WiMax (802.16)

• VolP networks and cellular base stations

• Subscriber based wireless devices

ELECTRICAL SPECIFICATIONS

Note

•

Electrical characteristics at 25 °C unless otherwise specified

Operating Temperature:

- 55 °C to + 125 °C

Capacitance Range:

1.0 pF to 100 pF

Voltage Rating:

50 V

to 250 V

Temperature Coefficient of Capacitance (TCC):

BP: 0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C with

zero (0) V

applied

Dissipation Factor (DF):

BP: 0.05 % max. at 1.0 V

RMS

and 1 MHz

Aging Rate:

0 % maximum per decade

Insulation Resistance (IR):

At + 25 °C and rated voltage 100 000 M minimum or

1000

F,

whichever is less

At + 125 °C and rated voltage 10 000 M minimum or

100

F,

whichever is less

Dielectric Strength Test:

Performed per method 103 of EIA-198-2-E.

Applied test voltages



250 V

-rated: 200 % of rated voltage

Revision: 12-Apr-12

Document Number: 45069

For technical questions, contact:

mlcc@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
