UF2M datasheet, PDF - EEWORLD Datasheet

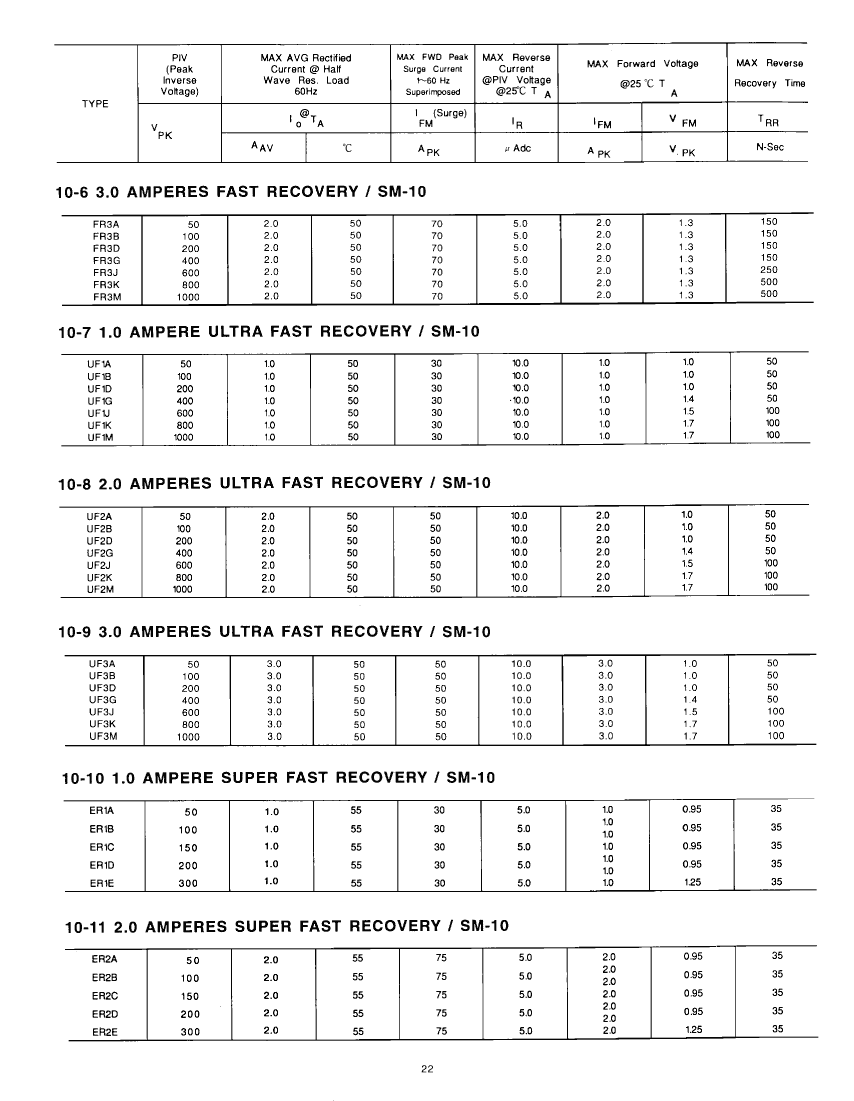

UF2M: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, Silicon; CategoryDiscrete semiconductor diode; File Size34KB，1 Pages; ManufacturerPromax-Johnton Electronic Corporation

Download Datasheet Parametric Compare View All

UF2M Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, Silicon

Parameter Name	Attribute value
Maker	Promax-Johnton Electronic Corporation
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
application	ULTRA FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum reverse current	10 µA
Maximum reverse recovery time	0.1 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

	UF2M	FR3M	UF1M
Description	Rectifier Diode, 1 Phase, 1 Element, 2A, Silicon	Rectifier Diode, 1 Phase, 1 Element, 3A, Silicon	Rectifier Diode, 1 Element, 1A, Silicon
Maker	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknow
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum output current	2 A	3 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.1 µs	0.5 µs	0.1 µs
surface mount	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL
application	ULTRA FAST RECOVERY	FAST RECOVERY	-
Maximum forward voltage (VF)	1.7 V	1.3 V	-
Maximum non-repetitive peak forward current	50 A	70 A	-
Phase	1	1	-
Maximum reverse current	10 µA	5 µA	-
