UF4001-UF4007
UF4001 THRU UF4007
ULTRA FAST RECTIFIERS
Reverse Voltage -
50 to 1000 Volts
DO-41
Forward Current -
1.0 Ampere
FEATURES
1.0 (25.4)
MIN.
0.107(2.7)
0.080(2.0)
DIA.
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ultra fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds,0.375
”
(9.5mm) lead length,
5 lbs. (2.3kg) tension
0.205(5.2)
0.166(4.2)
MECHANICAL DATA
1.0 (25.4)
MIN.
0.034(0.9)
0.028(0.7)
DIA.
Dimensions in inches and (millimeters)
Case:
JEDEC DO-41 molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:0.012
ounce, 0.33 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
UF
4001
UF
4002
UF
4003
UF
4004
UF
4005
UF
4006
UF
4007
UNITS
VOLTS
VOLTS
VOLTS
Amps
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375”(9.5mm) lead length at T
A
=55 C
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=100 C
Maximum reverse recovery time
(NOTE 1)
Typical junction capacitance (NOTE 2)
Typical thermal resistance (NOTE 3)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
1.0
600
420
600
800
560
800
1000
700
1000
I
FSM
V
F
I
R
t
rr
C
J
R
ΦJA
T
J
,
T
STG
50
1.0
30.0
1.70
5.0
50.0
75
15.0
50.0
-65 to +150
Amps
Volts
µ
A
ns
pF
C/W
C
Note:1.Reverse
recovery condition I
F
=0.5A,I
R
=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted
76
nvac
R
LING JIE
STAR SEA
ELECTRONICS CO.,LTD.
•
221 West Industry Court
!
Deer Park, NY 11729-4681
!
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Data Sheet 2629, Rev. A
UF4001-UF4007

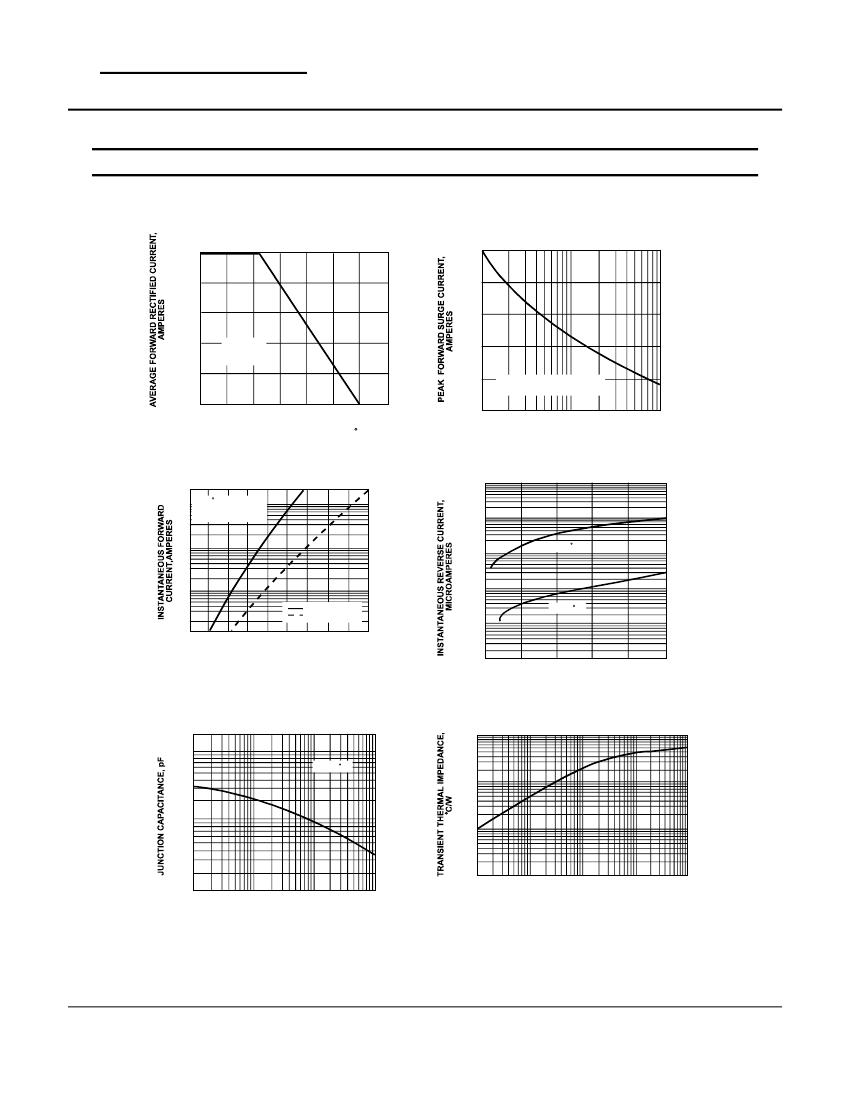

RATINGS AND CHARACTERISTIC CURVES UF4001 THRU UF4007
FIG. 1- FORWARD CURRENT DERATING CURVE
1.0
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
30
0.8
25
0.6
20
0.4
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
15
0.2
10
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0
0
25
50
75
100
125
150
175
5.0
1
10
100
AMBIENT TEMPERATURE, C
NUMBER OF CYCLES AT 60 Hz
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
20
10
T
J
=25 C
PULSE WIDTH=300
µs
1%DUTY CYCLE
100
1,000
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
1
10
TJ=100 C
0.1
UF4001-UF4004
UF4005-UF4007
0.01
0.2
0.6
1.0
1.4
1.8
2.0
1
TJ=25 C
0.1
0.01
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLEAGE,
VOLTS
PERCENT OF PEAK REVERSE VOLTAGE,%
FIG. 5-TYPICAL JUNCTION CAPACITANCE
200
100
T
J
=25 C
10
100
FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE
10
1
0.1
0.01
1
0.1
1.0
10
100
0.1
1
10
100
REVERSE VOLTAGE,VOLTS
t,PULSE DURATION,sec.
77
nvac
R
LI NG JIE
STAR SEA
ELECTRONICS CO.,LTD.
•
221 West Industry Court
!
Deer Park, NY 11729-4681
!
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
