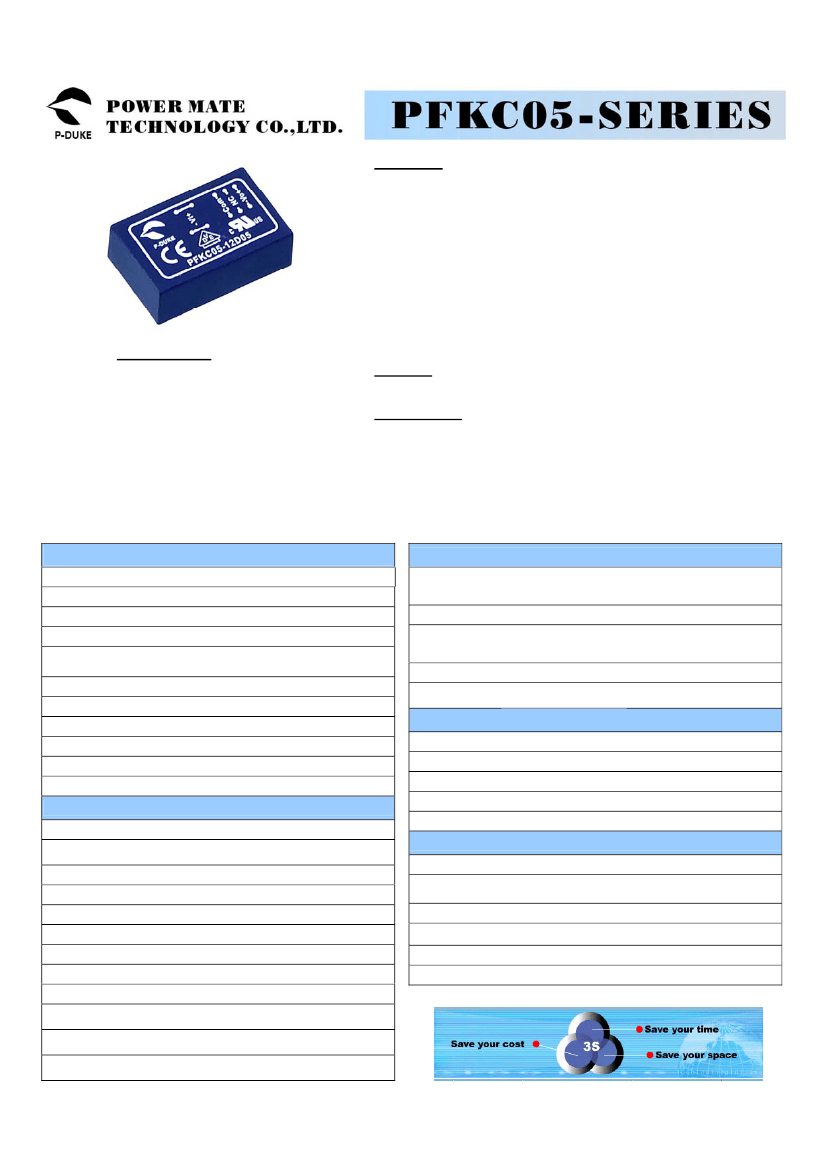

FEATURES
1 / 3
•
5 WATTS REGULATED OUTPUT POWER
•
OUTPUT CURRENT UP TO 1000mA
•
STANDARD 1.25 X 0.80 X 0.40 INCH
•
HIGH EFFICIENCY UP TO 81%
•
2:1 WIDE INPUT VOLTAGE RANGE
•
SWITCHING FREQUENCY (100KHz, MIN.)
•
OVER CURRENT PROTECTION
•
STANDARD 24 PIN DIP PACKAGE & SMD TYPE PACKAGE
•
CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC
•
UL60950-1, EN60950-1 AND IEC60950-1 LICENSED
•
ISO9001 CERTIFIED MANUFACTURING FACILITIES
•
COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
SMD TYPE
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment
OPTIONS
DESCRIPTION
The PFKC05 series offer 5 watts of output power from a package in an IC
compatible 24pin DIP configuration without derating to 71ºC ambient
temperature and pin to pin compatible with PFKC03, FKC03, FKC05
series. PFKC05 series have 2:1 wide input voltage of 9-18, 18-36 and
36-75VDC.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load (Note 7)
Line regulation
Load regulation
LL to HL at Full Load
Min. Load to Full Load
Single
Dual
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
INPUT SPECIFICATIONS
5 Watts max.
± 1%
See table
± 0.2%
± 0.5%
± 2%
± 5%
See table
±0.02%
/ ºC, max.
500μS
180% typ.
Input voltage range
Input filter
Input surge voltage
100mS max.
12V input
24V input
48V input
Nominal Vin and full load
Power up
Nominal Vin and
constant resistive load
12V nominal input
24V nominal input
48V nominal input
9 – 18VDC
18 – 36VDC
36 – 75VDC
Pi type
36VDC
50VDC
100VDC
150mAp-p
30mS typ.
Input reflected ripple current
Start up time
Cross regulation (Dual) Asymmetrical load 25% / 100% FL
Ripple and noise
Temperature coefficient
20MHz bandwidth
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature
Storage temperature range
Thermal shock
Vibration
-25ºC ~ +71ºC(non derating)
-55ºC ~ +105ºC
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
Transient response recovery time 25% load step change
Over load protection
Short circuit protection
% of FL at nominal input
Continuous, automatics recovery
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Input to Output
Standard
Suffix “ H ”
See table
1600VDC, min.
3000VDC, min.
10 ohms, min.
300pF, max.
100KHz, min.
IEC60950-1, UL60950-1, EN60950-1
Non-conductive black plastic
Non-conductive black plastic
Epoxy (UL94-V0)
1.25 X 0.80 X 0.40 Inch
(31.8 X 20.3 X 10.2 mm)
DIP
14g (0.48oz)
SMD
15g (0.52oz)
6
BELLCORE TR-NWT-000332
3.731 x 10 hrs
6
MIL-HDBK-217F
2.591 x 10 hrs
9
Relative humidity
EMC CHARACTERISTICS
EMI
ESD
Radiated immunity
Fast transient (Note 6)
Surge (Note 6)
Conducted immunity
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Air
Contact
±
8KV
±
6KV
10 V/m
±
2KV
±
1KV
10 Vr.m.s
Class A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria A
Isolation resistance
Isolation capacitance
Switching frequency
Approvals and standard
Case material
Base material
Potting material

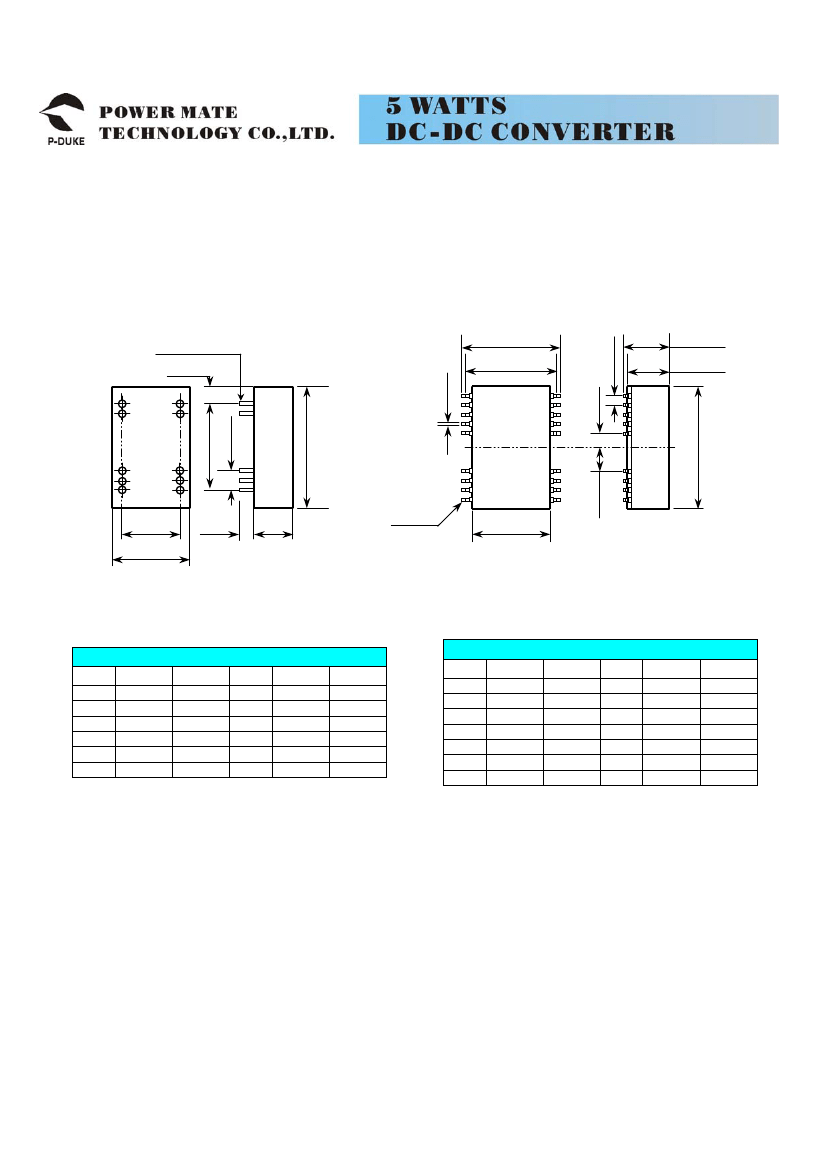

Dimensions
Weight
MTBF (Note 1)
2 / 3
Model
Number
PFKC05-12S33
PFKC05-12S05
PFKC05-12S12
PFKC05-12S15
PFKC05-12D05
PFKC05-12D12
PFKC05-12D15
PFKC05-24S33
PFKC05-24S05
PFKC05-24S12
PFKC05-24S15
PFKC05-24D05
PFKC05-24D12
PFKC05-48S33
PFKC05-48S05
PFKC05-48S12
PFKC05-48S15
PFKC05-48D05
PFKC05-48D12
PFKC05-48D15
Input
Range
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output Current
Min. load Full load
100mA
100mA
47mA
40mA
±50mA
±20mA
±19mA
100mA
100mA
47mA
40mA
±50mA
±23mA
±19mA
100mA
100mA
47mA
40mA
±50mA
±23mA
±19mA
1000mA
1000mA
470mA
400mA
± 500mA
± 230mA
± 190mA
1000mA
1000mA
470mA
400mA
± 500mA
± 230mA
± 190mA
1000mA
1000mA
470mA
400mA
± 500mA
± 230mA
± 190mA
Output
(4)
Input Current
Ripple & Noise No load
(3)
Full load
(2)
75mVp-p
75mVp-p
120mVp-p
150mVp-p
75mVp-p
120mVp-p
150mVp-p
75mVp-p
75mVp-p
120mVp-p
150mVp-p
75mVp-p
120mVp-p
150mVp-p
75mVp-p
75mVp-p
120mVp-p
150mVp-p
75mVp-p
120mVp-p
150mVp-p
25mA
10mA
30mA
20mA
20mA
50mA
30mA
15mA
10mA
10mA
10mA
10mA
40mA
10mA
5mA
5mA
5mA
5mA
10mA
10mA
10mA
404mA
579mA
618mA
658mA
571mA
605mA
625mA
202mA
278mA
306mA
325mA
282mA
299mA
309mA
100mA
141mA
153mA
162mA
143mA
149mA
154mA
Eff
(4)
Capacitor
(5)
(%)
Load max.
72
76
80
80
77
80
80
72
79
81
81
78
81
81
73
78
81
81
77
81
81
2200μF
1000μF
220μF
150μF
± 680μF
± 100μF
± 68μF
2200μF
1000μF
220μF
150μF
± 680μF
± 100μF
± 68μF
2200μF
1000μF
220μF
150μF
± 680μF
± 100μF
± 68μF
PFKC05-24D15 18 – 36 VDC
Note
1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC.
MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load(Ground, Benign, controlled environment).
2. Maximum value at nominal input voltage and full load.
3. Typical value at nominal input voltage and no load.
4. Typical value at nominal input voltage and full load.
5. Test by minimum Vin and constant resistive load.
6. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Power Mate suggest: Nippon chemi-con KY series, 220μF/100V, ESR 48mΩ.
7. The output requires a minimum loading on the output to maintain specified regulation. Operation under no-load condition will not damage these devices,
however they may not meet all listed specification.

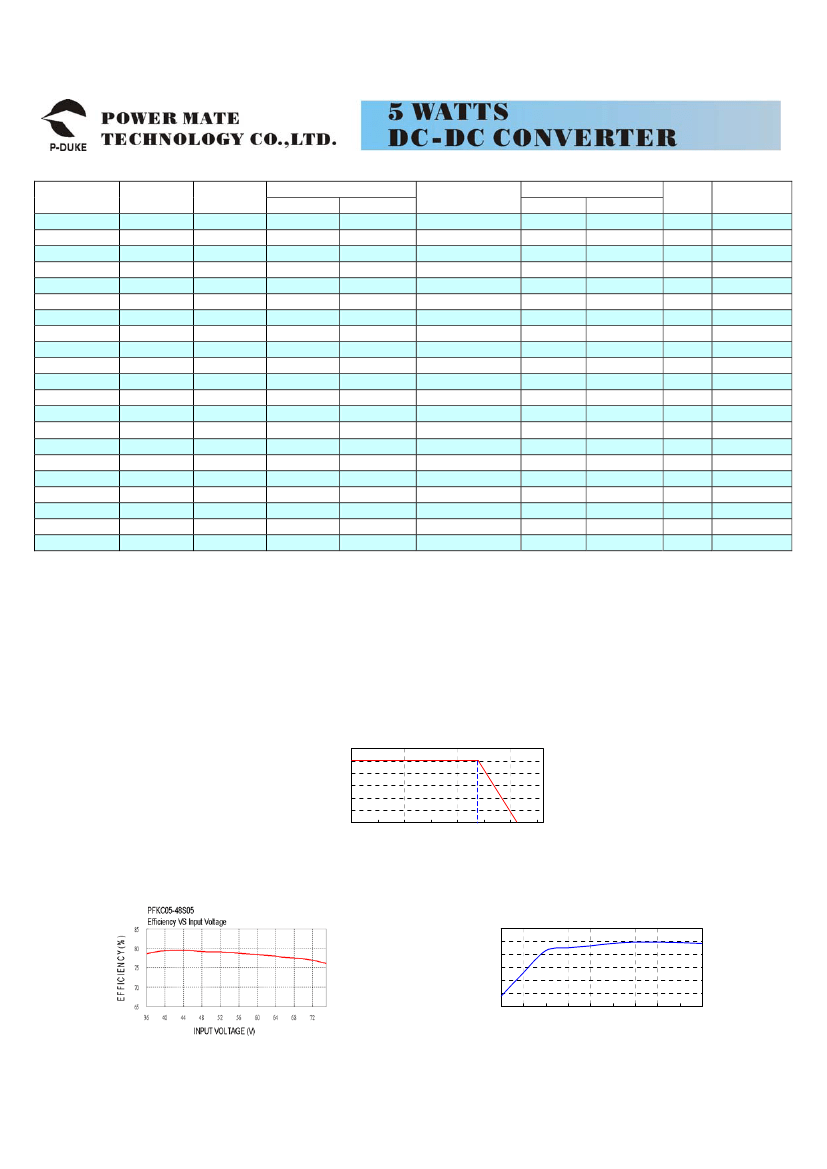

PFKC05-48S05 Derating Curve
120
100
80
60
40
20
0
-25
-5
15
35
55
75
71
95
115
OUTPUT POWER (%)
AMBIENT TEMPERATURE(℃)
EFFICIENCY(%)
85
80
75
70
65
60
55
PFKC05-48S05
Efficiency VS Output Load
10
20
30
40
50
60
70
80
90
100
OUTPUT LOAD (% of Full Load)
