65.31.9.125.4300 Overview

Electromechanical Relay, SPST-NO, BBM, 138VDC (Coil), Random, AC/DC Output

65.31.9.125.4300 Parametric

Parameter NameAttribute value
MakerFINDER
Reach Compliance Codecompliant
body width32.2 mm
body height42.2 mm
Body length or diameter36.5 mm
Coil operating voltage (DC)106 V
Coil resistance12000 Ω
Maximum coil voltage (DC)138 V
Nominal coil voltage125 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load5000VA@400VAC
Contact (AC) maximum rated R load120A@400VAC
Maximum contact current (AC)120 A
Maximum contact voltage (AC)400 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts2500 Vrms
Dielectric strength between breaking contacts1500 Vrms
Electrical life80000 Cycle(s)
End contact materialSILVER TIN OXIDE
Input switching control typeRandom
operating hours10 ms
Maximum operating temperature75 °C
Minimum operating temperature-40 °C
physical size36.5mm x 32.2mm x 42.2mm
Relay actionBBM
Relay style1 FORM A
Relay functionSPST-NO
release time12 ms
Terminal length0.0096 inch
Termination typeQUICK CONNECT

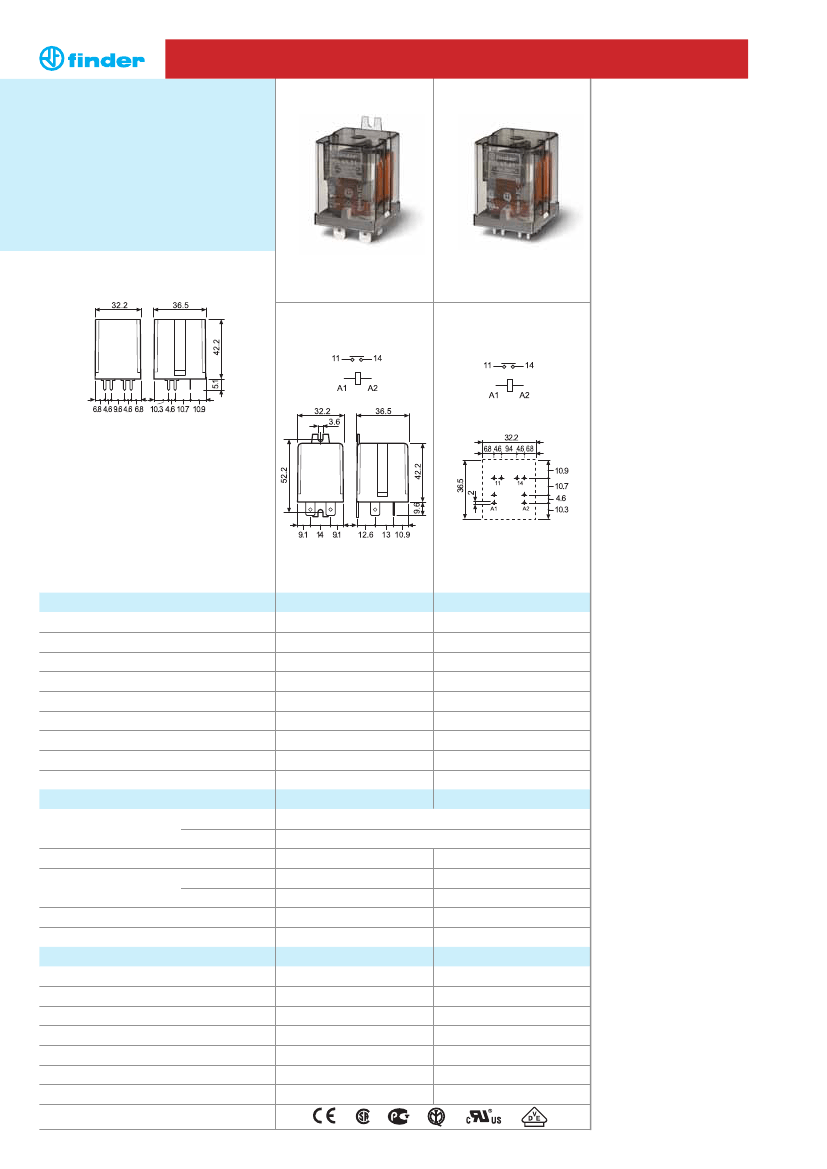

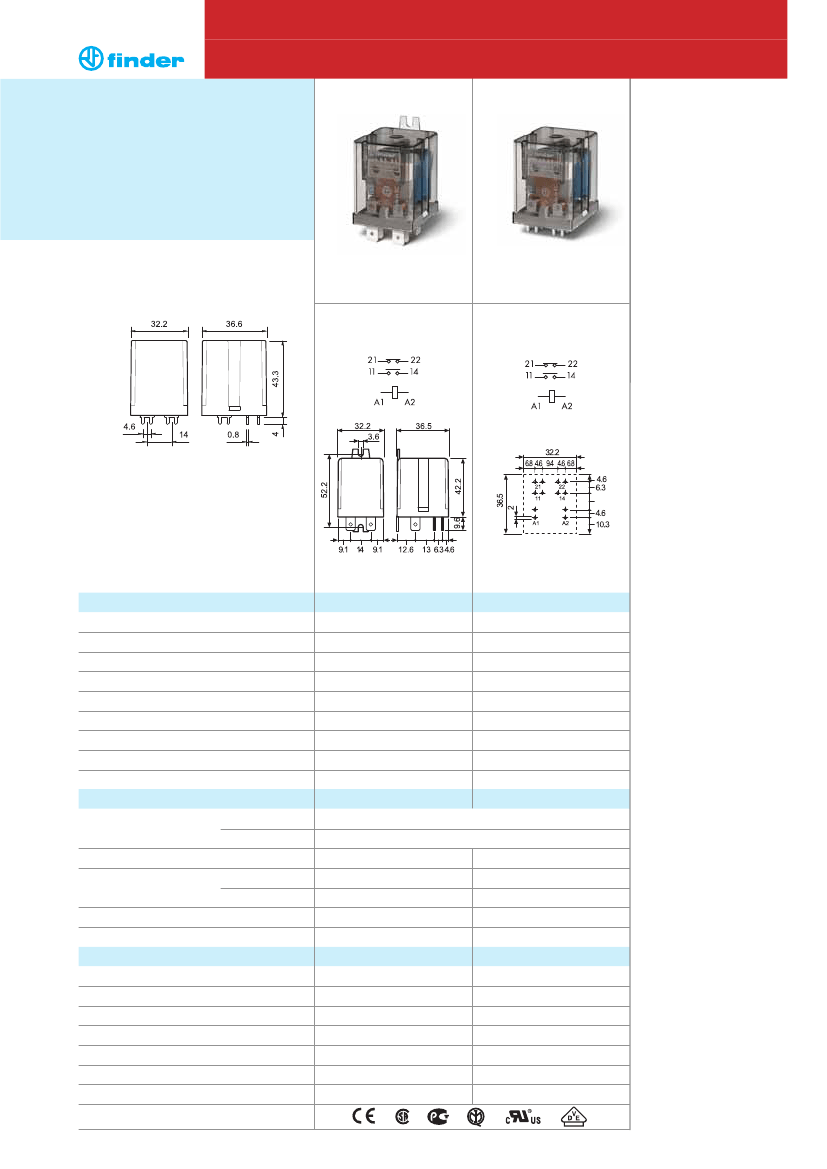

65 Series - Power relays 20 - 30 A
Features
20 A Power relays
1 NO + 1 NC (SPST-NO + SPST-NC)

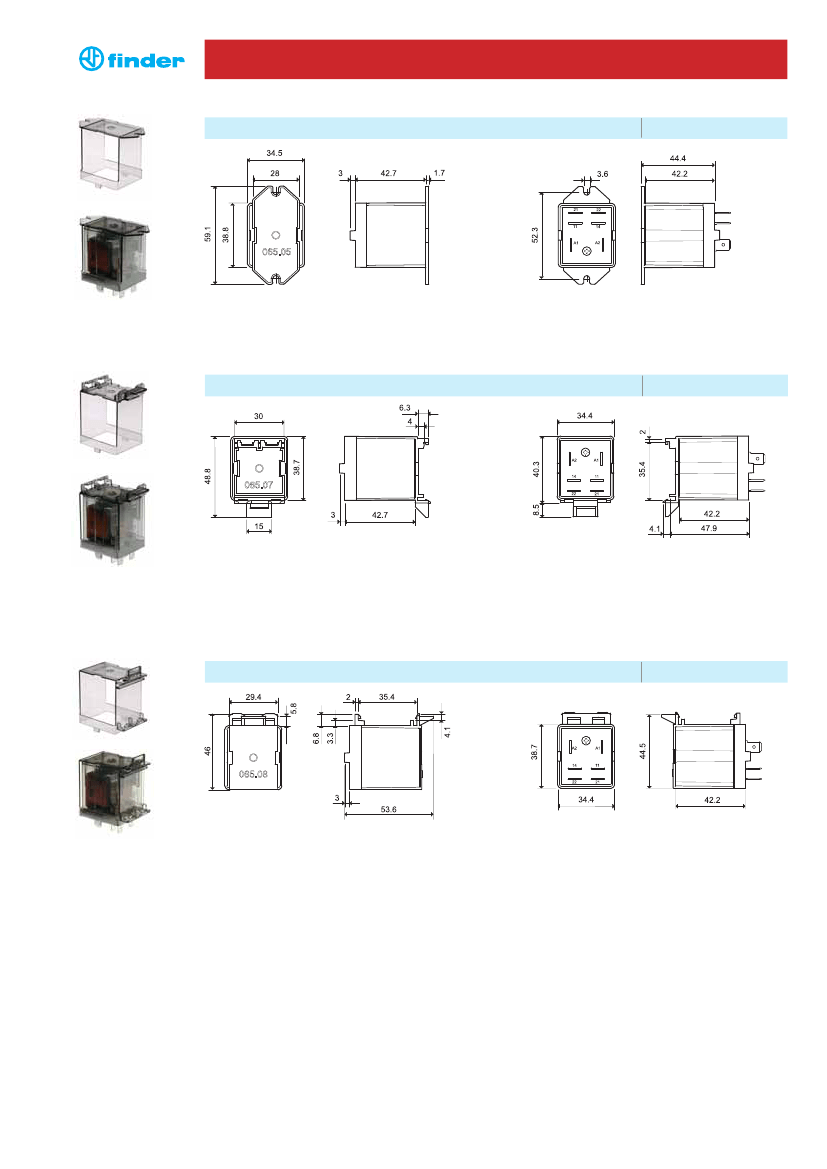

65.31 Flange mount
Faston 250 connections
65.61 PCB mount
AC coils & DC coils
Cadmium Free option available
65.31
65.61
20 A rated contacts
Flange mount/Faston 250
(6.3x0.8 mm) connection
20 A rated contacts
PCB mount -
bifurcated terminals
65.61
* With the AgSnO
2
material the maximum
peak current is 120 A - 5 ms on NO contact.
F
OR
UL
RATINGS SEE
:
“General technical information” page
V
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
Rated power AC/DC
Operating range
Holding voltage
Must drop-out voltage

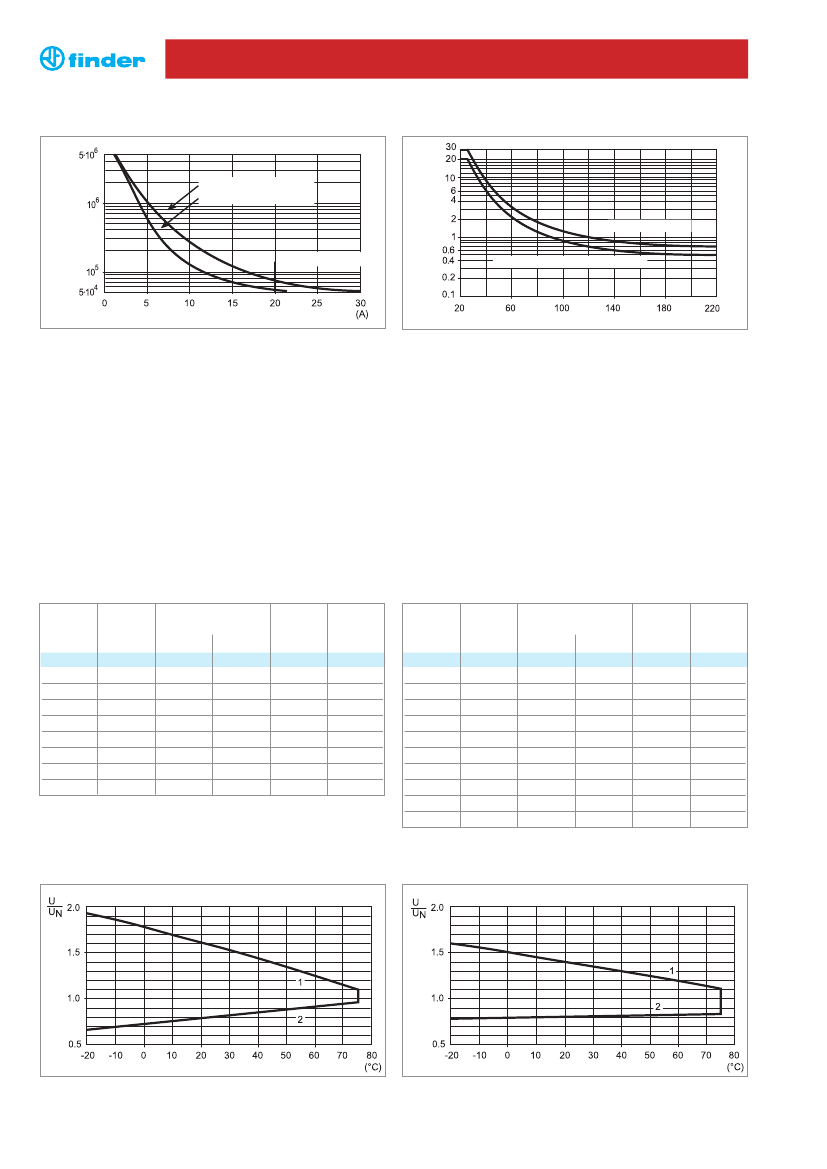

Technical data
Mechanical life AC/DC
Electrical life at rated load AC1
Operate/release time
Dielectric strength between open contacts
Ambient temperature range
Environmental protection
Approvals
(according to type)
1
Copper side view
1NO+1NC (SPST-NO+SPST-NC) 1NO+1NC (SPST-NO+SPST-NC)
A
VA
VA
kW
A
20/40*
250/400
5,000
1,000
1.1
20/0.8/0.5
1,000 (10/10)
AgCdO
V AC (50/60 Hz)
V DC
VA (50 Hz)/W
AC
DC
AC/DC
AC/DC
cycles
cycles
ms
V AC
°C
20/40*
250/400
5,000
1,000
1.1
20/0.8/0.5
1,000 (10/10)
AgCdO
Rated voltage/Maximum switching voltage V AC
mW (V/mA)
6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240 - 400
6 - 12 - 24 - 48 - 60 - 110 - 125 - 220
2.2/1.3
(0.8…1.1)U
N
(0.85…1.1)U
N
0.8 U
N
/0.6 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
/30 · 10
6
80 · 10
3
10/12
4
1,500
–40…+75
RT I
2.2/1.3
(0.8…1.1)U
N
(0.85…1.1)U
N
0.8 U
N
/0.6 U
N
0.2 U
N
/0.1 U
N
10 · 10
6
/30 · 10
6
80 · 10
3
10/12
4
1,500
–40…+75
RT I
Insulation between coil and contacts (1.2/50 µs) kV
